| Model |

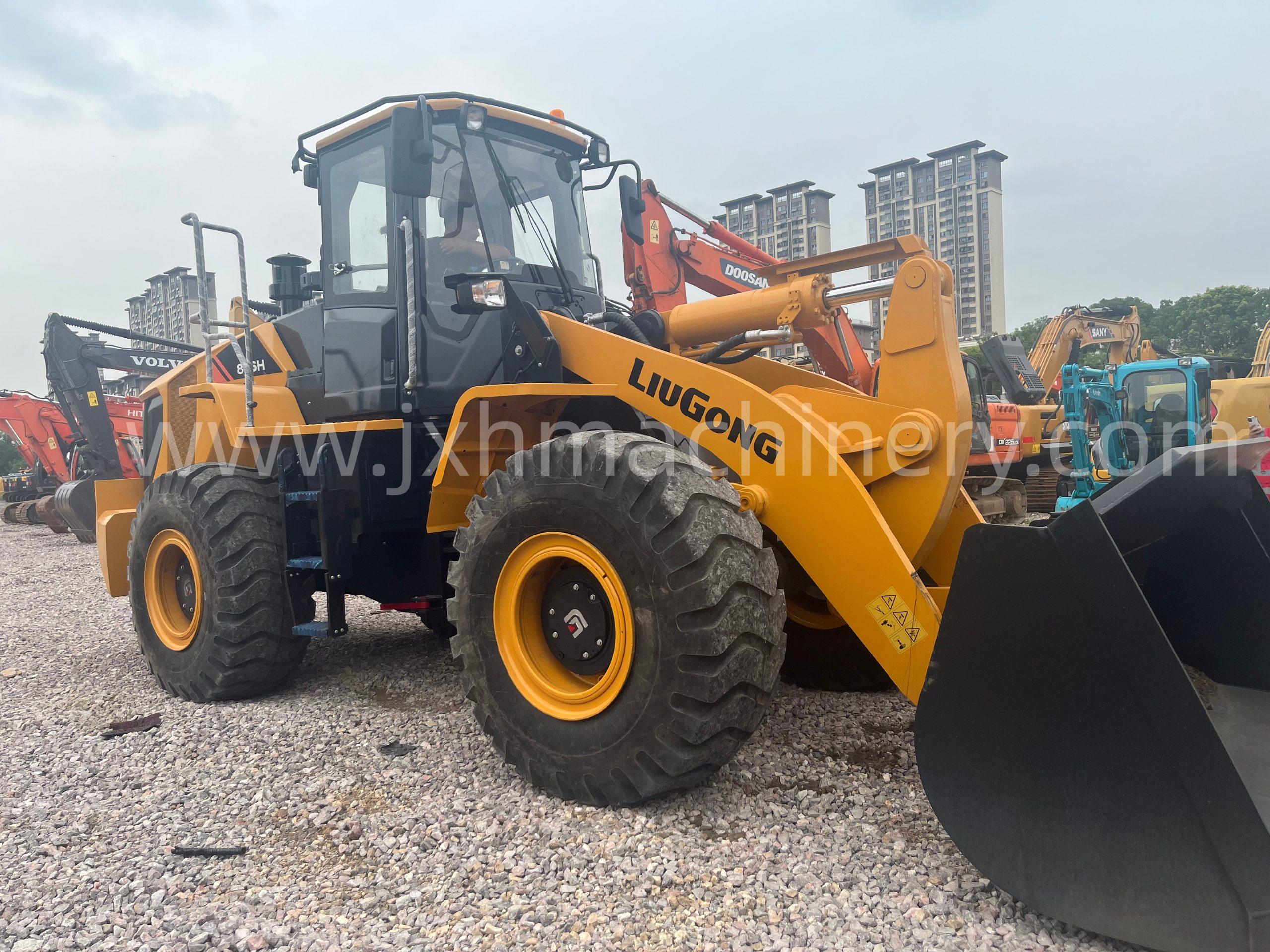

Liugong CLG856H |
| Type |
Articulated Wheel Loader |
| Rated Load |
5000 kg |
| Operating Weight |
17,900 kg (Standard cab version, with standard bucket) |
| Standard Bucket Capacity (Heaped) |
3.5 m³ (Optional:2.7~5.2 m³) |
| Shipping Dimension(L×W×H) |
8390 × 2750 × 3500 mm |
| Wheelbase |
3300 mm |
| Tread Width |
2150 mm |
| Tire Size |
23.5-25, 16PR L-3 |
| Articulation Angle |
38° |
| Min Turning Radius (over tyre) |
6207 mm |
| Bucket Breakout Force |
180.7 kN |
| Tipping Load (full turn) |
12600 kg |
| Max Dump Clearance |
2978 mm |
| Max Dump Reach |
1231 mm |
| Ground Clearance |
431 mm |
| Travel Speed (Low / High) |
10 / 38 km/h |
| Total Hydraulic Cycle Time |
9.4 s |
| Engine |
Cummins 6LTAA9.3 (Tier2 / Stage II for export used machine) |
| Rated Gross Power |
162 kW (217 hp) @2200 rpm |
| Max Torque |
940 N·m @1500 rpm |
| 6 Cylinders, Turbocharged & Intercooled |
|
| Transmission |
ZF Powershift, 4 Forward / 3 Reverse |
| Hydraulic System |
Load sensing hydraulic system |
| Main Relief Pressure |
22 MPa |
| Fuel Tank Capacity |
300 L |
| Service Brake |
Wet disc brake |
