| Model |

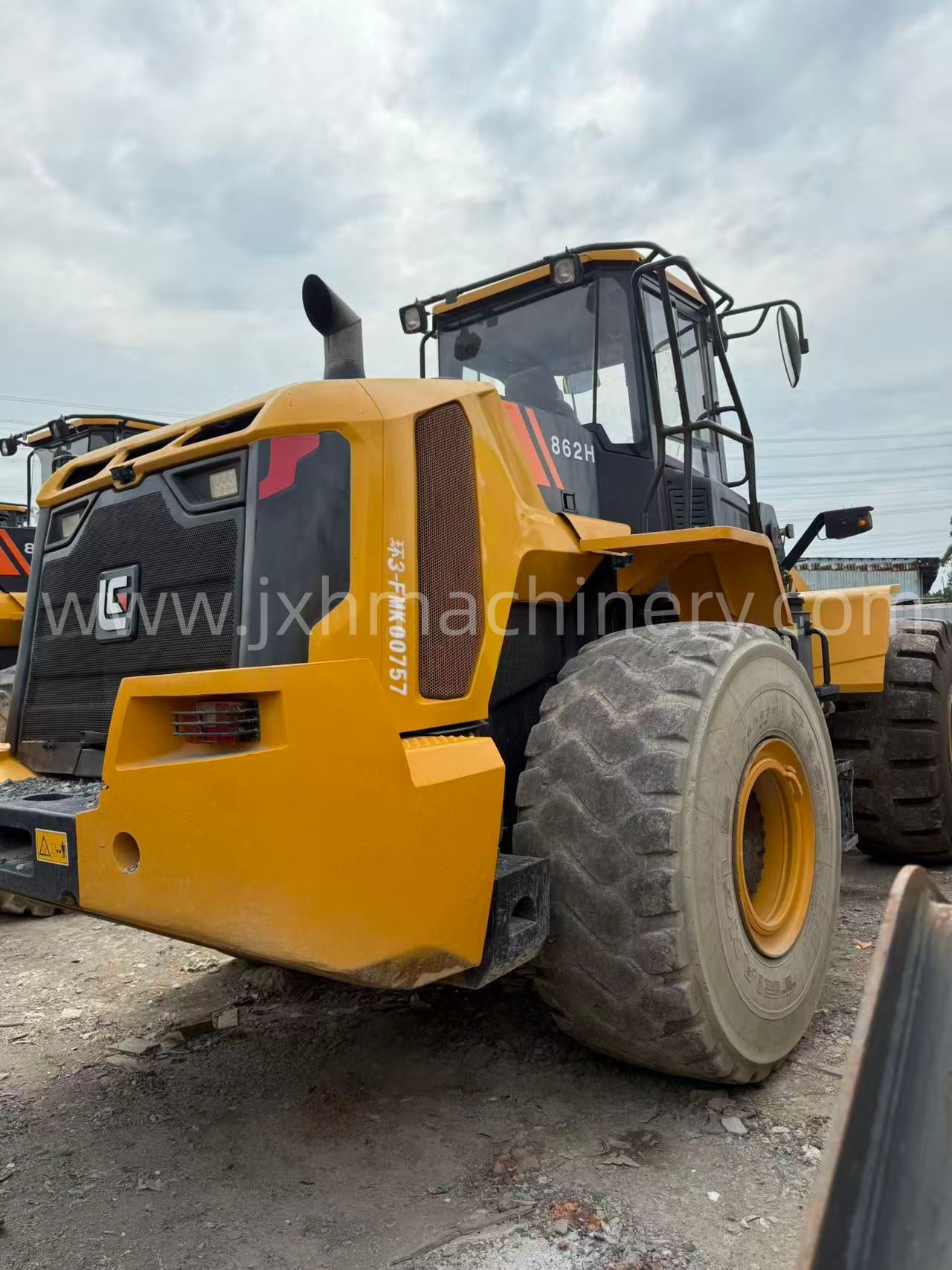

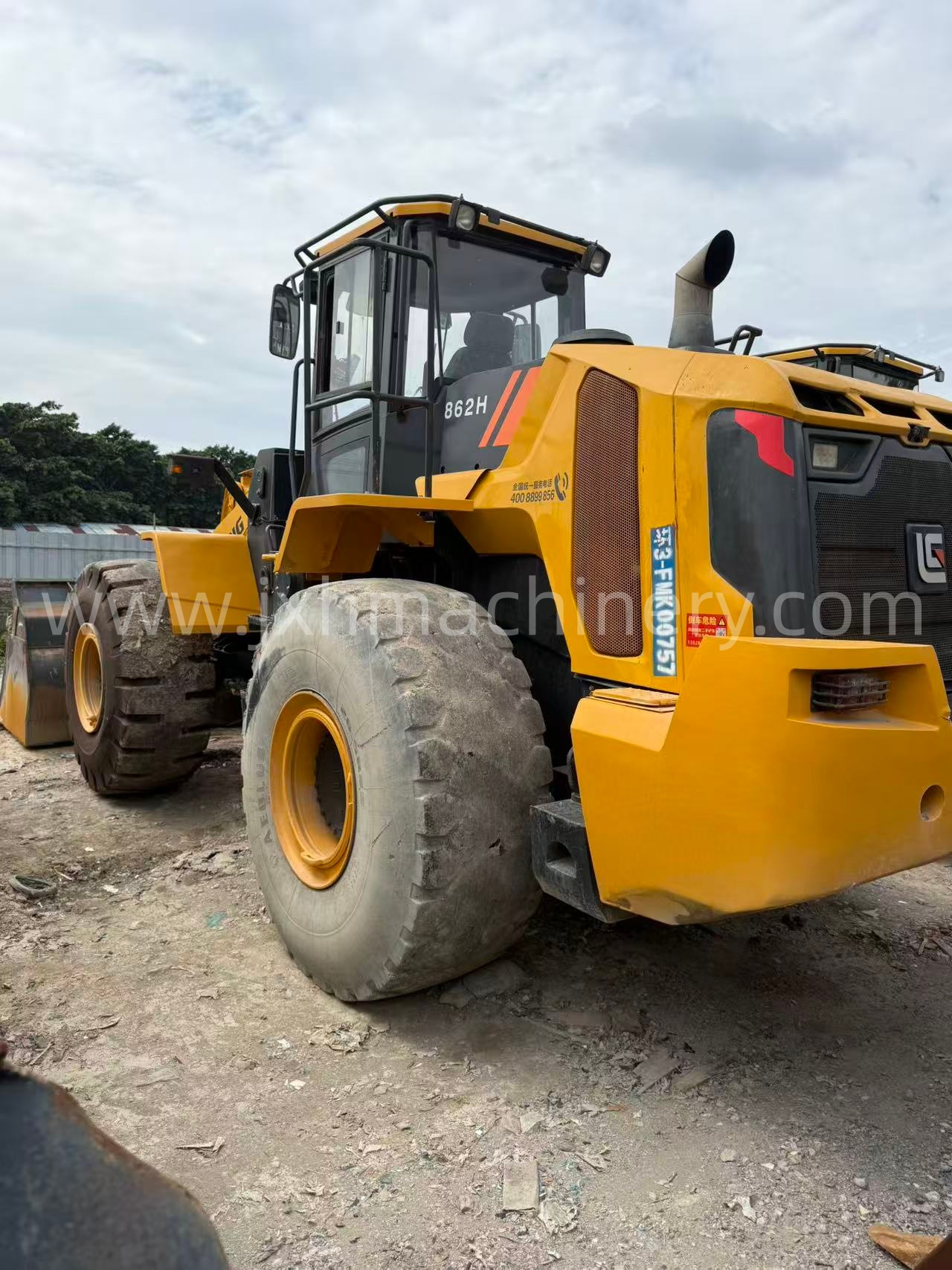

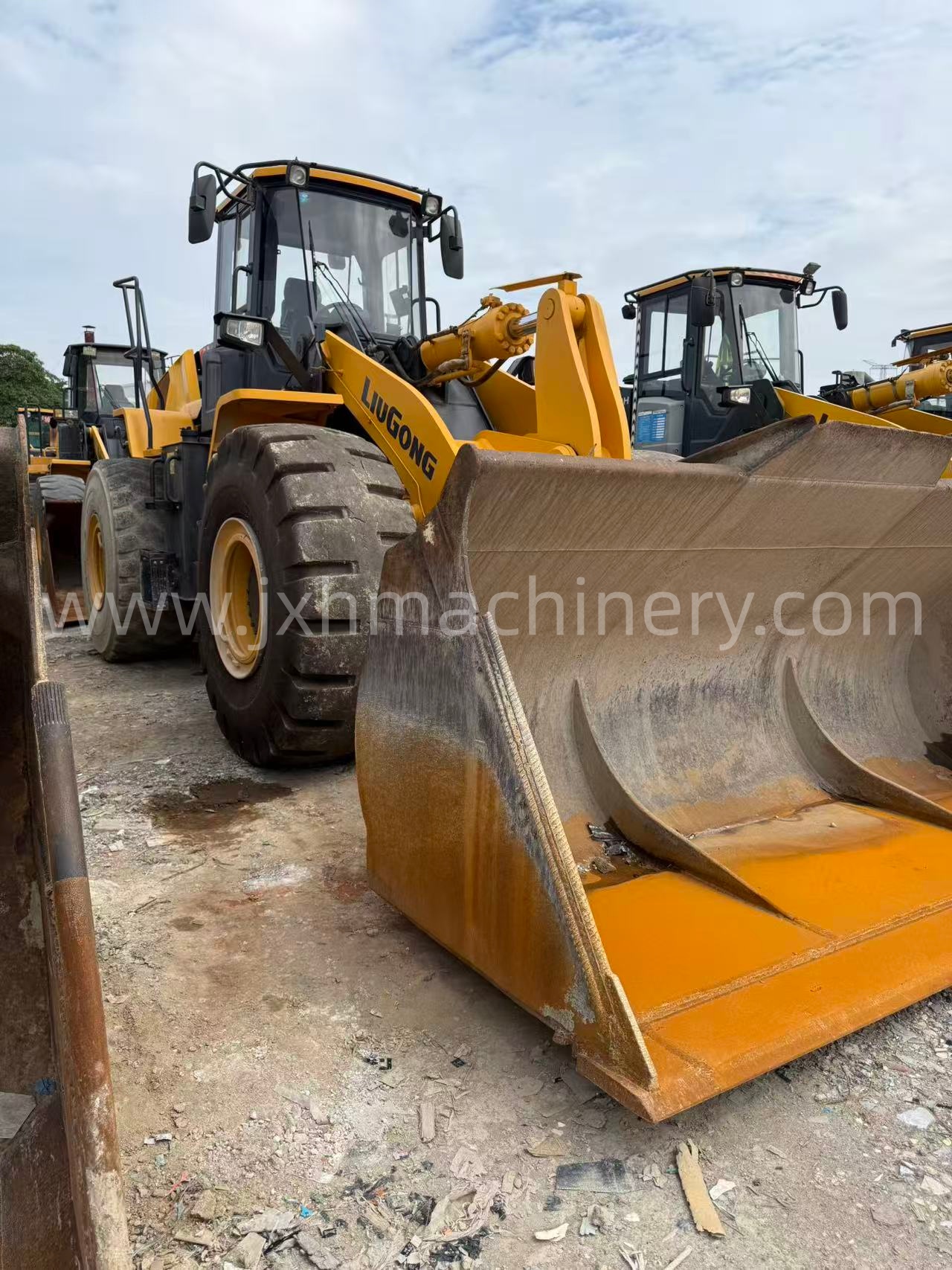

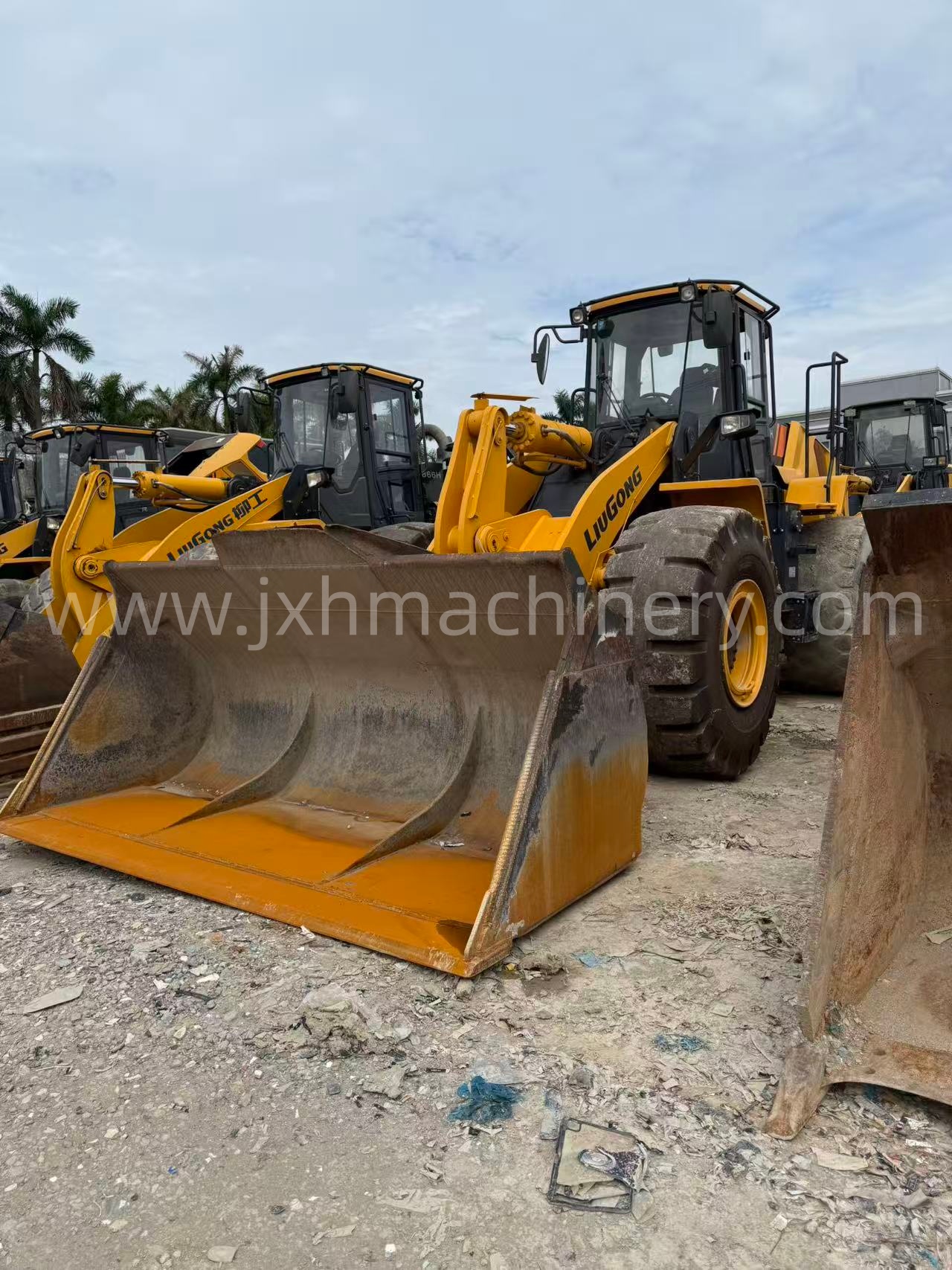

Liugong CLG862H |
| Type |
Articulated Wheel Loader |
| Rated Load |
6000 kg |
| Operating Weight |
20,400 kg (Standard cab version, with standard bucket) |
| Standard Bucket Capacity (Heaped) |
4.0 m³ (Optional:3.5 ~5.2 m³) |
| Shipping Dimension(L×W×H) |
8740 × 2880 × 3500 mm |
| Wheelbase |
3550 mm |
| Tread Width |
2280 mm |
| Tire Size |
23.5-25, 24PR L-3 |
| Articulation Angle |
38° |
| Min Turning Radius (over tyre) |
6600 mm |
| Bucket Breakout Force |
180 kN |
| Tipping Load (full turn) |
14200 kg |
| Max Dump Clearance |
3253 mm |
| Max Dump Reach |
1122 mm |
| Ground Clearance |
410 mm |
| Travel Speed (Low / High) |
8 / 35 km/h |
| Total Hydraulic Cycle Time |
9.3 s |
| Engine |
Cummins 6LTAA8.9-C (Tier2 / Stage II for used export machine) |
| Rated Gross Power |
179 kW (240 hp) @2200 rpm |
| 6 Cylinders, Turbocharged & Intercooled |
|
| Transmission |
Countershaft power shift, 4 Forward / 3 Reverse |
| Hydraulic System |
Gear pump hydraulic system |
| Main Relief Pressure |
24 MPa |
| Fuel Tank Capacity |
330 L |
| Service Brake |
Wet disc brake |
