| Model |

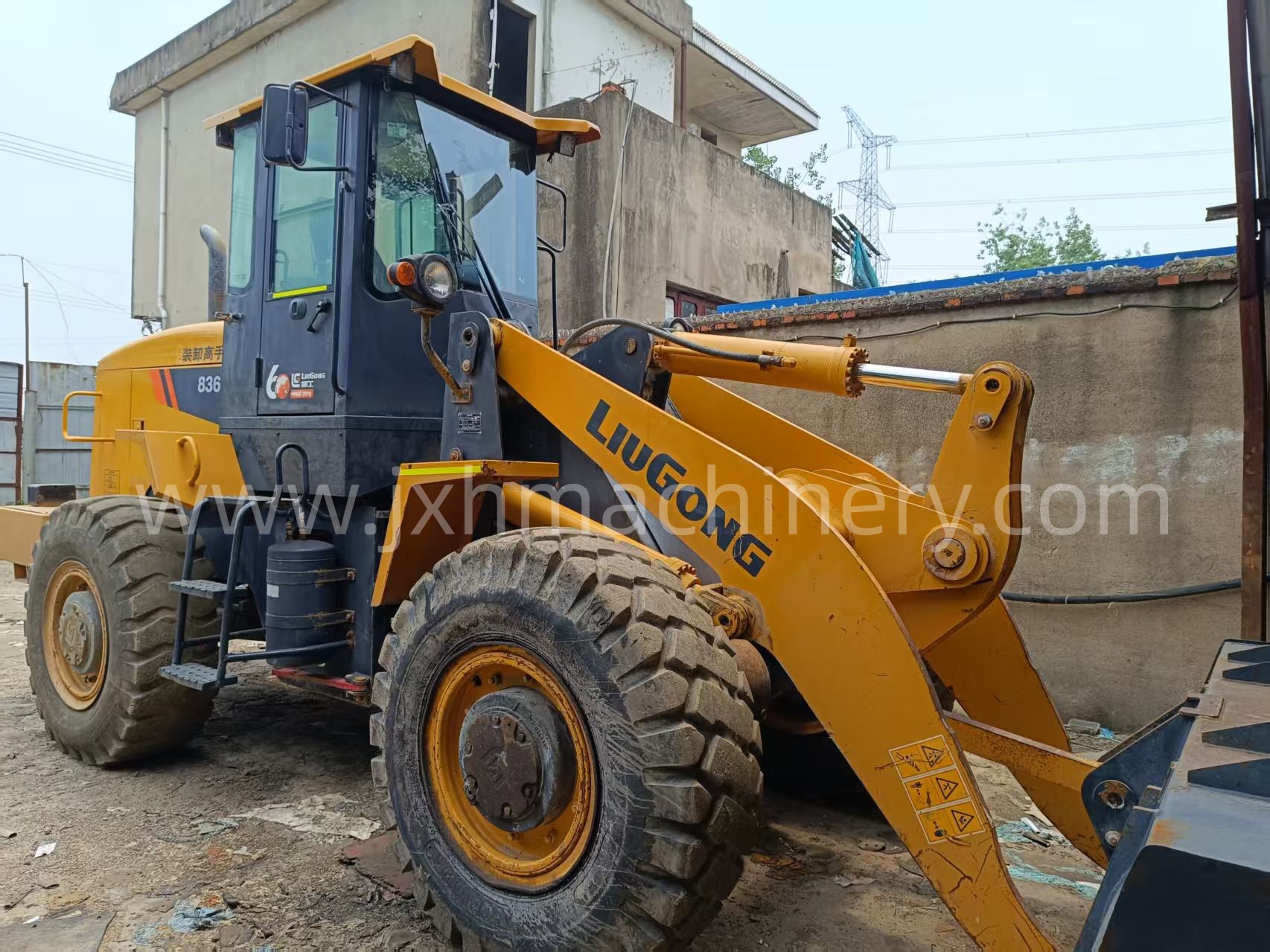

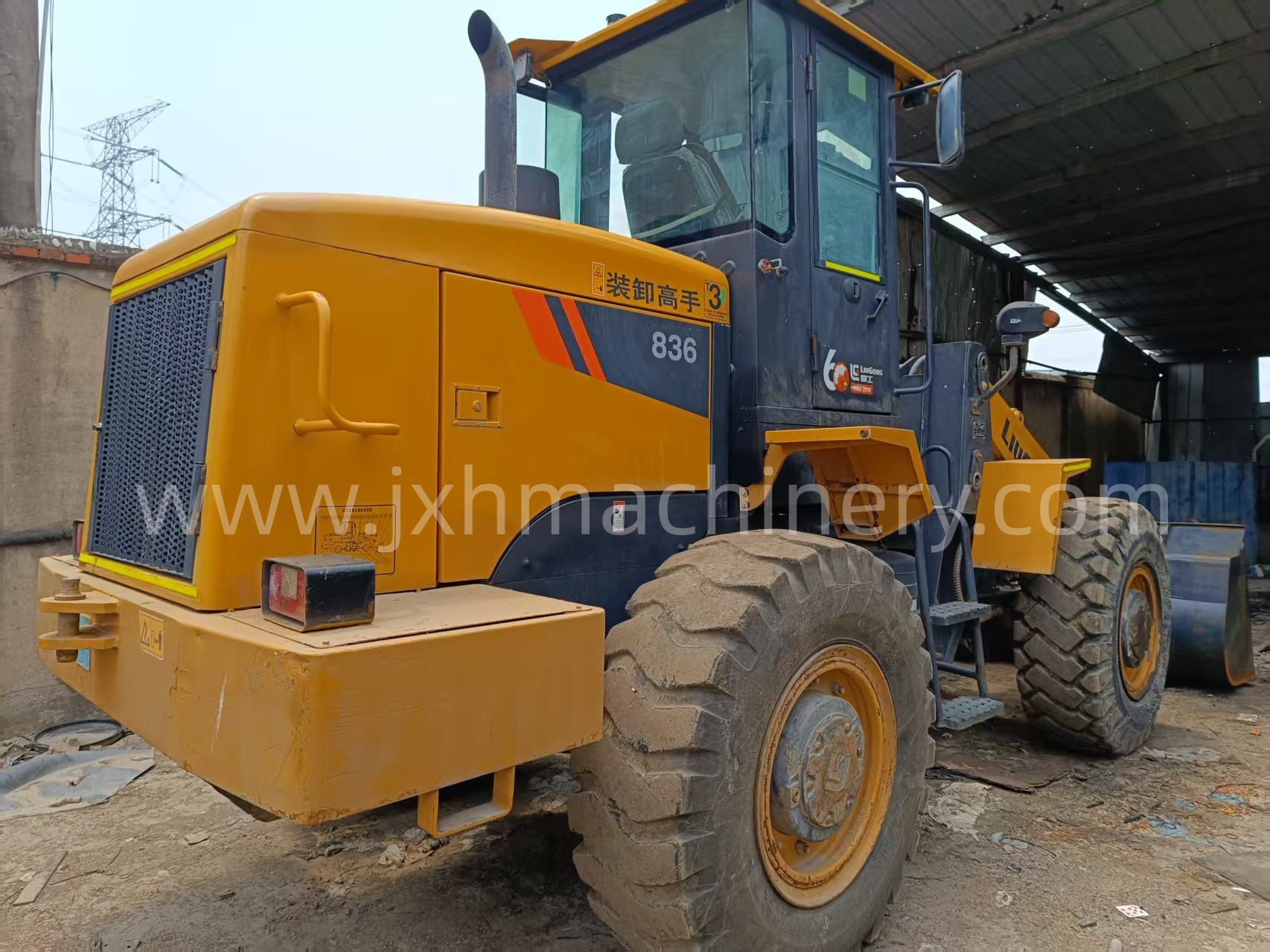

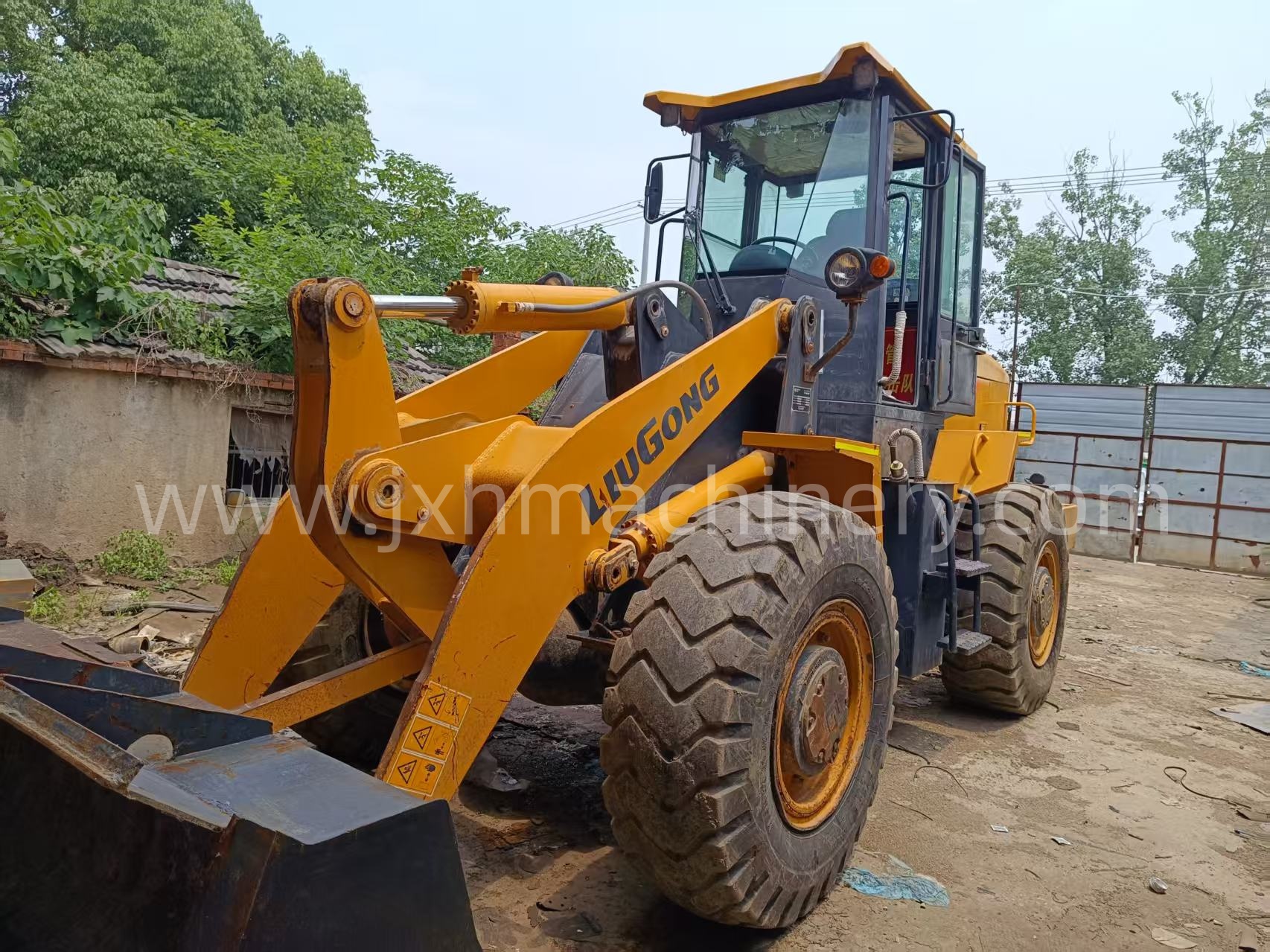

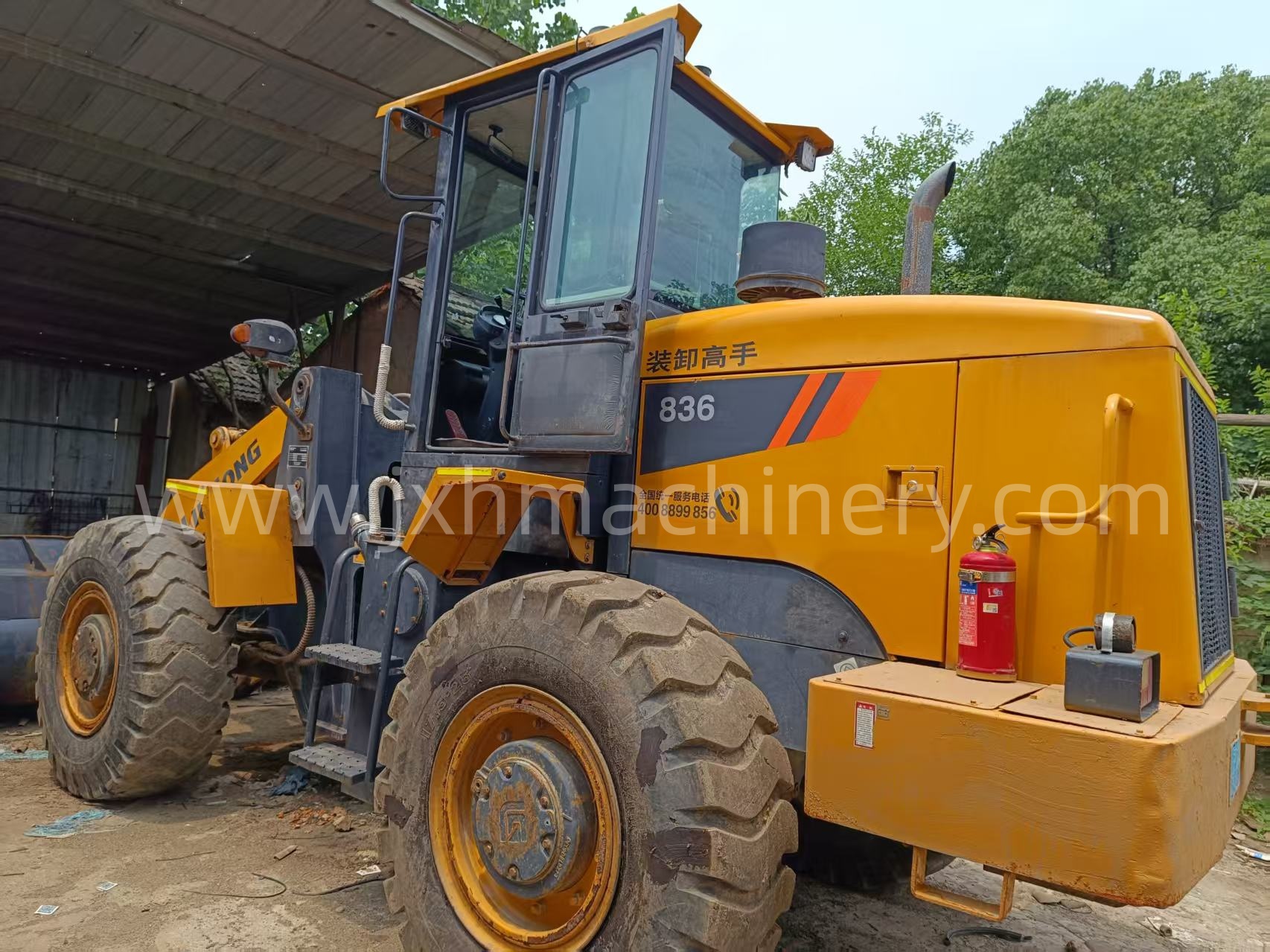

Liugong CLG836 |
| Type |
Articulated Wheel Loader |
| Rated Load |
3000 kg |
| Operating Weight |
10,300 kg (Standard cab version, with standard bucket) |
| Standard Bucket Capacity (Heaped) |
1.7 m³ (Optional:1.5~2.0 m³) |
| Shipping Dimension(L×W×H) |
6860 × 2295 × 3297 mm |
| Wheelbase |
2870 mm |
| Tread Width |
1850 mm |
| Tire Size |
17.5-25, 12PR L-3 |
| Articulation Angle |
40° |
| Min Turning Radius (over tyre) |
5173 mm |
| Bucket Breakout Force |
100 kN |
| Tipping Load (full turn) |
6628 kg |
| Max Dump Clearance |
2910 mm |
| Max Dump Reach |
1072 mm |
| Ground Clearance |
322 mm |
| Travel Speed (Low / High) |
11 / 35 km/h |
| Total Hydraulic Cycle Time |
8.4 s |

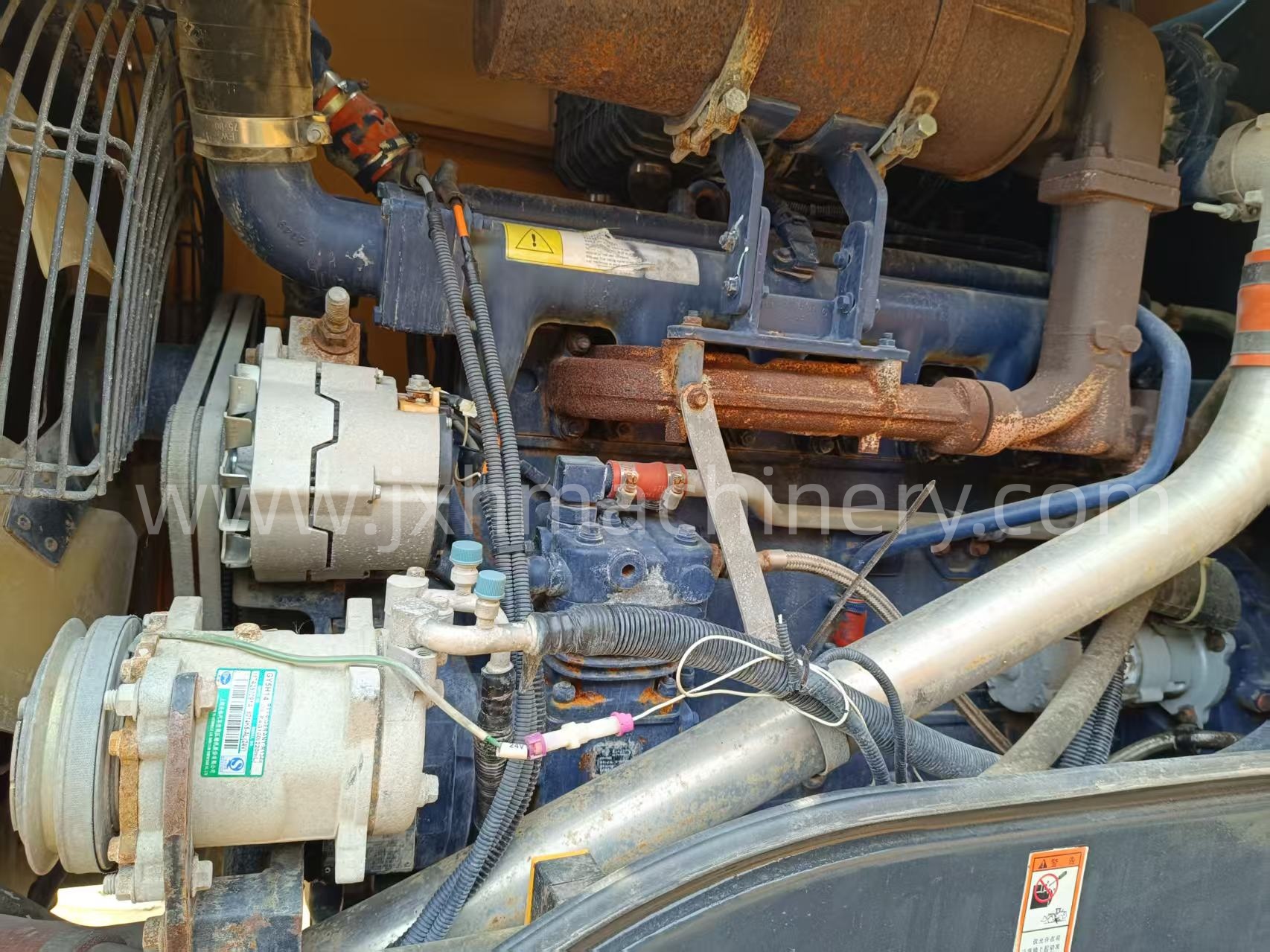

| Engine |
Weichai Deutz TD226B / WP6G125E22 (Tier2 / Stage II for export used machine) |
| Rated Gross Power |
92 kW (123 hp) @2200 rpm |
| Net Power |
82 kW (110 hp) @2200 rpm |
| 6 Cylinders, Turbocharged & Intercooled, Direct injection |
|
| Transmission |
Planetary power shift, 4 Forward / 3 Reverse |
| Fuel Tank Capacity |
160 L |
| Hydraulic Tank Capacity |
100 L |
| Main Relief Pressure |
16.5 MPa |
| Service Brake |
Wet disc brake |
