| Model |

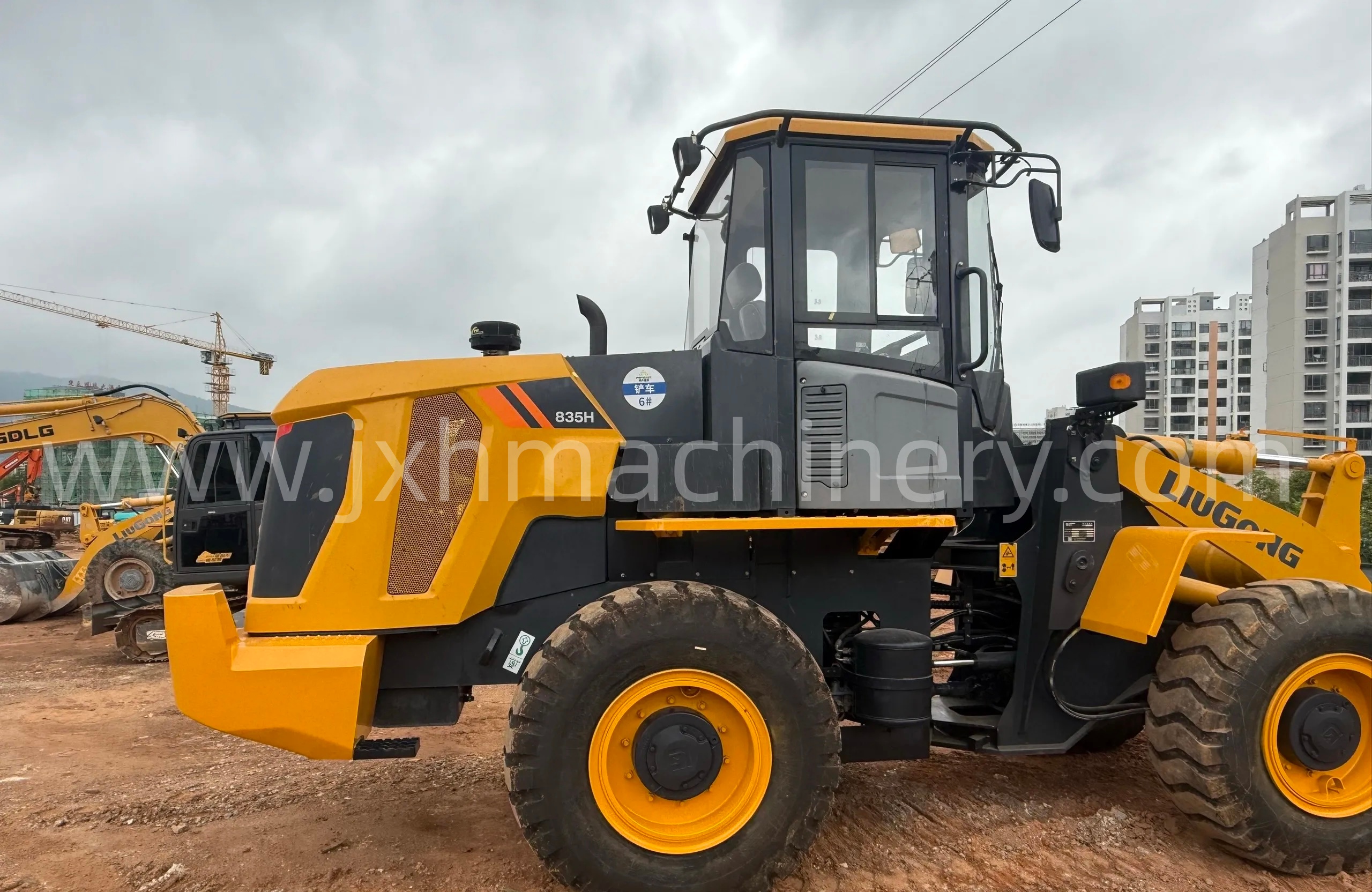

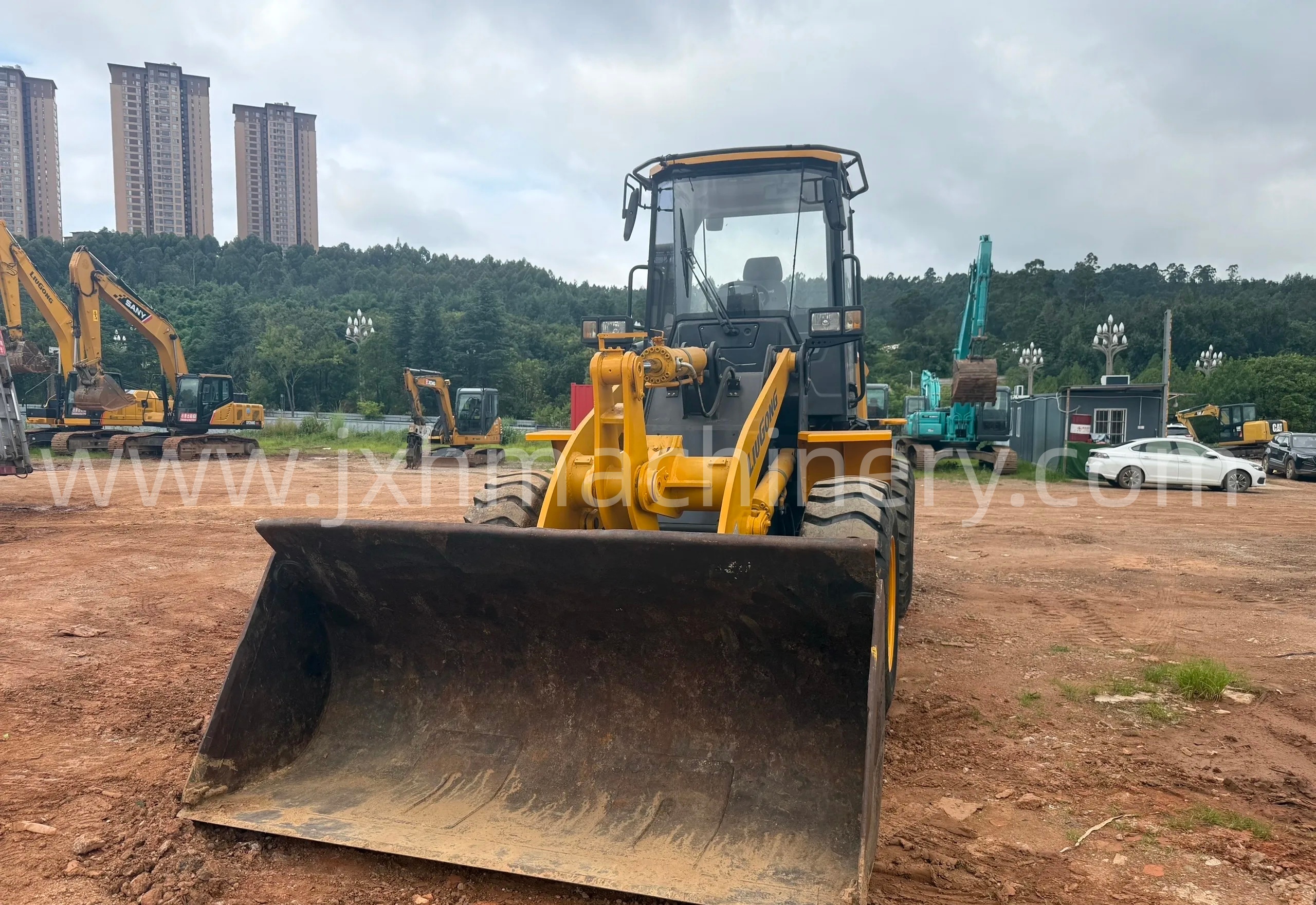

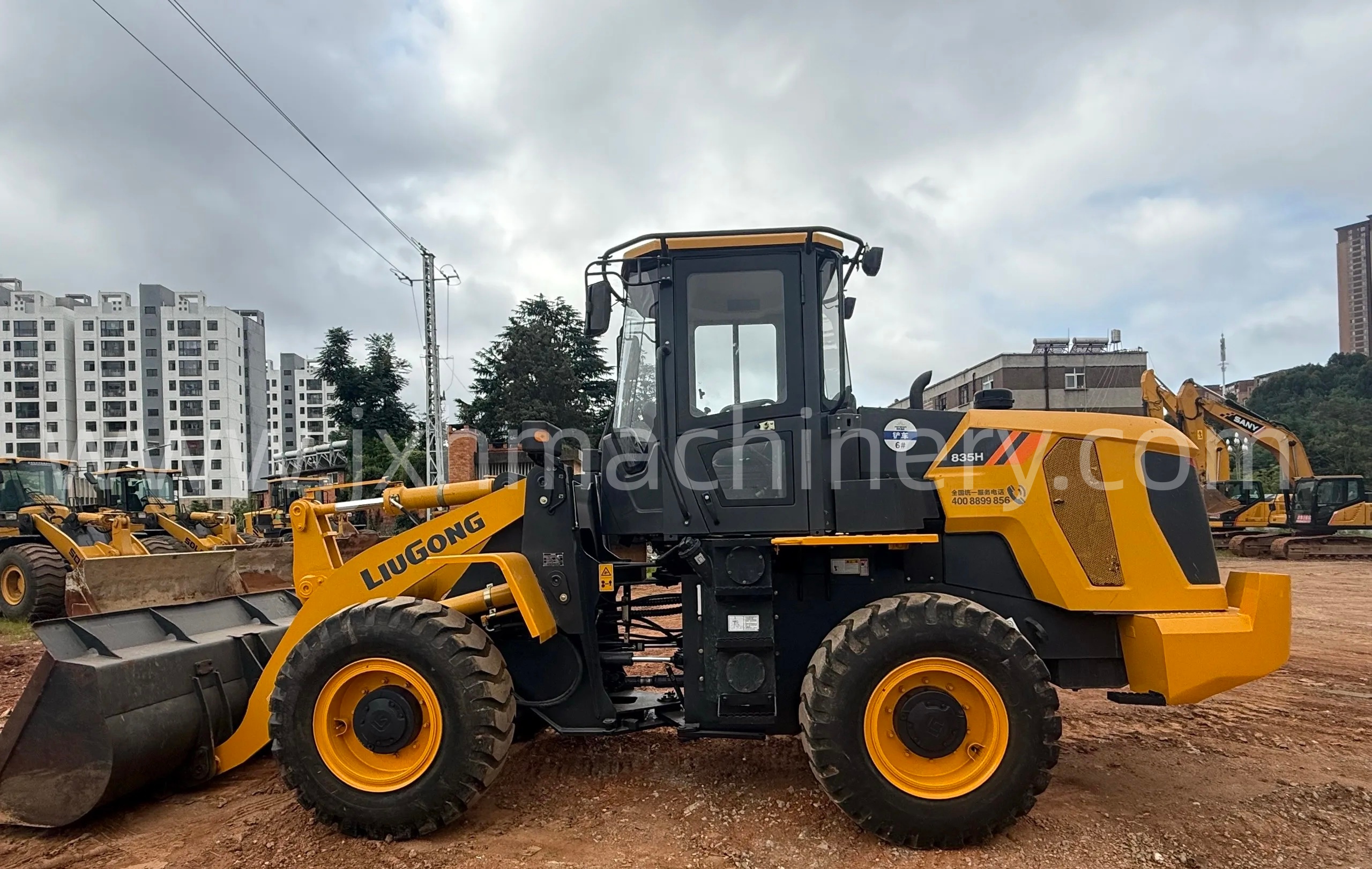

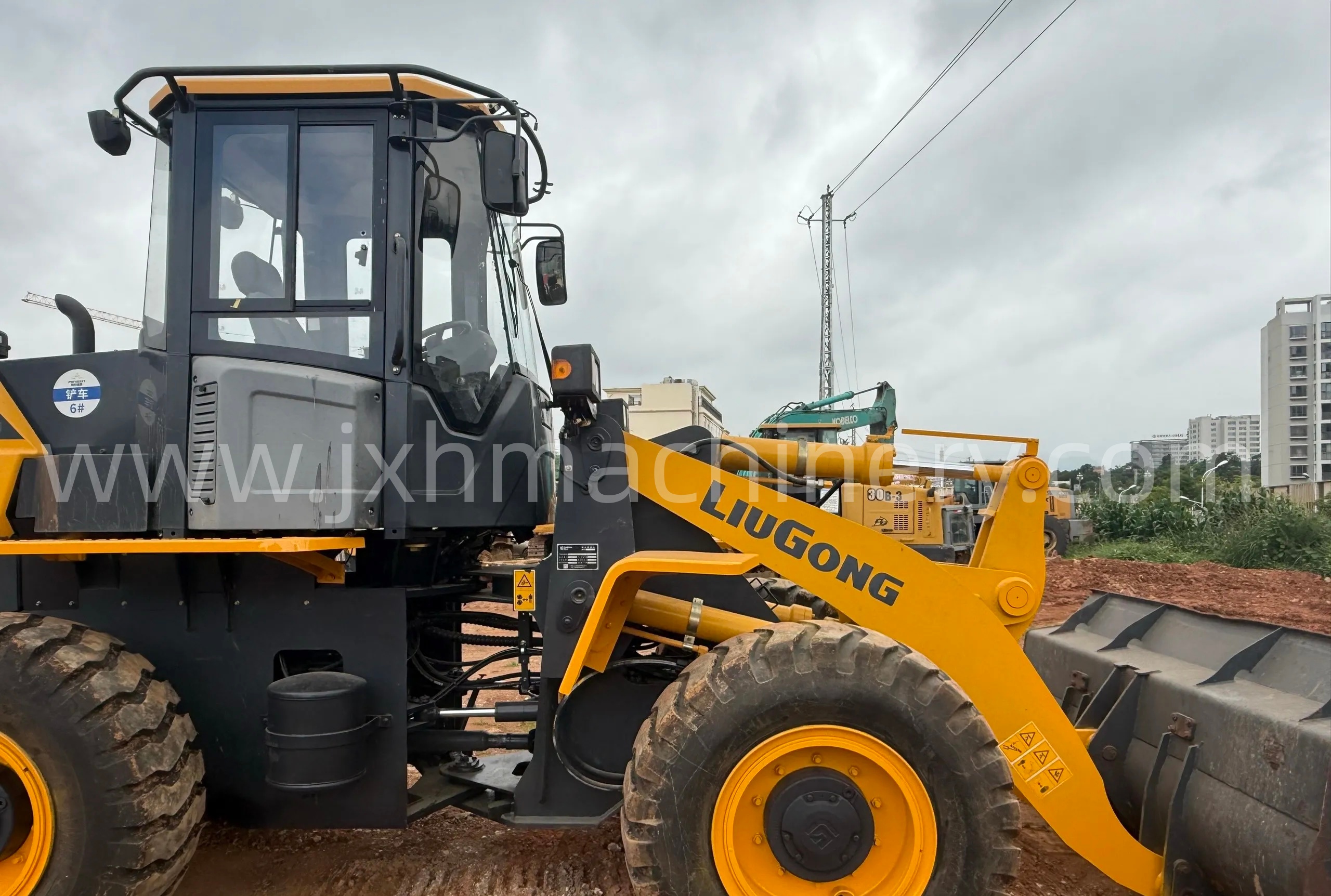

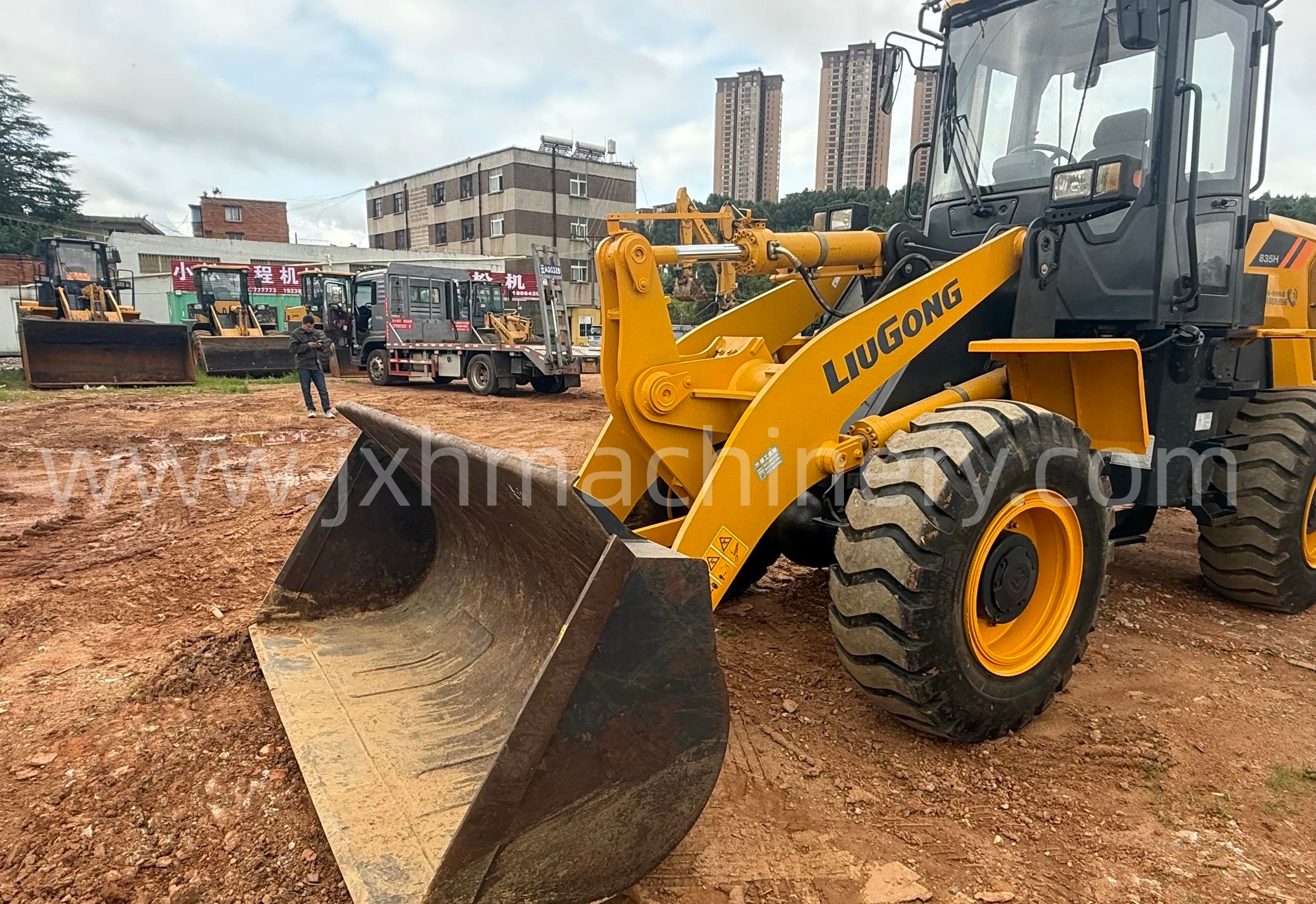

Liugong CLG835H |
| Type |
Articulated Wheel Loader |
| Rated Load |
3000 kg |
| Operating Weight |
10,125 kg (Standard cab version, with standard bucket) |
| Standard Bucket Capacity (Heaped) |
1.8 m³ (Optional:1.7 ~3.0 m³) |
| Shipping Dimension(L×W×H) |
7193 × 2295 × 3340 mm |
| Wheelbase |
2870 mm |
| Tread Width |
1850 mm |
| Tire Size |
17.5-25, 12PR L-3 |
| Articulation Angle |
40° |
| Min Turning Radius (over tyre) |
5090 mm |
| Bucket Breakout Force |
102 kN |
| Tipping Load (full turn) |
6700 kg |
| Max Dump Clearance |
2938 mm |
| Max Dump Reach |
1042 mm |
| Ground Clearance |
350 mm |
| Travel Speed (Low / High) |
10 / 36 km/h |
| Total Hydraulic Cycle Time |
9.7 s |
| Engine |
Yuchai YC6J125Z-T22 (Tier2 / Stage II for export used machine) |
| Rated Gross Power |
92 kW (123 hp) @2000 rpm |
| Net Power |
85 kW (114 hp) @2000 rpm |
| 6 Cylinders, Turbocharged & Intercooled |
|
| Transmission |
Countershaft power shift, 4 Forward / 3 Reverse |
| Fuel Tank Capacity |
140 L |
| Hydraulic Tank Capacity |
100 L |
| Main Relief Pressure |
20 MPa |
| Service Brake |
Wet disc brake |
