| Model |
Liugong CLG820C |
| Type |
Articulated Wheel Loader |
| Rated Load |
2000 kg |
| Operating Weight |
6240 kg (Cab version) |
| Standard Bucket Capacity (Heaped) |
1.2 m³ (Optional:1.0~1.4 m³) |
| Shipping Dimension(L×W×H) |
6275 × 2202 × 2865 mm |
| Wheelbase |
2310 mm |
| Tread Width |
1520 mm |
| Tire Size |
16/70-24, 14PR L-3 |
| Articulation Angle |
38° |
| Min Turning Radius (over tyre) |
4500 mm |
| Bucket Breakout Force |
56 kN |
| Tipping Load (full turn) |
3600 kg |
| Max Dump Clearance |
2900 mm |
| Max Dump Reach |
830 mm |
| Ground Clearance |
345 mm |
| Travel Speed (Low / High) |
10 / 25 km/h |
| Total Hydraulic Cycle Time |
9.2 s |

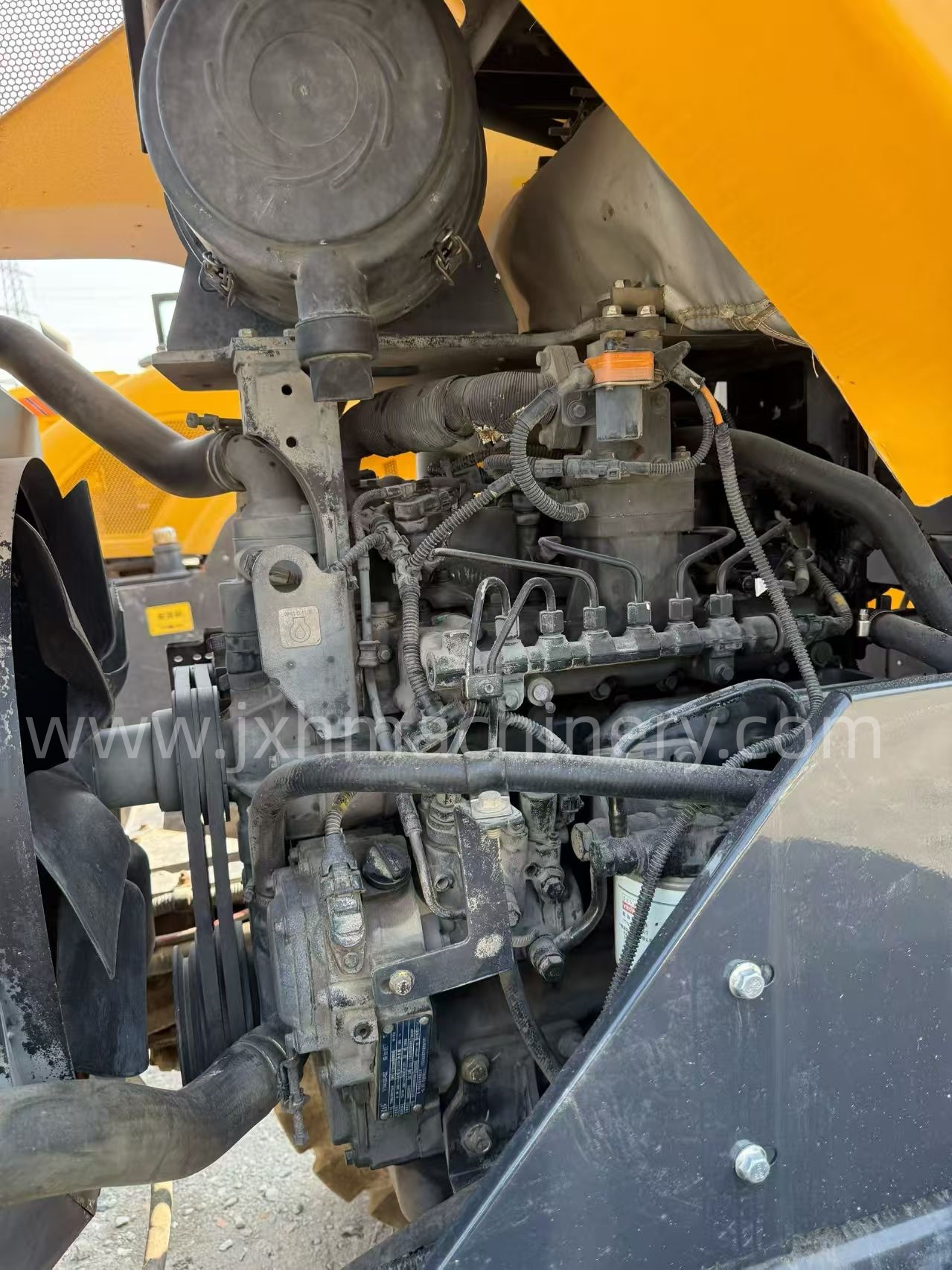

| Engine |
Yuchai YC4A90-T22 (Tier2 / Stage II for export used machine) |
| Rated Gross Power |
66 kW (89 hp) @2300 rpm |
| Net Power |
62 kW (83 hp) @2300 rpm |
| 4 Cylinders, Turbocharged & Intercooled |
|
| Transmission |
Countershaft power shift, 2 Forward / 2 Reverse |
| Fuel Tank Capacity |
120 L |
| Main Relief Pressure |
16 MPa |
| Service Brake |
Dry disc brake |
