| Model |

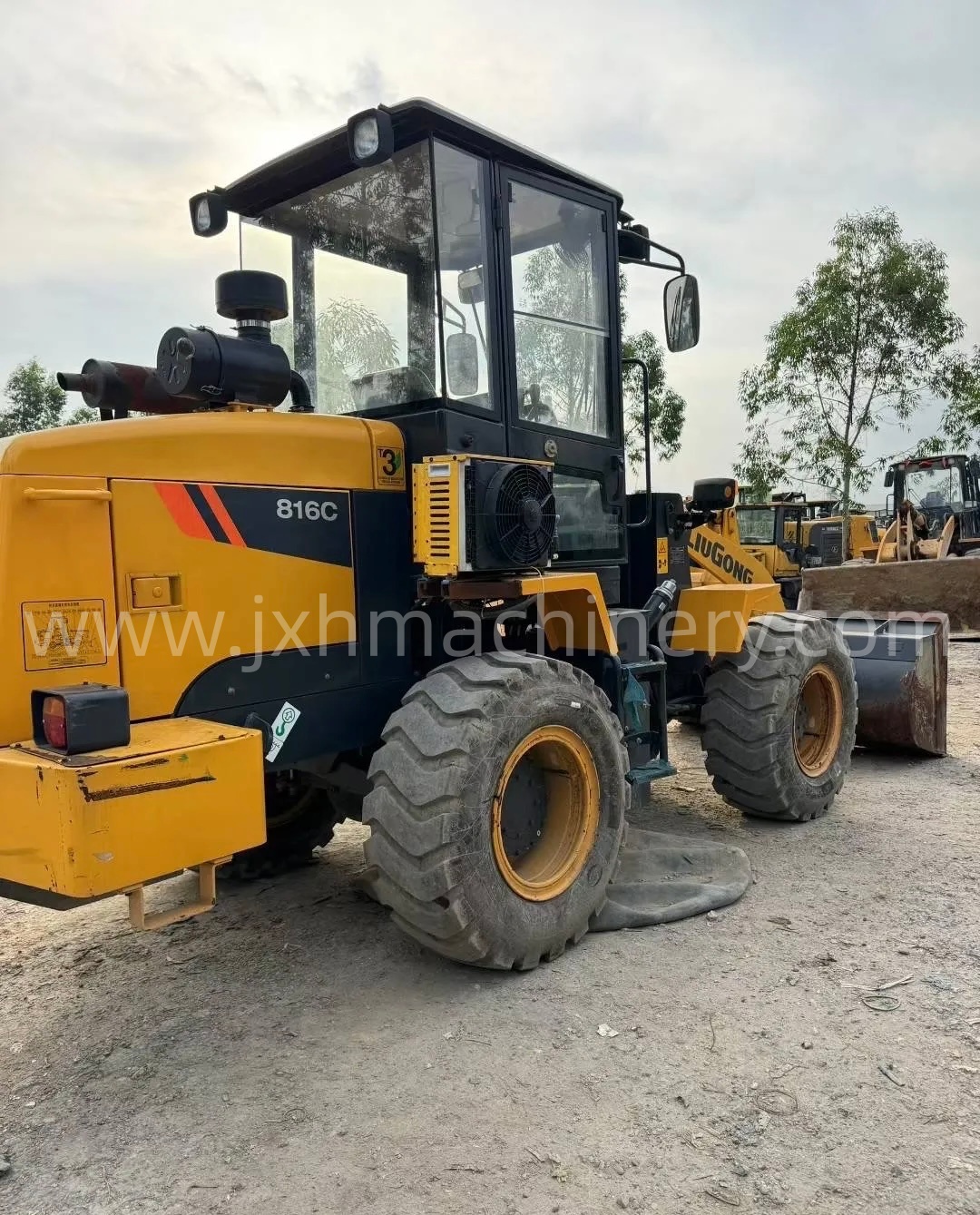

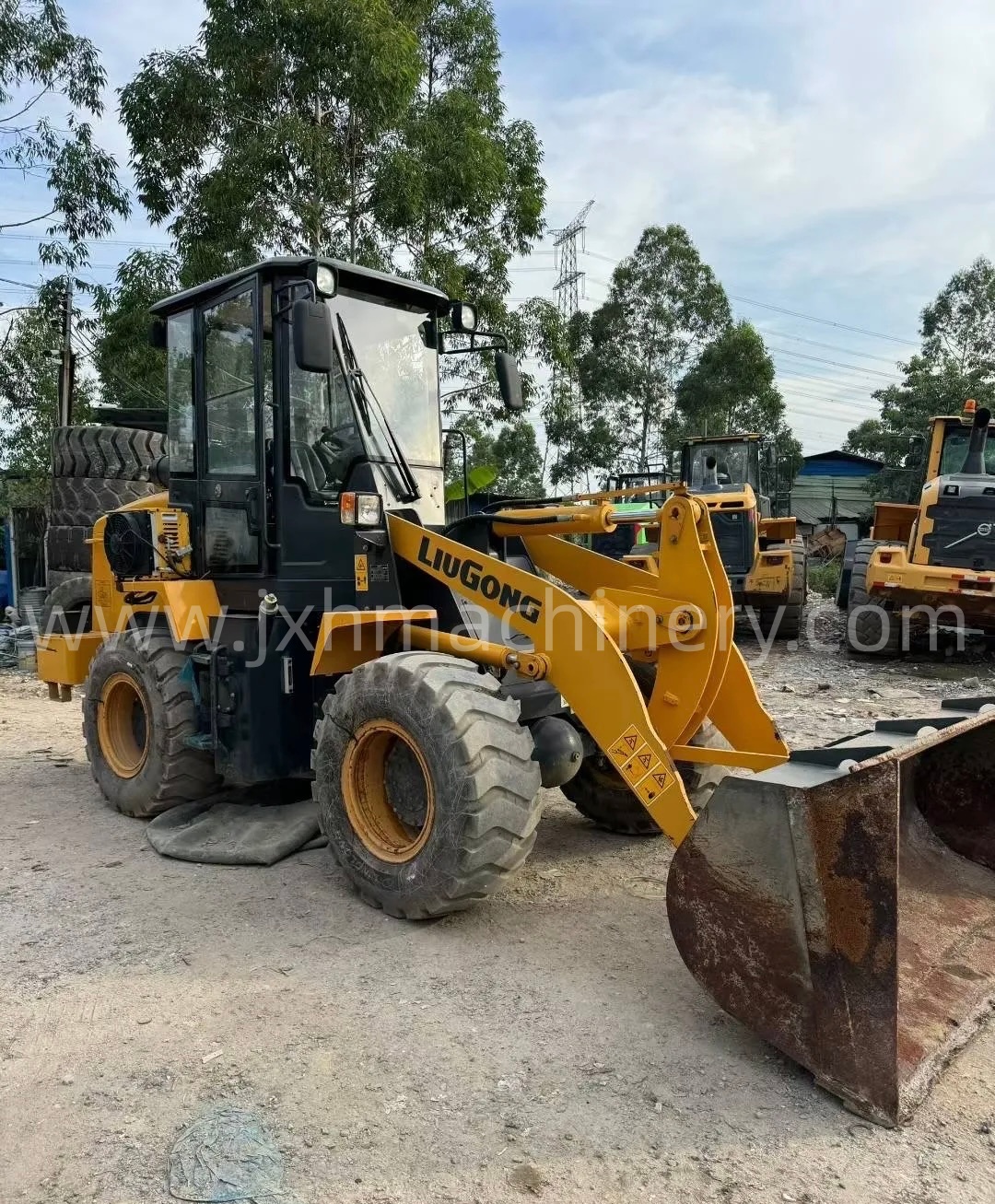

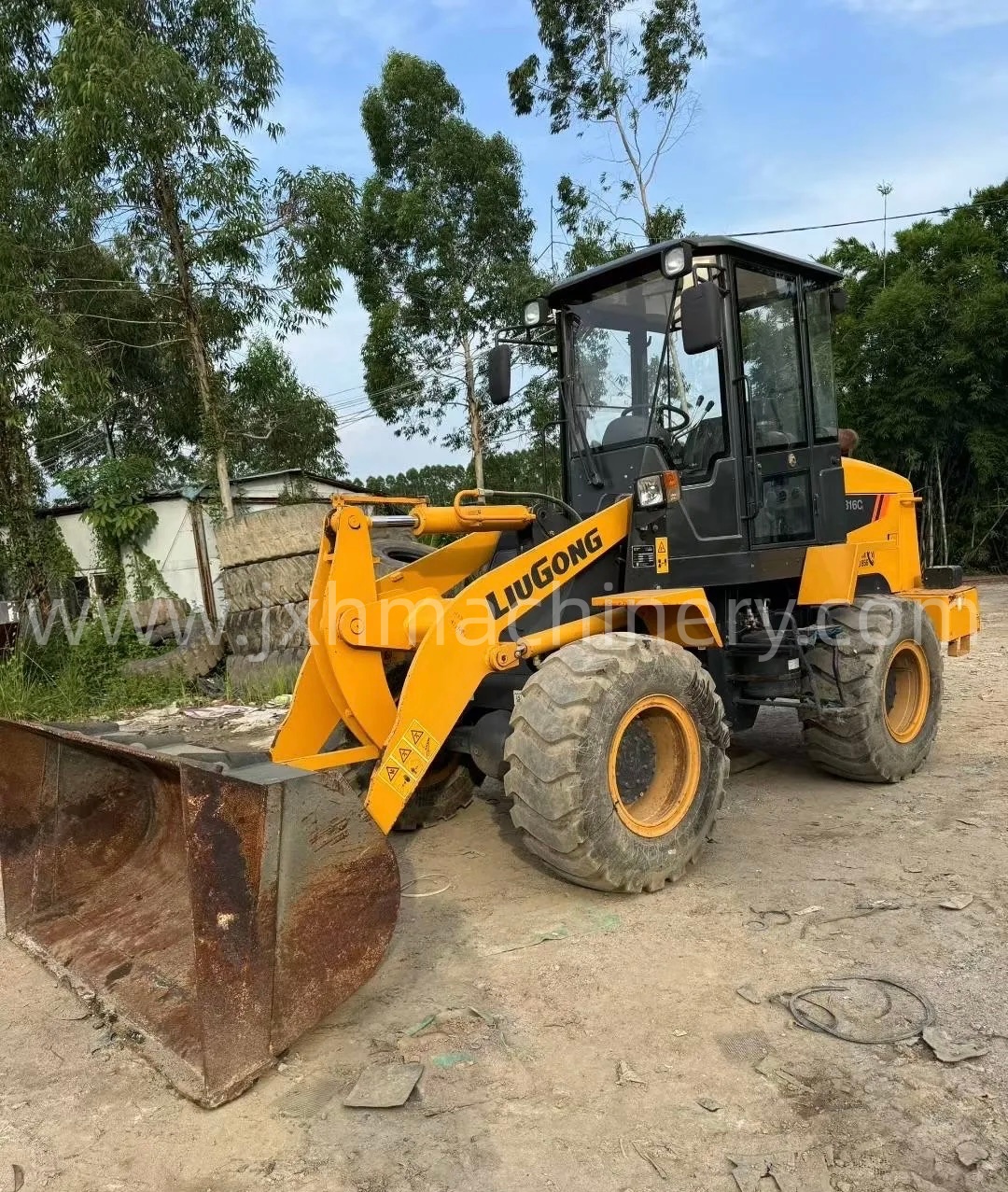

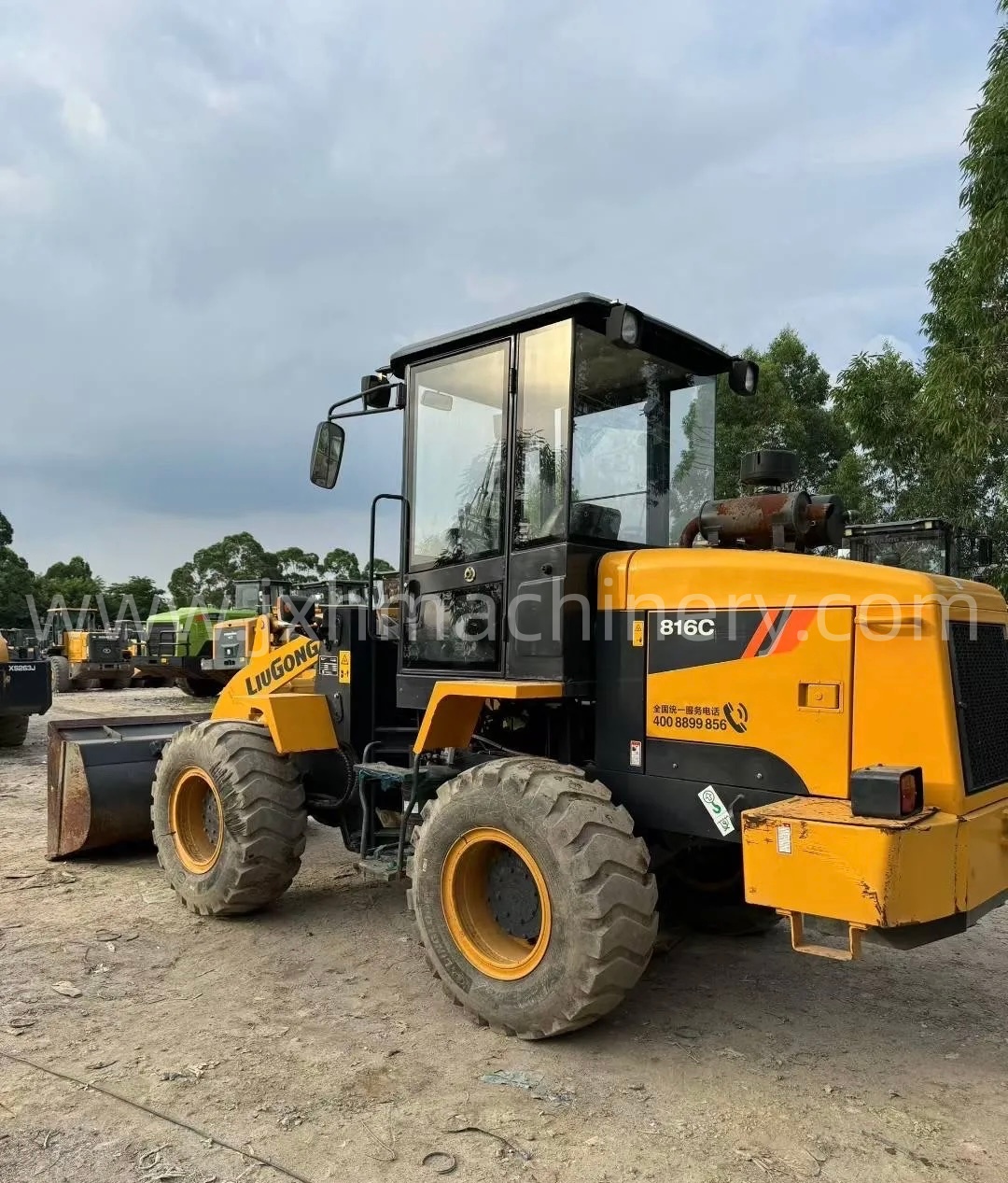

Liugong CLG816C |
| Type |
Compact Wheel Loader |
| Rated Load |
1600 kg |
| Operating Weight |
5470 kg (Cab version) |
| Standard Bucket Capacity (Heaped) |
0.8 m³ (Optional:0.7~1.0 m³) |
| Shipping Dimension(L×W×H) |
5640 × 1940 × 2865 mm |
| Wheelbase |
2200 mm |
| Tread Width |
1520 mm |
| Tire Size |
16/70-20 |
| Articulation Angle |
38° |
| Min Turning Radius (over tyre) |
4185 mm |
| Bucket Breakout Force |
57 kN |
| Tipping Load (full turn) |
2800 kg |
| Max Dump Clearance |
2640 mm |
| Max Dump Reach |
780 mm |
| Travel Speed (Low / High) |
7 / 25 km/h |

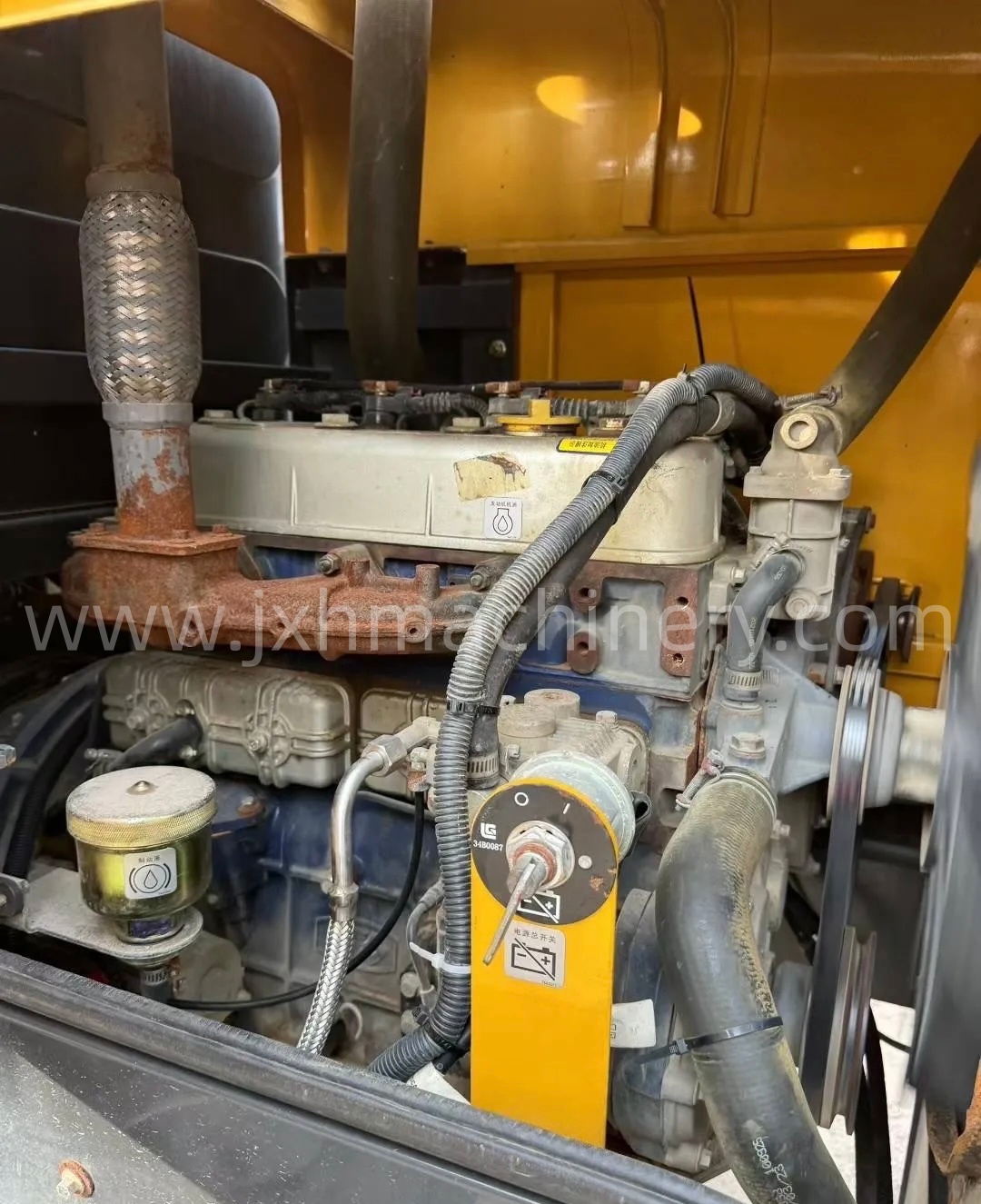

| Engine |
Yunnei YN38GBZ1 (Tier2 / Stage II for export used machine) |
| Rated Gross Power |
65 kW @2400 rpm |
| Net Power |
61 kW @2400 rpm |
| 4 Cylinders, Turbocharged |
|
| Transmission |
Countershaft power shift, 2 forward / 2 reverse |
| Total Hydraulic Cycle Time |
8.5 s |
| Fuel Tank Capacity |
95 L |
| Hydraulic Tank Capacity |
78 L |
| Main Relief Pressure |
18 MPa |
| Service Brake |
Caliper dry disc brake |
| Parking Brake |
Mechanical shoe drum brake |
