| Model |
Liugong CLG936E |
| Type |
Hydraulic Crawler Excavator |
| Operating Weight |
35,000 kg (Standard version) |
| Standard Bucket Capacity (Heaped) |
1.6 m³ (Range:1.6 ~ 2.3 m³) |
| Boom Length |
6400 mm |
| Arm Length |
3200 mm |
| Shipping Dimension(L×W×H) |
11167 × 3190 × 3530 mm |
| Track Shoe Width (STD) |
600 mm |
| Track Gauge |
2590 mm |
| Ground Pressure |
66 kPa |
| Travel Speed (Low / High) |
3.4 / 5.5 km/h |
| Swing Speed |
10 rpm |
| Bucket Breakout Force (ISO) |
232 kN (Power boost: 252 kN) |
| Arm Breakout Force (ISO) |
170 kN (Power boost:185 kN) |
| Max Dig Depth |
7340 mm |
| Max Reach at Ground Level |
11100 mm |
| Max Dig Height |
10240 mm |
| Max Dump Height |
7180 mm |

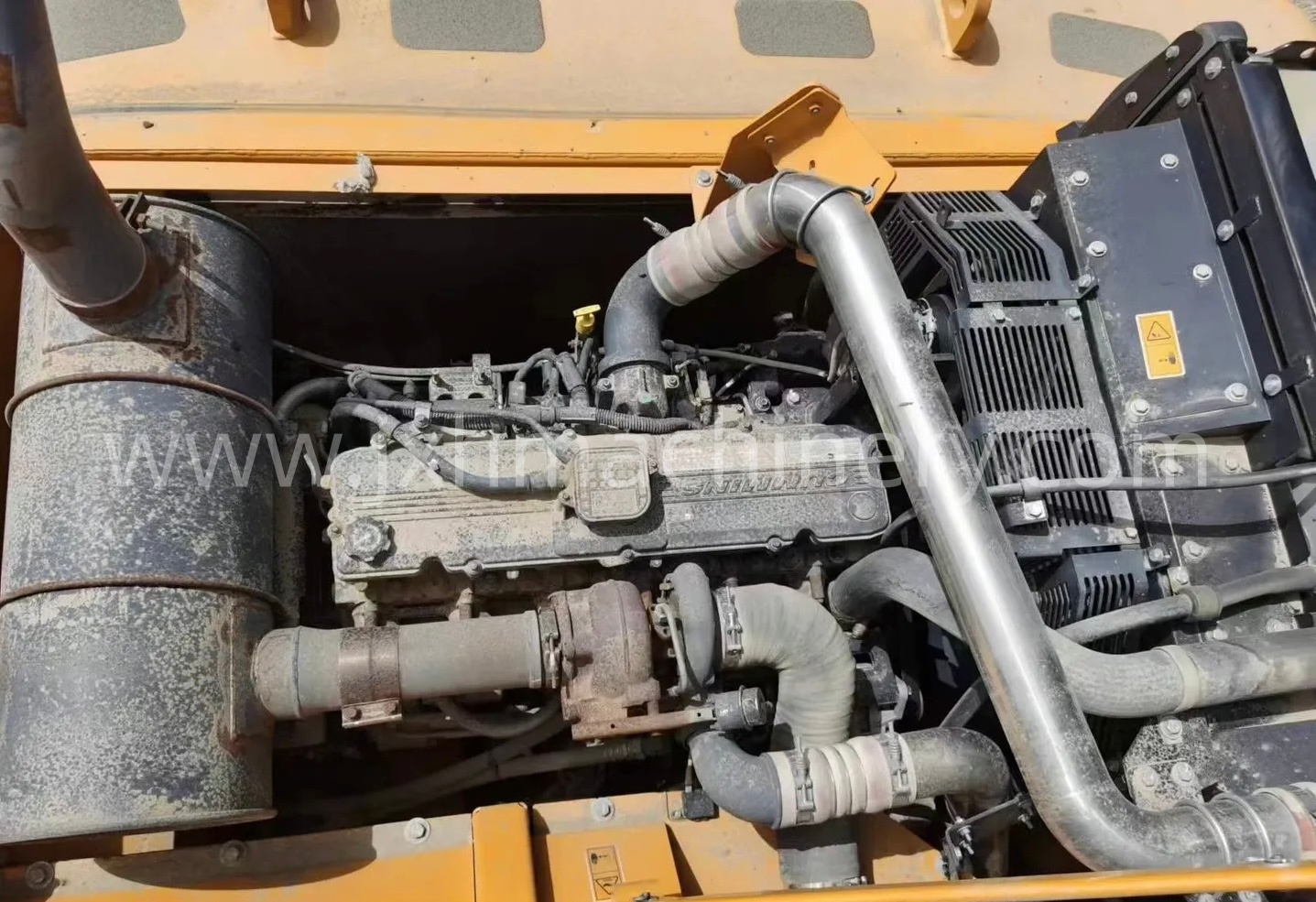

| Engine |
Cummins QSL9 (Tier2 / Stage II for used export machine) |
| Rated Power |
214 kW @2100 rpm |
| Displacement |
8.9 L, 6 Cylinders, Turbocharged & Intercooled |
| Max Torque |
1343 N·m @1600 rpm |
| Fuel Tank Capacity |
620 L |
| Hydraulic Tank Capacity |
240 L |
| Total Hydraulic System Volume |
450 L |

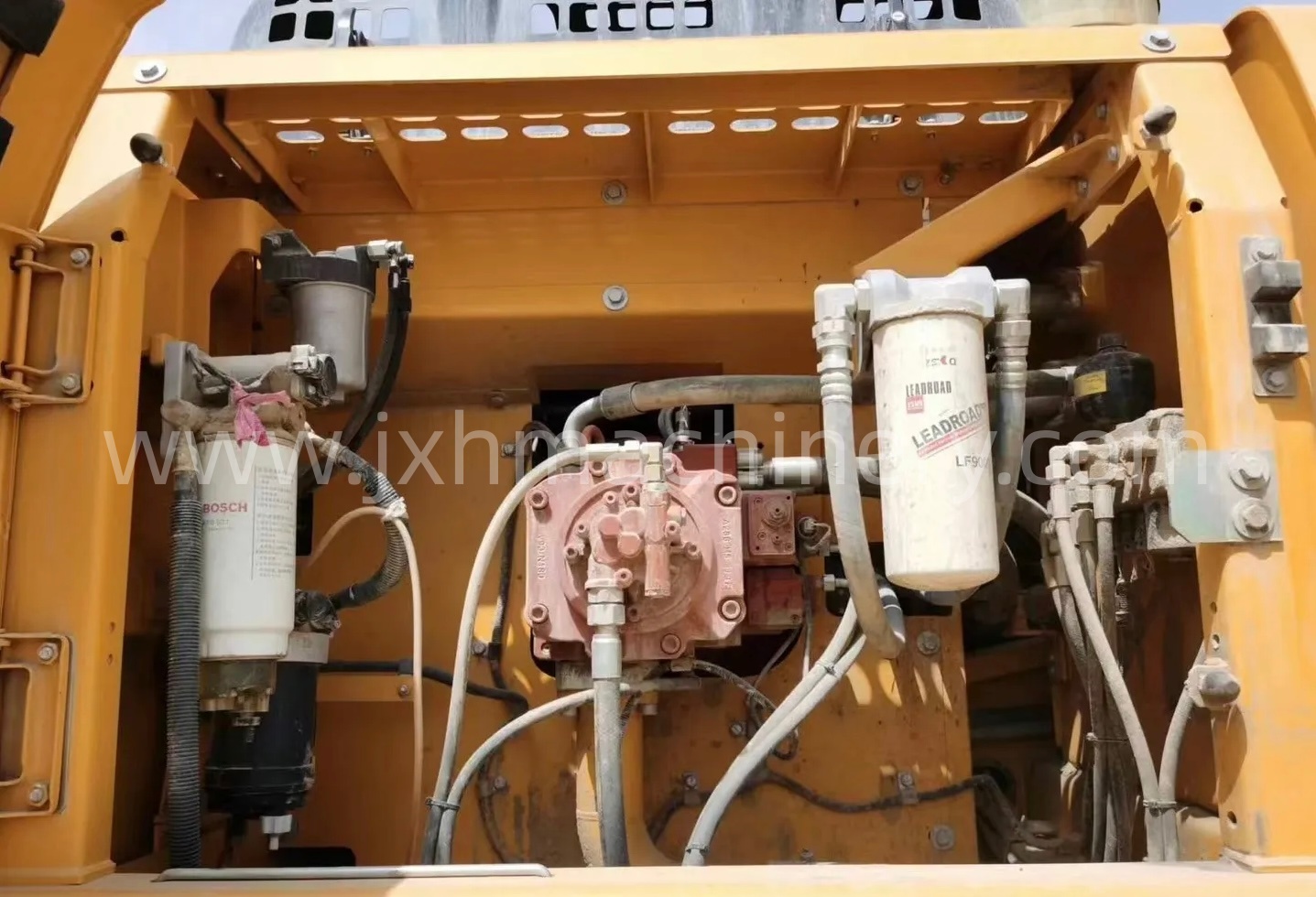

| Main Pump |
Dual variable axial piston pump |
| Main Relief Pressure |
34.3 MPa |
