| Model |

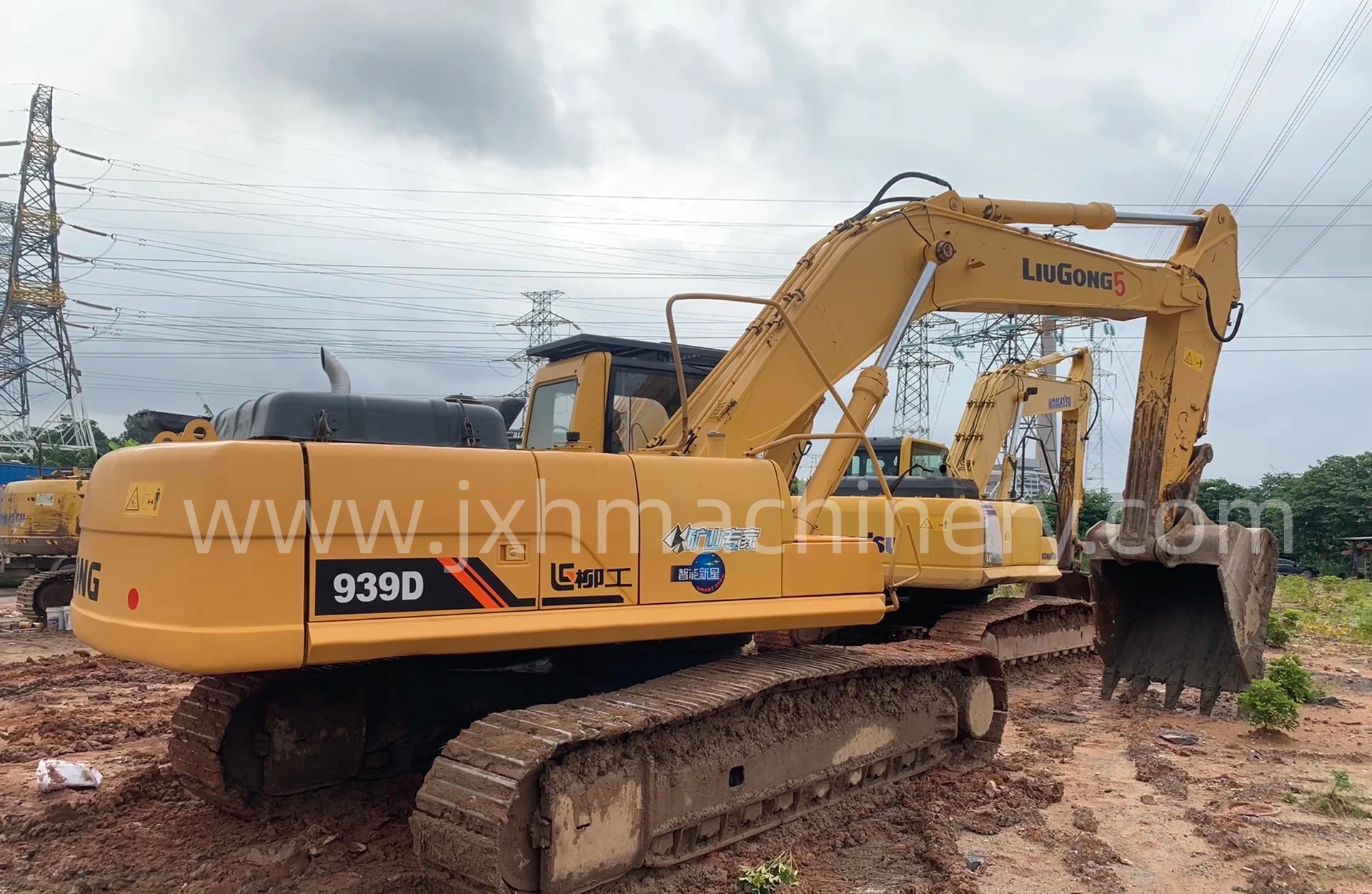

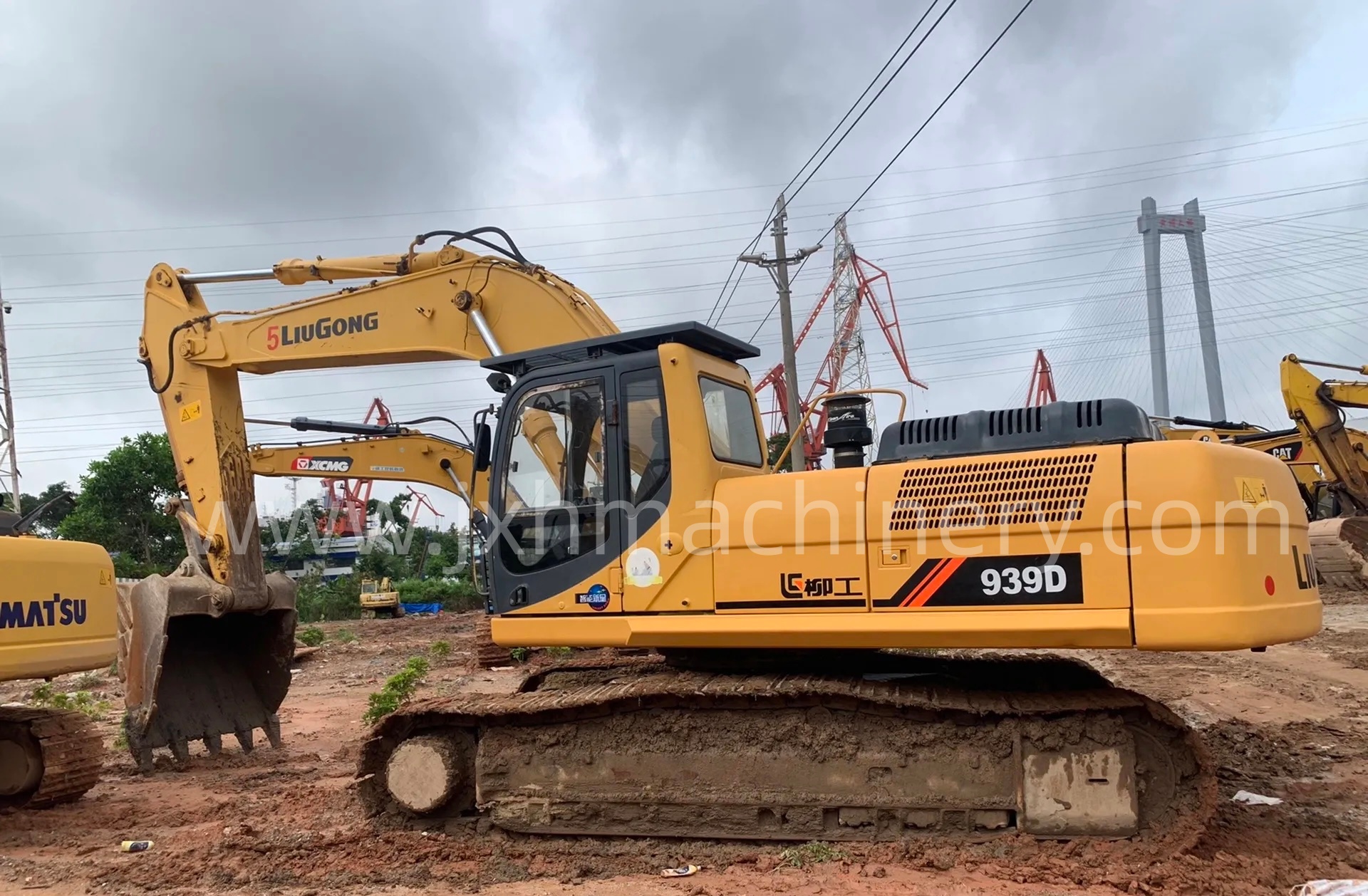

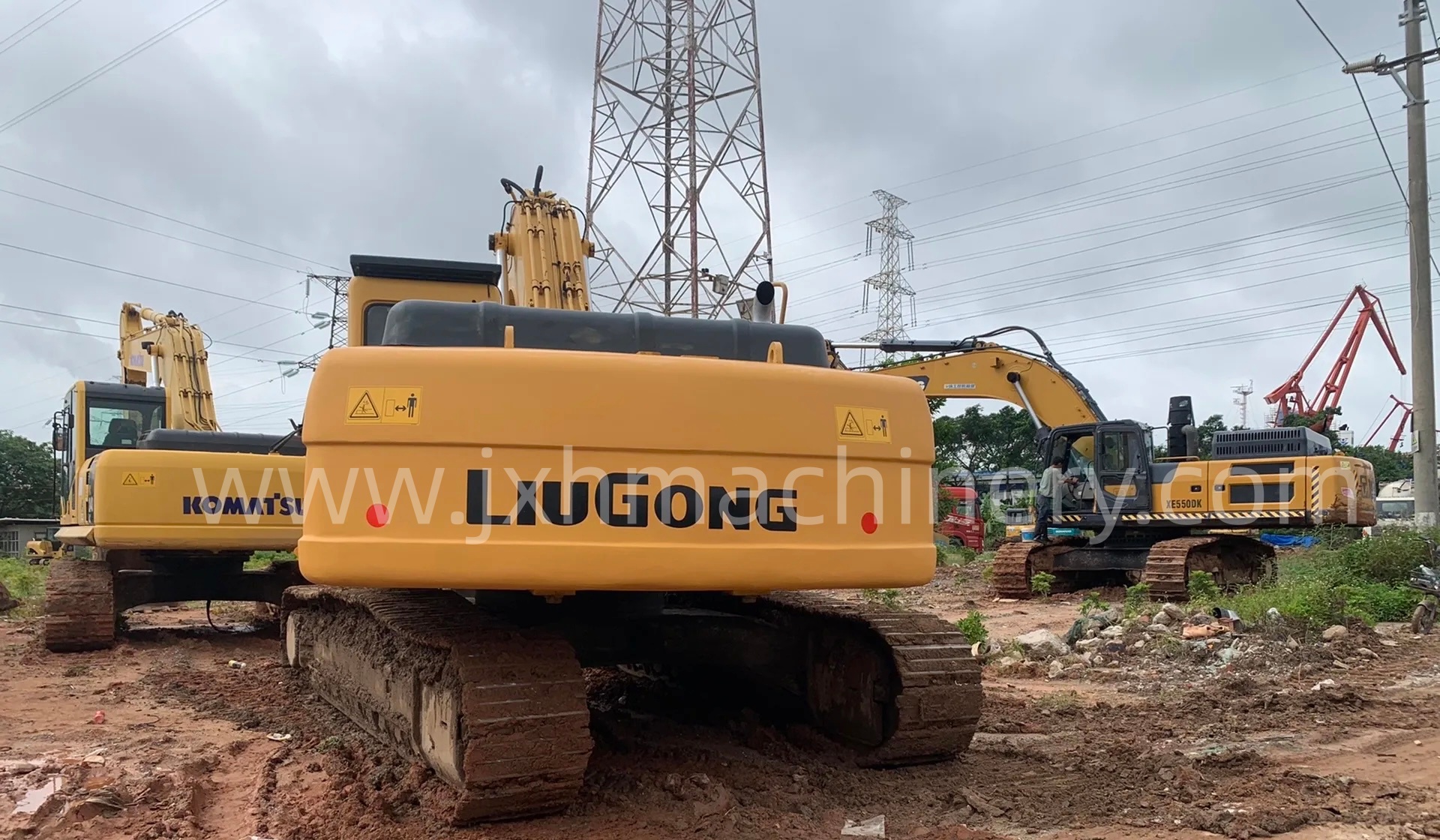

Liugong CLG939D |
| Type |
Hydraulic Crawler Excavator |
| Operating Weight |
37,600 kg |
| Standard Bucket Capacity (Heaped) |
1.9 m³ (Range:1.6 ~2.2 m³) |
| Boom Length |
6450 mm |
| Arm Length |
3200 mm |
| Shipping Dimension(L×W×H) |
11350 × 3190 × 3550 mm |
| Track Shoe Width (STD) |
600 mm |
| Track Gauge |
2590 mm |
| Ground Pressure |
66.8 kPa |
| Travel Speed (Low / High) |
3.4 / 5.5 km/h |
| Swing Speed |
10 rpm |
| Bucket Breakout Force (ISO) |
244 kN |
| Arm Breakout Force (ISO) |
210 kN |
| Max Dig Depth |
6890 mm |
| Max Reach at Ground Level |
10728 mm |
| Max Dig Height |
9818 mm |
| Max Dump Height |
6770 mm |

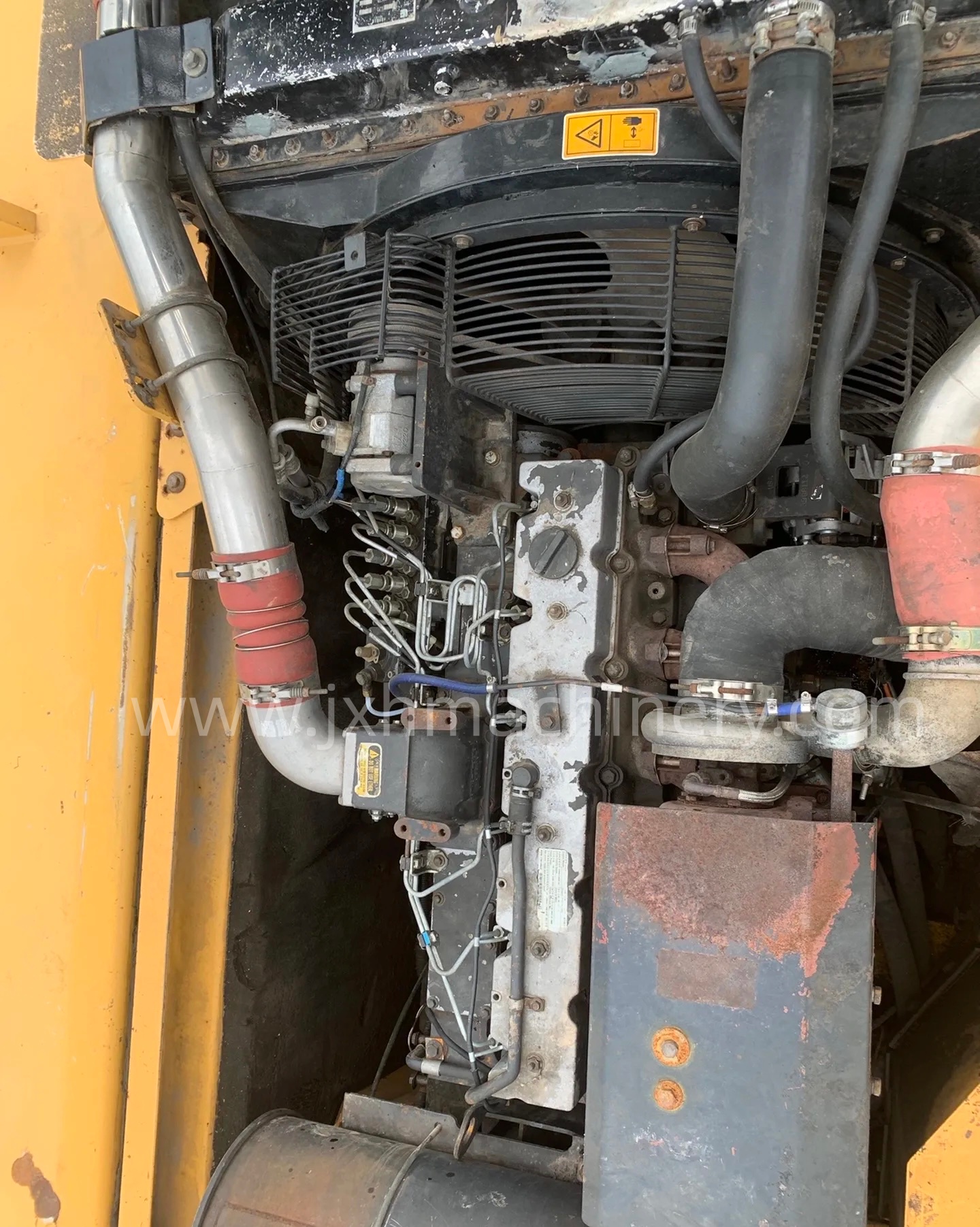

| Engine |
Cummins C8.3 / 6LTAA8.9-C (Tier2 / Euro2 for used export) |
| Rated Power |
198 kW @2000 rpm |
| Displacement |
8.3 L, 6 Cylinders, Turbocharged & Intercooled |
| Fuel Tank Capacity |
520 L |
| Hydraulic Tank Capacity |
195 L |

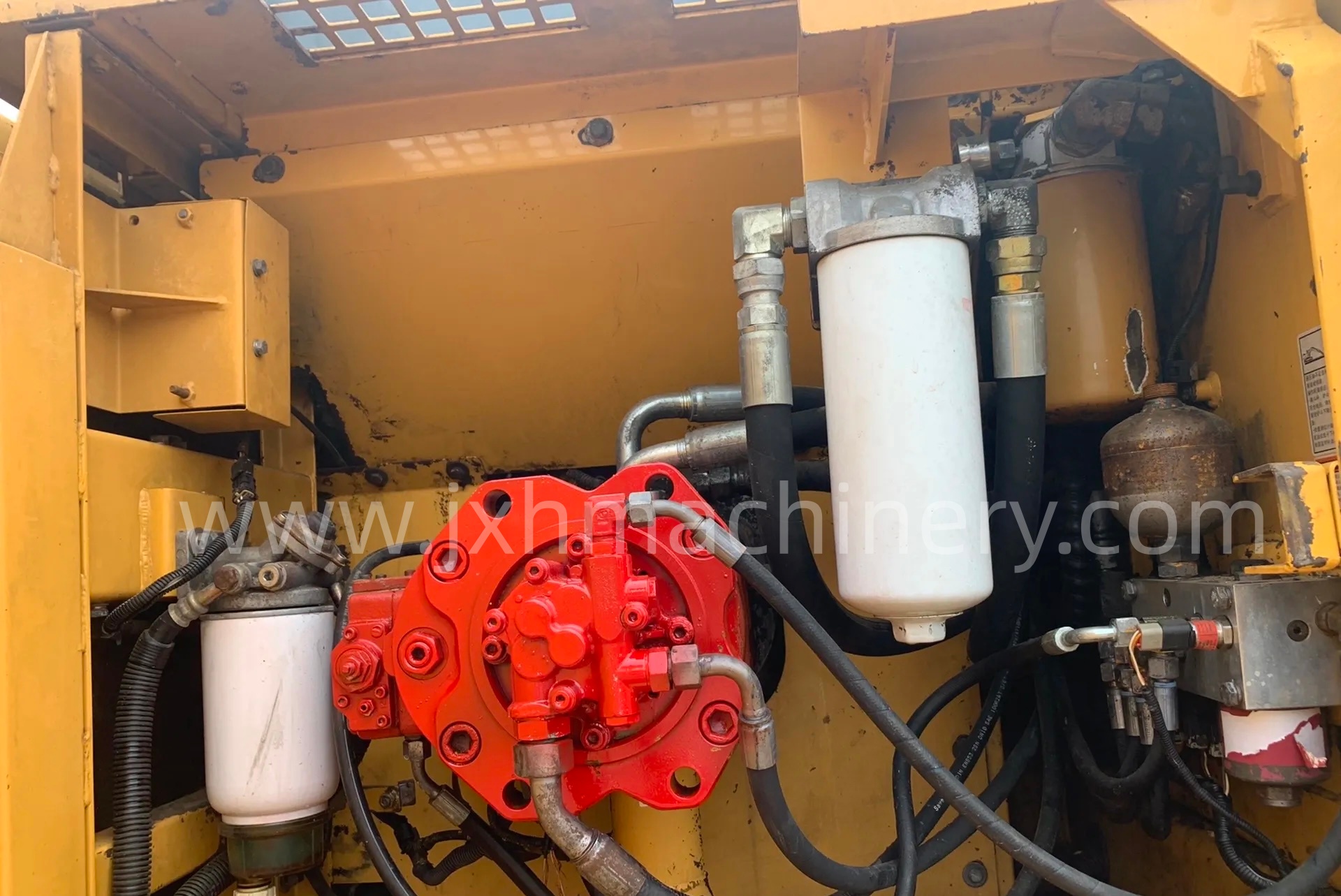

| Main Pump |
Dual variable axial piston pump (Kawasaki) |
| Main Relief Pressure |
34.3 MPa |
