| Model |

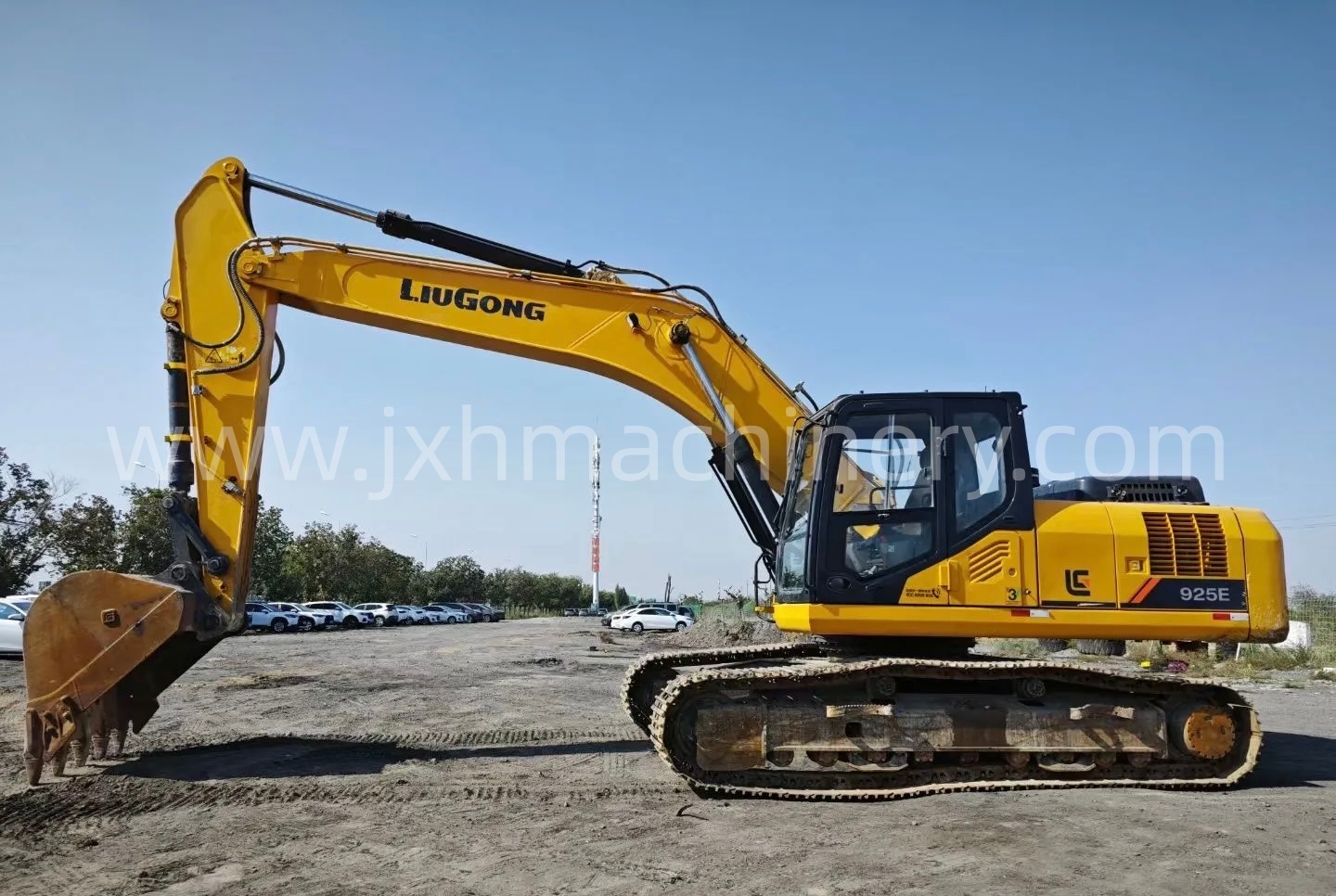

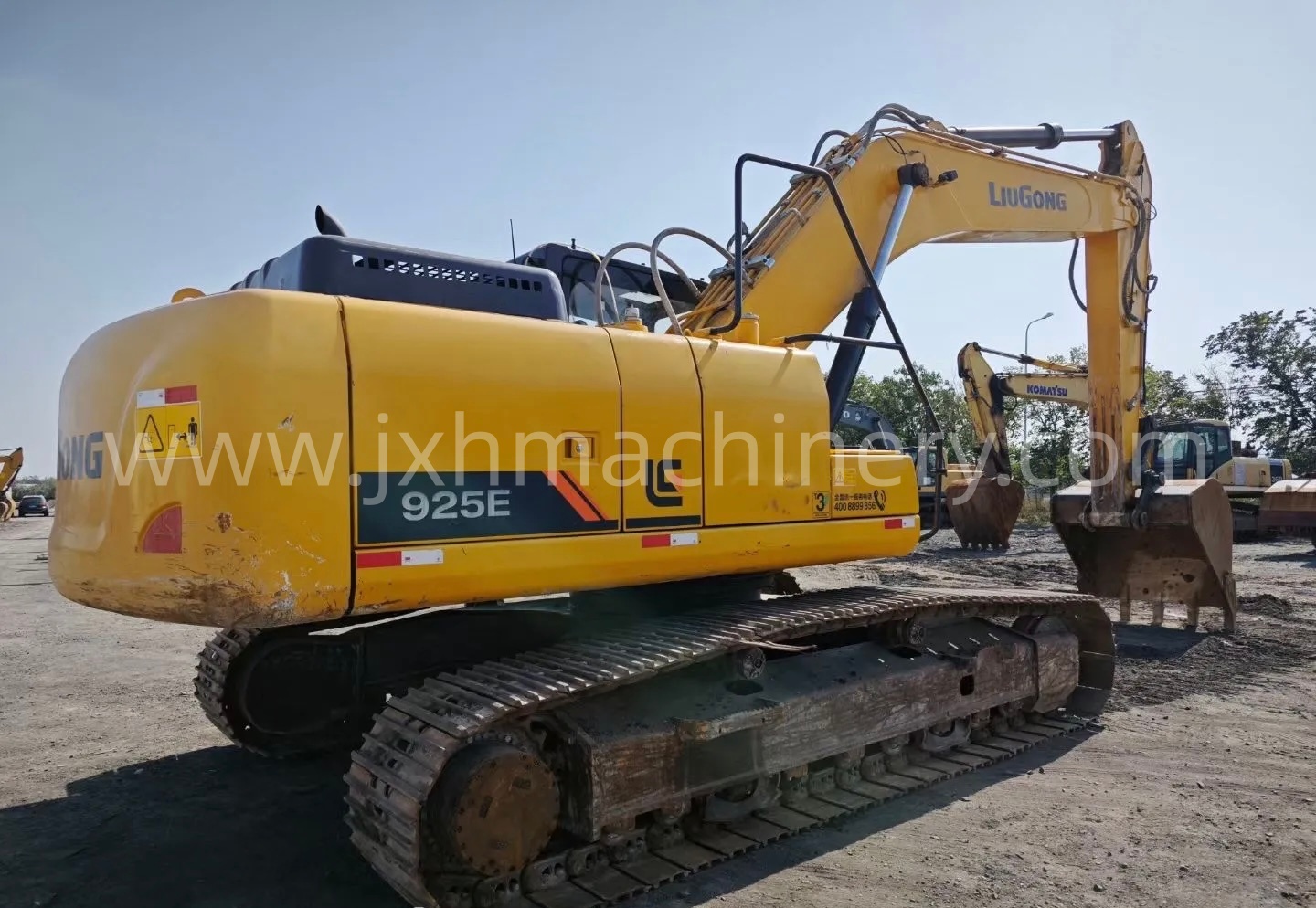

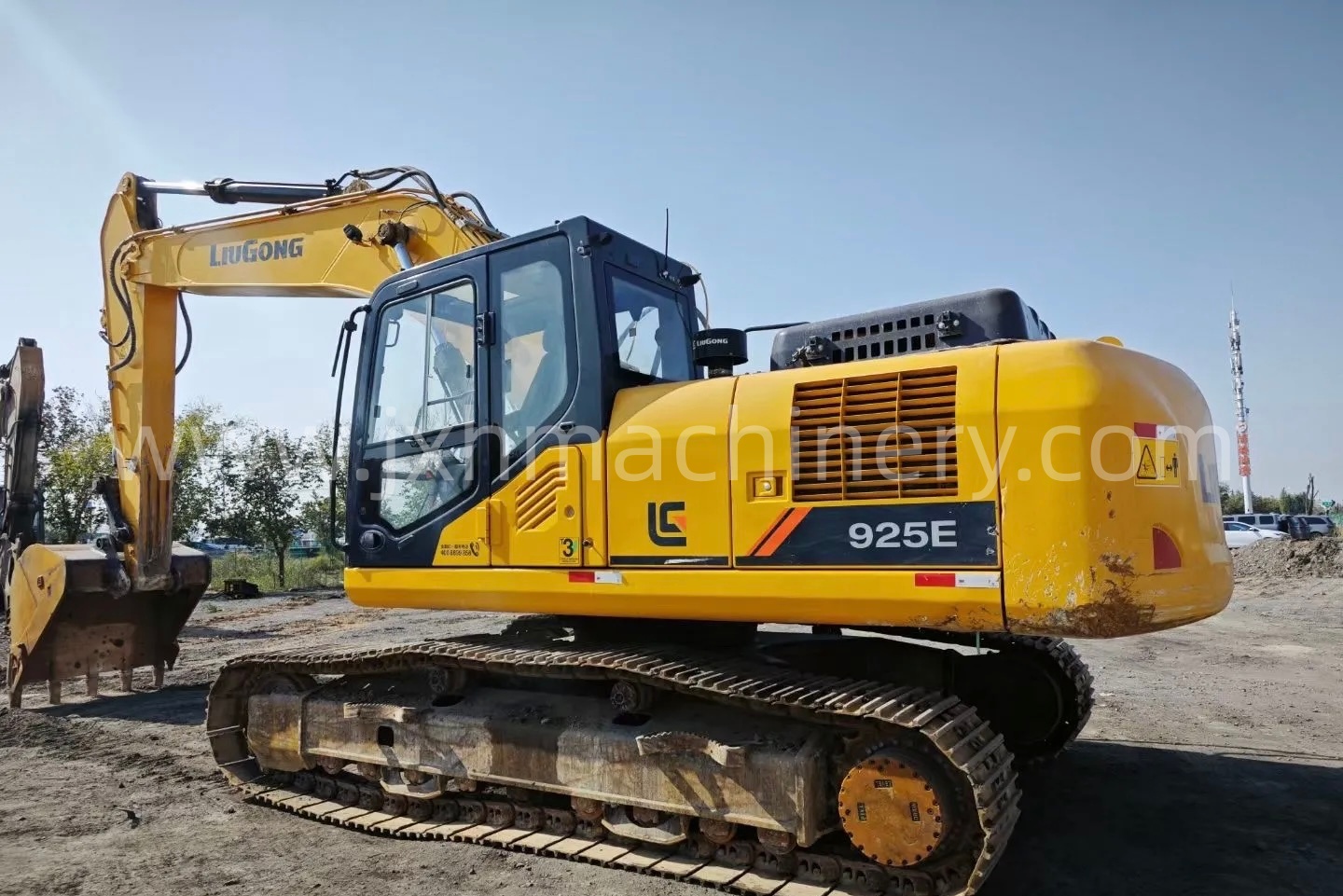

Liugong CLG925E |
| Type |
Hydraulic Crawler Excavator |
| Operating Weight |
25,500 kg |
| Standard Bucket Capacity (Heaped) |
1.2 m³ (Range:0.8~1.4 m³) |
| Boom Length |
6000 mm |
| Arm Length |
2980 mm |
| Shipping Dimension(L×W×H) |
10220 × 3190 × 3480 mm |
| Track Shoe Width (STD) |
600 mm |
| Track Gauge |
2590 mm |
| Ground Pressure |
51 kPa |
| Travel Speed (Low / High) |
3.0 / 5.5 km/h |
| Swing Speed |
11.2 rpm |
| Bucket Breakout Force (ISO) |
179 kN |
| Arm Breakout Force (ISO) |
134 kN |
| Max Dig Depth |
6925 mm |
| Max Reach at Ground Level |
10180 mm |
| Max Dig Height |
9680 mm |
| Max Dump Height |
6920 mm |

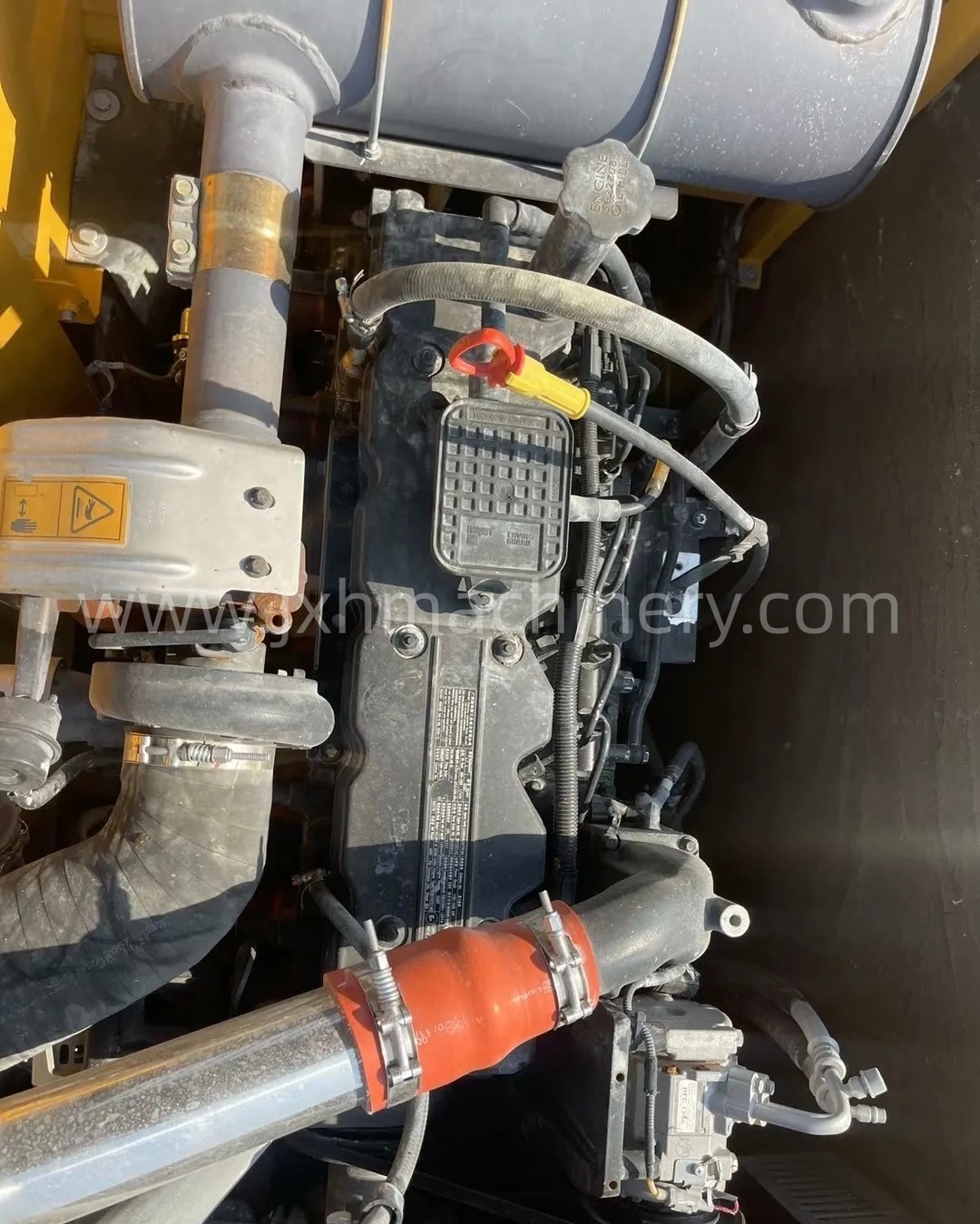

| Engine |
Cummins QSB6.7 / 6BTAA5.9 (Tier2 / Euro2 for export used machine) |
| Rated Power |
133 kW @2000 rpm |
| Displacement |
6.7 L, 6 Cylinders, Turbocharged |
| Fuel Tank Capacity |
450 L |
| Hydraulic Tank Capacity |
240 L |

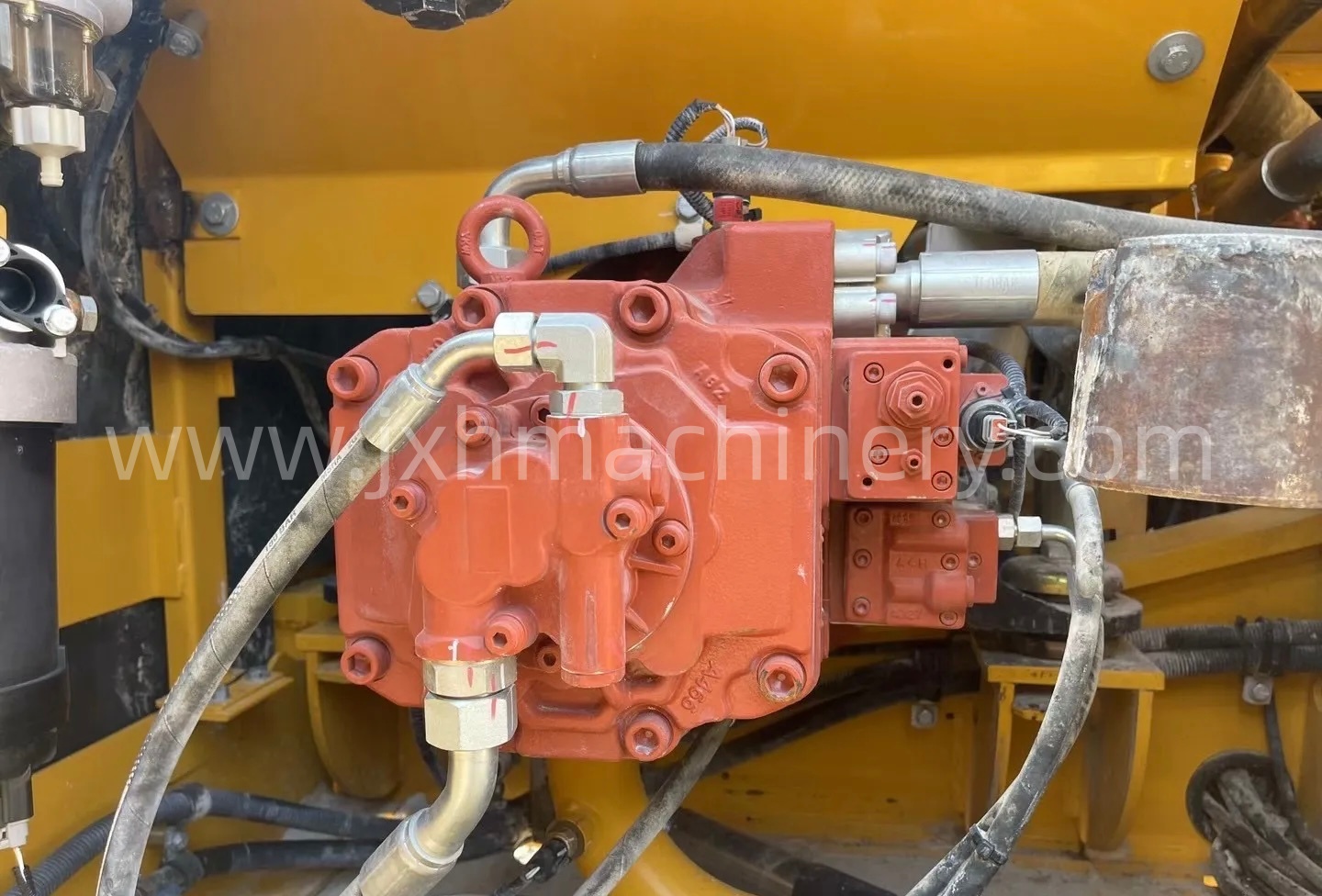

| Main Pump |
Dual variable axial piston pump |
| Main Relief Pressure |
34.3 MPa |
