| Model |
Liugong CLG925D |
| Type |
Hydraulic Crawler Excavator |
| Operating Weight |
25,500 kg |
| Standard Bucket Capacity (Heaped) |
1.2 m³ (Range:1.0~1.3 m³) |
| Boom Length |
6000 mm |
| Arm Length |
2960 mm |
| Shipping Dimension(L×W×H) |
10200 × 3190 × 3050 mm |
| Track Shoe Width |
600 mm |
| Track Gauge |
2590 mm |
| Ground Pressure |
50.5 kPa |
| Travel Speed (Low / High) |
3.1 / 5.3 km/h |
| Swing Speed |
11.5 rpm |
| Bucket Breakout Force (ISO) |
149 kN (Power boost:160 kN) |
| Arm Breakout Force (ISO) |
105 kN |
| Max Dig Depth |
7015 mm |
| Max Reach at Ground Level |
10275 mm |
| Max Dig Height |
9720 mm |
| Max Dump Height |
6840 mm |

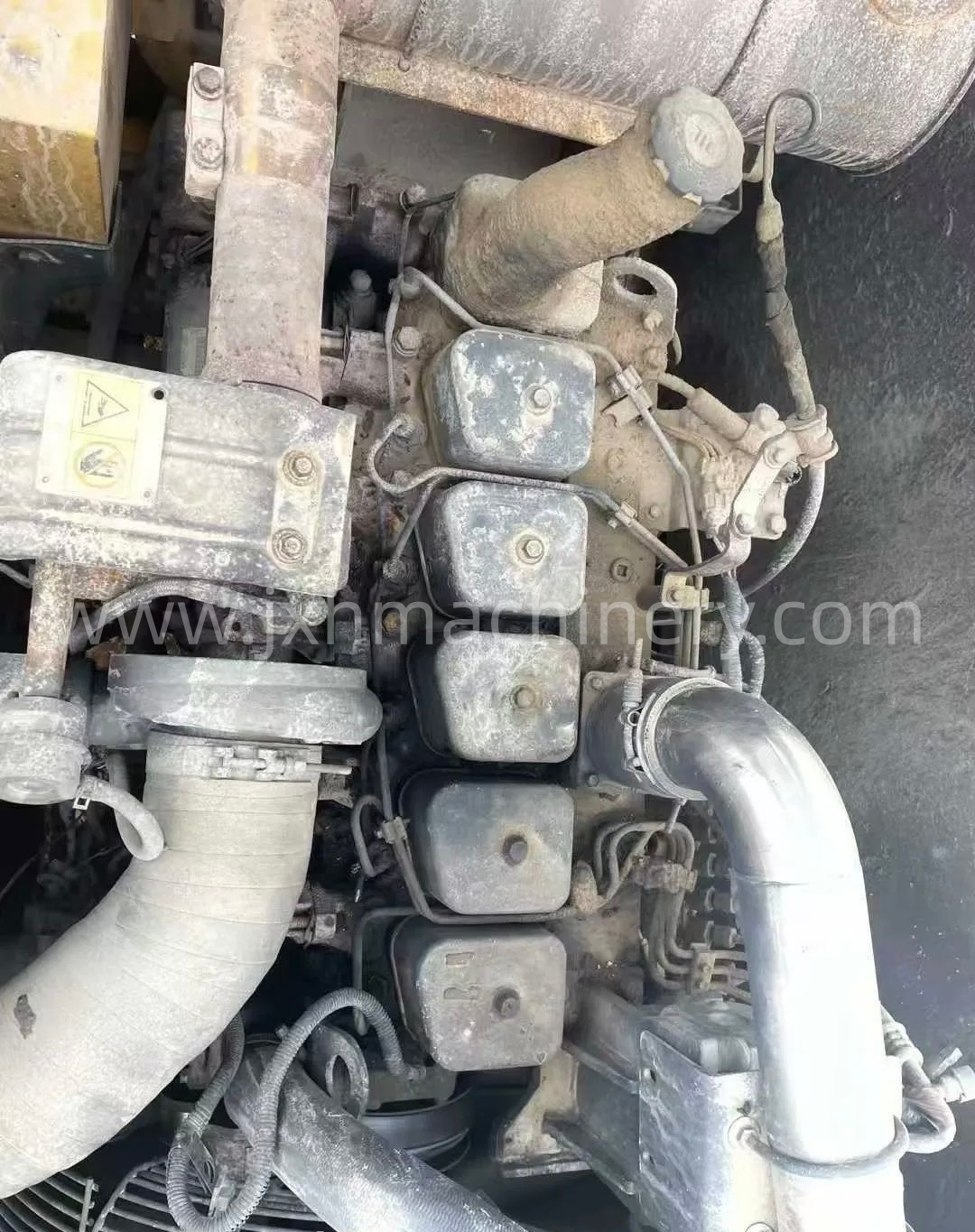

| Engine |
Cummins 6BTAA5.9-C (Tier 2 / Euro 2) |
| Rated Gross Power |
133 kW @2000 rpm |
| Net Power |
125 kW @2000 rpm |
| Max Torque |
708 N·m @1500 rpm |
| Displacement |
5.9 L, 6 Cylinders, Turbocharged & Intercooled |
| Fuel Tank Capacity |
450 L |
| Hydraulic Tank Capacity |
230 L |
| Total Hydraulic System Volume |
330 L |

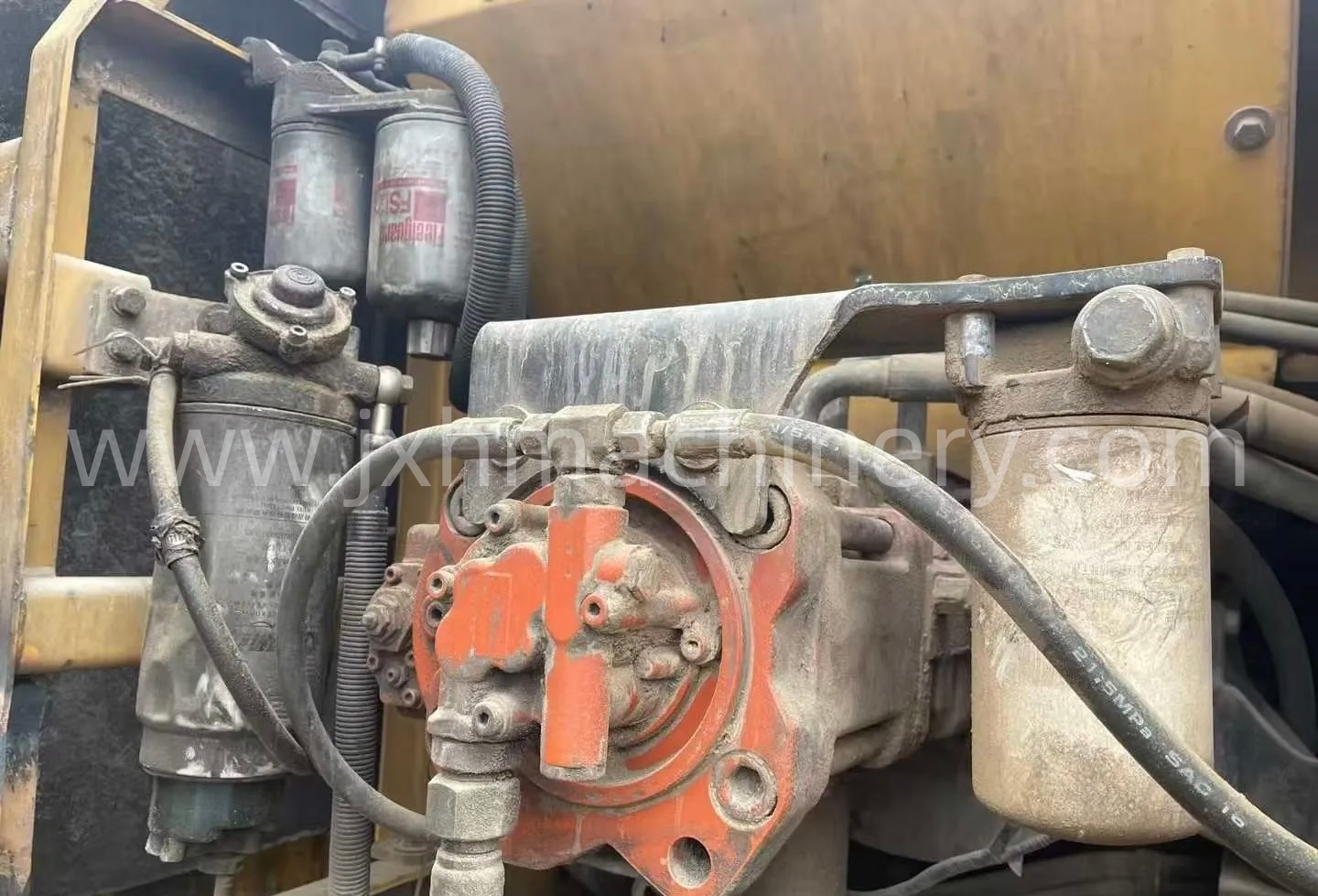

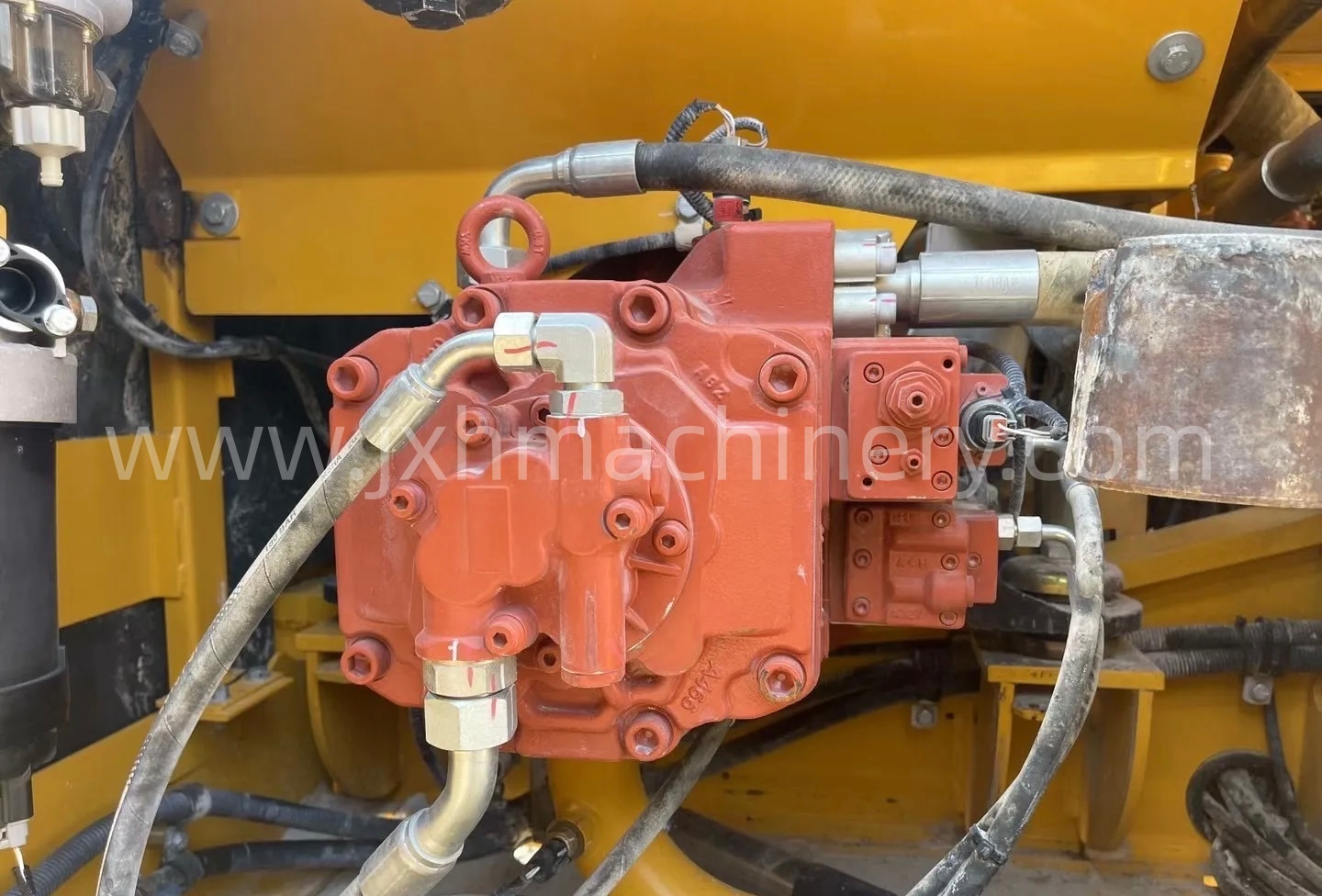

| Main Pump |
Dual variable axial piston pump (Kawasaki) |
| Total Pump Flow |
2 × 230 L/min |
| Main Relief Pressure |
31.8 MPa (Power boost 34.3 MPa) |
