| Operating Weight |
330D2L: 28955 ~ 30115 kg |
| Standard Bucket Capacity |
1.54 m³; Heavy duty bucket optional 1.8 m³ |
| Boom Length |
6150 mm |
| Stick Length |
3200 mm |

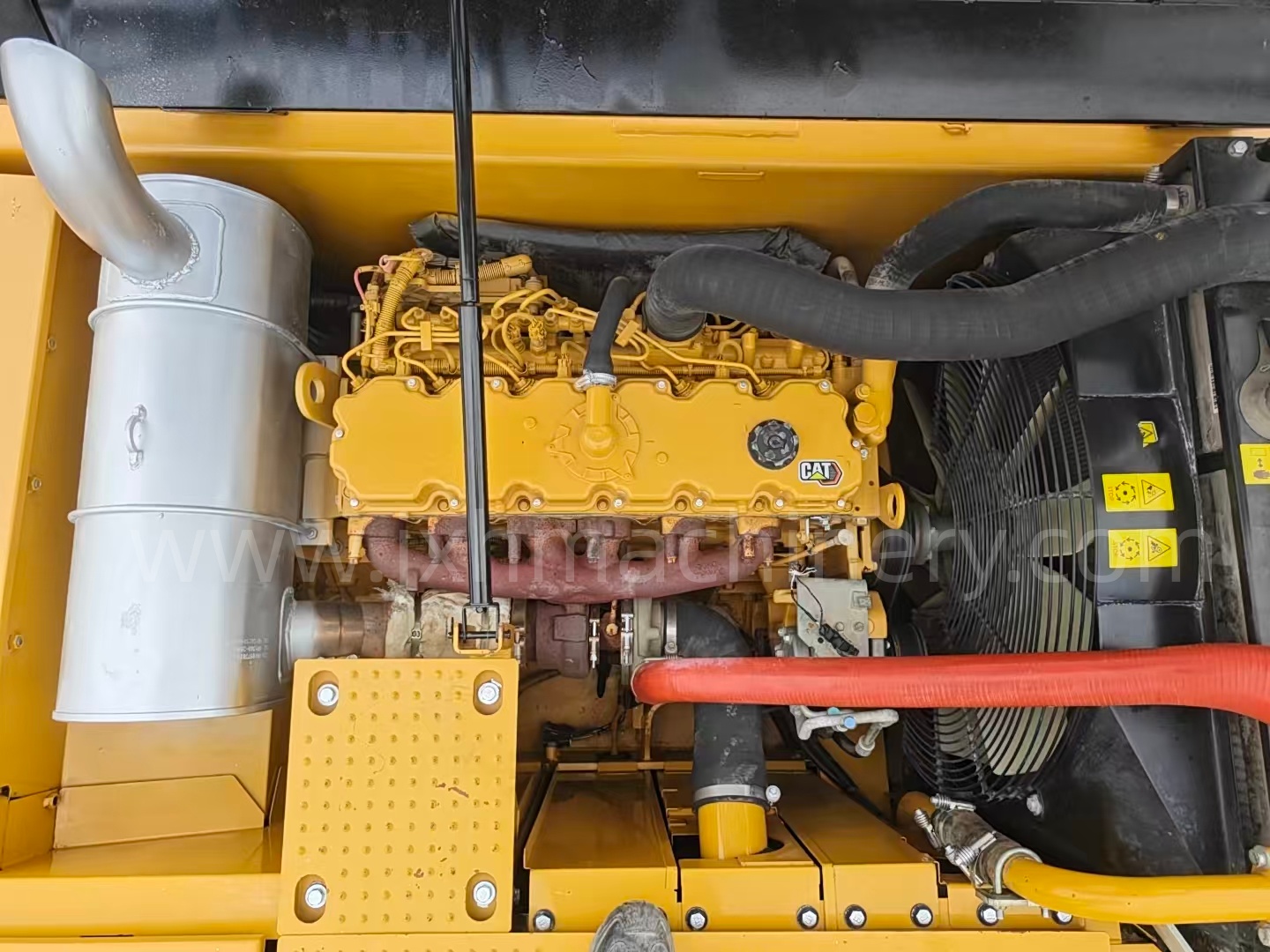

| Engine Model |
CAT C7.1 ACERT, 6-cylinder water-cooled |
| Displacement |
7.01 L |
| Bore × Stroke |
105 mm × 135 mm |
| Rated Net Power (ISO9249) |
156 kW (211 hp) @1800 rpm |
| Emission Standard |
US Tier 3 / EU Stage IIIA |
| Main Pump Max Flow |
240 L/min |
| Main System Relief Pressure |
35 MPa |
| Swing Circuit Pressure |
29.8 MPa |
| Swing Speed |
9.6 rpm |
| Swing Torque |
82.2 kN·m |
| Max Traction Force |
248 kN |
| Travel Speed |
3.4 / 5.3 km/h (low / high) |
| Gradeability |
70% (35°) |
| Bucket Digging Force |
179 kN |
| Stick Digging Force |
126 kN |
| Max Digging Reach at Ground Level |
10690 mm |
| Max Digging Depth |
7250 mm |
| Max Vertical Digging Depth |
6010 mm |
| Max Dumping Height |
6940 mm |
| Max Digging Height |
10000 mm |
| Overall Transport Length |
10420 mm |
| Overall Transport Width |
3190 mm |
| Overall Transport Height |
3330 mm |
| Cab Height |
3060 mm |
| Tail Swing Radius |
3130 mm |
| Minimum Ground Clearance |
500 mm |
| Fuel Tank Capacity |
520 L |
| Hydraulic Tank Capacity |
165 L |
| Engine Oil Capacity |
22 L |
| Cooling System Capacity |
31 L |
| Swing Reducer Oil |
10 L |
| Final Drive Oil (each side) |
6 L |
