| Operating Weight |
336D2: 34489 kg |
| Standard Bucket Capacity |
1.88 m³; Heavy duty bucket optional 2.2 m³ |
| Boom Length |
6500 mm |
| Stick Length |
3200 mm |

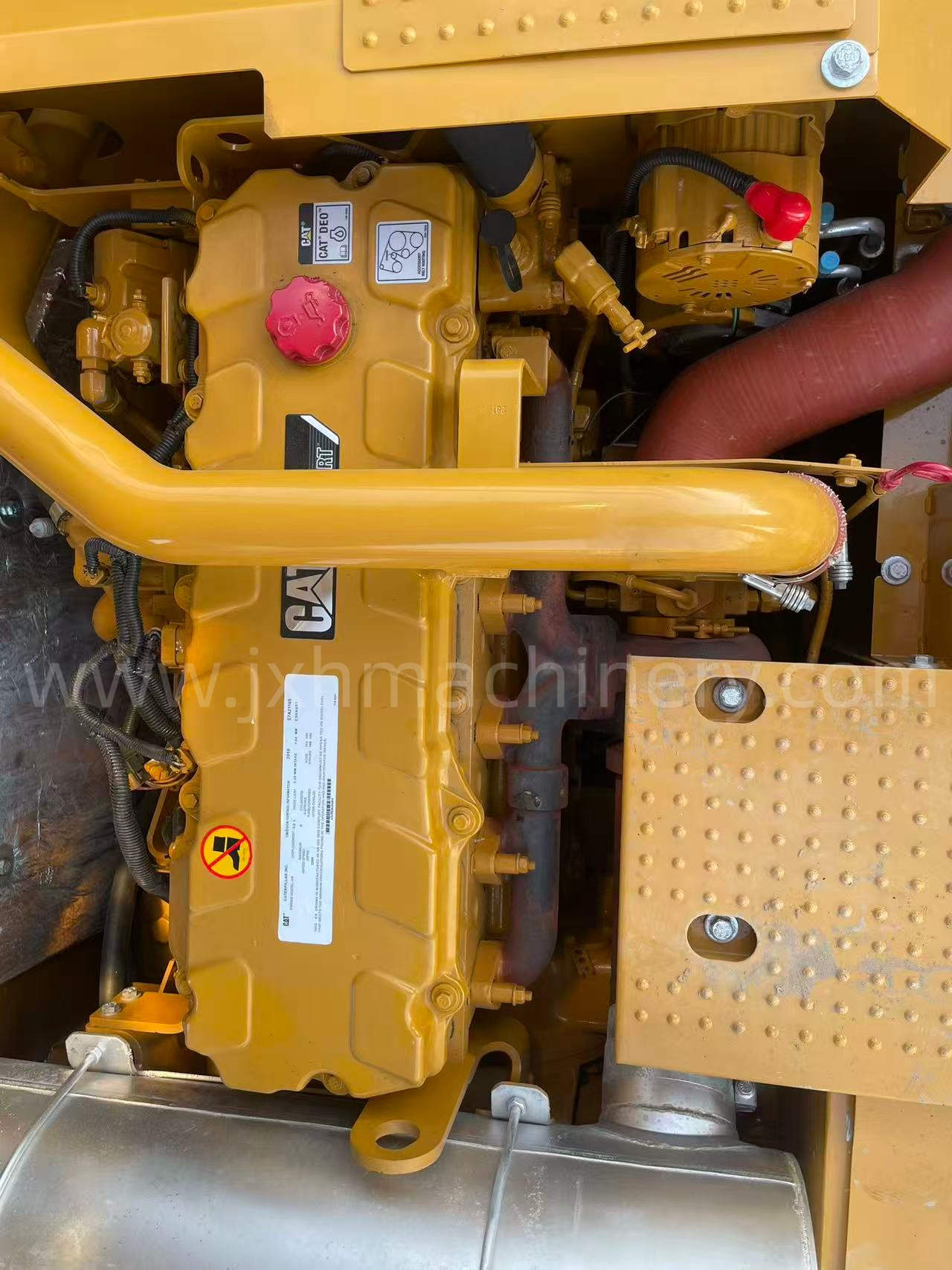

| Engine Model |
CAT C9 ACERT, 6-cylinder water-cooled electronic injection |
| Displacement |
8.8 L |
| Bore × Stroke |
112 mm × 149 mm |
| Rated Net Power (ISO9249) |
200 kW (268 hp) @1800 rpm |
| Emission Standard |
US Tier3 / EU Stage IIIA |
| Main Pump Max Flow |
281 L/min |
| Main System Relief Pressure |
35 MPa |
| Swing Circuit Pressure |
29.8 MPa |
| Swing Speed |
8.98 rpm |
| Swing Torque |
108 kN·m |
| Max Traction Force |
300.5 kN |
| Travel Speed |
3.2 / 4.85 km/h (low / high) |
| Gradeability |
70% (35°) |
| Bucket Digging Force |
224 kN |
| Stick Digging Force |
182 kN |
| Max Digging Reach at Ground Level |
11650 mm |
| Max Digging Depth |
8210 mm |
| Max Vertical Digging Depth |
6290 mm |
| Max Dumping Height |
7720 mm |
| Max Digging Height |
10730 mm |
| Overall Transport Length |
11210 mm |
| Overall Transport Width |
3190 mm (600mm track shoe) |
| Overall Transport Height |
3670 mm |
| Cab Height |
3140 mm |
| Tail Swing Radius |
3420 mm |
| Minimum Ground Clearance |
480 mm |
| Track Contact Length |
4590 mm |
| Track Gauge |
2590 mm |
| Counterweight Clearance |
1220 mm |
| Fuel Tank Capacity |
620 L |
| Hydraulic Tank Capacity |
175 L |
| Total Hydraulic System Volume |
410 L |
| Engine Oil Capacity |
40 L |
| Cooling System Capacity |
40 L |
| Swing Reducer Oil |
12 L |
| Final Drive Oil (each side) |
8 L |
