| Model |
LiuGong CLG920E |
| Machine Type |
Crawler Hydraulic Excavator |
| Operating Weight |
21500 kg |
| Standard Bucket Capacity (Heaped) |
1.0 m³ (Optional: 0.8~1.2 m³) |
| Boom Length |
5710 mm |
| Arm Length |
2915 mm |
| Engine |

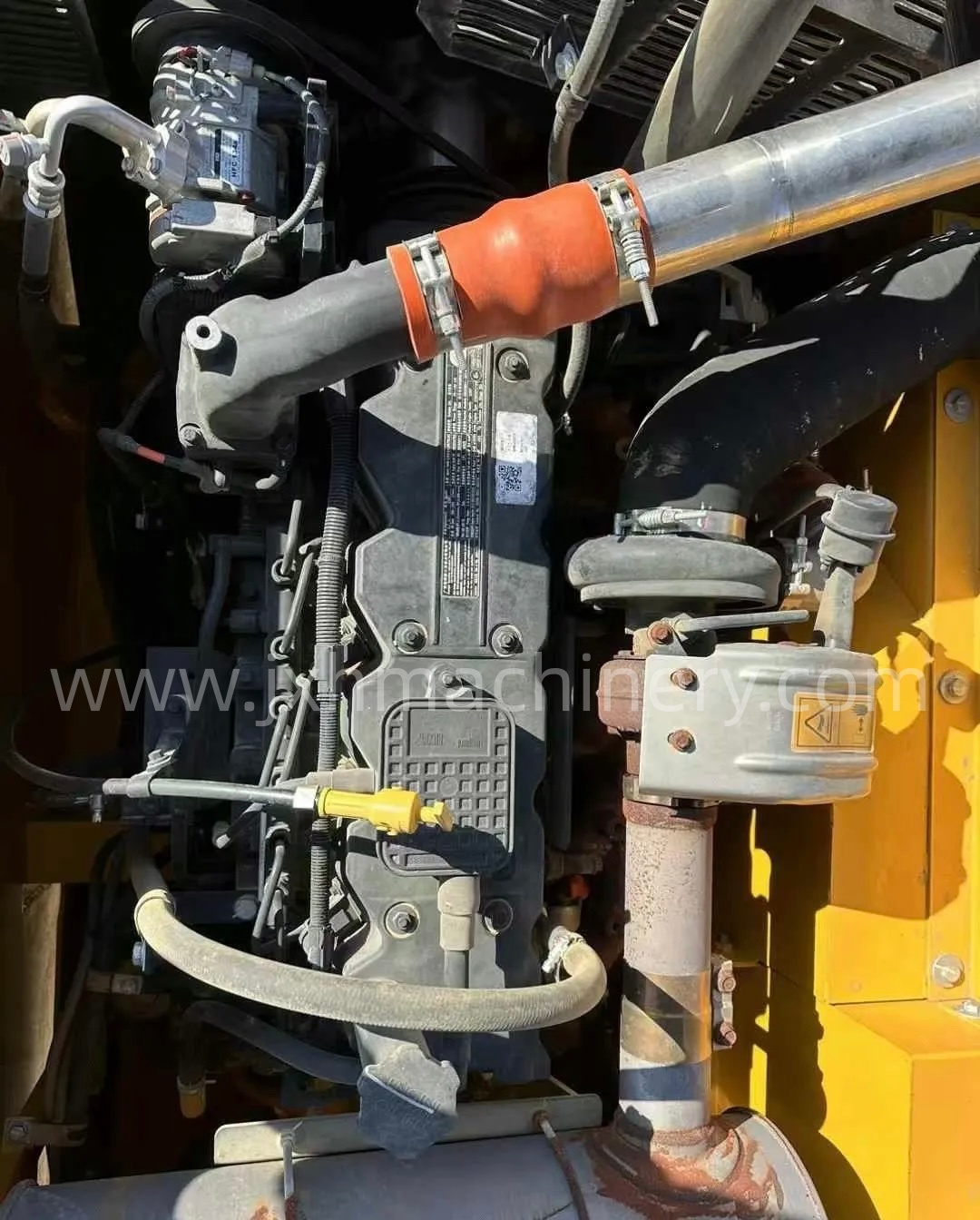

Cummins 6BTAA5.9-C150-II, 6-cylinder turbocharged & intercooled diesel |
| Emission Standard |
Tier 2 / Stage II |
| Rated Power |
112 kW (150 HP) @1950 rpm |
| Max Torque |
614 N·m @1500 rpm |
| Displacement |
5.9 L |
| Cooling System |
Water cooling |
| Working Range |
|
| Max Digging Reach |
9870 mm |
| Max Digging Reach on Ground |
9685 mm |
| Max Digging Depth |
6562 mm |
| Max Vertical Wall Digging Depth |
5080 mm |
| Max Cutting Height |
9945 mm |
| Max Dumping Height |
7170 mm |
| Min Front Swing Radius |
3090 mm |
| Digging Force (ISO) |
|
| Bucket Digging Force |
152.5 kN |
| Arm Digging Force |
105 kN |
| Swing Speed |
12.5 rpm |
| Travel Speed (Low / High) |
3.4 km/h / 5.7 km/h |
| Max Drawbar Pull |
220 kN |
| Gradeability |
70% (35°) |
| Ground Pressure |
44.2 kPa (600mm track shoe) |
| Hydraulic System |
|
| Main Pump |

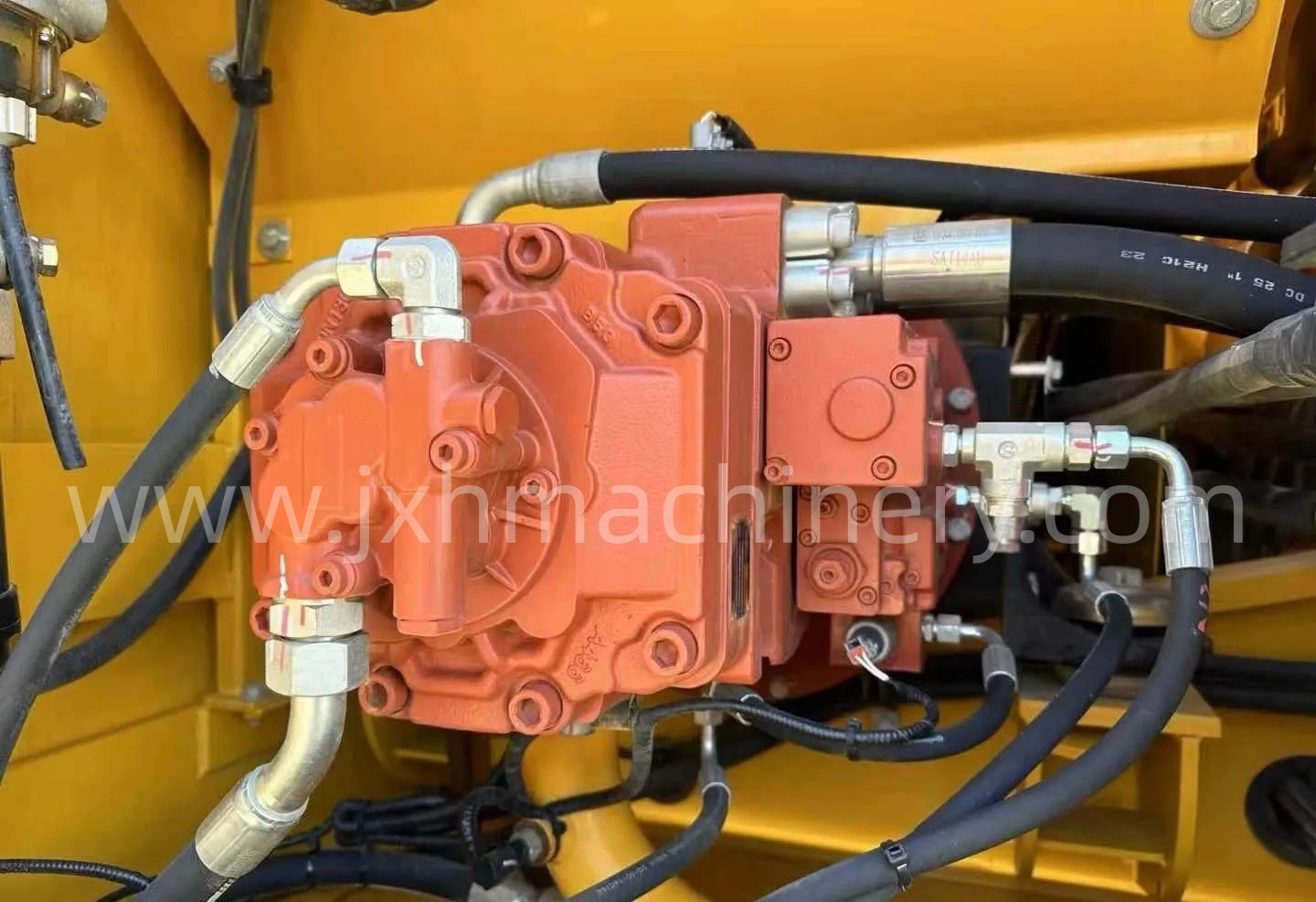

2 × Variable Displacement Axial Piston Pump |
| Max Total Pump Flow |
448 L/min |
| Main Relief Pressure |
34.3 MPa |
| Track Shoe Width (Standard) |
600 mm |
| Transport Dimensions (Standard 600mm track shoe) |
|
| Overall Shipping Length |
9540 mm |
| Overall Shipping Width |
2800 mm |
| Overall Height (ROPS Cab) |
3140 mm |
| Service Capacities |
|
| Fuel Tank |
420 L |
| Hydraulic Oil Tank |
210 L |
| Engine Oil |
25 L |
| Cooling System |
25 L |
