| Model |
Liugong CLG375B |
| Type |
Wheeled Skid Steer Loader |
| Rated Operating Capacity |
865 kg |
| Operating Weight |
3100 kg |
| Standard Bucket Capacity (Heaped) |
0.45 m³ |
| Shipping Dimension(L×W×H) |
3432 × 1630 × 1940 mm |
| Tire Size |
10-16.5,10PR |
| Ground Clearance |
204 mm |
| Static Tipping Load |
1730 kg |
| Bucket Breakout Force |
20.8 kN |
| Boom Breakout Force |
18.8 kN |
| Max Dump Clearance |
2220 mm |
| Max Dump Reach |
540 mm |
| Max Hinge Pin Height |
2923 mm |
| Total Hydraulic Cycle Time |
8.6 s (Raise:4.2s, Dump:2.3s, Lower:2.1s) |

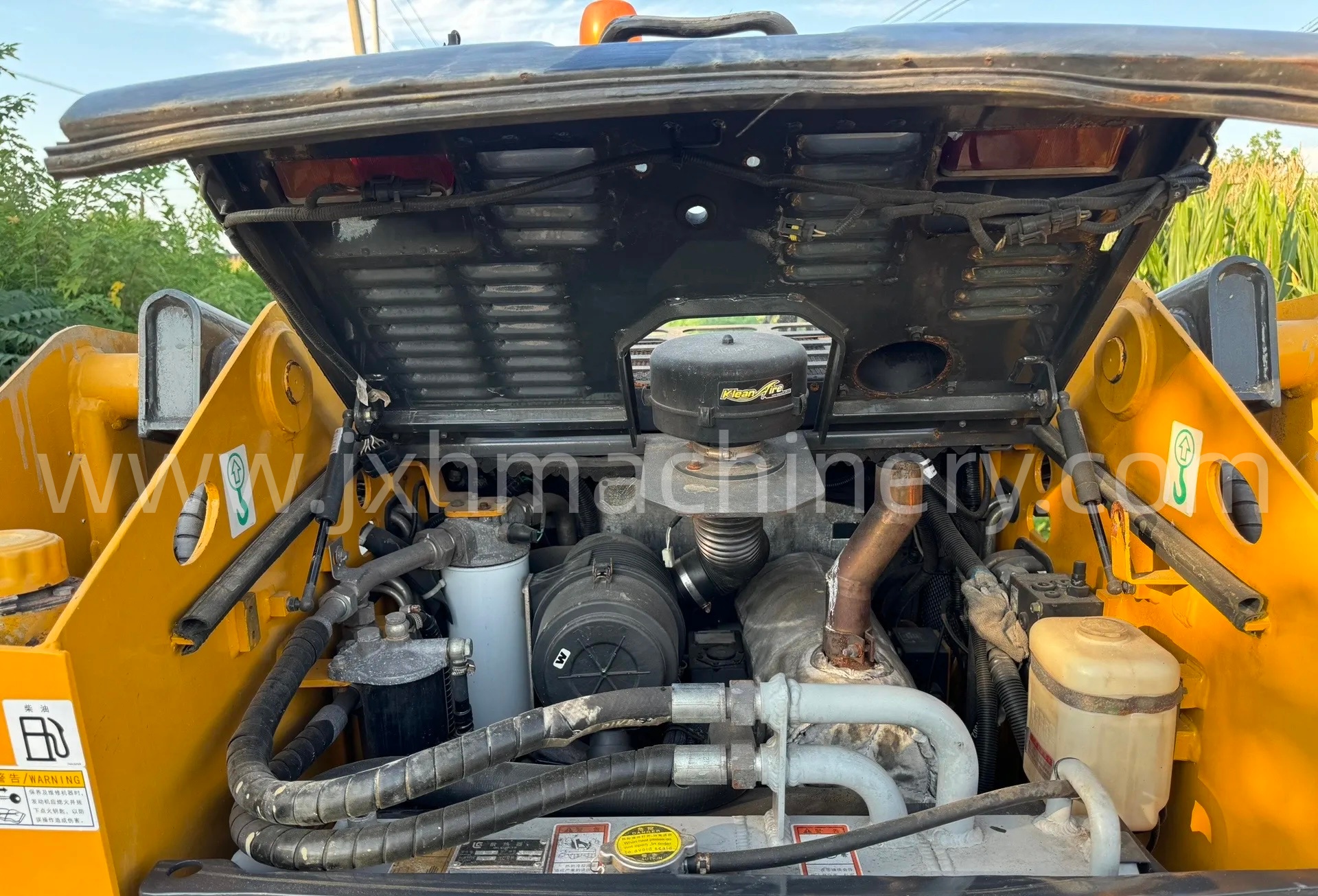

| Engine |
Yanmar 4TNV98-ZPLYS (Tier2 / Stage II for export used machine) |
| Rated Power |
49.9 kW (67 hp) @2400 rpm |
| 4 Cylinders, Water-cooled, Turbocharged & Intercooled |
|
| Hydraulic System |
Open center hydraulic system |
| Standard Pump Flow |
79.2 L/min |
| Optional High Flow |
124 L/min |
| Main Relief Pressure |
21 MPa |
| Fuel Tank Capacity |
70 L |
