| Model |

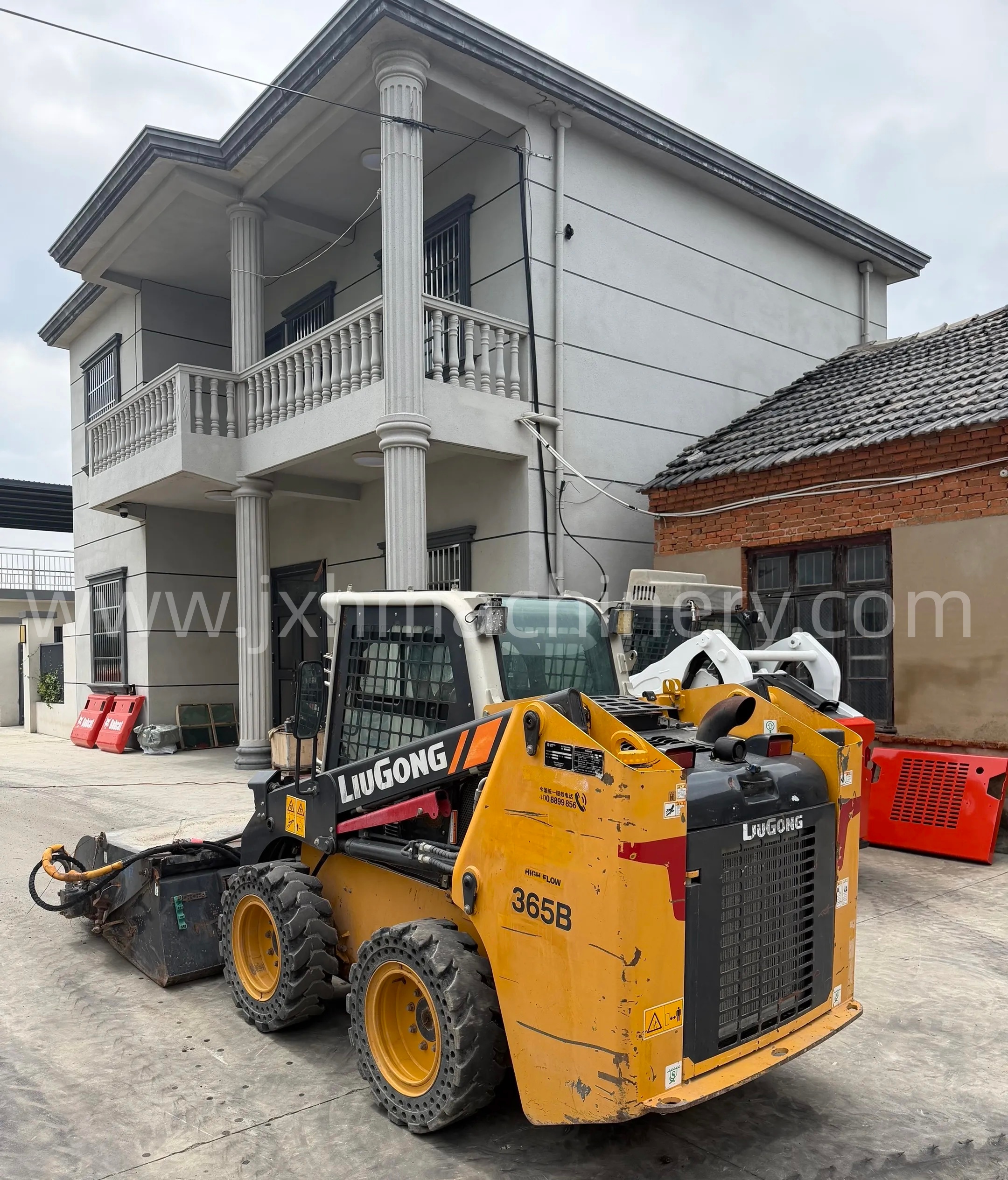

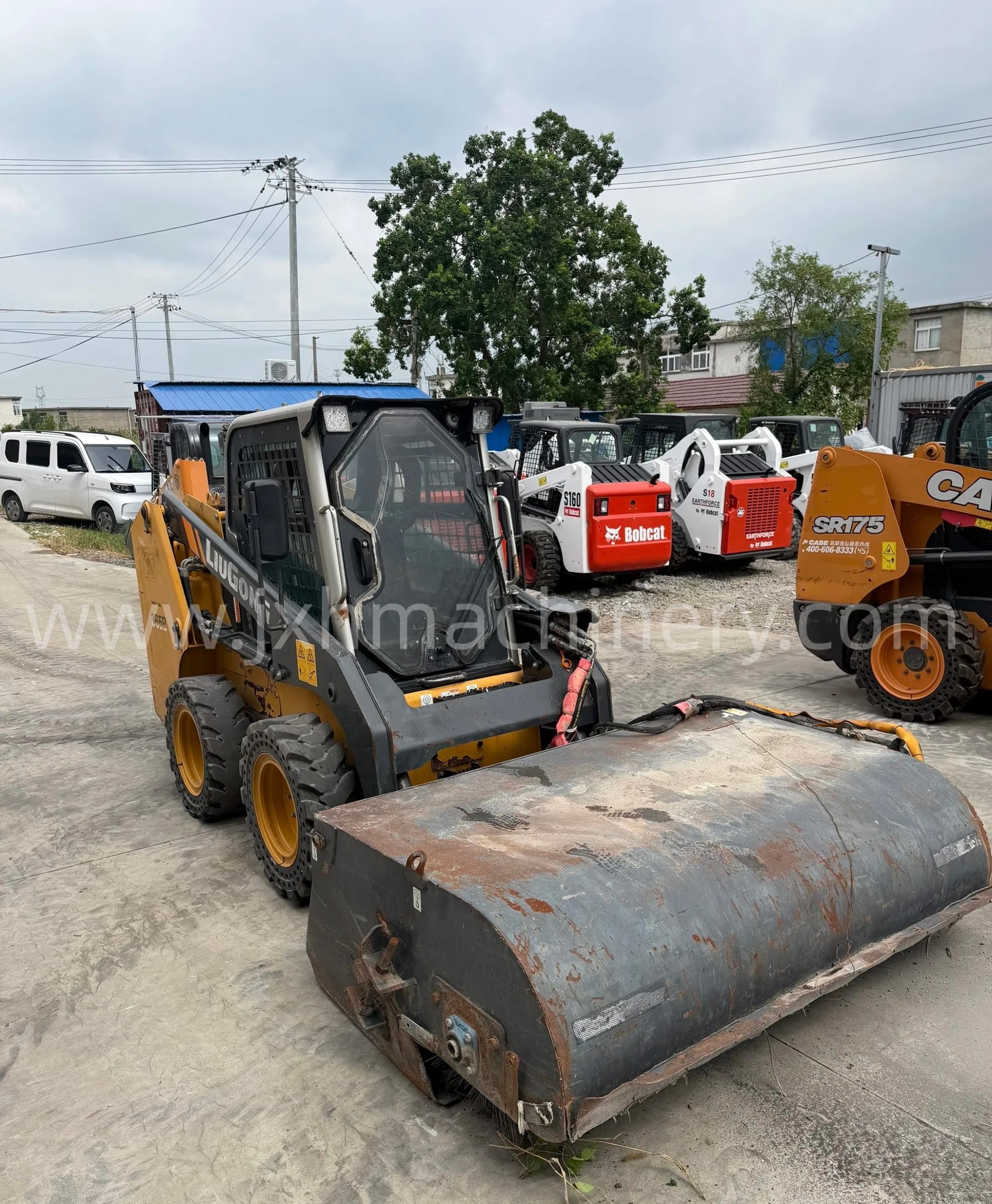

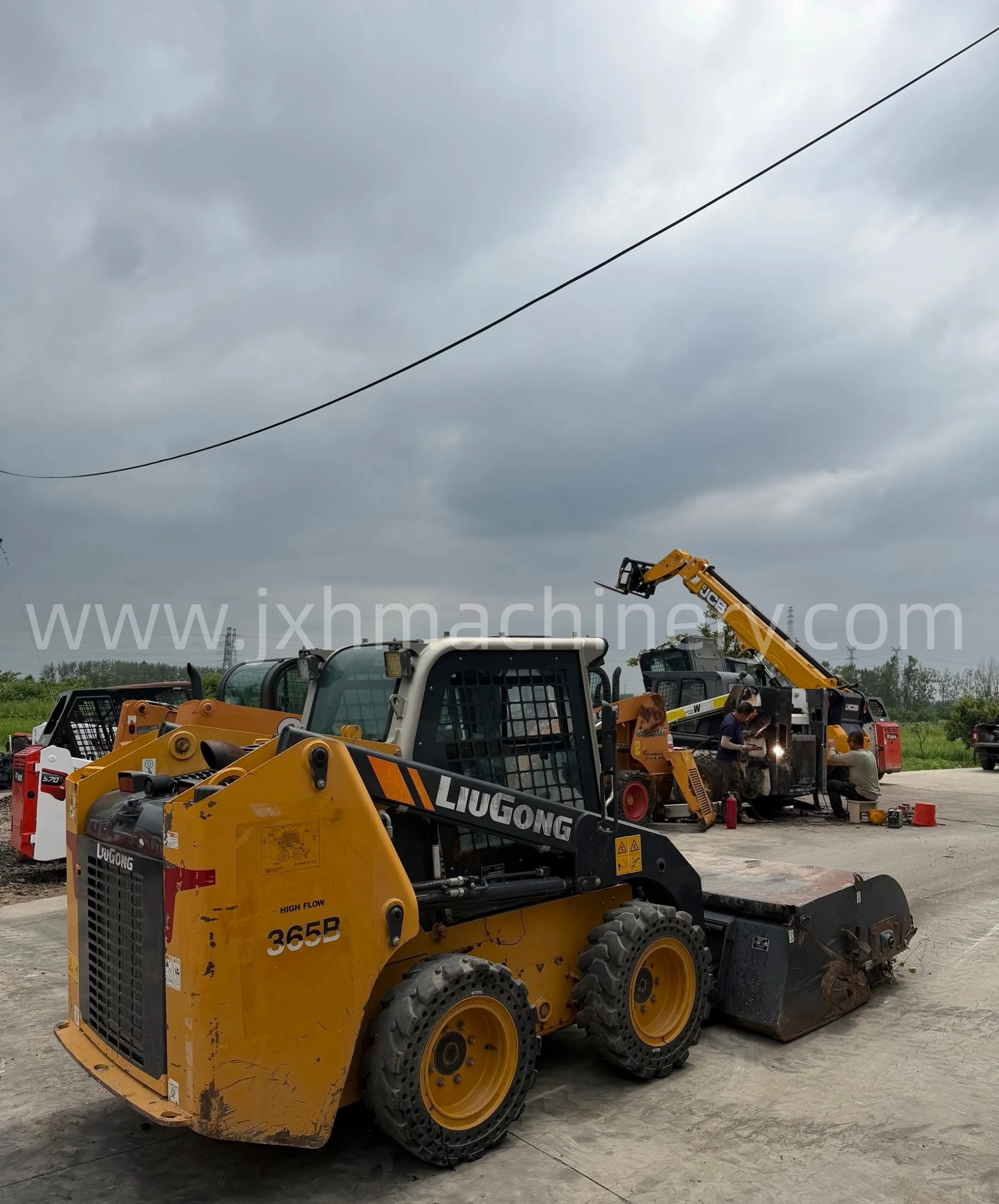

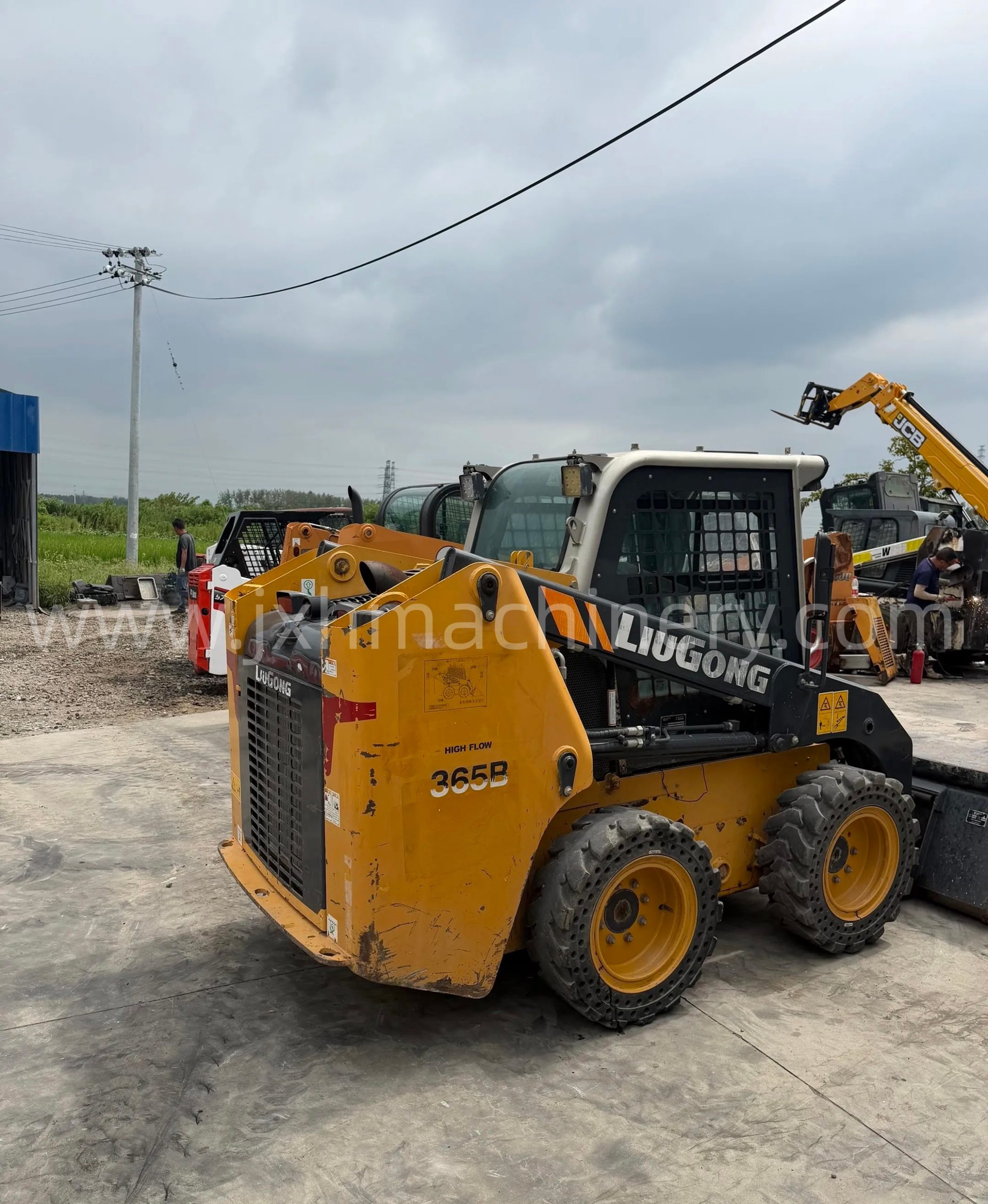

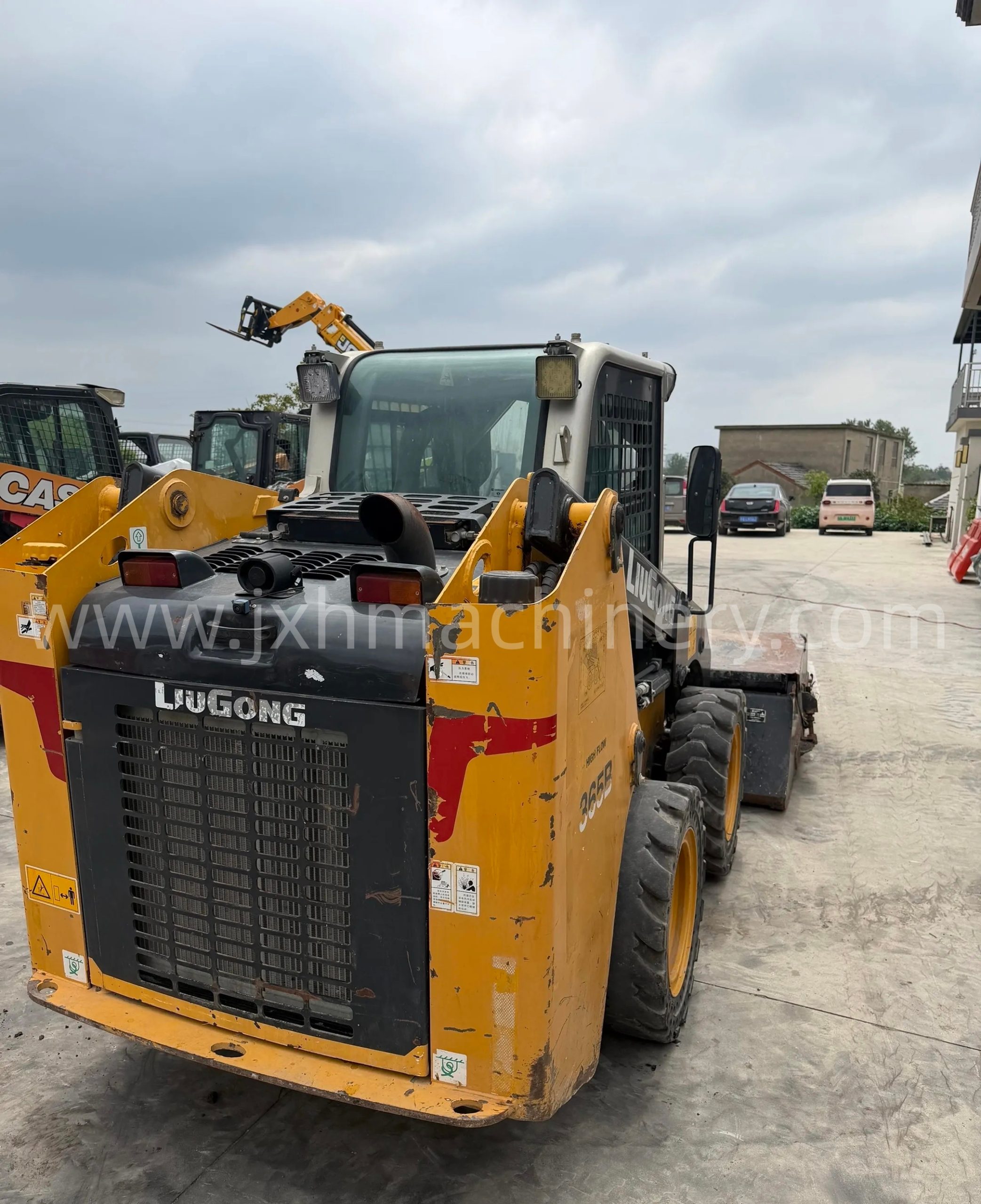

Liugong CLG365B |
| Type |
Wheeled Skid Steer Loader |
| Rated Operating Capacity |
795 kg |
| Operating Weight |
2950 kg |
| Standard Bucket Capacity (Heaped) |
0.4 m³ |
| Shipping Dimension(L×W×H) |
3432 × 1630 × 1940 mm |
| Tire Size |
10-16.5 |
| Ground Clearance |
204 mm |
| Static Tipping Load |
1590 kg |
| Bucket Breakout Force |
20.4 kN |
| Boom Breakout Force |
18.5 kN |
| Max Dump Clearance |
2220 mm |
| Max Dump Reach |
540 mm |
| Max Hinge Pin Height |
2923 mm |
| Total Hydraulic Cycle Time |
7.8 s (Raise:3.8s, Dump:2.1s, Lower:1.9s) |

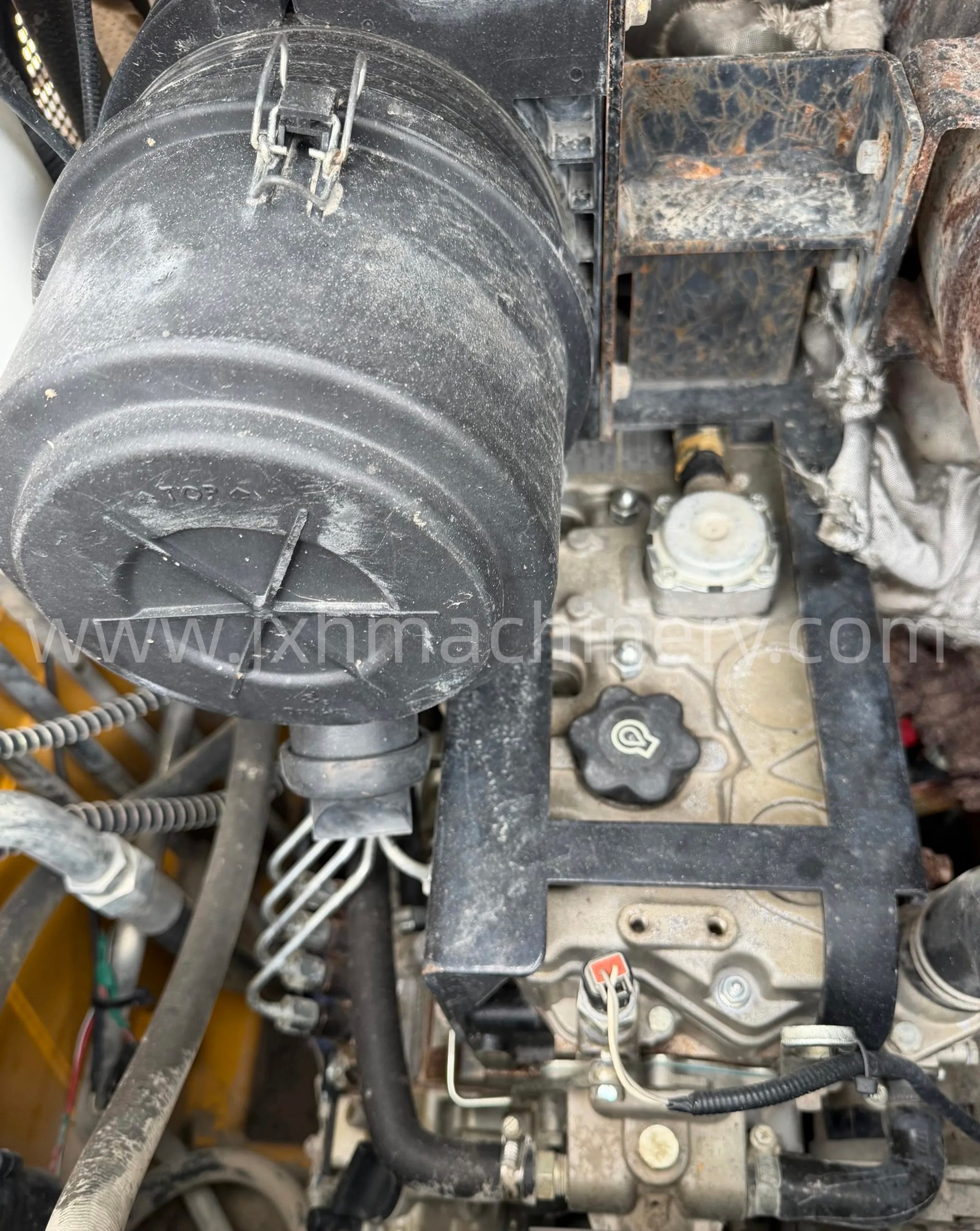

| Engine |
Xinchai 4D35G-007 (Tier2 / Stage II for export used machine) |
| Rated Power |
48 kW (65 hp) @2300 rpm |
| 4 Cylinders, Water-cooled, Turbocharged |
|
| Hydraulic System |
Open center hydraulic system |
| Main Pump Flow |
75.9 L/min |
| Main Relief Pressure |
21 MPa |
| Travel Hydraulic Pressure |
32.5 MPa |
| Fuel Tank Capacity |
70 L |
