| Machine Type |

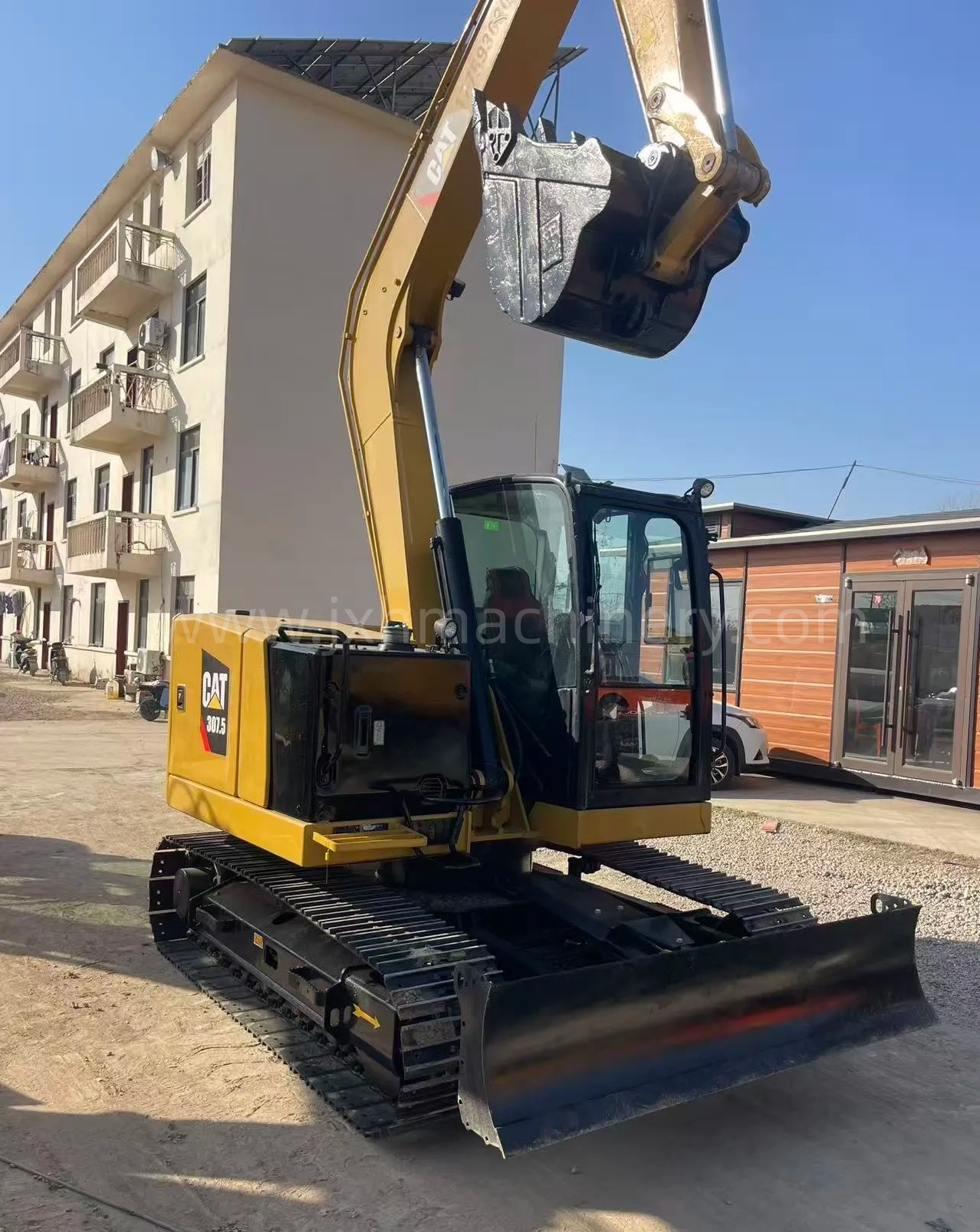

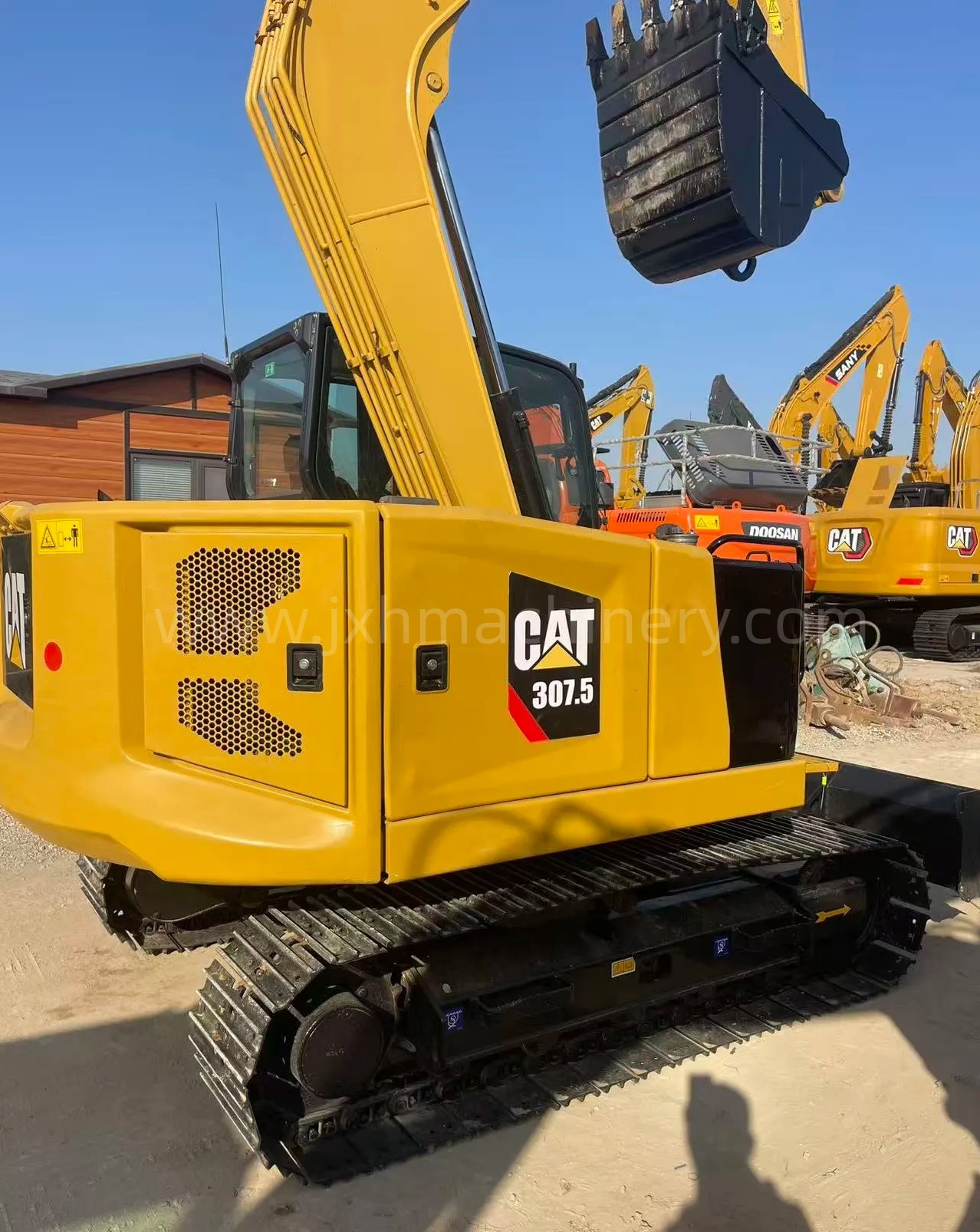

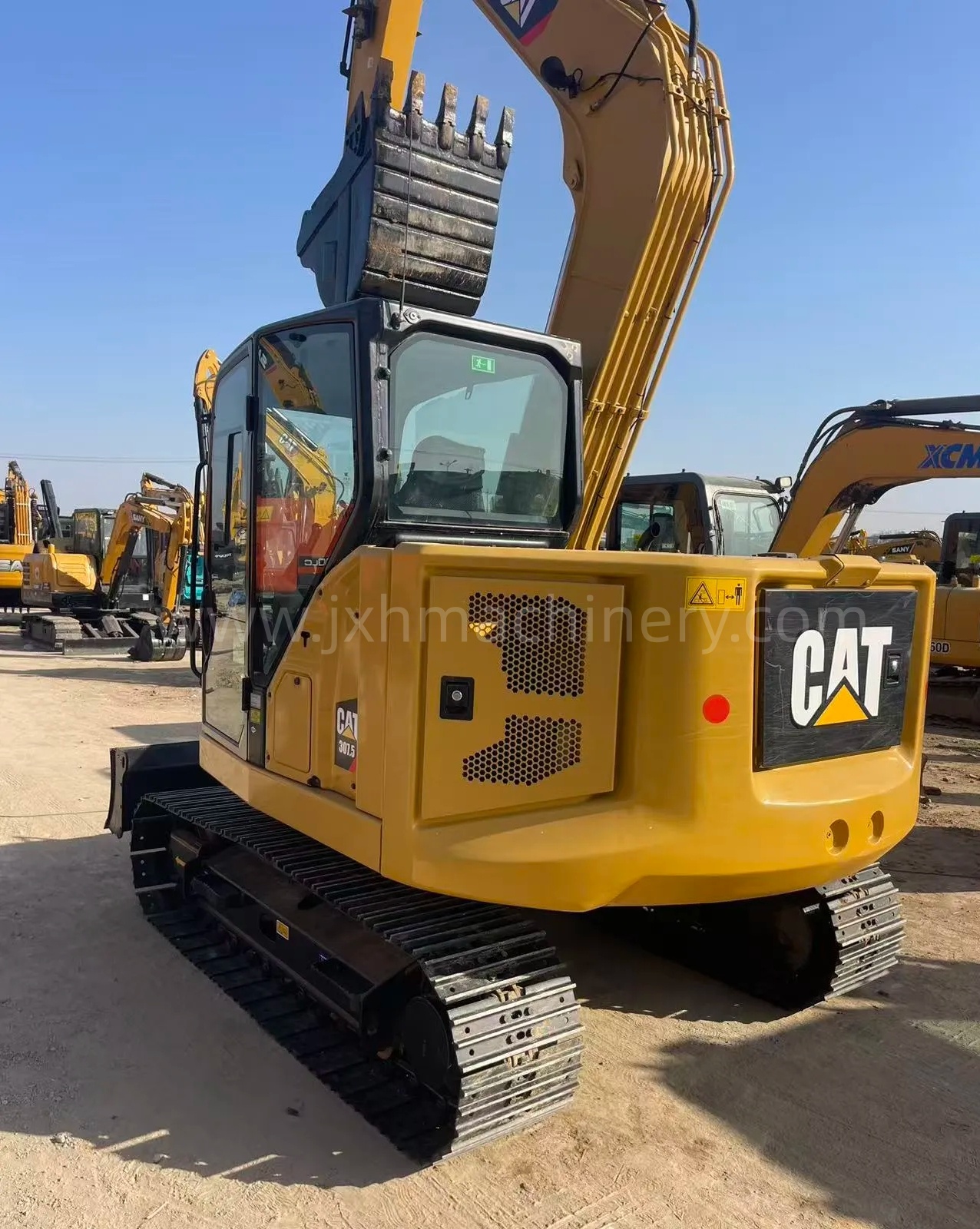

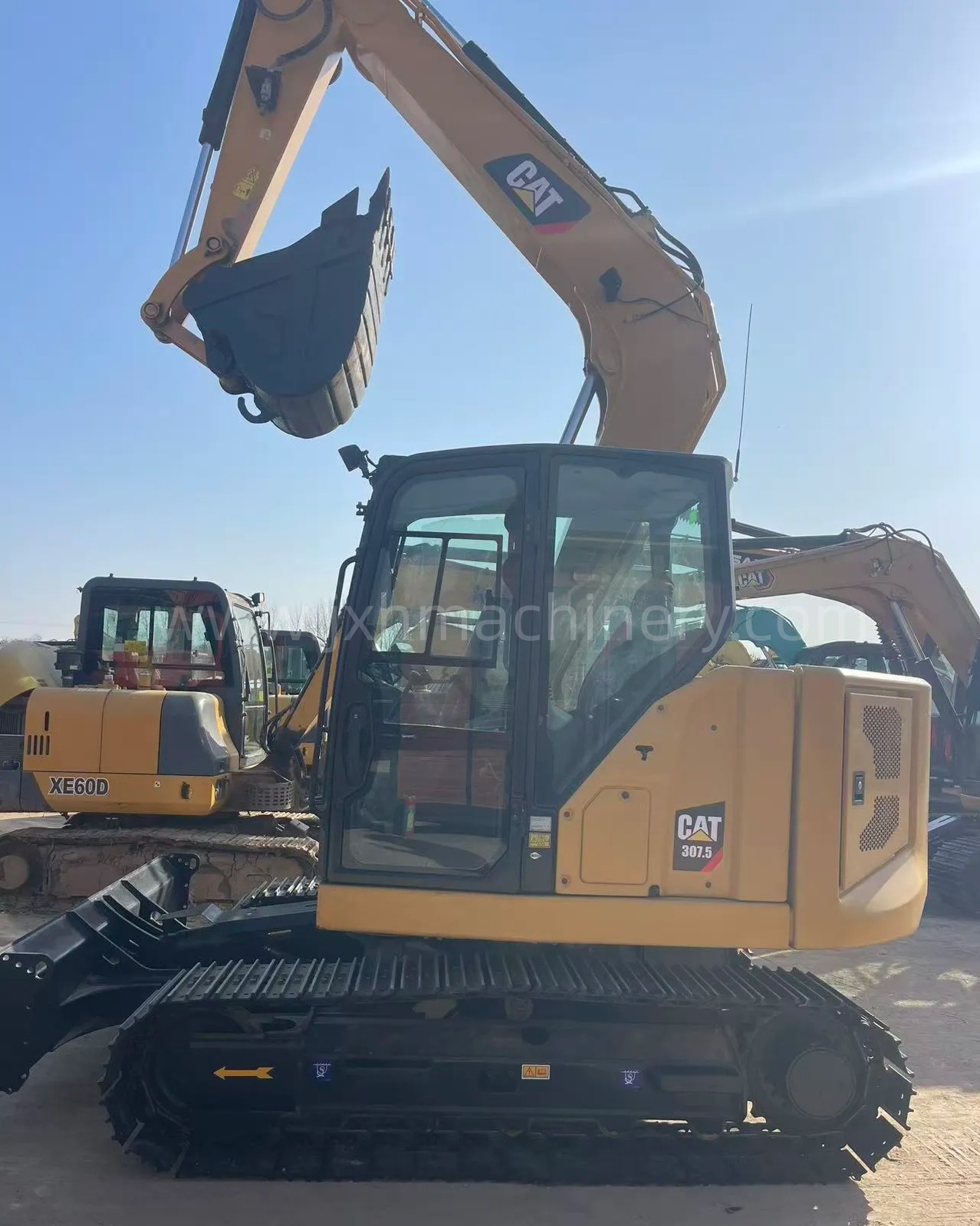

7.5 Ton Mini Excavator |
| Engine Model |

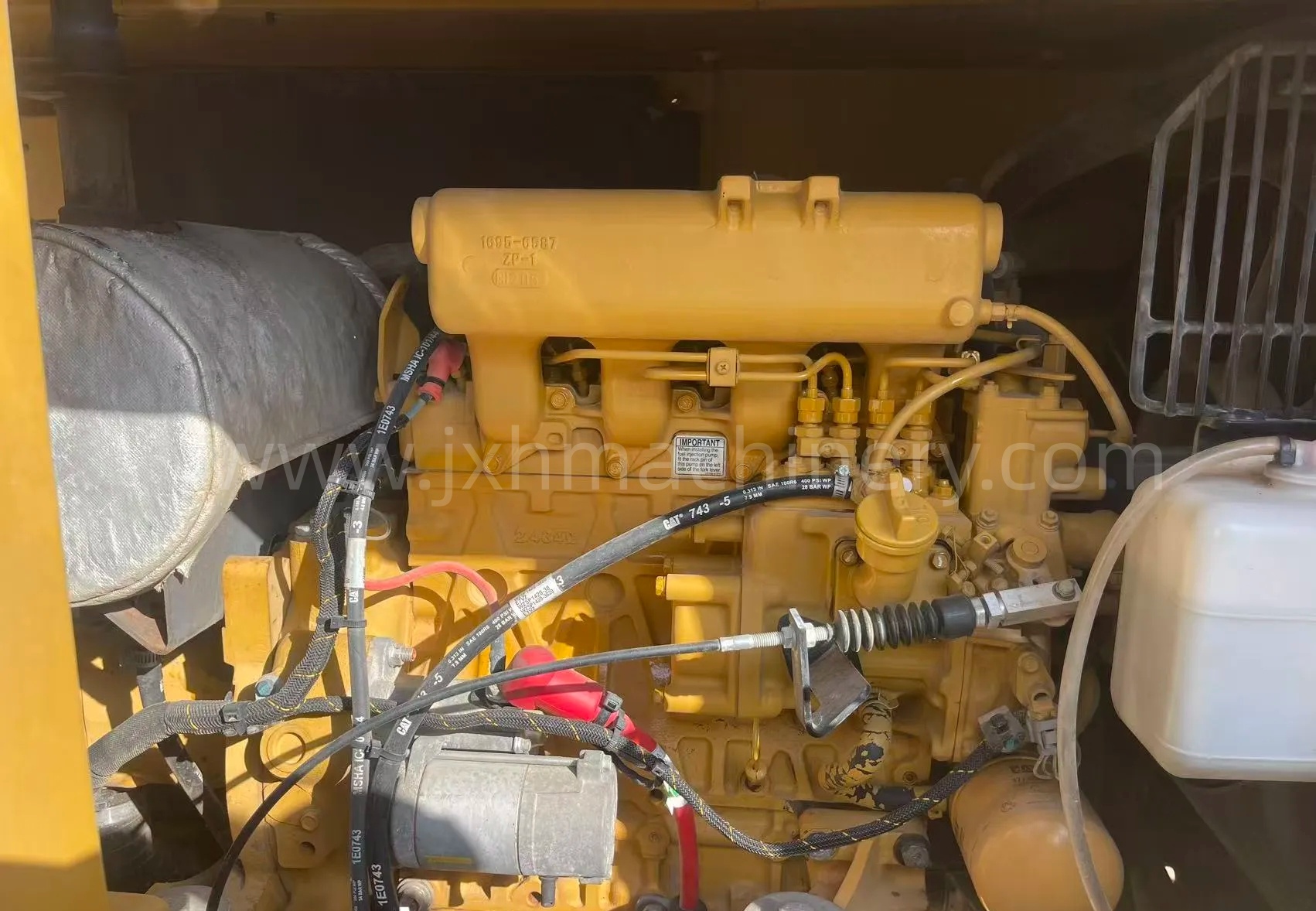

Cat C2.4 Turbo 4-cylinder water-cooled diesel |
| Rated Net Power (ISO9249) @2400 rpm |
34.9 kW (46.8 hp) |
| Gross Power (ISO14396) @2400 rpm |
36.5 kW (48.9 hp) |
| Bore × Stroke |
87 mm × 102 mm |
| Displacement |
2.43 L |
| Emission Standard |
China Nonroad Stage III / EPA Tier 3 |
| Operating Weight (with cab, standard config) |
7505 kg (min) / 8113 kg (max) |
| Standard Bucket Capacity |
0.28 m³ |
| Main Pump Flow |
160 L/min |
| Main Working Pressure |
285 bar |
| Bucket Digging Force |
49.2 kN |
| Arm Digging Force (Standard Arm) |
37.8 kN |
| Maximum Digging Depth (Standard Stick) |
4100 mm |
| Maximum Digging Depth (Long Stick) |
4642 mm |
| Vertical Wall Digging Depth (Long Stick) |
4113 mm |
| Maximum Digging Radius (at ground level, Long Stick) |
6670 mm |
| Maximum Digging Radius (Long Stick) |
6805 mm |
| Maximum Digging Height (Long Stick) |
7765 mm |
| Maximum Dumping Height (Long Stick) |
5717 mm |
| Transport Length |
6240 mm |
| Transport Width |
2200 mm |
| Transport Height (top of cab) |
2610 mm |
| Track Shoe Width |
450 mm (steel track, rubber pad optional) |
| Rear Swing Radius |
1930 mm |
| Dozer Blade Width |
2200 mm |
| Swing Speed |
9.5 rpm |
| Travel Speed (High / Low) |
5.0 / 3.1 km/h |
| Maximum Traction Force (Low Speed) |
62.4 kN |
| Maximum Traction Force (High Speed) |
26.1 kN |
| Maximum Gradeability |
30° |
| Ground Pressure |
34.8 ~ 37.7 kPa |
| Fuel Tank Capacity |
145 L |
| Hydraulic Tank Capacity |
72 L |
| Total Hydraulic System Capacity |
102 L |
| Engine Oil Capacity |
9.5 L |
| Coolant Capacity |
10 L |
| Auxiliary Hydraulic Line |
Standard dual auxiliary circuit for breaker & auger |
| Cab |
ROPS/FOPS certified, A/C optional |
