| Machine Type |

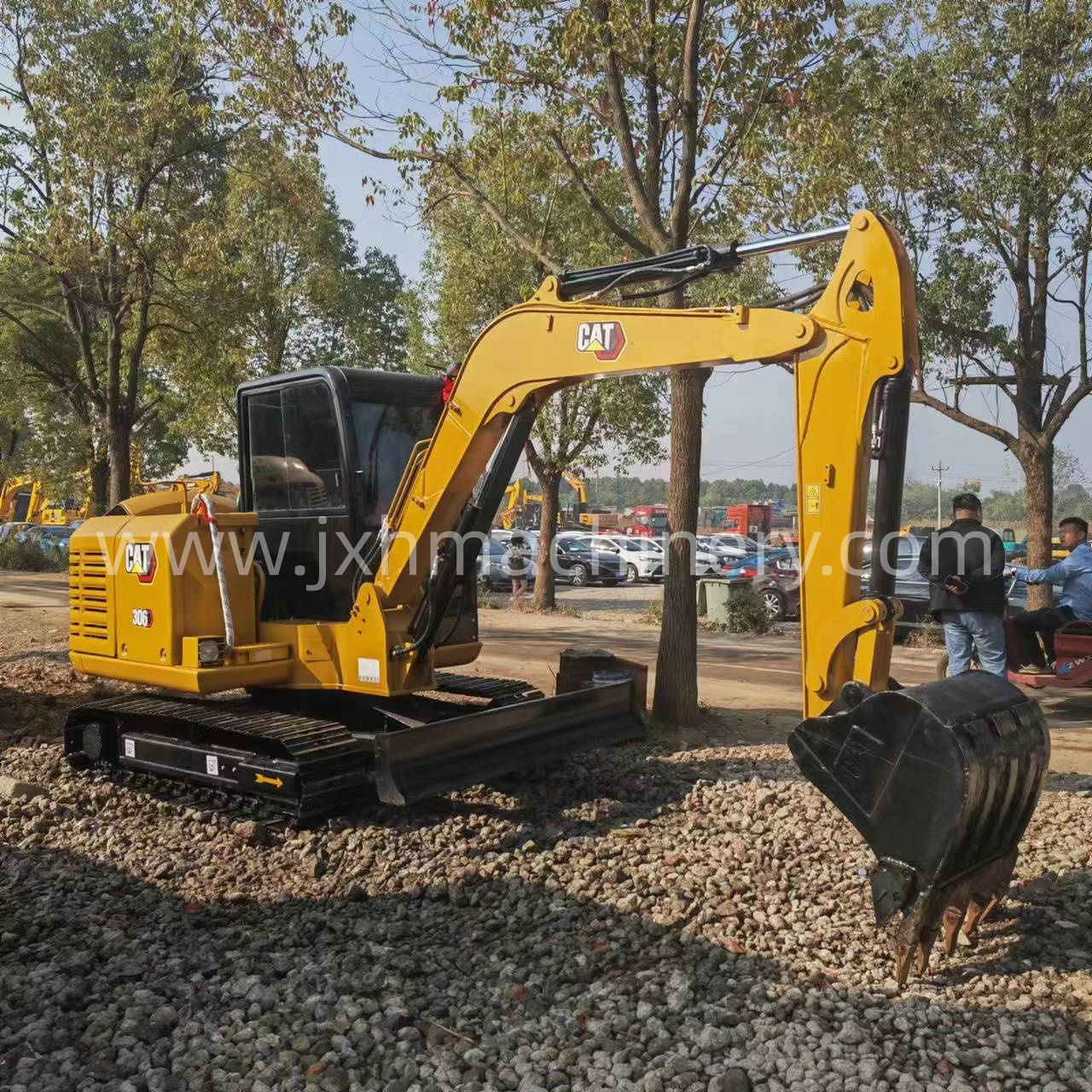

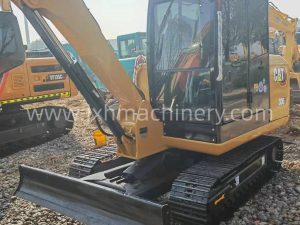

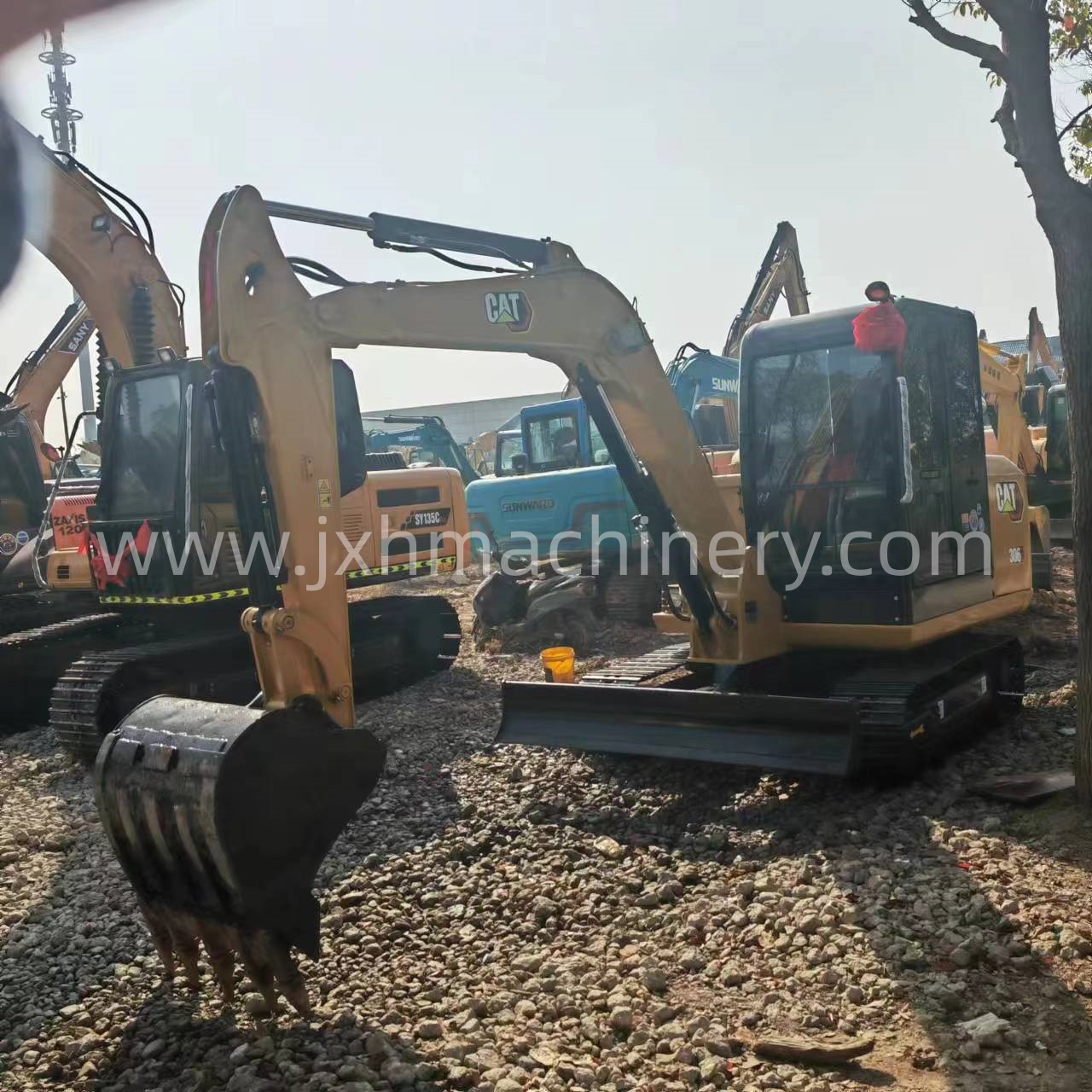

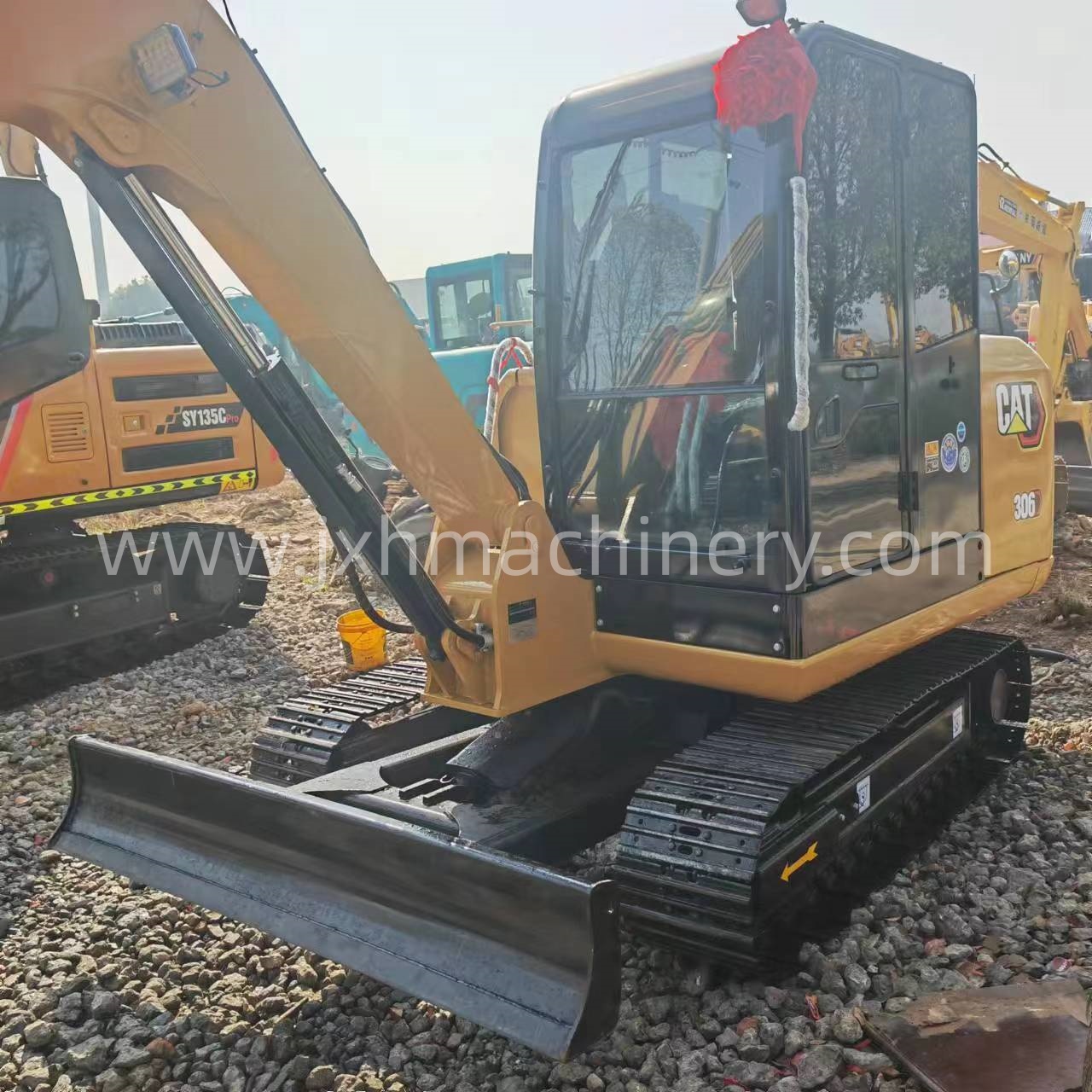

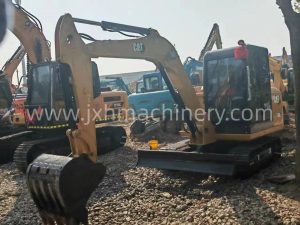

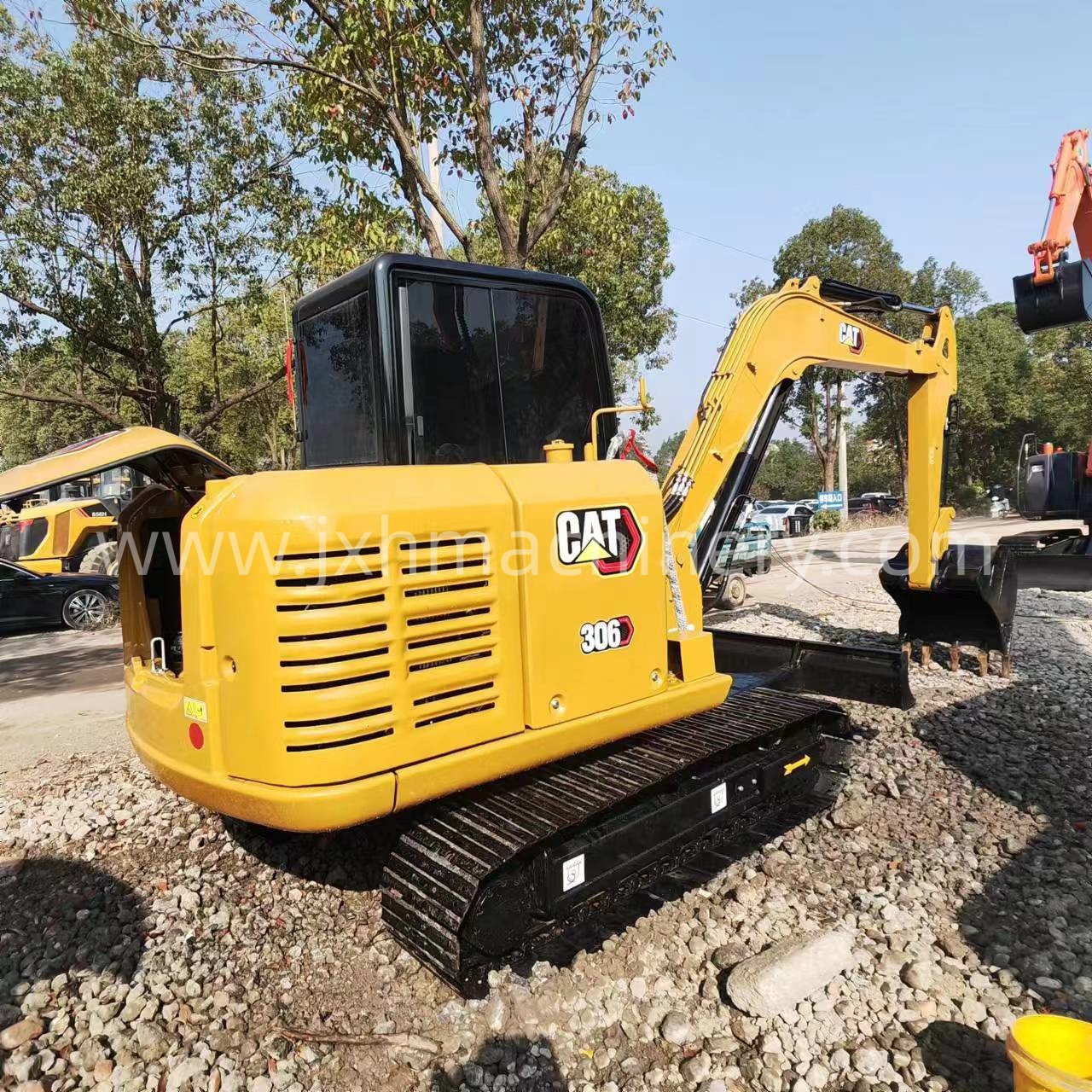

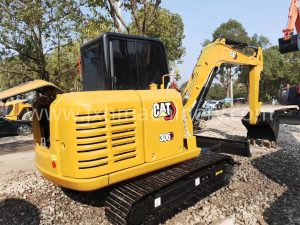

6 Ton Compact Radius Mini Excavator |
| Engine Model |
Mitsubishi 4M40 4-cylinder water-cooled diesel |
| Rated Net Power (ISO9249) @2200 rpm |
41 kW (55 hp) |
| Gross Power |
43 kW (57.7 hp) |
| Bore × Stroke |
95 mm × 100 mm |
| Displacement |
2.84 L |
| Emission Standard |
EPA Tier 2 / China Nonroad Stage III |
| Operating Weight (with cab) |
5775 kg |
| Standard Bucket Capacity |
0.22 m³ |
| Main Pump Flow |
152 L/min |
| Main Working Pressure |
245 bar |
| Bucket Digging Force |
38.6 kN |
| Arm Digging Force (Standard Arm) |
25.5 kN |
| Maximum Digging Depth |
3750 mm |
| Maximum Digging Radius (at ground level) |
5900 mm |
| Maximum Digging Radius |
6050 mm |
| Maximum Digging Height |
5436 mm |
| Maximum Dumping Height |
3810 mm |
| Transport Length |
5766 mm |
| Transport Width |
1980 mm |
| Transport Height (top of cab) |
2540 mm |
| Track Shoe Width |
400 mm (steel track, rubber pad optional) |
| Rear Swing Radius |
1650 mm |
| Dozer Blade Width |
1980 mm |
| Swing Speed |
8.8 rpm |
| Travel Speed (High / Low) |
4.8 / 2.8 km/h |
| Maximum Traction Force (Low Speed) |
48.2 kN |
| Maximum Gradeability |
30° |
| Fuel Tank Capacity |
135 L |
| Hydraulic Tank Capacity |
57 L |
| Total Hydraulic System Capacity |
85 L |
| Engine Oil Capacity |
11.2 L |
| Coolant Capacity |
15.5 L |
| Auxiliary Hydraulic Line |
Standard for breaker |

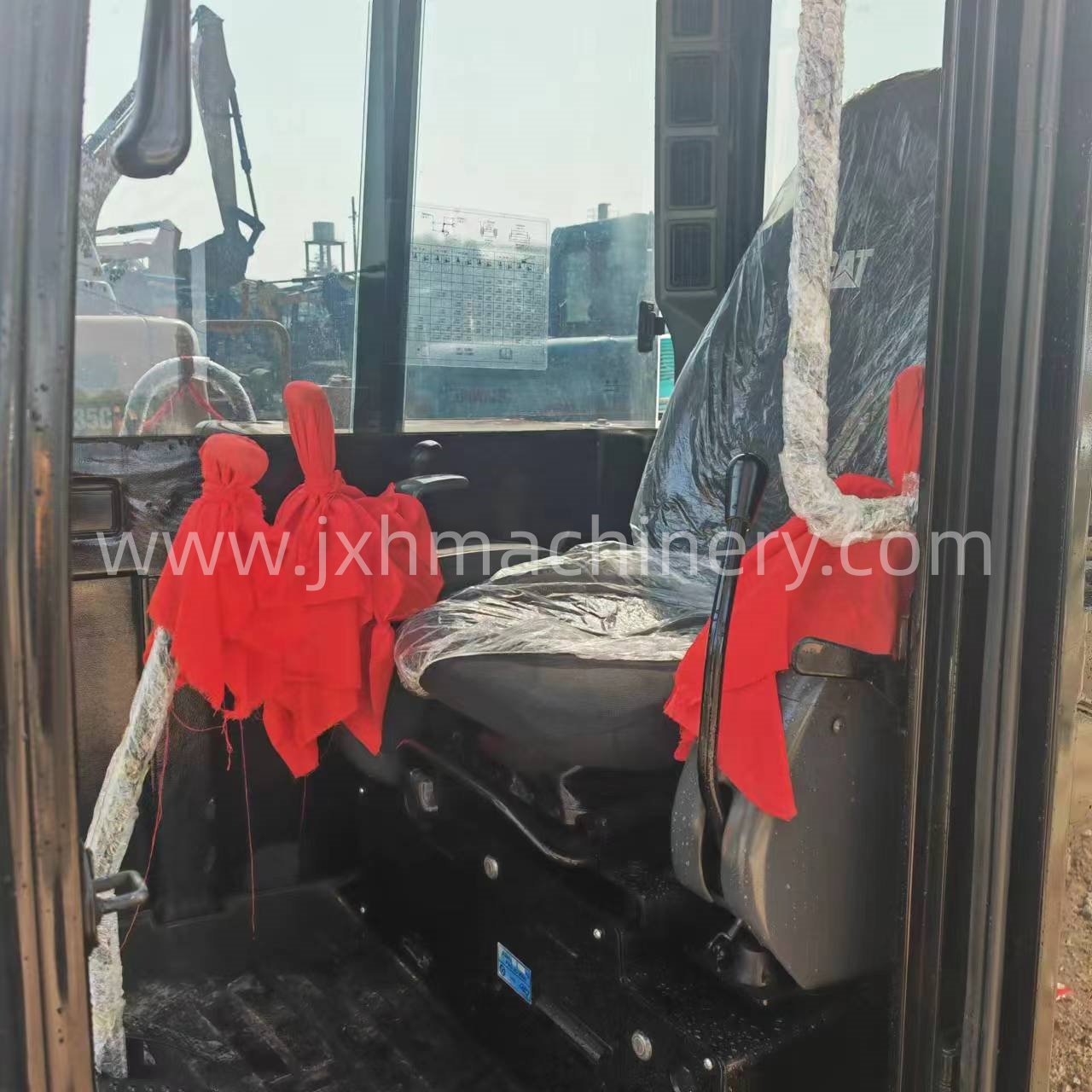

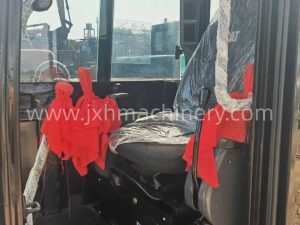

| Cab |
ROPS/FOPS certified cab, A/C optional |
