| Model |
Caterpillar 140H |
| Type |
Motor Grader |
| Operating Weight |
14,724 kg (Standard version, with moldboard, no front dozer & rear ripper) |
| Shipping Dimension(L×W×H) |
8310 × 2440 × 3360 mm |
| Standard Moldboard (Blade) Width |
3658 mm (12 ft) |
| Moldboard Height |
610 mm |
| Moldboard Thickness |
19 mm |
| Max Cutting Depth |
610 mm |
| Bank Cut Angle |
20° ~ 90° |
| Max Sloping Angle |
90° |
| Circle Rotation |
360° |
| Wheelbase |
5920 mm |
| Minimum Turning Radius |
7300 mm |
| Frame Articulation Angle |
±25° |
| Front Axle Lean Angle |
±18° |
| Tire Size |
14.00-24 |
| Engine |

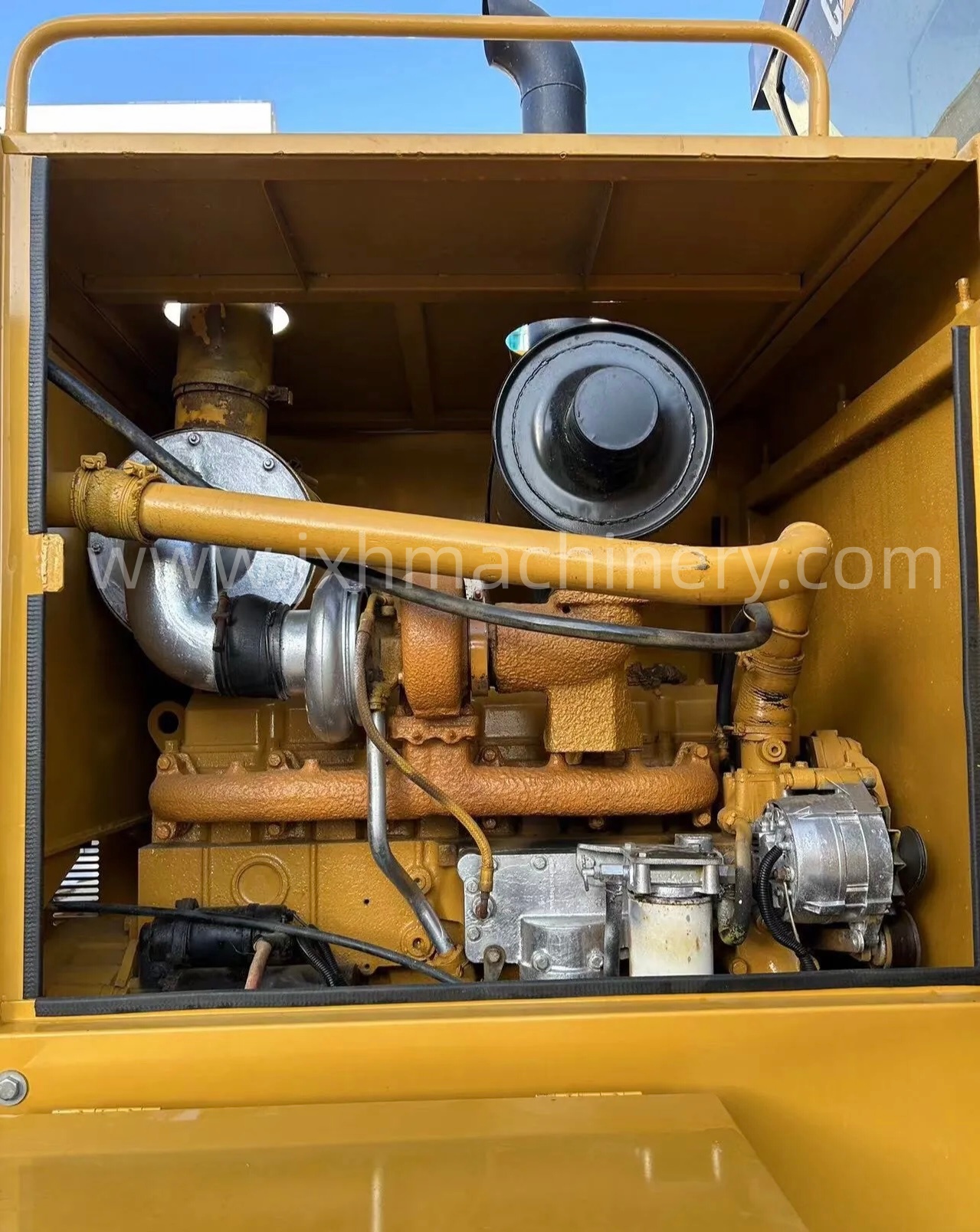

CAT 3306T, 6 cylinders, Turbocharged & Intercooled |
| Net Power (Gears 1-3) |
123 kW (165 hp) @2200 rpm |
| Net Power (Gears 4-8) |
138 kW (185 hp) @2200 rpm, VHP system |
| Displacement |
10.45 L |
| Transmission |
CAT Powershift, 8 Forward / 6 Reverse |
| Max Travel Speed Forward |
41 km/h |
| Max Travel Speed Reverse |
28 km/h |
| Hydraulic System |
Closed-center constant pressure hydraulic system |
| Main Relief Pressure |
20.7 MPa |
| Fuel Tank Capacity |
320 L |
| Service Brake |
Multi-disc oil bath brake |
