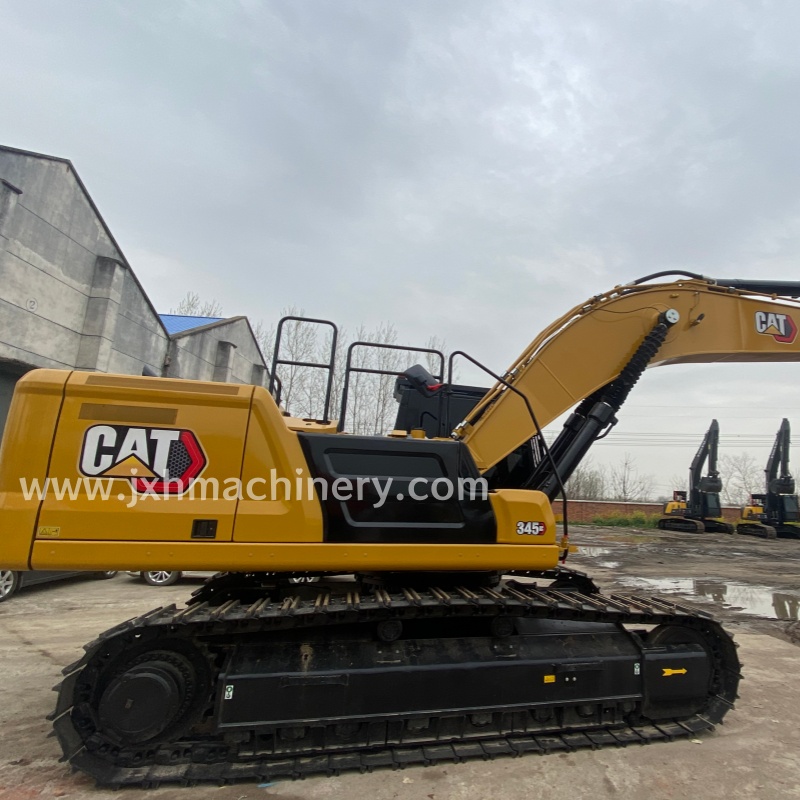

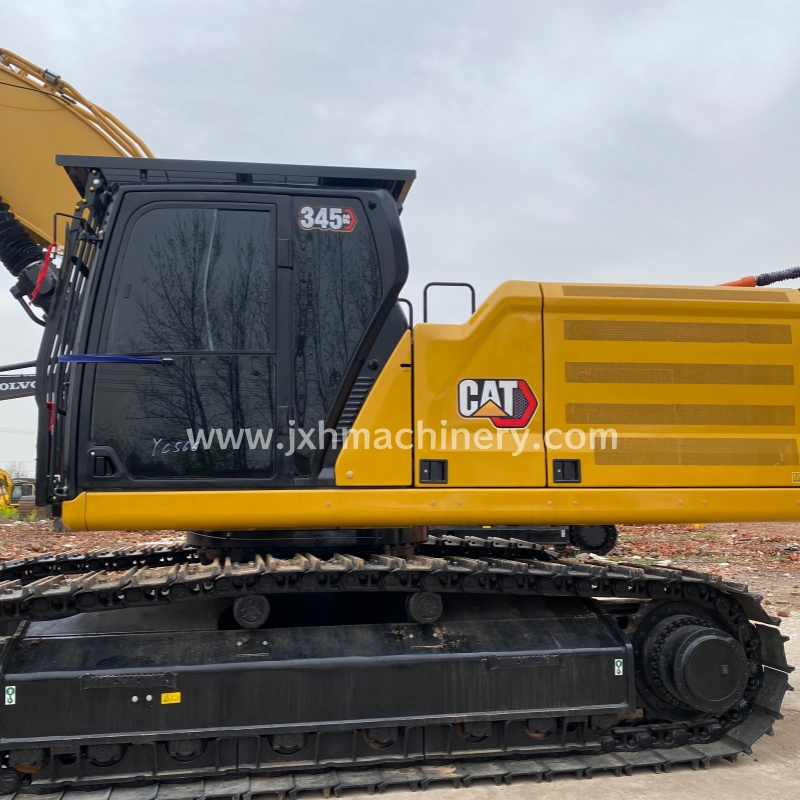

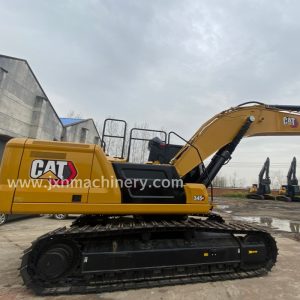

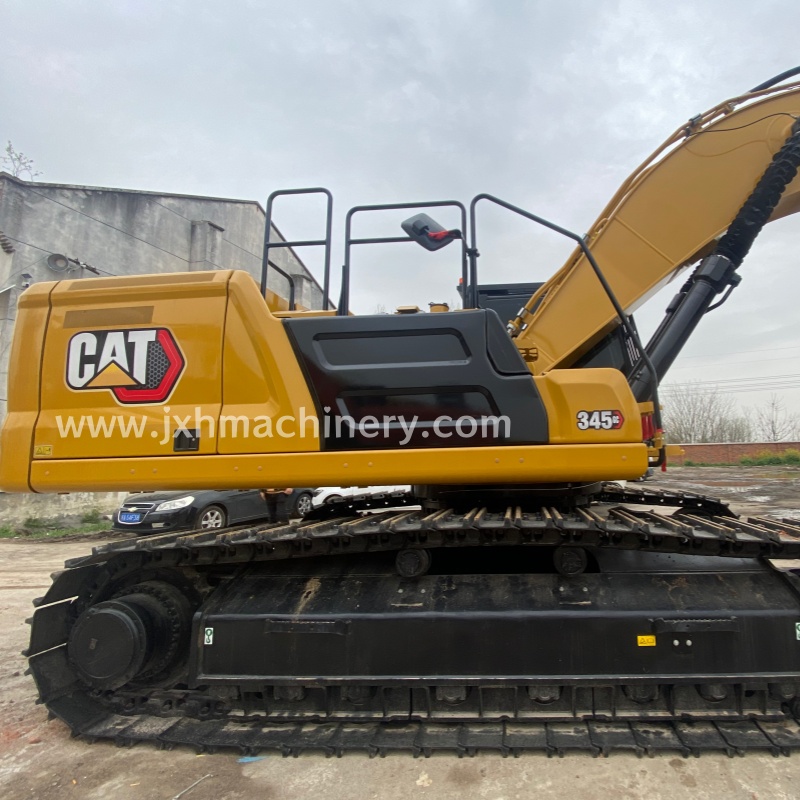

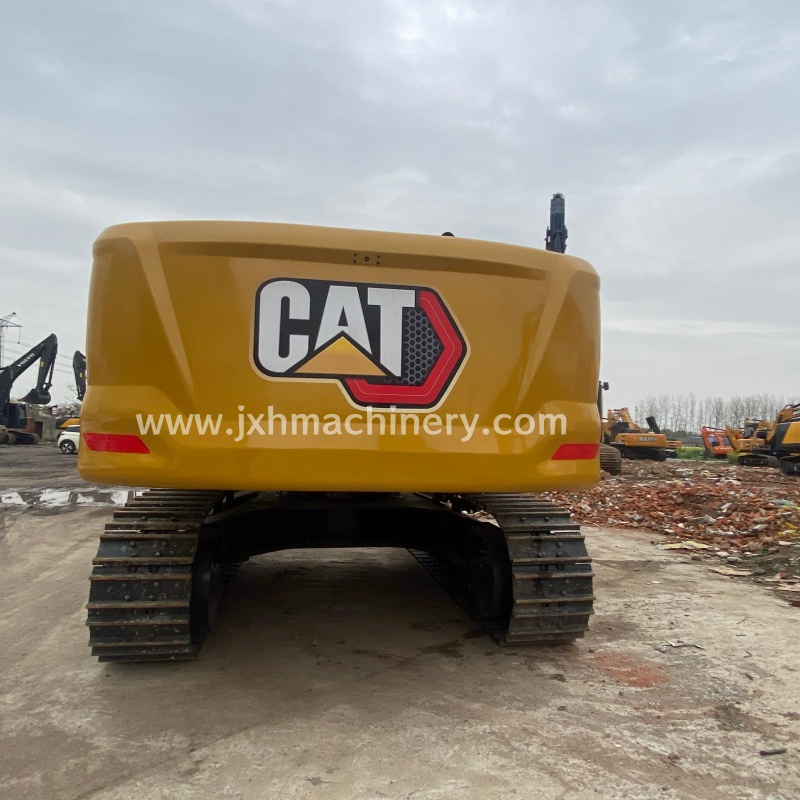

Caterpillar 345 GC Hydraulic Excavator Technical Specifications Table
|
| Parameter Category |
Specification Item |
Detailed Parameters |
Notes/Remarks |
| General Information |
Model |
345 GC |
GC = General Construction |
|
Operating Weight |
45,200 kg |
Standard configuration |
|
Bucket Capacity |
1.8 – 2.3 m³ |
Common configuration approx. 2.1 m³ |
|
Engine Model |
Cat C9.3B |
|
| Engine System |
Type |
In-line 6-cylinder, Water-cooled, Turbocharged |
|
|
Displacement |
9.3 L |
|
|
Rated Power/Speed |
287 kW / 1,800 rpm |
Approx. 385 HP |
|
Emission Standard |
Meets China National IV/EU Stage V |
SCR technology |
| Dimensions |
Transport Length |
11,740 mm |
Includes bucket and boom |
|
Transport Width |
3,490 mm |
700mm track shoe width |
|
Transport Height |
3,630 mm |
To top of cab |
| Hydraulic System |
Main Pump Type |
Variable Displacement Axial Piston Pump |
|
|
Main System Working Pressure |
35.0 MPa |
|
|
Arm Digging Force |
206 kN |
|
|
Bucket Digging Force |
275 kN |
|
|
Max. Swing Speed |
8.2 rpm |
|
