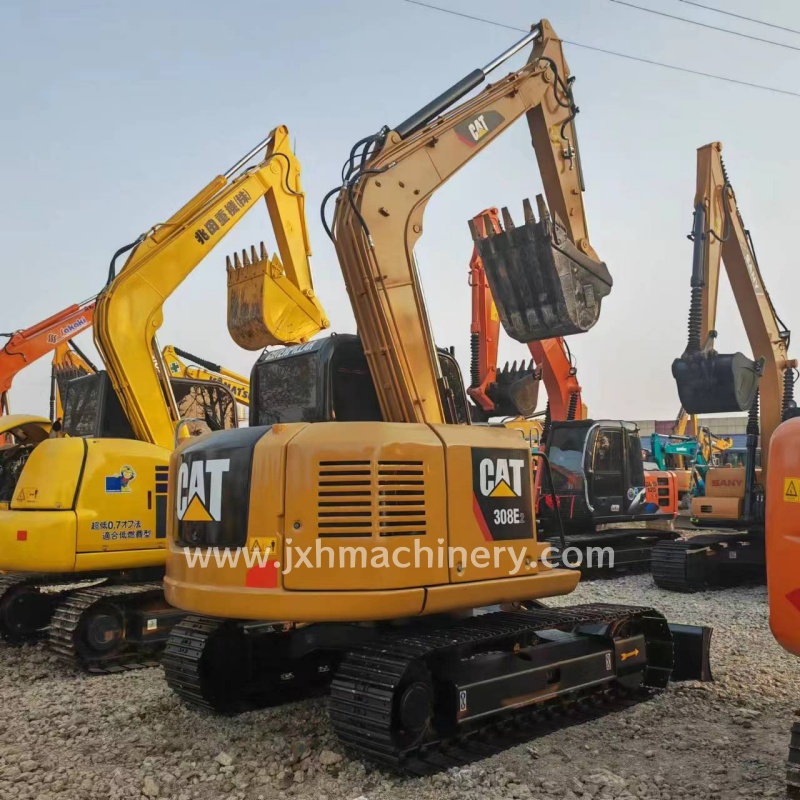

| Caterpillar 308E2 Mini Hydraulic Excavator Technical Specifications Table | |||
| Parameter Category | Specification Item | Detailed Parameters | Notes/Remarks |
| General Information | Model | 308 E2 | |
| Operating Weight | 8,200 – 8,600 kg | Varies with configuration (e.g. undercarriage, bucket) | |
| Bucket Capacity | 0.30 – 0.45 m³ | Common configuration approx. 0.35 m³ | |
| Engine Model | Cat C3.4B | ||
| Engine System | Type | In-line 4-cylinder, Water-cooled, Turbocharged | |
| Displacement | 3.4 L | ||
| Rated Power/Speed | 55 kW / 1,800 rpm | Approx. 73.8 HP | |
| Emission Standard | Complies with China National III/EU Stage IIIA | ||
| Dimensions | Transport Length | 7,040 mm | Includes bucket and boom |
| Transport Width | 2,490 mm | With 700mm track shoes | |
| Transport Height | 2,660 mm | To top of cab | |
| Hydraulic System | Main Pump Type | Variable Displacement Axial Piston Pump | |
| Main Relief Valve Pressure | 34.3 MPa | ||
| Pilot System Pressure | 3.9 MPa | ||
