| Model |

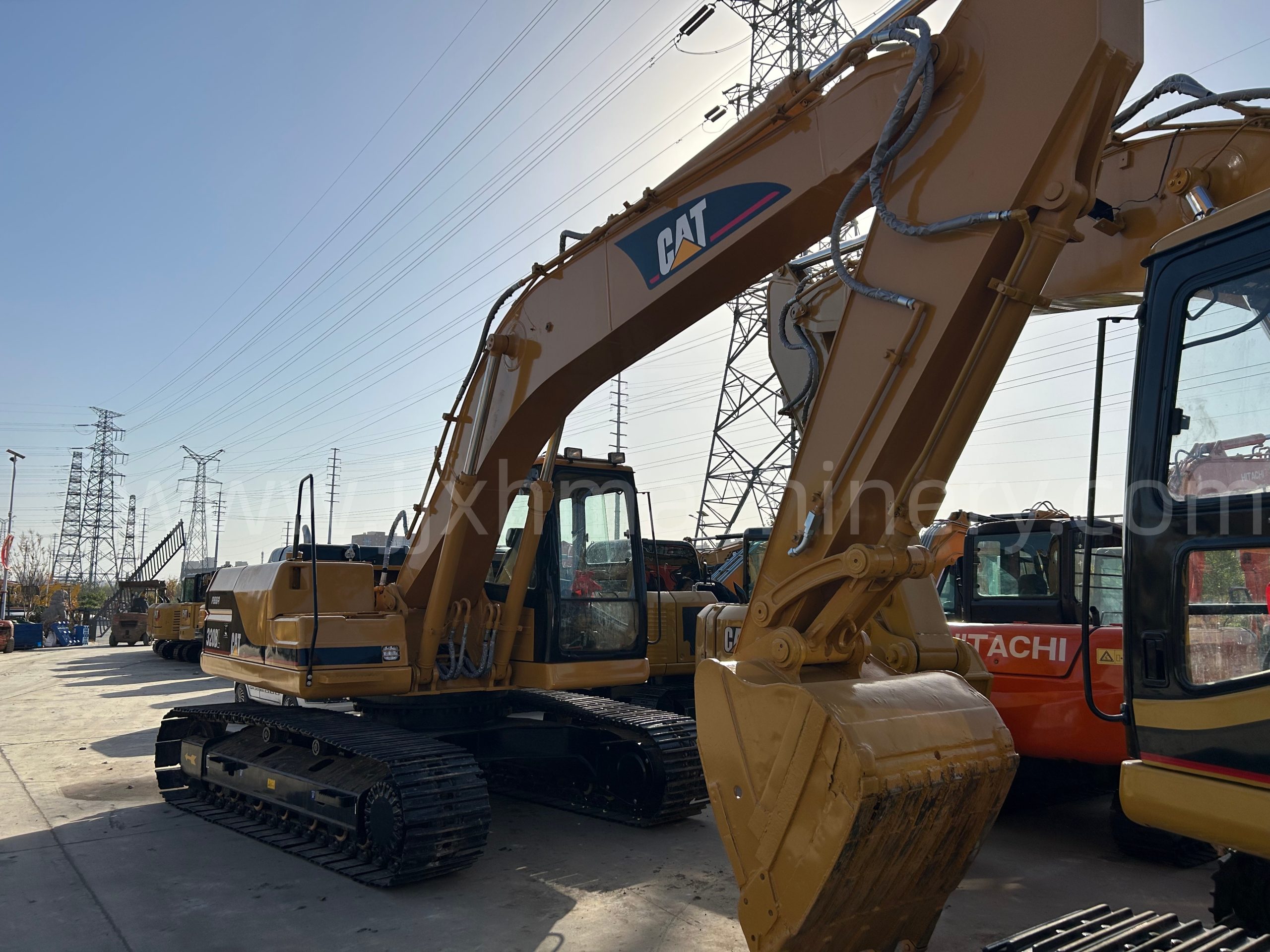

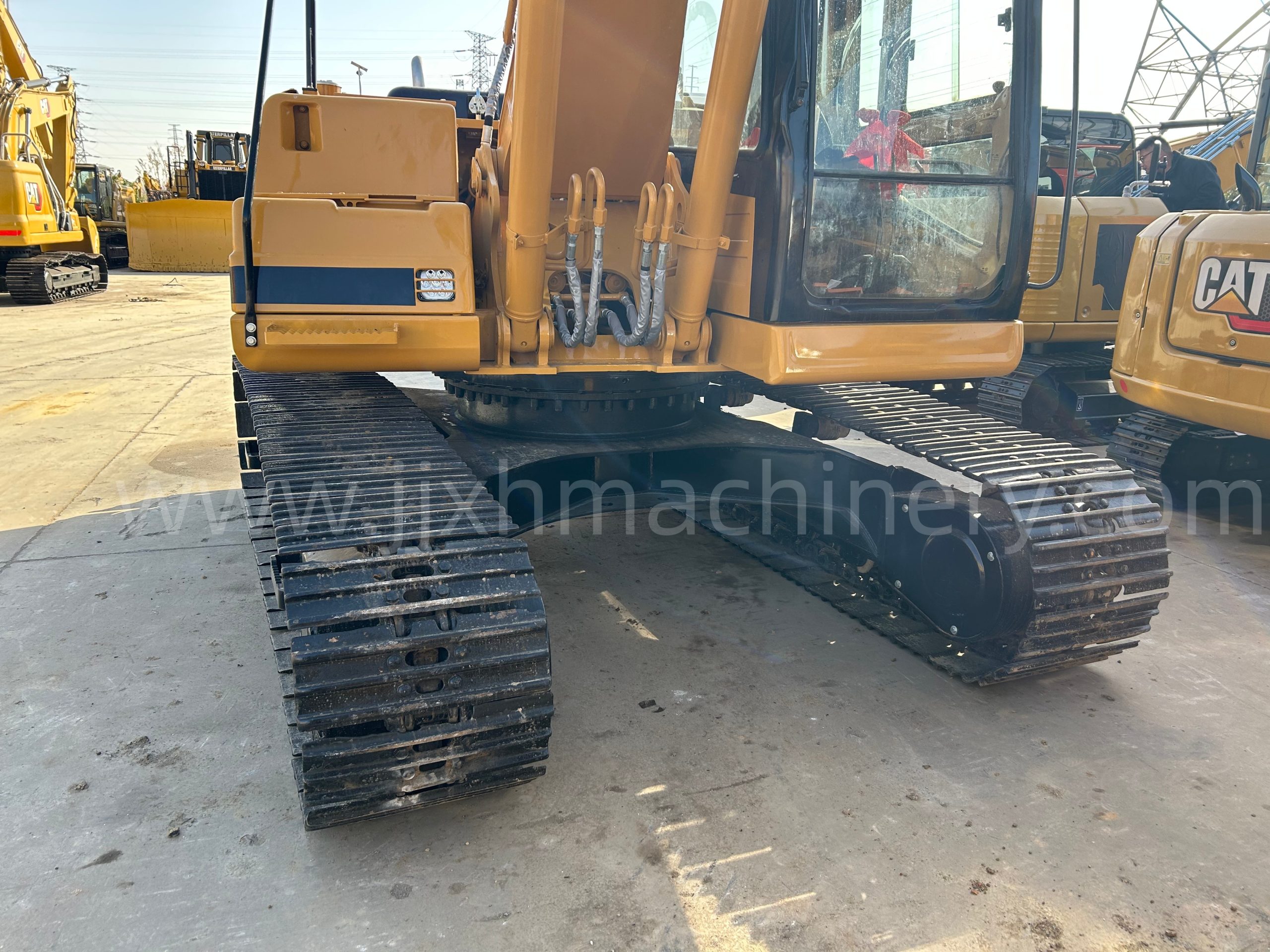

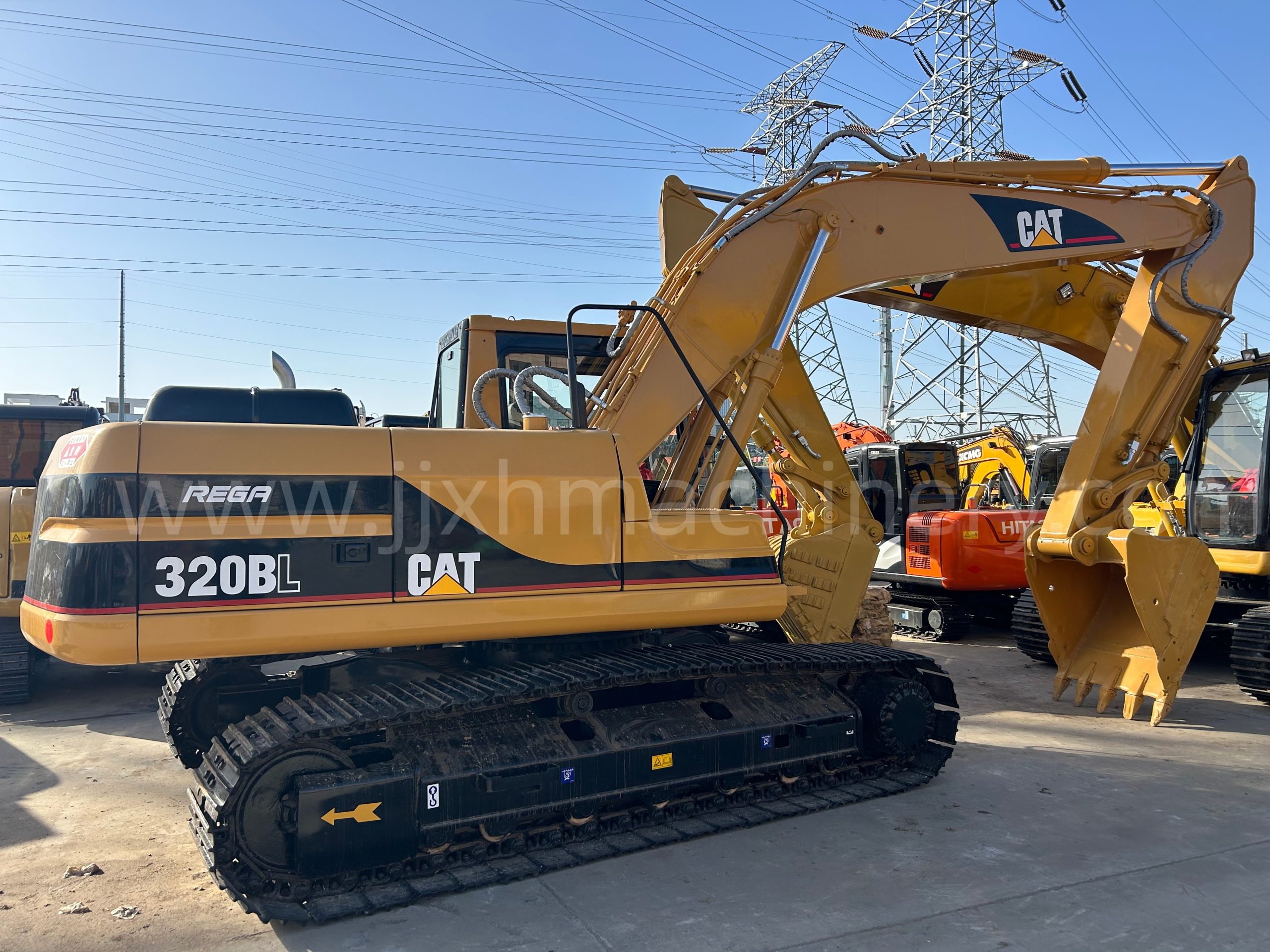

CAT 320B |
| Machine Type |
Medium Crawler Hydraulic Excavator |
| Operating Weight |
19400 kg (42770 lbs) |
| Engine Model |
Cat 3066T, 6-cylinder turbocharged diesel |
| Rated Net Power |
95.4 kW (128 hp) @1800 rpm |
| Gross Power |
99.9 kW (134 hp) @1800 rpm |
| Displacement |
6.4 L (389 cu in) |
| Emission Standard |
Old non-tier / Pre EU Stage |
| Bucket Capacity (Standard) |
0.92 m³ (1.20 yd³) |
| Boom Length |
5680 mm |
| Stick Length |
2900 mm |
| Max Digging Depth |
6640 mm (21.78 ft) |
| Max Reach at Ground Level |
9780 mm (32.09 ft) |
| Max Digging Height |
9470 mm (31.07 ft) |
| Max Dumping Height |
6570 mm (21.56 ft) |
| Max Vertical Digging Depth |
6040 mm (19.82 ft) |
| Main Pump Max Flow |
185 L/min (48.9 US gal/min) |
| Hydraulic System Pressure |
34.3 MPa (4980 psi) |
| Swing Speed |
10.7 rpm |
| Travel Speed |
3.4 ~ 5.5 km/h (2.11 ~ 3.42 mph) |
| Fuel Tank Capacity |
340 L (89.8 US gal) |
| Hydraulic Tank Capacity |
130 L |
| Transport Length |
9440 mm (30.97 ft) |
| Transport Width |
2800 mm (9.19 ft) |
| Transport Height |
2940 mm (9.65 ft) |
| Track Shoe Width |
600 mm (23.62 in) |
| Rear Swing Radius |
2750 mm |
| Min Ground Clearance |
475 mm |
