| Machine Type |

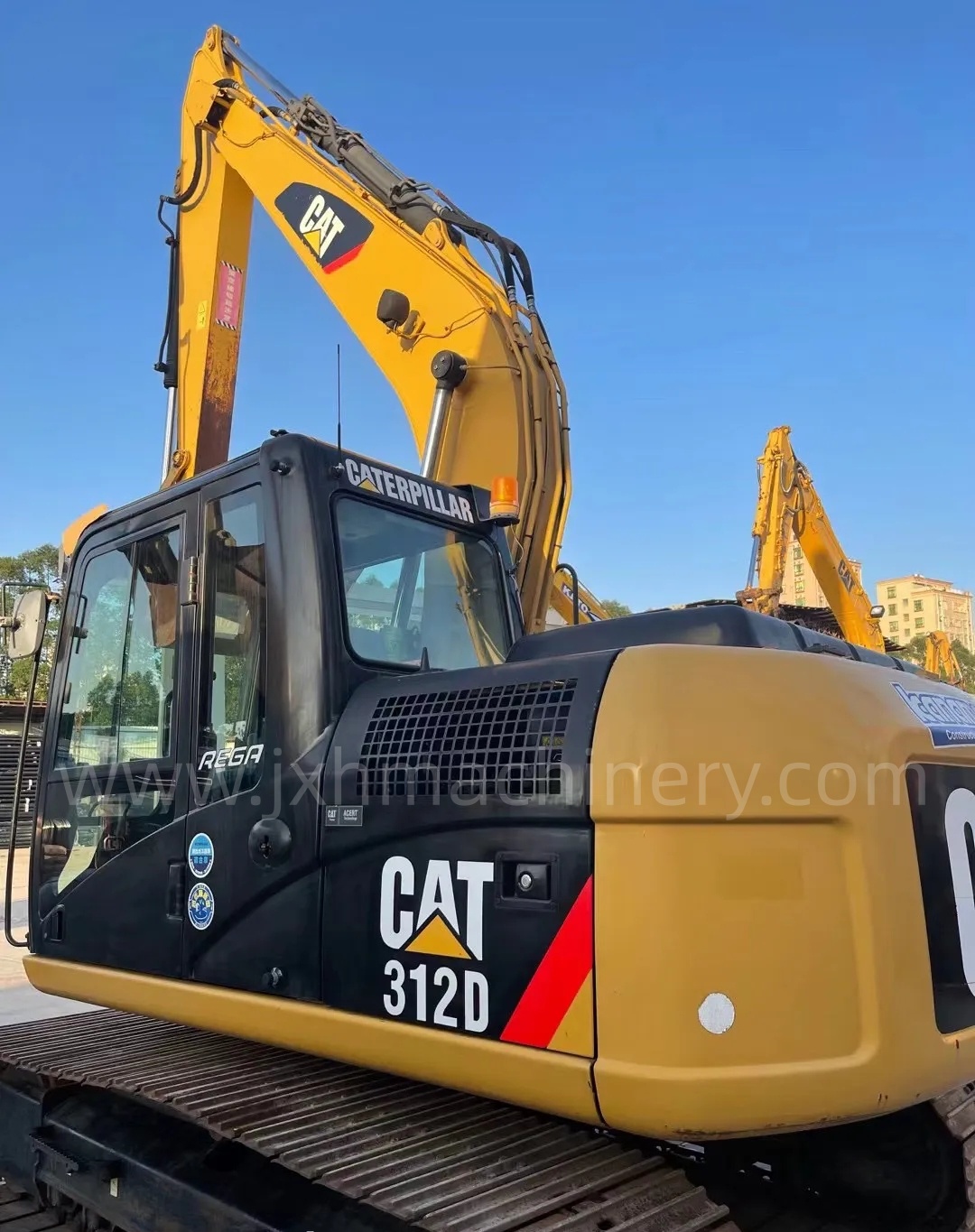

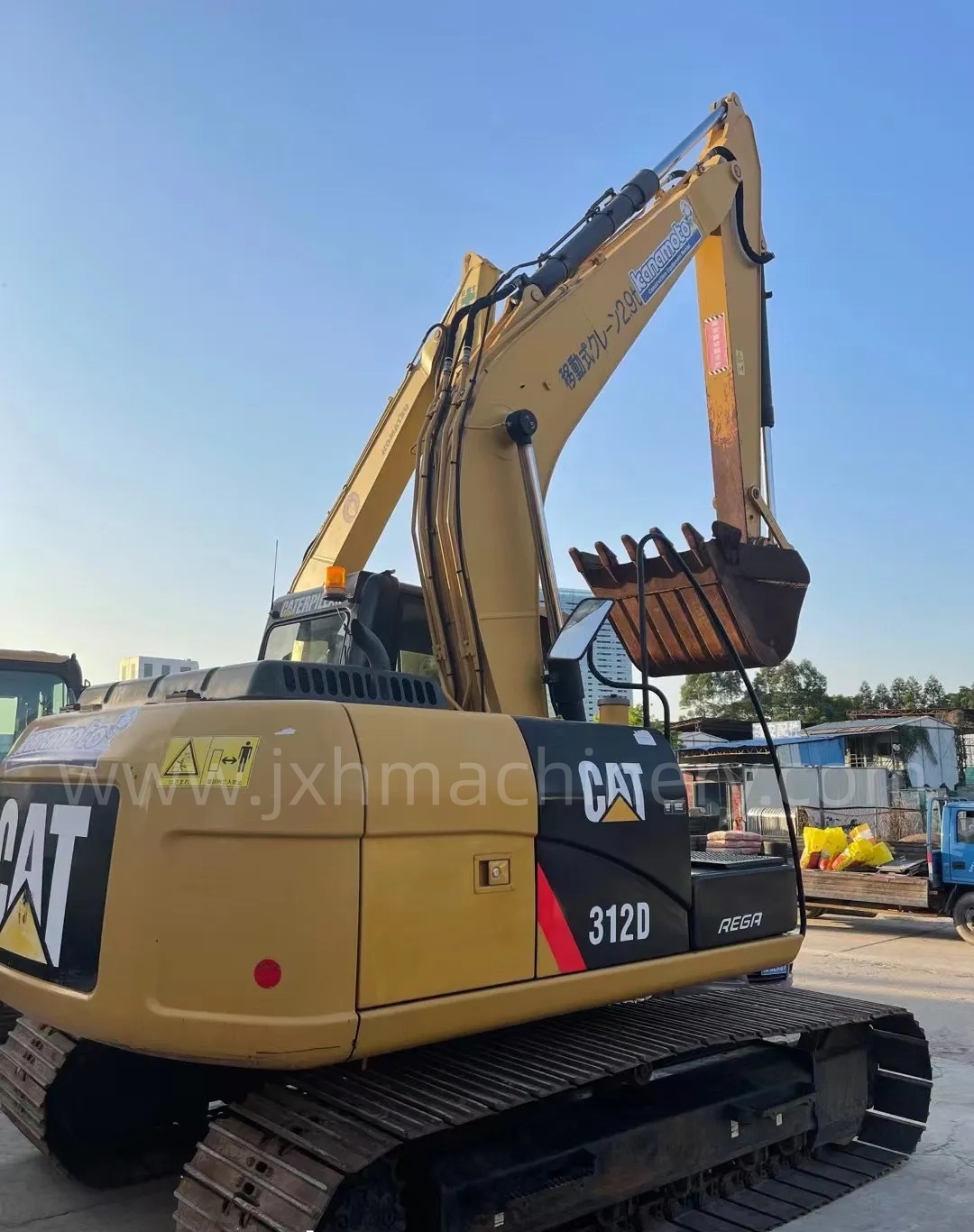

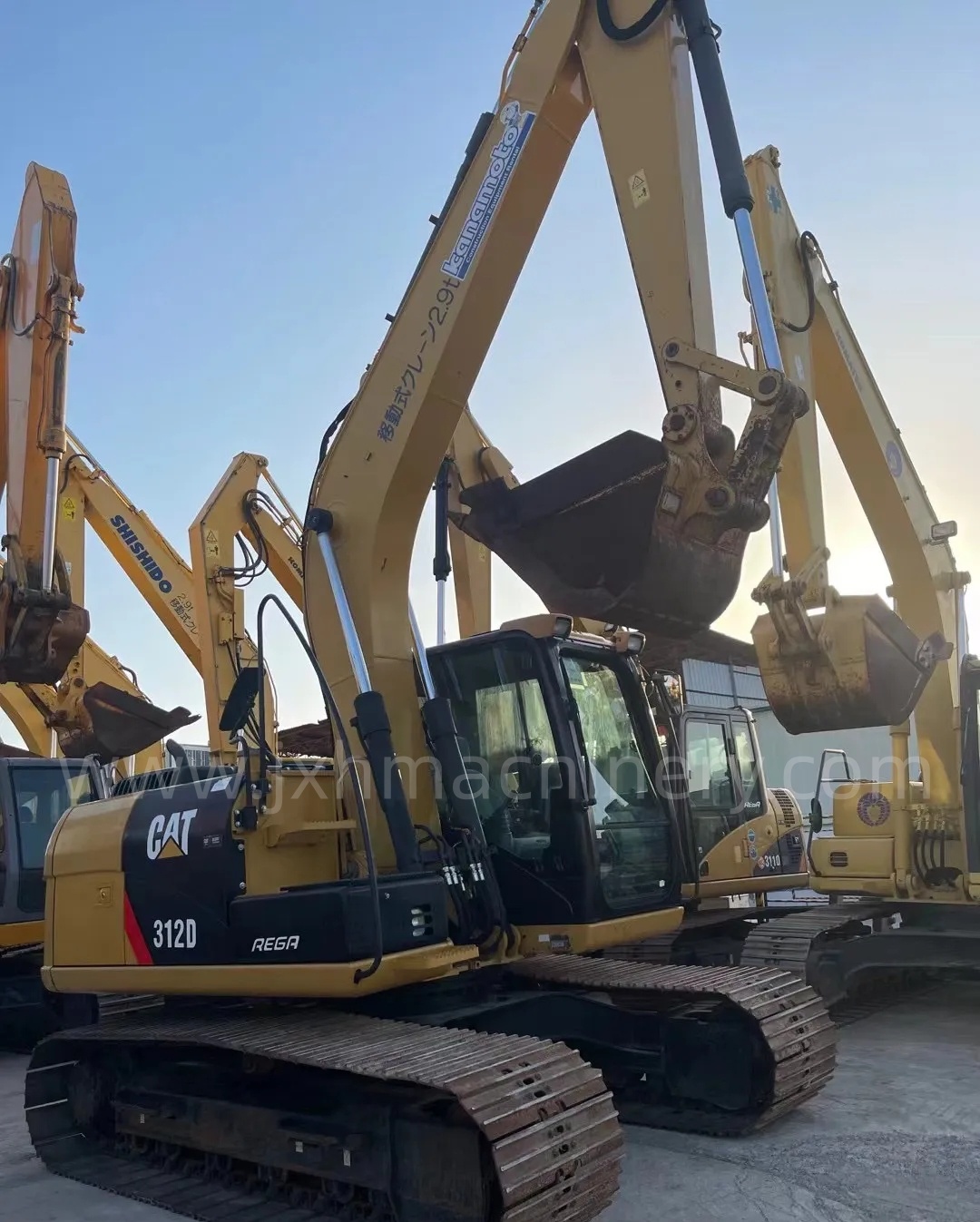

12 Ton Medium Hydraulic Crawler Excavator |
| Engine Model |

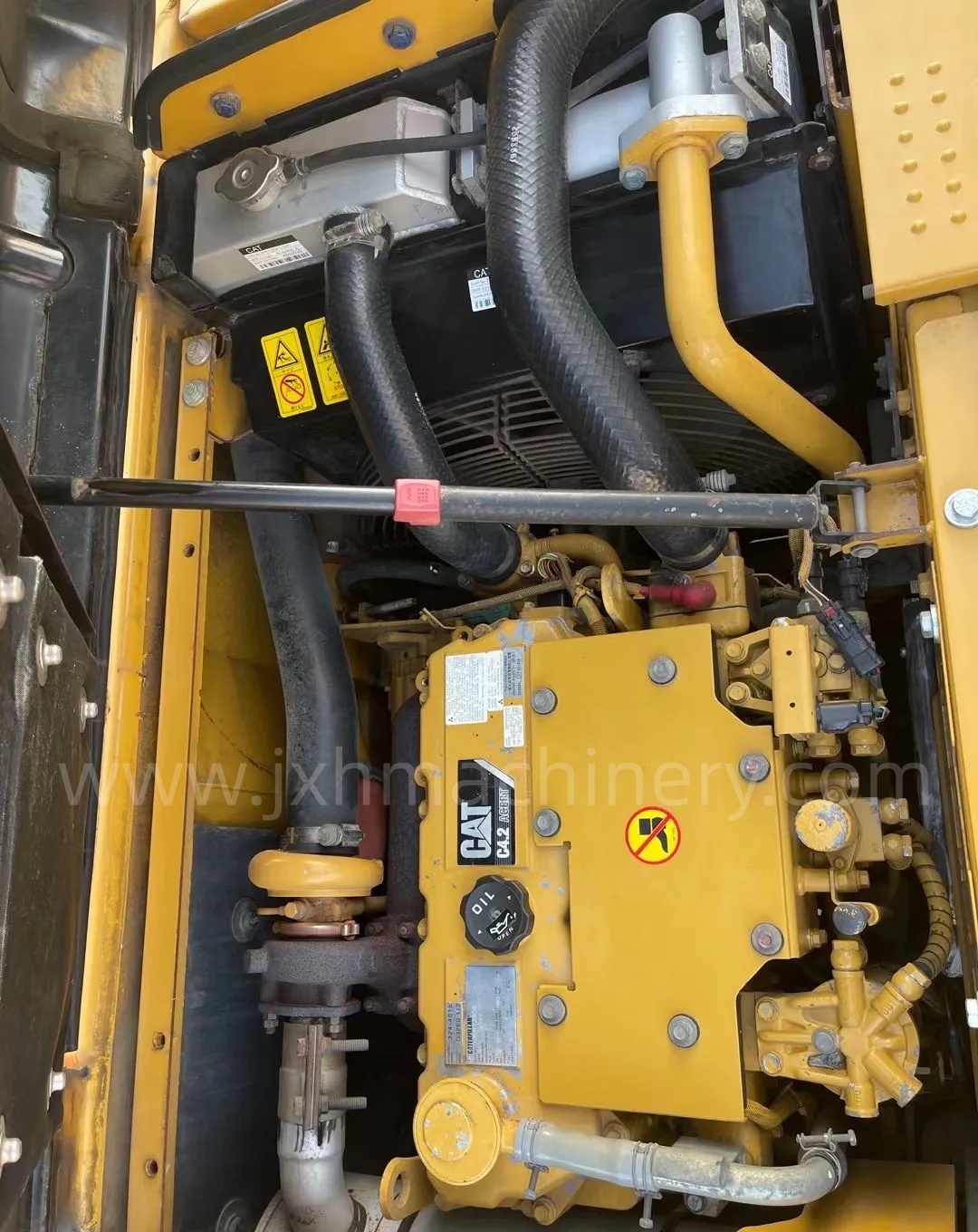

Cat C4.2 ACERT 4-cylinder water-cooled turbo diesel |
| Rated Net Power (ISO9249 / SAE J1349) @2200 rpm |
67 kW (90 hp) |
| Gross Power @2200 rpm |
72 kW (97 hp) |
| Bore × Stroke |
102 mm × 130 mm |
| Displacement |
4.25 L |
| Emission Standard |
EPA Tier 3 / EU Stage IIIA |
| Operating Weight (Standard undercarriage) |
12920 kg |
| Operating Weight (Long undercarriage / 312D L) |
13450 kg |
| Standard Bucket Capacity |
0.52 m³ |
| Main Pump Combined Max Flow |
127 L/min |
| Max Implement Working Pressure |
299 bar |
| Swing Pressure |
230.5 bar |
| Bucket Digging Force |
64 kN |
| Arm Digging Force (Standard Stick) |
45 kN |
| Maximum Digging Depth |
5100 mm |
| Maximum Digging Radius (at ground level) |
8340 mm |
| Maximum Digging Radius |
8570 mm |
| Maximum Digging Height |
8470 mm |
| Maximum Dumping Height |
6050 mm |
| Transport Length |
7640 mm |
| Transport Width |
2490 mm |
| Transport Height (top of cab) |
2770 mm |
| Track Shoe Width |
600 mm (triple grouser steel track) |
| Tail Swing Radius |
2130 mm |
| Swing Speed |
12.4 rpm |
| Travel Speed (High / Low) |
5.5 / 3.4 km/h |
| Maximum Drawbar Pull (Low Speed) |
114 kN |
| Maximum Gradeability |
30° |
| Swing Torque |
30950 N·m |
| Fuel Tank Capacity |
240 L |
| Hydraulic System Total Capacity |
162 L |
| Engine Oil Capacity |
11.5 L |
| Coolant Capacity |
14 L |
| Auxiliary Hydraulic Line |
Optional for breaker & auger |

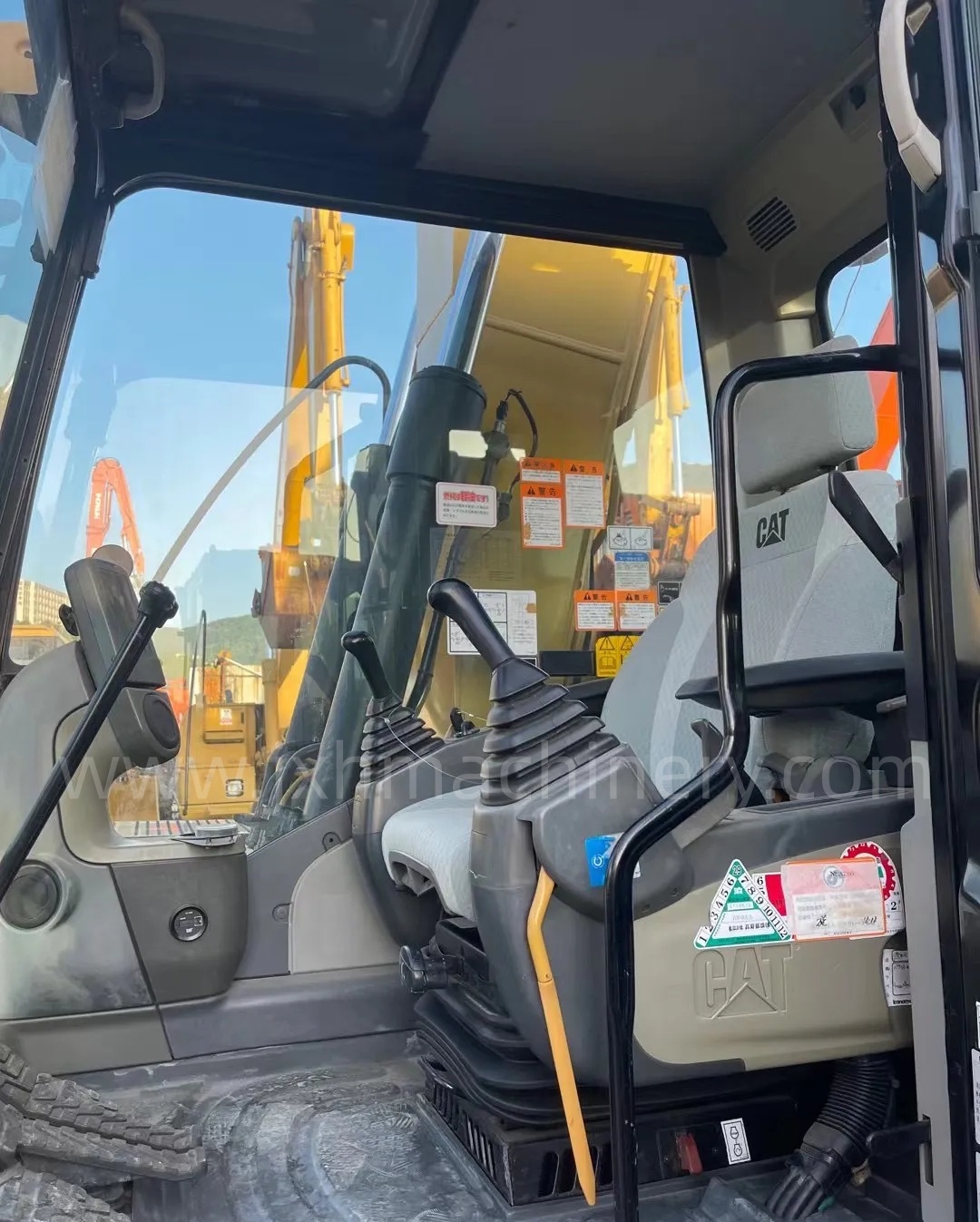

| Cab |
ROPS certified cab, A/C optional |
