| Model |

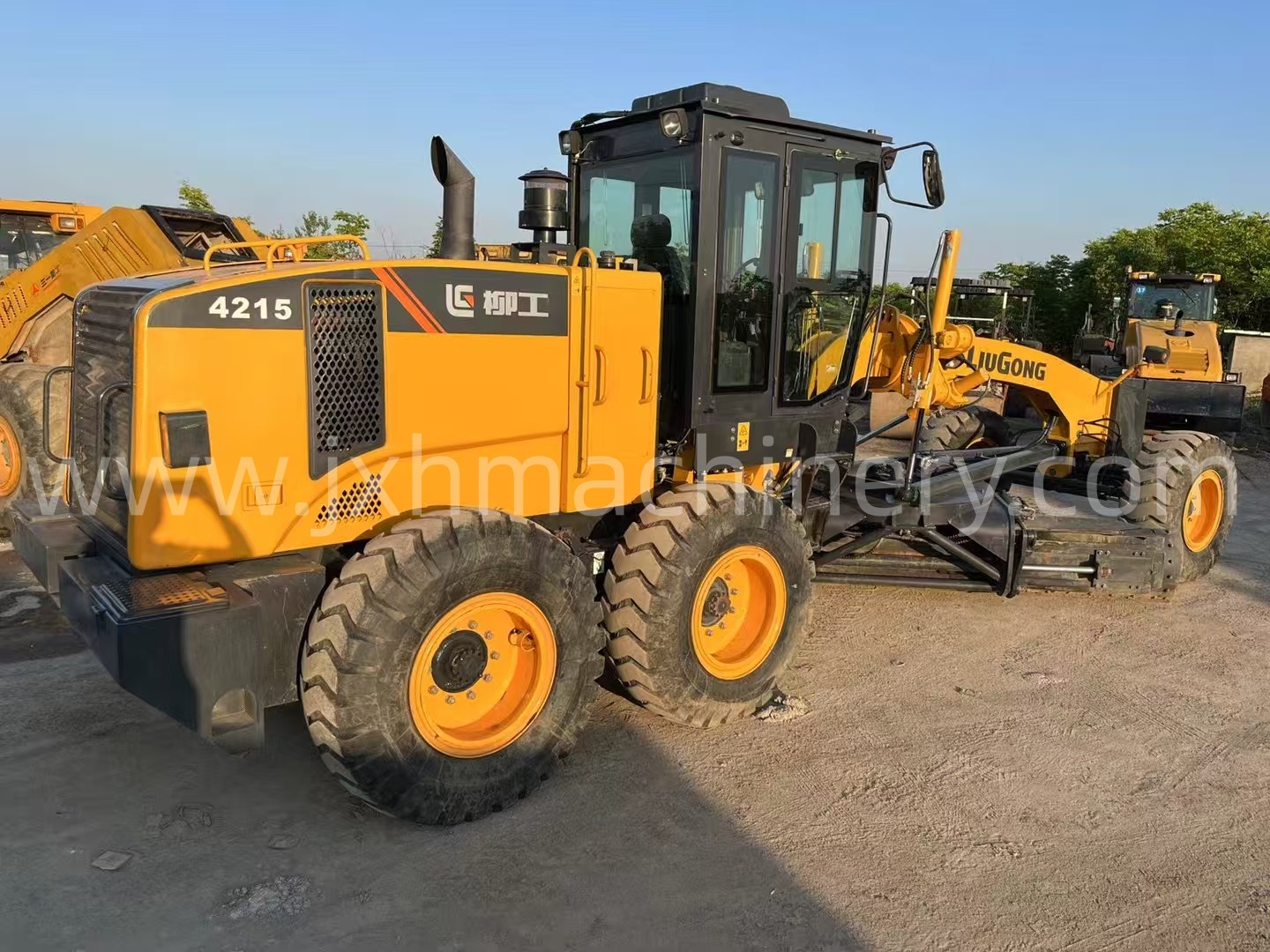

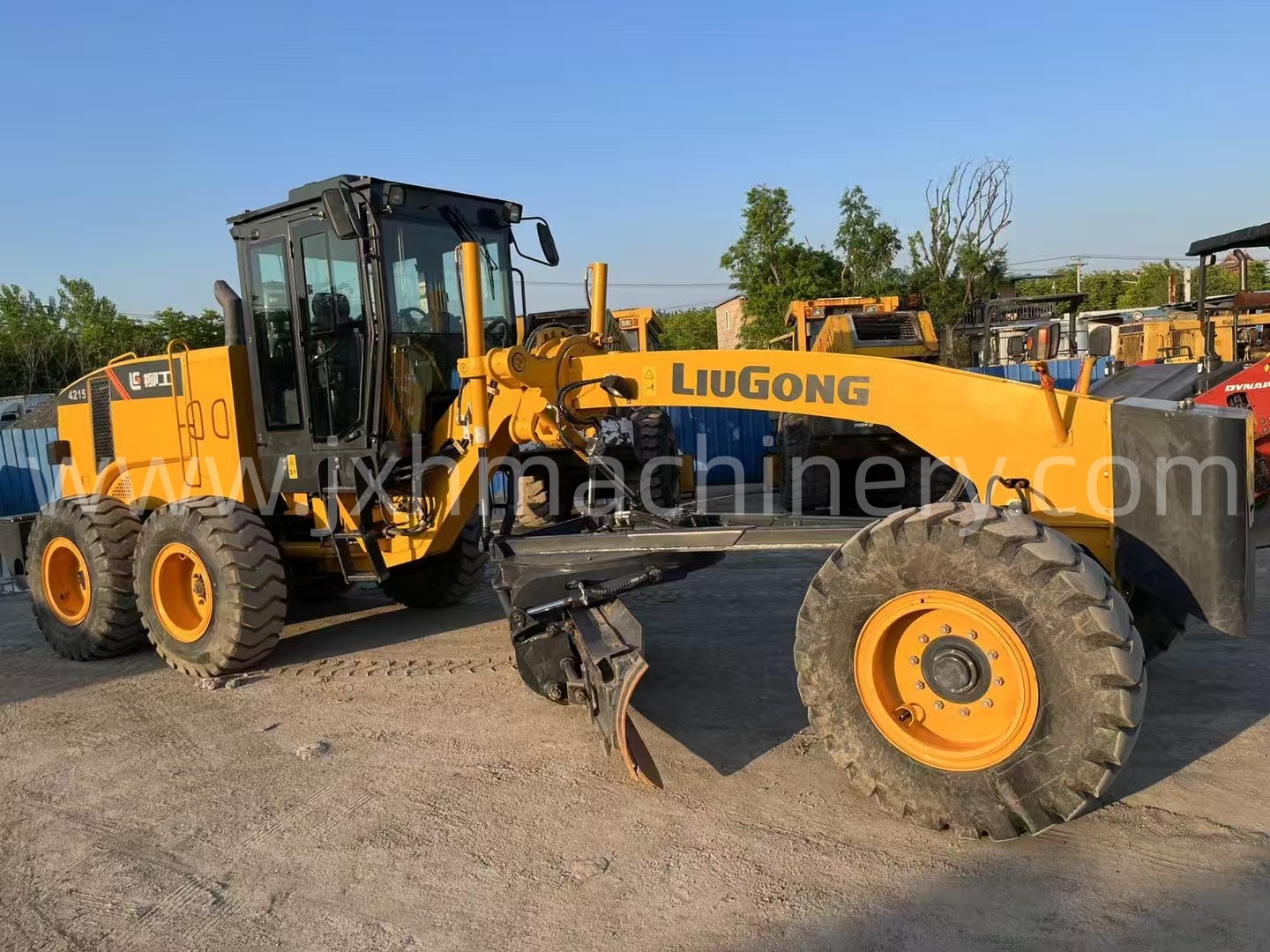

Liugong CLG4215D |
| Type |
Motor Grader |
| Operating Weight |
16,500 kg (Standard version, with moldboard) |
| Shipping Dimension(L×W×H) |
9230 × 2600 × 3380 mm |
| Standard Moldboard (Blade) Width |
4270 mm |
| Moldboard Height |
645 mm |
| Moldboard Thickness |
19 mm |
| Max Cutting Depth |
680 mm |
| Bank Cut Angle |
28° ~ 74° |
| Max Sloping Angle |
90° |
| Circle Rotation |
360° |
| Wheelbase |
6230 mm |
| Minimum Turning Radius |
7200 mm |
| Frame Articulation Angle |
±27° |
| Tire Size |
17.5-25 |
| Max Drawbar Pull |
85 kN |

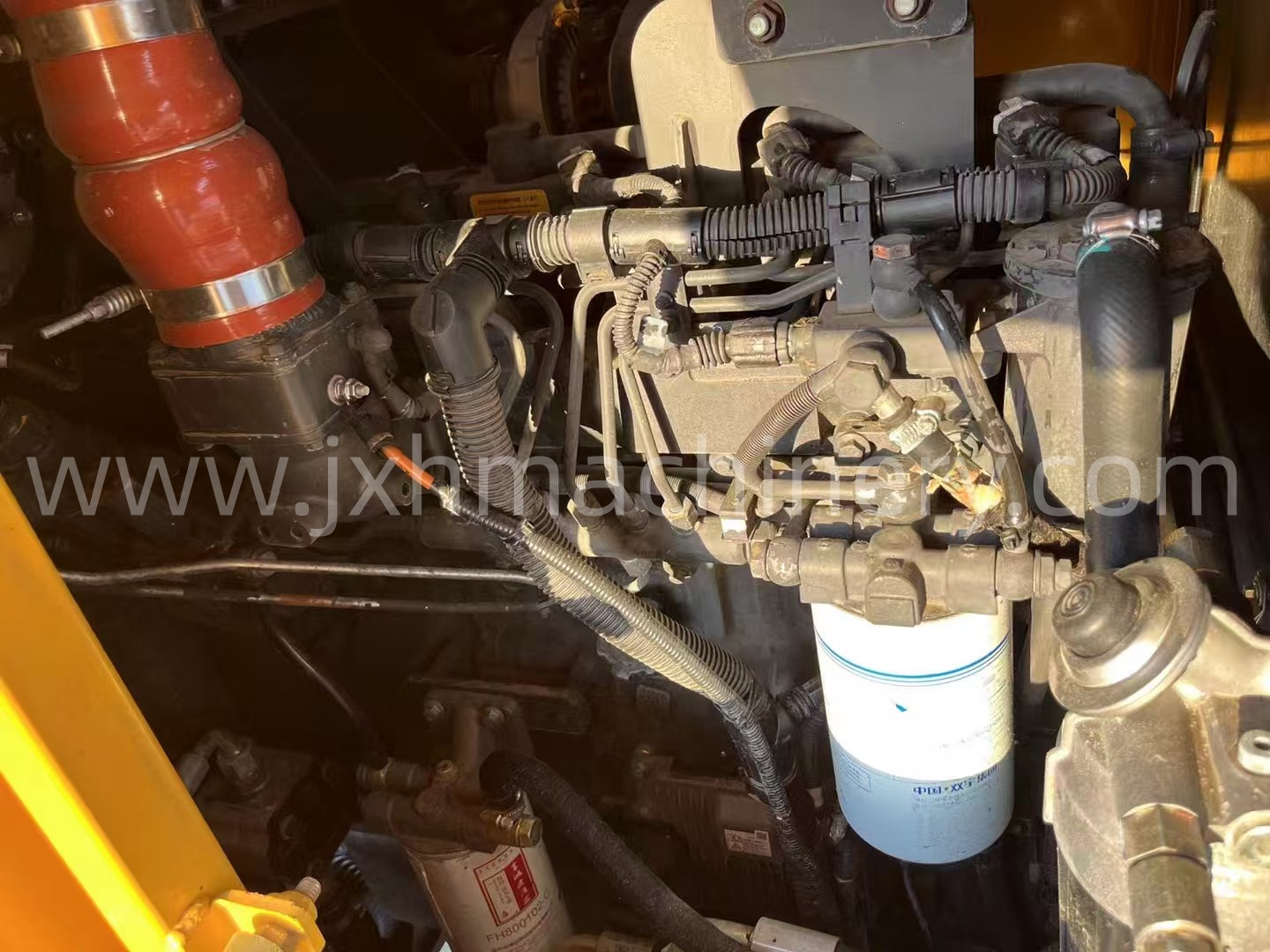

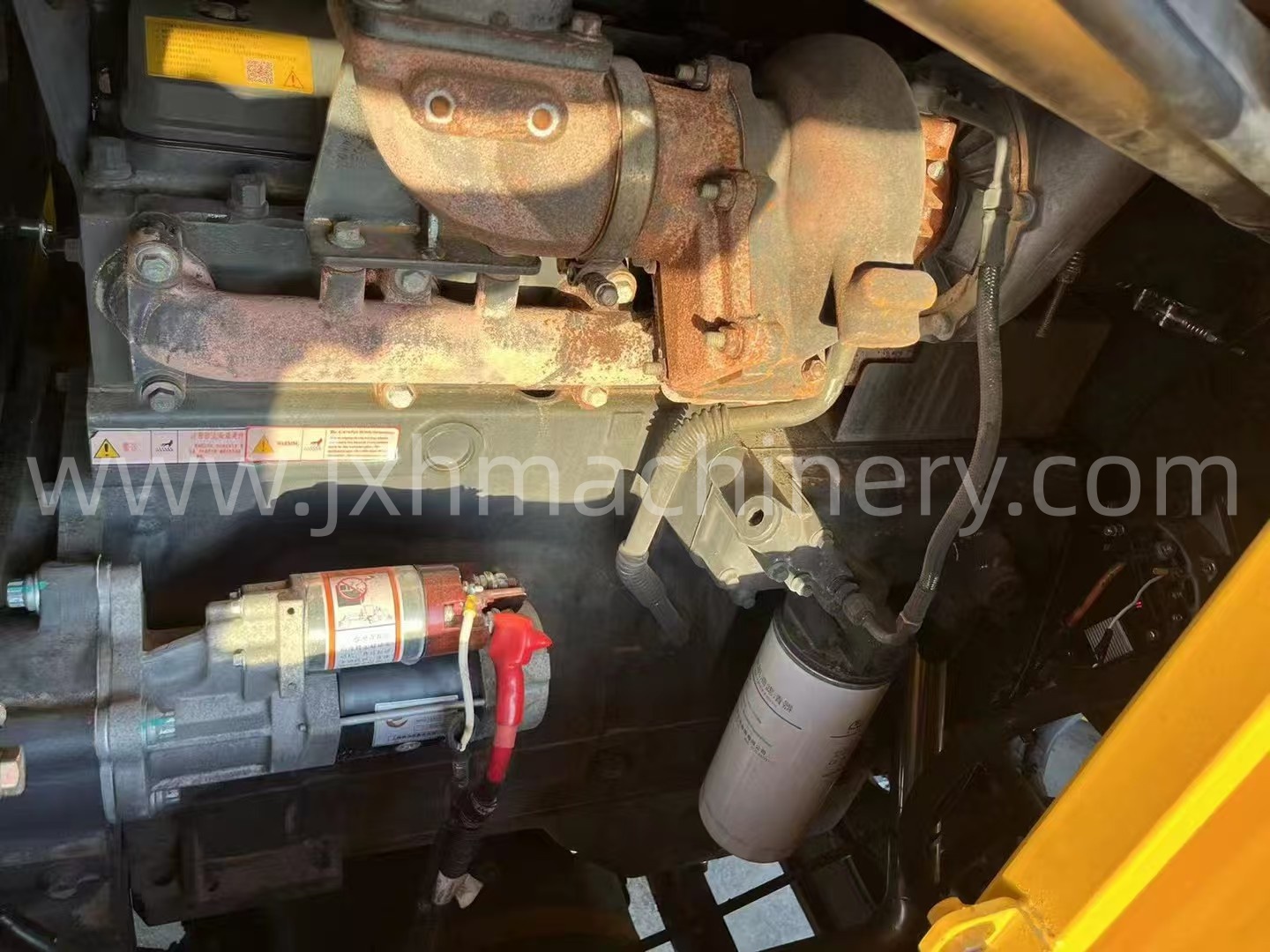

| Engine |
Cummins 6LTAA9.3 (Tier2 / Stage II for used export machine) |
| Rated Power |
162 kW (217 hp) @2200 rpm |
| Max Torque |
940 N·m @1500 rpm |
| Cylinders |
6, Turbocharged & Intercooled |
| Transmission |
ZF Power shift, 6 Forward / 3 Reverse |
| Max Travel Speed Forward |
42 km/h |
| Max Travel Speed Reverse |
26.2 km/h |
| Hydraulic System |
Load sensing hydraulic system |
| Main Pump Flow |
158 L/min |
| Main Relief Pressure |
21 MPa |
| Fuel Tank Capacity |
348 L |
| Service Brake |
Dual circuit wet brake |
