| Model |

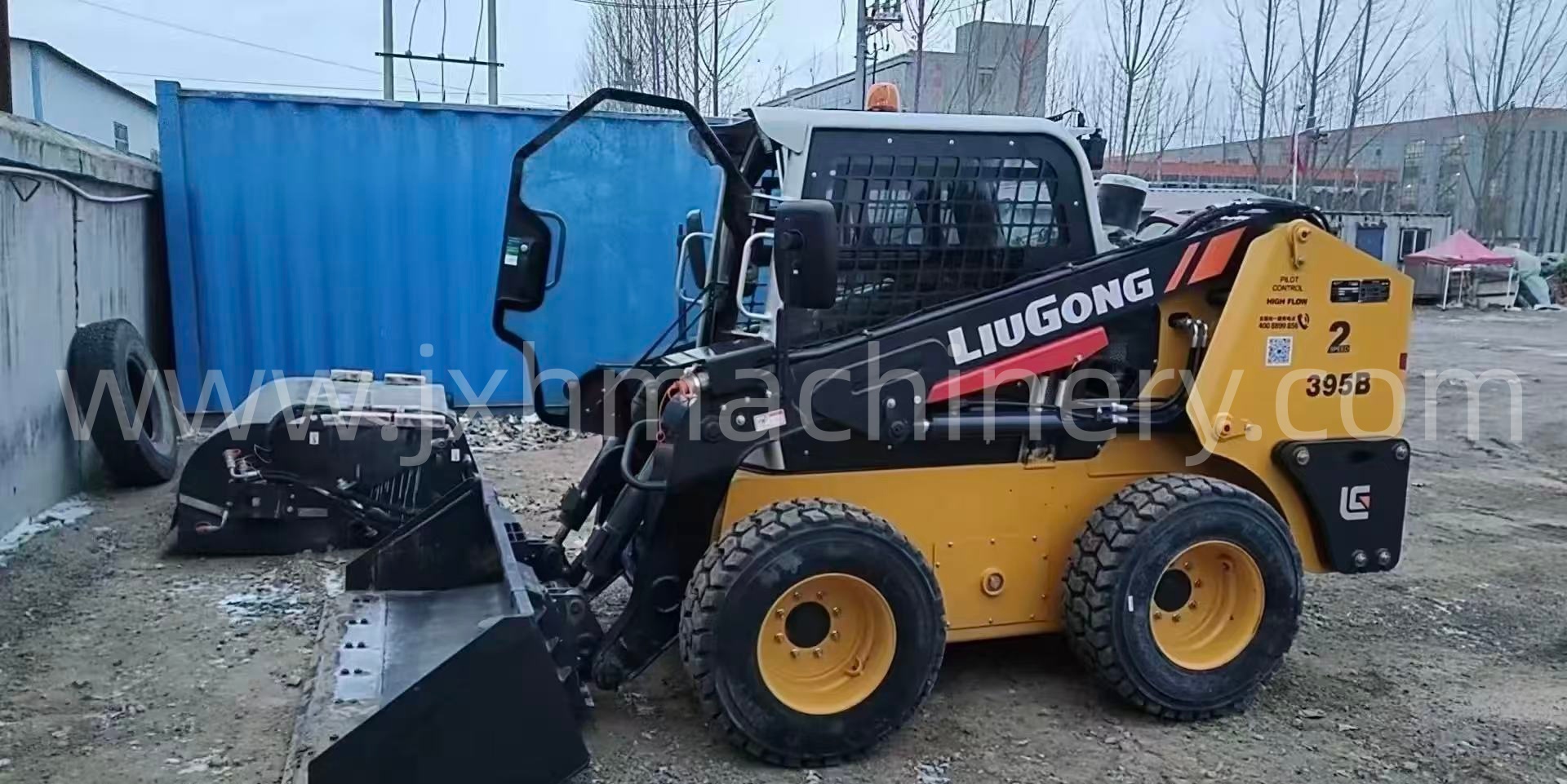

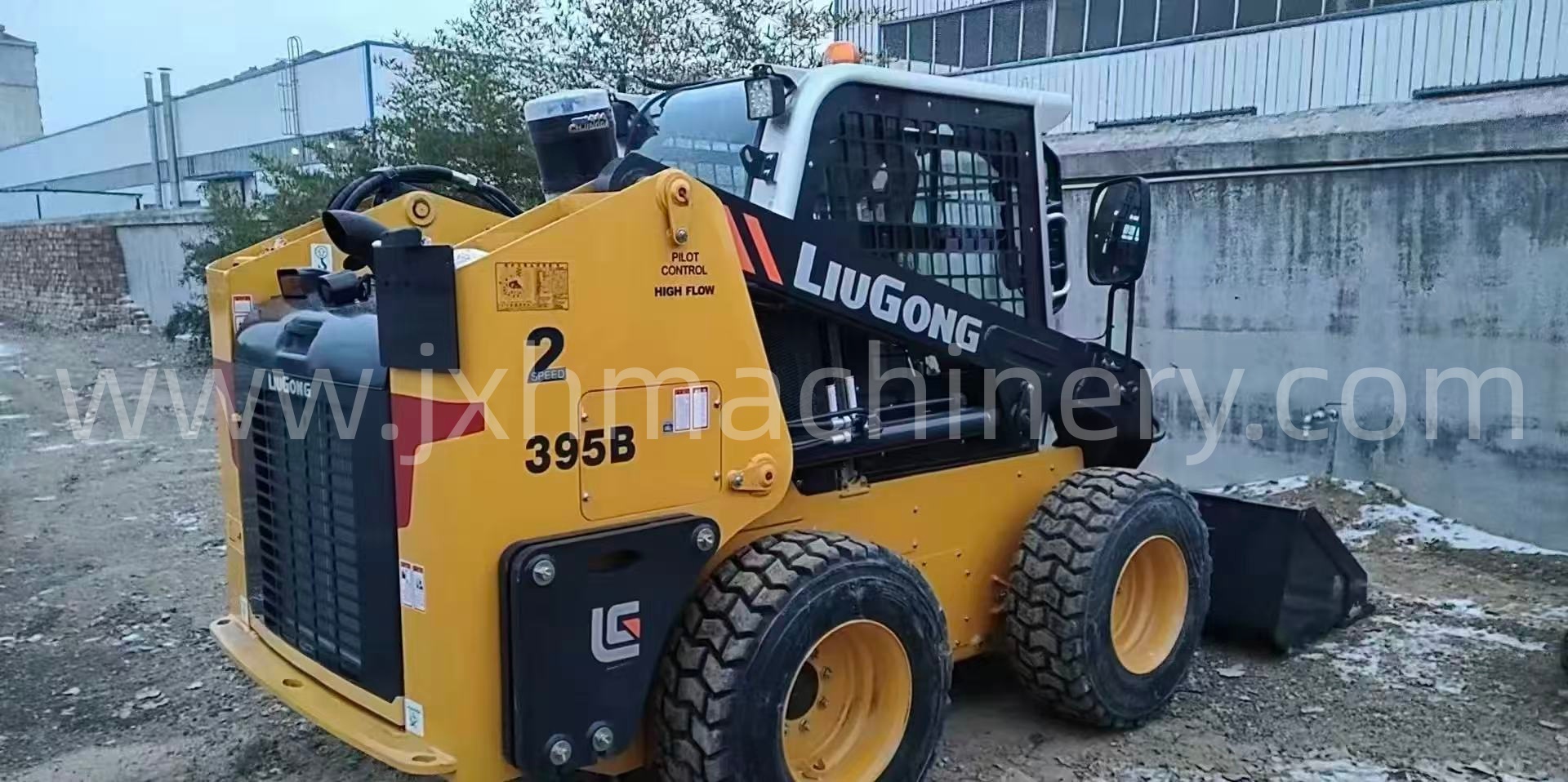

Liugong CLG395B |
| Type |
Wheeled Skid Steer Loader |
| Rated Operating Capacity |
1133 kg |
| Operating Weight |
3850 kg (Standard cab version, with standard bucket) |
| Standard Bucket Capacity (Heaped) |
0.55 m³ |
| Shipping Dimension(L×W×H) |
3851 × 1850 × 2034 mm |
| Tire Size |
12-16.5,12PR |
| Ground Clearance |
205 mm |
| Static Tipping Load |
2267 kg |
| Bucket Breakout Force |
32.2 kN |
| Boom Breakout Force |
24.5 kN |
| Max Dump Clearance |
2572 mm |
| Max Dump Reach |
587 mm |
| Max Hinge Pin Height |
3278 mm |
| Total Hydraulic Cycle Time |
10.43 s (Raise:4.54s, Dump:3.22s, Lower:2.67s) |

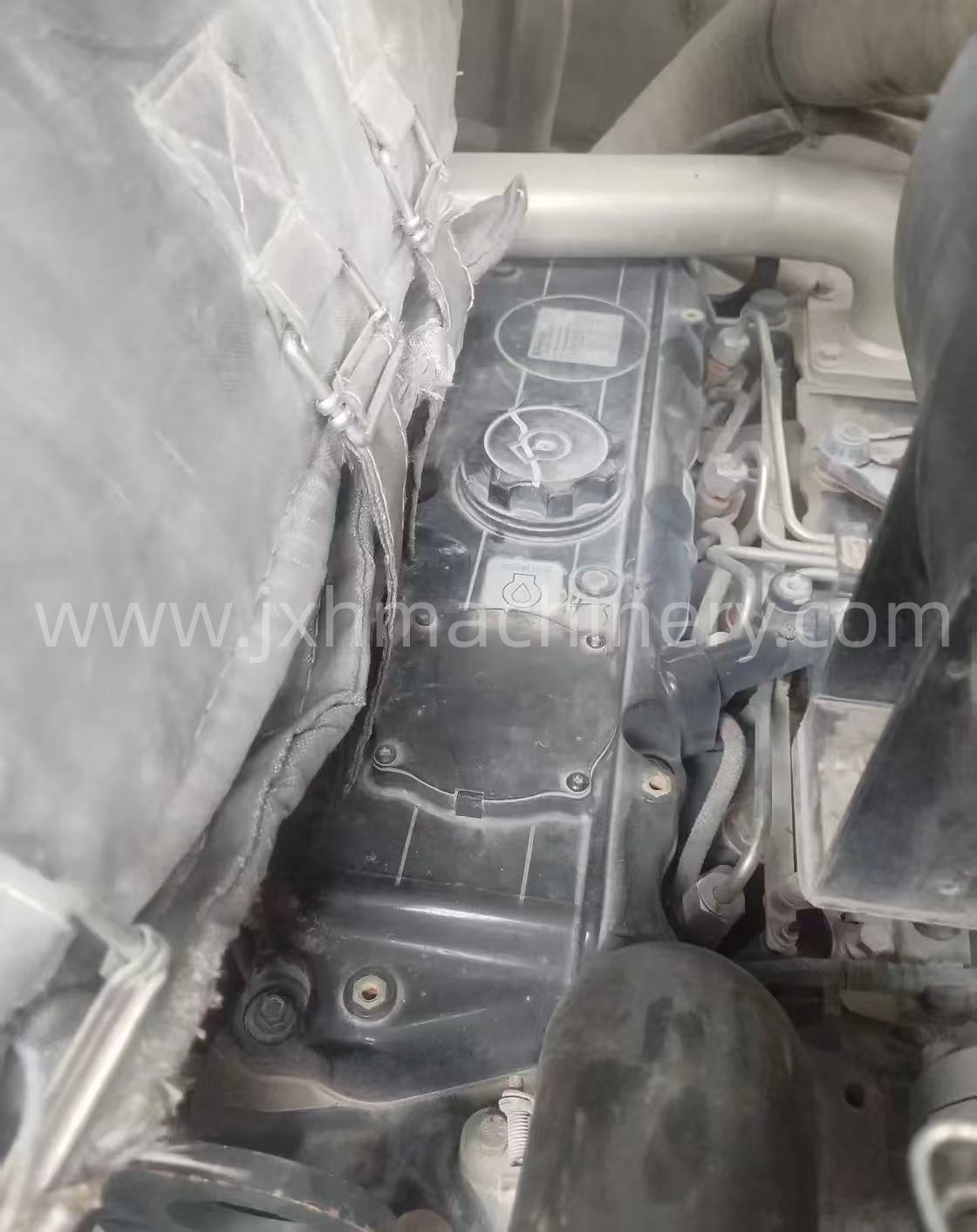

| Engine |
Perkins 1104D-44T |
| Rated Power |
70 kW (94 hp) @2200 rpm |
| 4 Cylinders, Turbocharged & Intercooled |
|
| Emission |
EPA Tier3 / EU Stage IIIA |
| Hydraulic System |
Load sensing hydraulic system |
| Standard Pump Flow |
92 L/min |
| Optional High Flow |
135 L/min |
| Main Relief Pressure |
21 MPa |
| Fuel Tank Capacity |
75 L |
