| Operating Weight |
5014 – 5320 kg |
| Standard Bucket Capacity |
0.18 m³; Optional bucket 0.22 m³ |
| Boom Length |
2500 mm |
| Stick Length |
1690 mm |

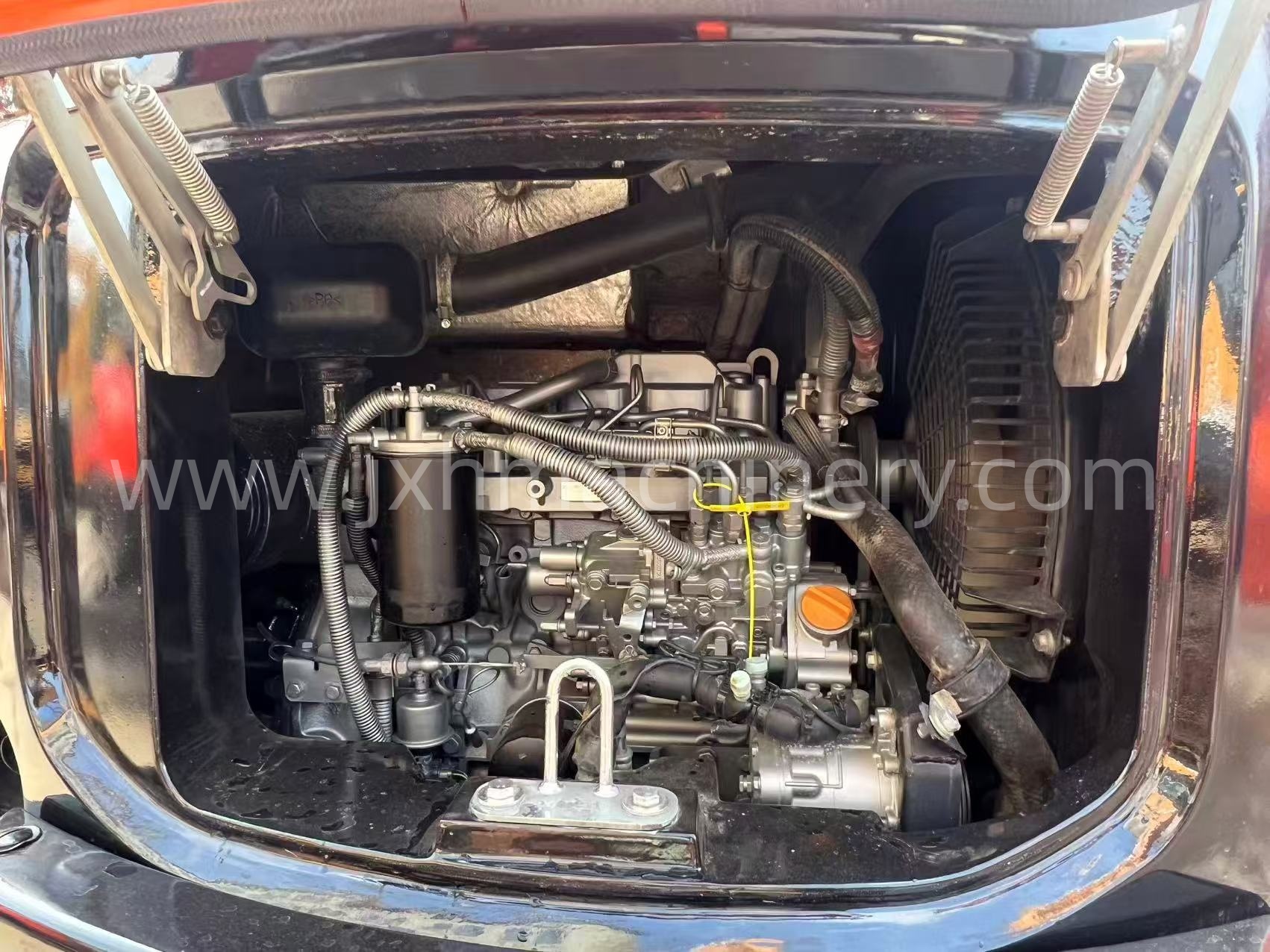

| Engine Model |
Yanmar 4TNV88C, 4-cylinder water-cooled direct injection |
| Displacement |
2.189 L |
| Bore × Stroke |
88 mm × 90 mm |
| Rated Net Power (ISO9249) |
27.1 kW (36.8 hp) @2400 rpm |
| Emission Standard |
US Tier 4 Final |
| Main Pump Max Flow |
120 L/min |
| Main System Relief Pressure |
24.5 MPa |
| Swing Speed |
9.5 rpm |
| Swing Torque |
11.0 kN·m |
| Max Traction Force |
39.8 kN |
| Travel Speed |
2.9 / 4.8 km/h (low / high) |
| Gradeability |
58% (30°) |
| Bucket Digging Force |
42.0 kN |
| Stick Digging Force |
28.5 kN |
| Max Digging Reach at Ground Level |
6130 mm |
| Max Digging Depth |
3830 mm |
| Max Vertical Digging Depth |
3100 mm |
| Max Dumping Height |
4200 mm |
| Max Digging Height |
5650 mm |
| Overall Transport Length |
5330 mm |
| Overall Transport Width |
2000 mm (300mm track shoe) |
| Overall Transport Height |
2570 mm |
| Cab Height |
2530 mm |
| Tail Swing Radius |
1000 mm (Ultra-short tail swing) |
| Minimum Ground Clearance |
320 mm |
| Track Contact Length |
2200 mm |
| Track Gauge |
1440 mm |
| Fuel Tank Capacity |
70 L |
| Hydraulic Tank Capacity |
42 L |
| Total Hydraulic System Volume |
68 L |
| Engine Oil Capacity |
7.2 L |
| Cooling System Capacity |
9.0 L |
| Swing Reducer Oil |
2.2 L |
| Final Drive Oil (each side) |
1.1 L |
