| Category | Item | Specification |
|---|---|---|

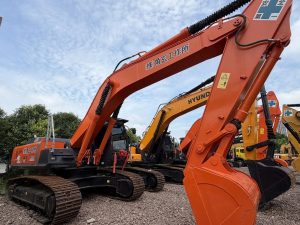

| Basic Data | Model | ZX350-5A |
| Type | Crawler Hydraulic Excavator | |
| Operating Weight | 33500 kg (ZX350-5A), 34100 kg (ZX350LC-5A) | |
| Bucket Capacity (ISO heaped) | 1.40 m³ | |
| Optional Bucket Range | 1.15 ~ 1.62 m³ (rock bucket optional) | |

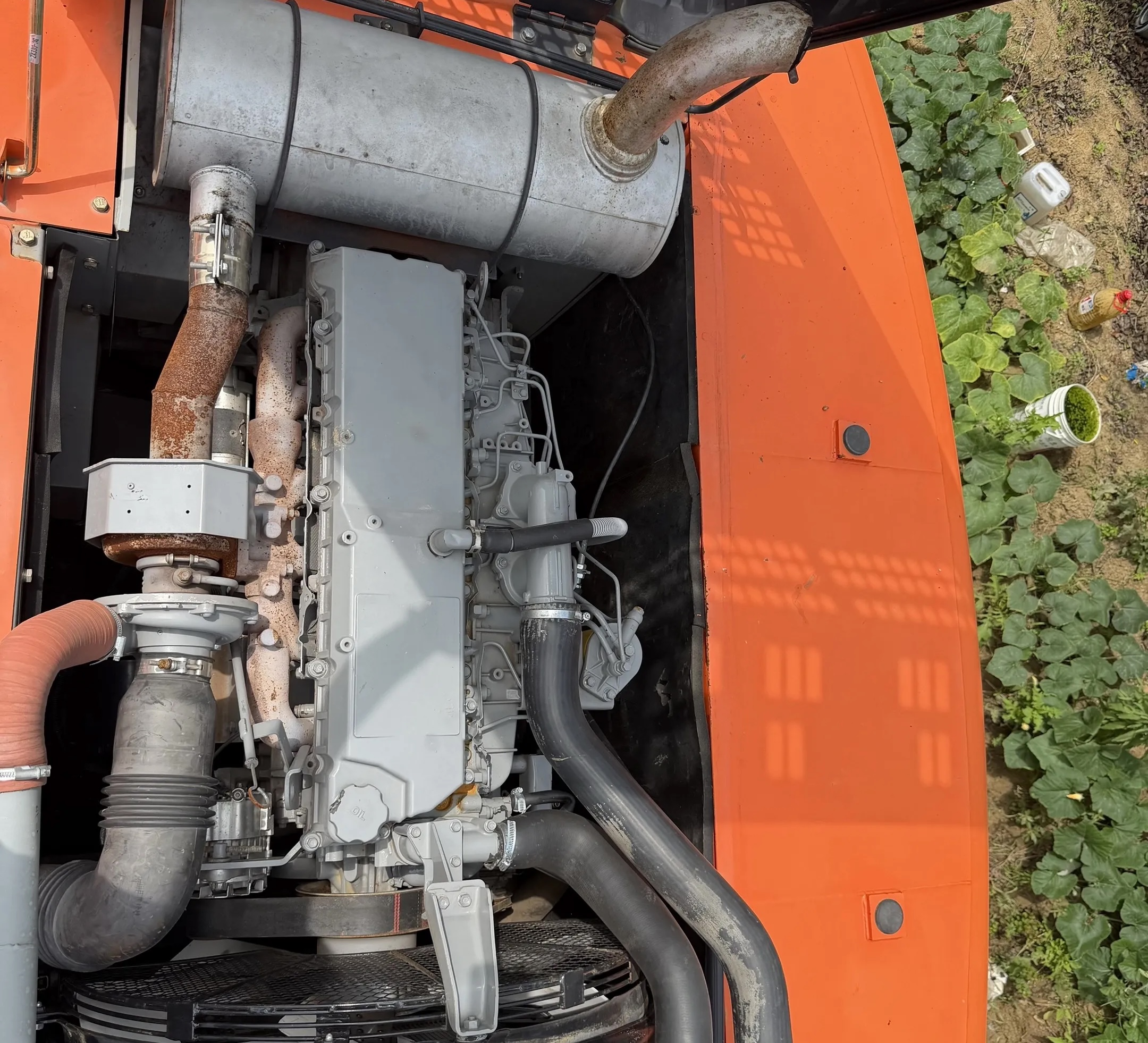

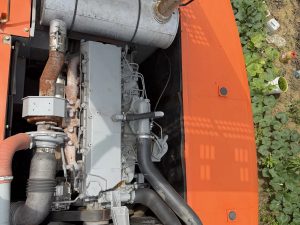

| Engine | Engine Model | Isuzu AA-6HK1X, 6-cylinder turbocharged intercooled diesel |
| Net Rated Power | 184 kW (246 HP) @ 2000 rpm | |
| Max Torque | 873 N·m @1700 rpm | |
| Displacement | 7.790 L | |
| Aspiration | Turbocharged, Intercooled | |
| Cooling Type | Liquid cooling | |
| Fuel Type | Diesel | |
| Hydraulic System | Main Pump | 2 × Variable displacement axial piston pump + pilot gear pump |
| Max System Pressure | 34.3 MPa; Power boost 38.0 MPa | |
| Pump Flow | 2 × 279 L/min | |
| Control System | HIOS IV load sensing hydraulic system | |
| Working Modes | H/P, P, E, L | |
| Swing & Travel | Swing Speed | 10.5 rpm |
| Swing Torque | 98 kN·m | |
| Travel Speed (High / Low) | 4.9 / 3.1 km/h | |
| Max Traction Force | 287 kN | |
| Gradeability | 35° (70%) | |
| Ground Pressure | 66 kPa (700mm track shoes) | |
| Working Range
(Standard Boom 6.40m + Arm 3.20m) |
Max Digging Depth | 7380 mm |
| Max Digging Reach | 10820 mm | |
| Max Digging Height | 10210 mm | |
| Max Dumping Height | 7160 mm | |
| Bucket Digging Force (ISO) | 222 kN | |
| Arm Digging Force (ISO) | 165 kN | |
| Overall Dimensions | Overall Length | 11100 mm |
| Overall Width | 3190 mm | |
| Overall Height (Cab) | 3270 mm | |
| Rear Swing Radius | 3320 mm | |
| Standard Track Shoe Width | 700 mm; optional 600/800 mm | |
| Track Gauge | 2590 mm | |
| Undercarriage | Track Type | Triple grouser steel track |
| Track Rollers per Side | 8 pcs | |
| Carrier Rollers per Side | 2 pcs | |
| Fluid Capacity | Fuel Tank | 630 L |
| Hydraulic Oil Tank | 240 L | |
| Cab & Attachment | Cab | ROPS / FOPS cabin with air conditioning |
| Standard Boom | 6.40m monoblock boom | |
| Optional Arm Length | 2.60 m / 3.20 m |
