| Category | Item | Specification |
|---|---|---|

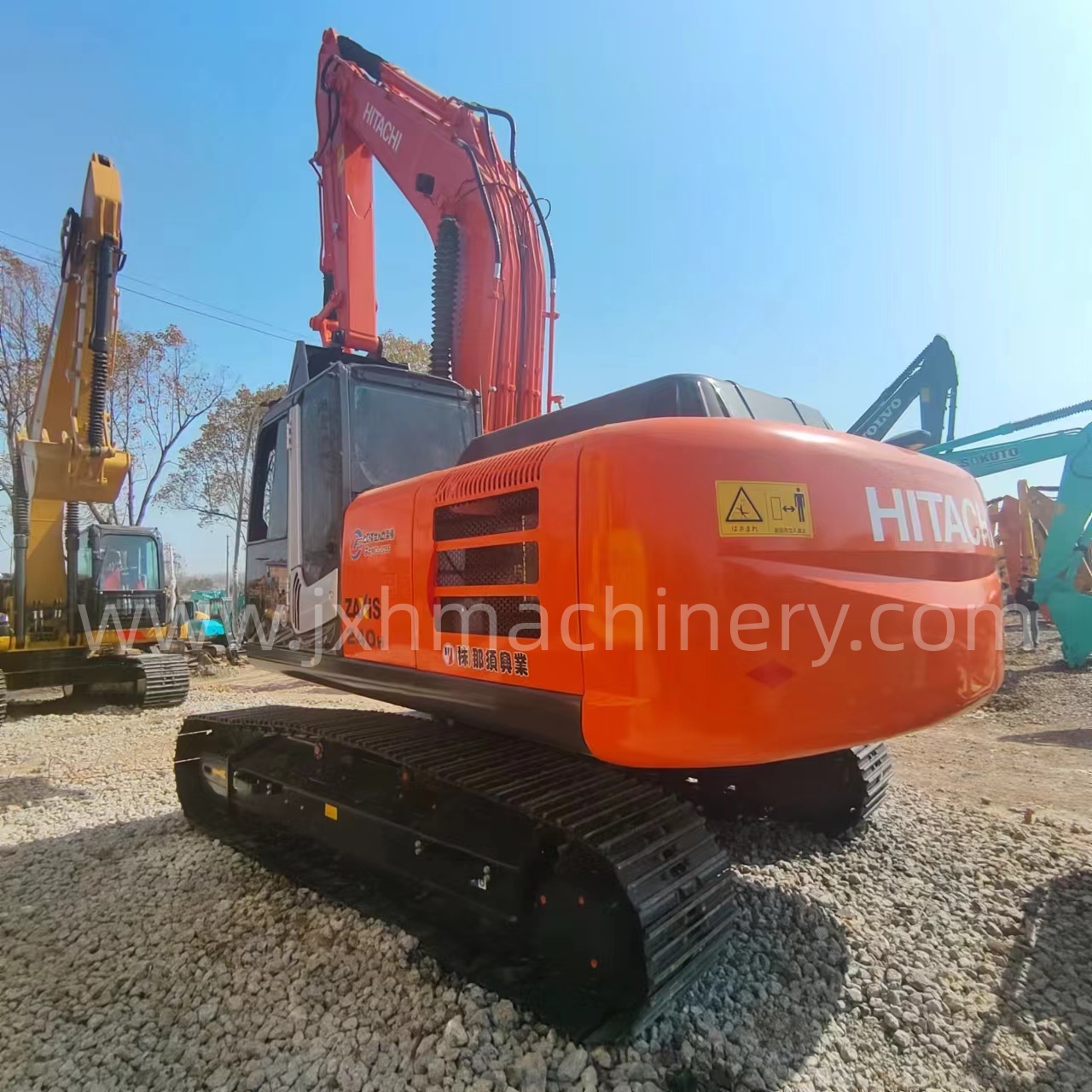

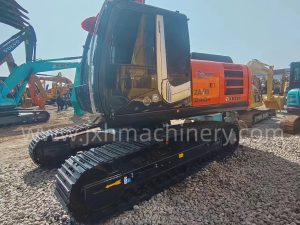

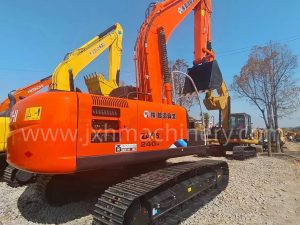

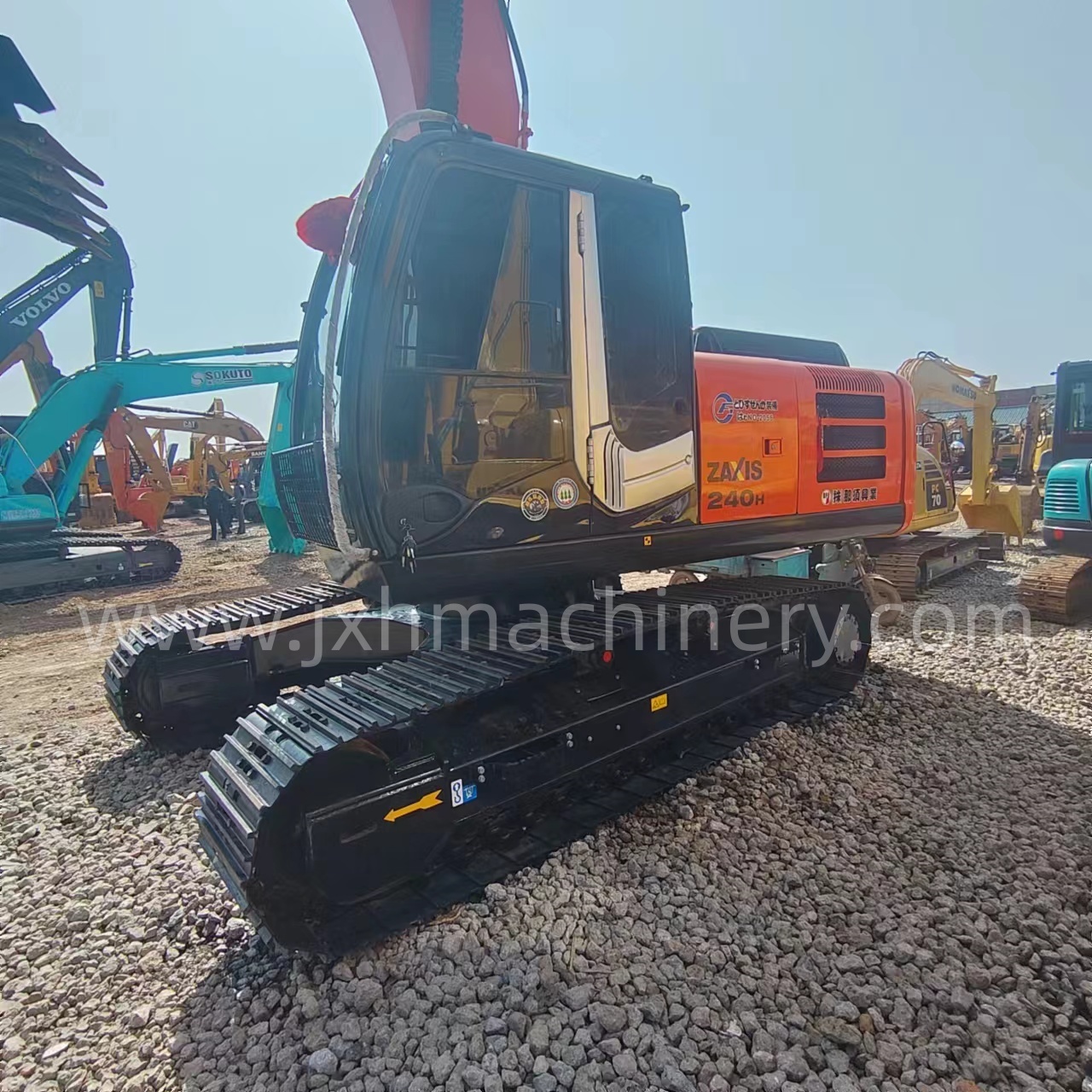

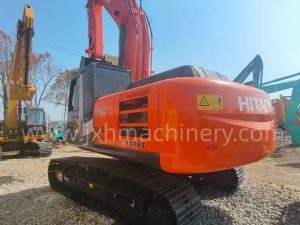

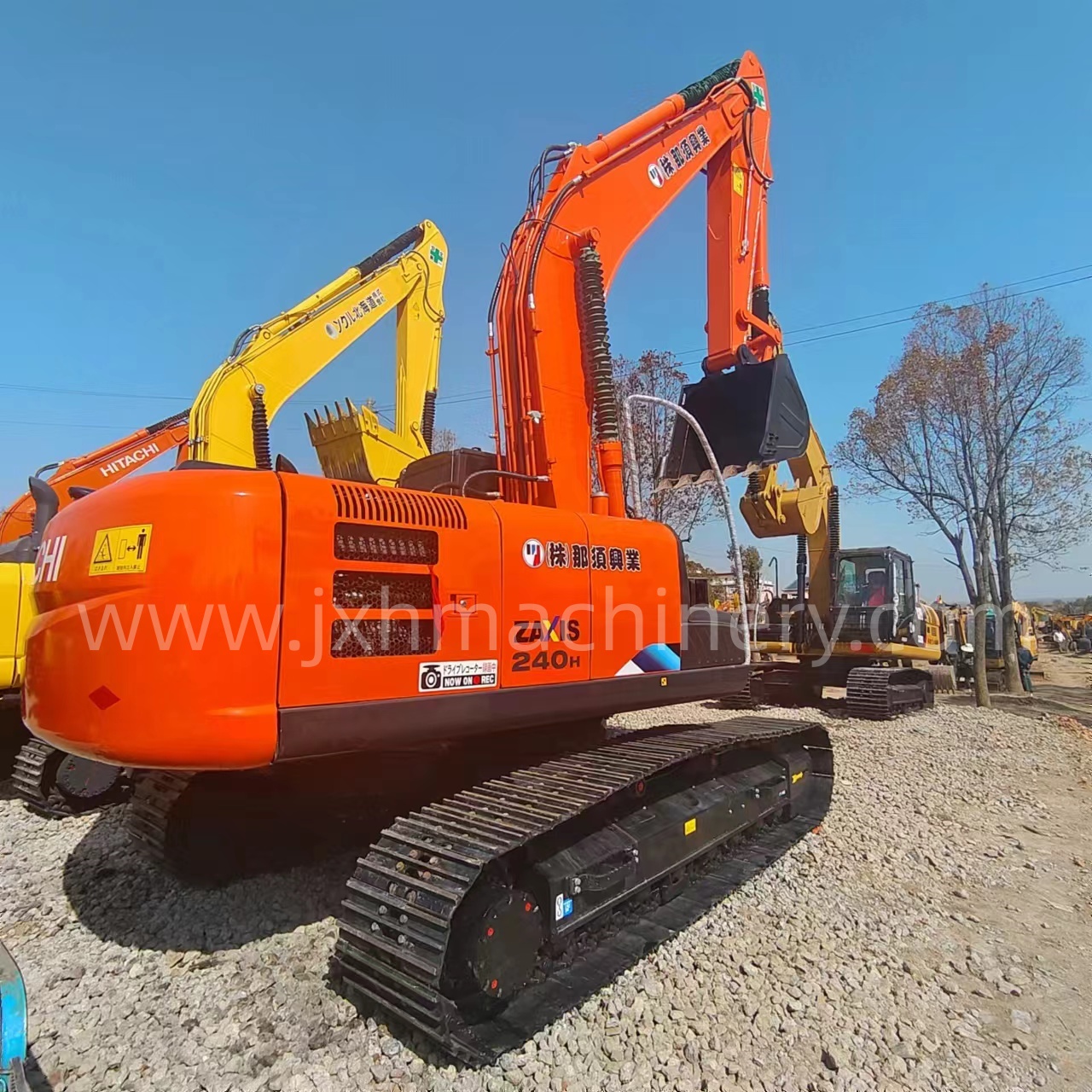

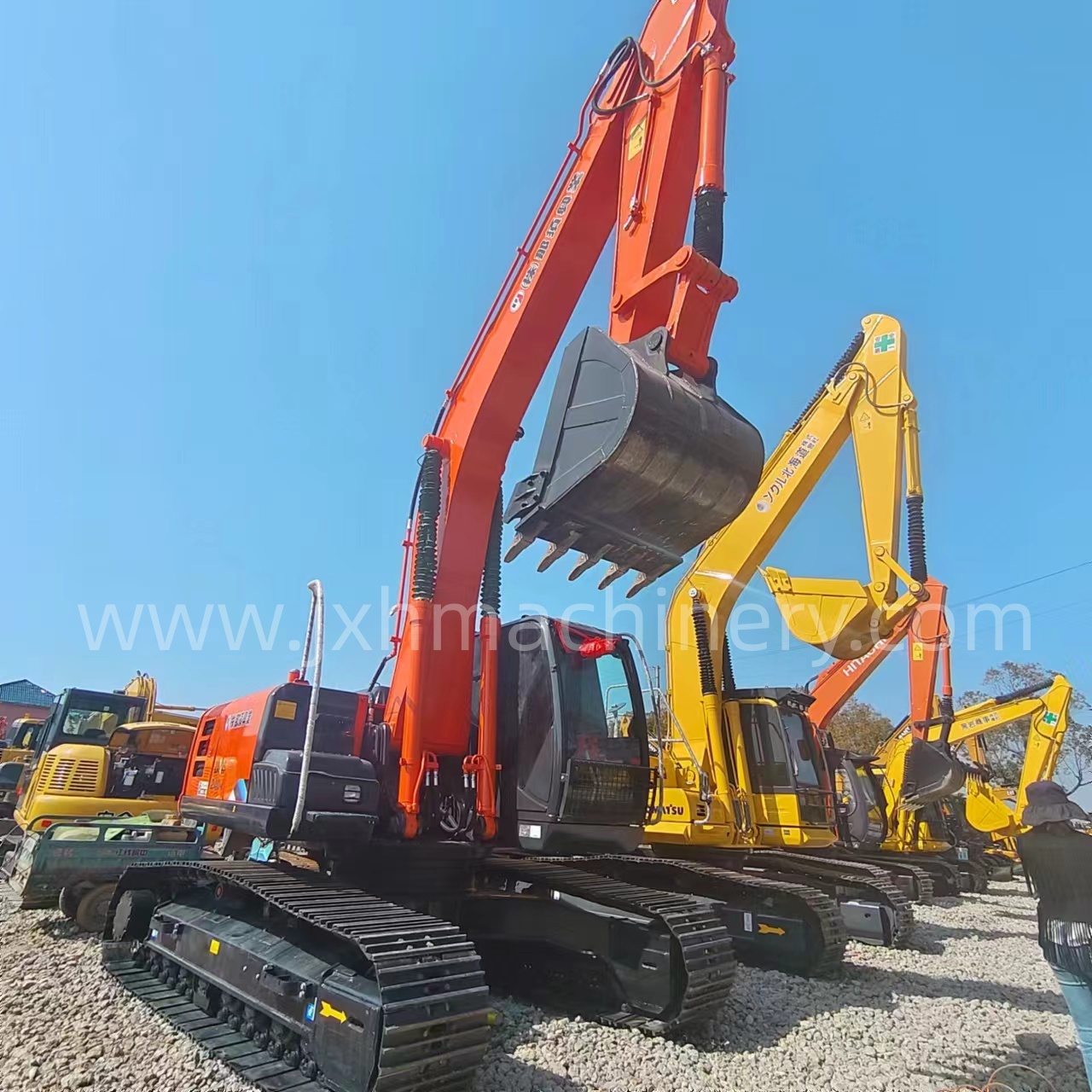

| Basic Data | Model | ZX240-3G |
| Type | Crawler Hydraulic Excavator | |
| Operating Weight | 23500 kg (standard) | |
| Bucket Capacity (ISO heaped) | 1.20 m³ | |
| Optional Bucket Range | 1.0 ~ 1.4 m³ | |
| Engine | Engine Model | Isuzu CC-6BG1T, 6-cylinder turbocharged intercooled diesel |
| Rated Power | 125 kW (170 PS) @ 2100 rpm | |
| Displacement | 6.494 L | |
| Aspiration | Turbocharged, Intercooled | |
| Cooling Type | Liquid cooling | |
| Fuel Type | Diesel | |
| Hydraulic System | Main Pump | Variable displacement axial piston pump ×2 |
| Max System Pressure | 34.3 MPa | |
| Pump Flow | 204 × 2 L/min | |
| Control System | HIOS III load sensing hydraulic system | |
| Working Modes | H/P, P, E | |
| Swing & Travel | Swing Speed | 13.5 rpm |
| Travel Speed (High / Low) | 5.5 / 3.6 km/h | |
| Gradeability | 35° (70%) | |
| Ground Pressure | 51 kPa (600mm track shoes) | |
| Working Range
(Standard Boom 6.00m + Arm 2.96m) |
Max Digging Depth | 6950 mm |
| Max Digging Reach | 10270 mm | |
| Max Digging Height | 9630 mm | |
| Max Dumping Height | 6760 mm | |
| Bucket Digging Force (ISO) | 180 kN | |
| Arm Digging Force (ISO) | 125 kN | |
| Overall Dimensions | Overall Length | 10140 mm |
| Overall Width | 2990 mm | |
| Overall Height (Cab) | 3100 mm | |
| Rear Swing Radius | 2940 mm | |
| Standard Track Shoe Width | 600 mm; optional 700 mm | |
| Track Gauge | 2390 mm | |
| Undercarriage | Track Type | Triple grouser steel track |
| Track Rollers per Side | 7 pcs | |
| Carrier Rollers per Side | 2 pcs | |
| Fluid Capacity | Fuel Tank | 380 L |
| Hydraulic Oil Tank | 148 L | |

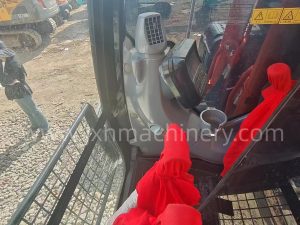

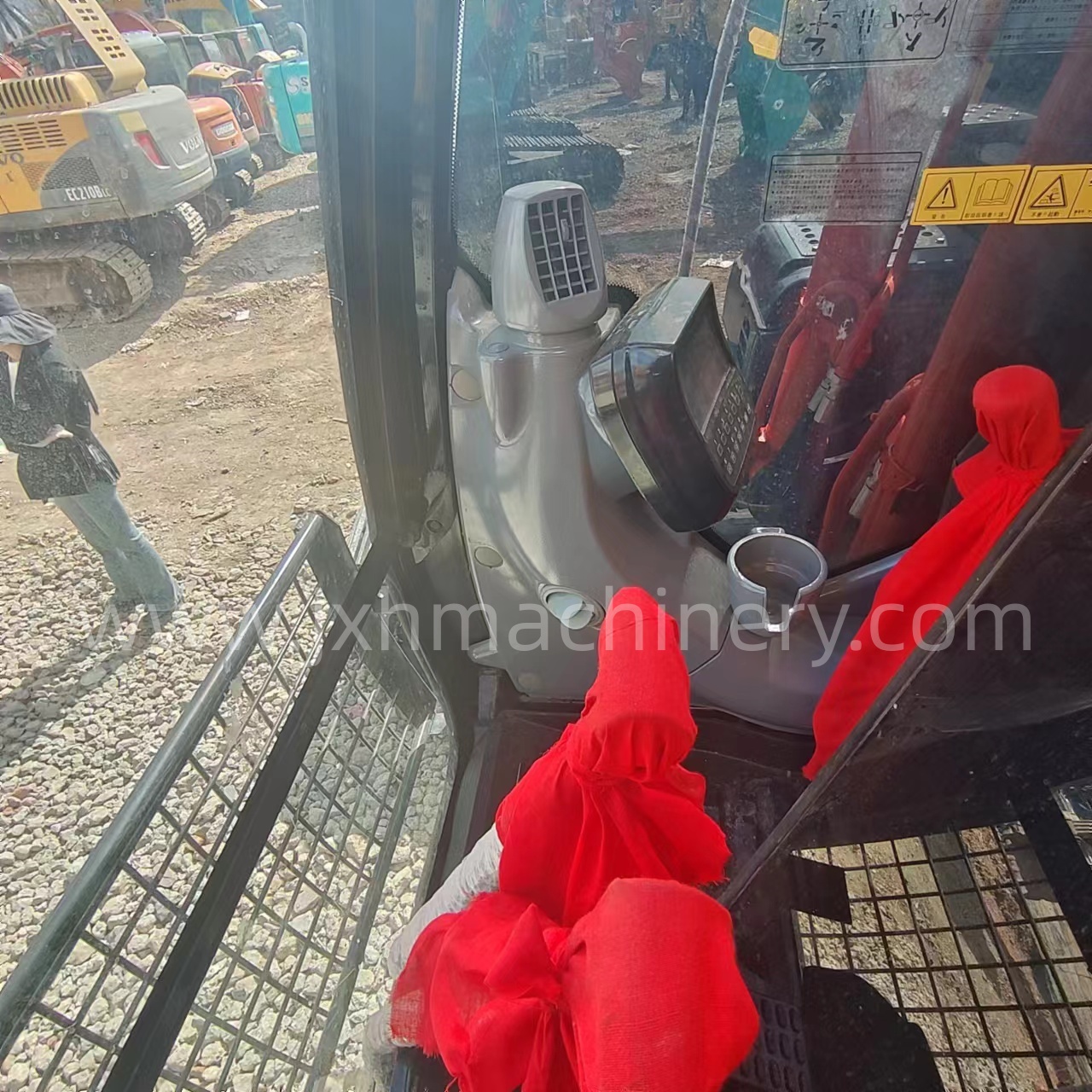

| Cab & Attachment | Cab | ROPS / FOPS cabin with air conditioning |
| Standard Boom | 6.00m monoblock boom | |
| Optional Arm Length | 2.42 m / 2.96 m |
