| Category | Item | Specification |
|---|---|---|

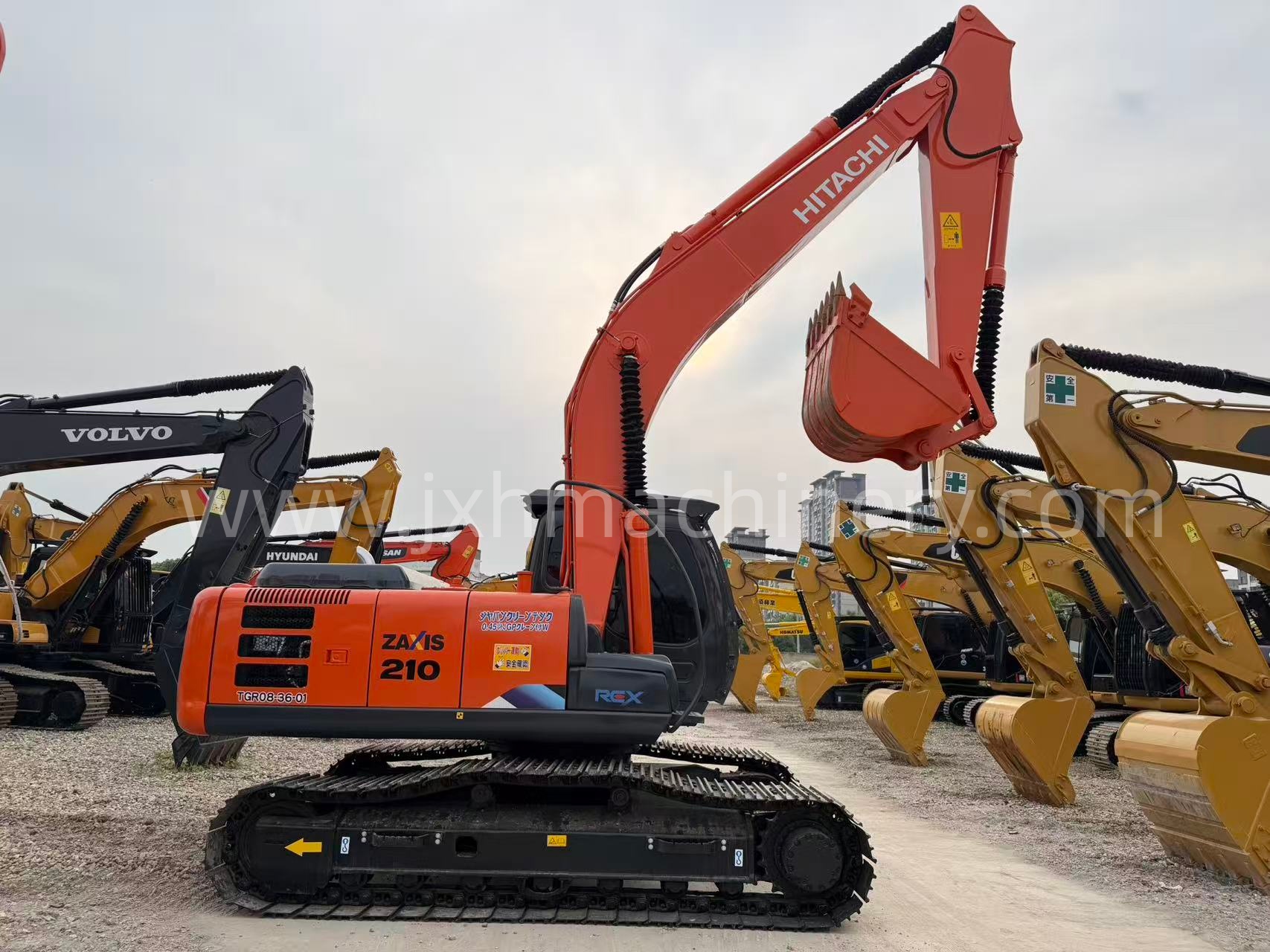

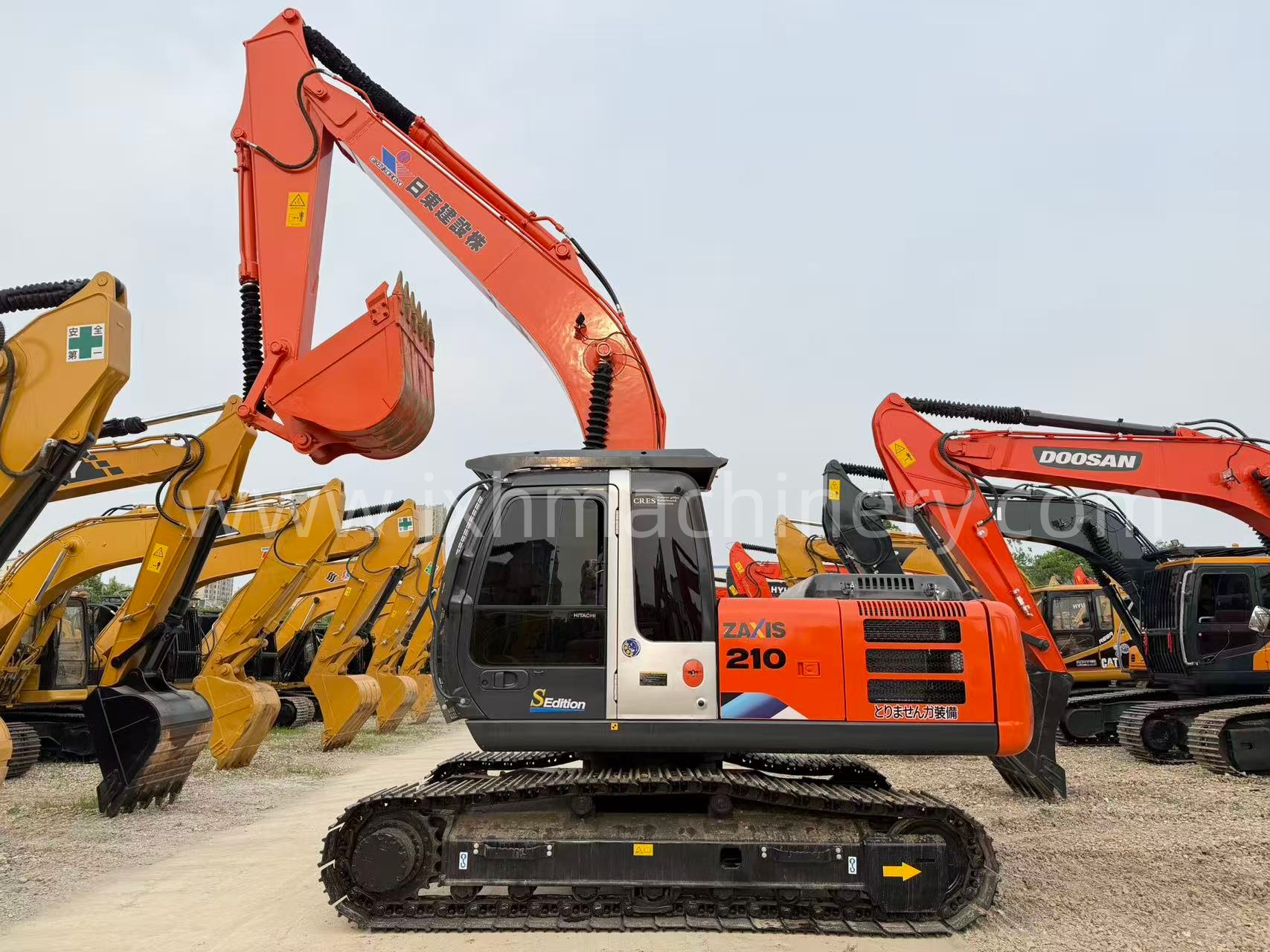

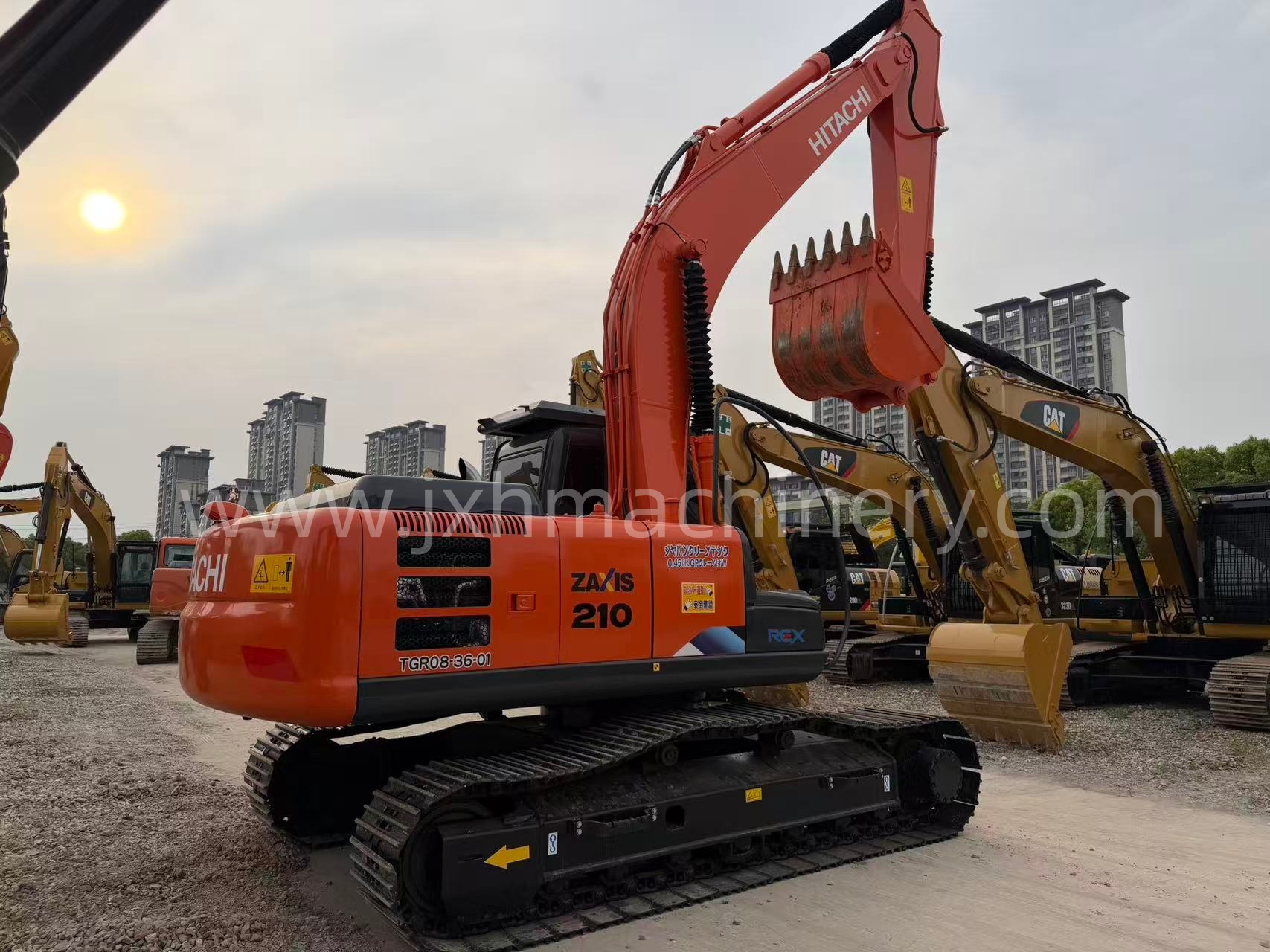

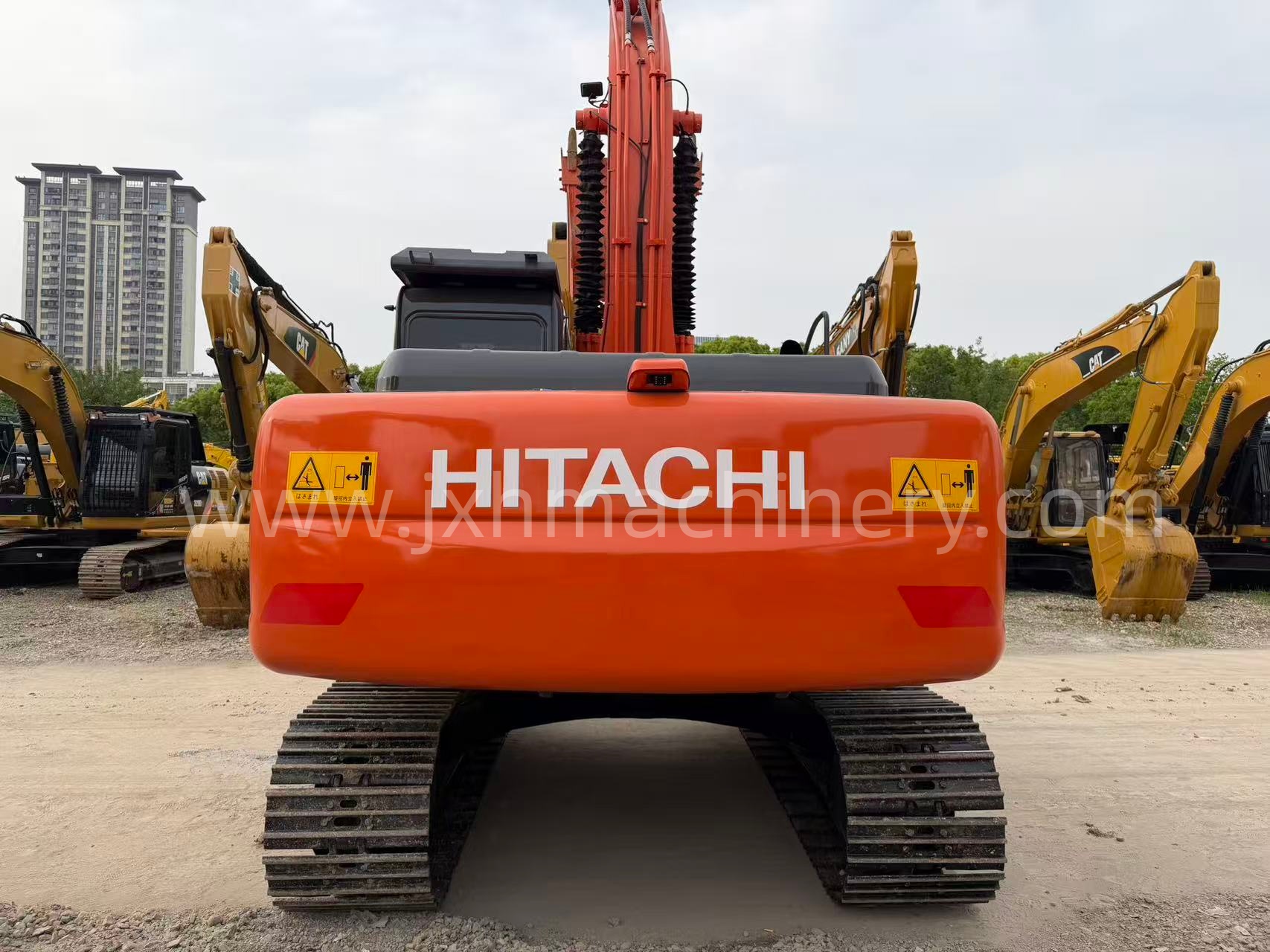

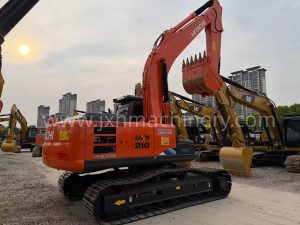

| Basic Data | Model | ZX210-3 |
| Type | Crawler Hydraulic Excavator | |
| Operating Weight | 21200 kg (standard) | |
| Bucket Capacity (PCSA heaped) | 0.91 m³ | |
| Optional Bucket Range | 0.75 ~ 1.0 m³ | |

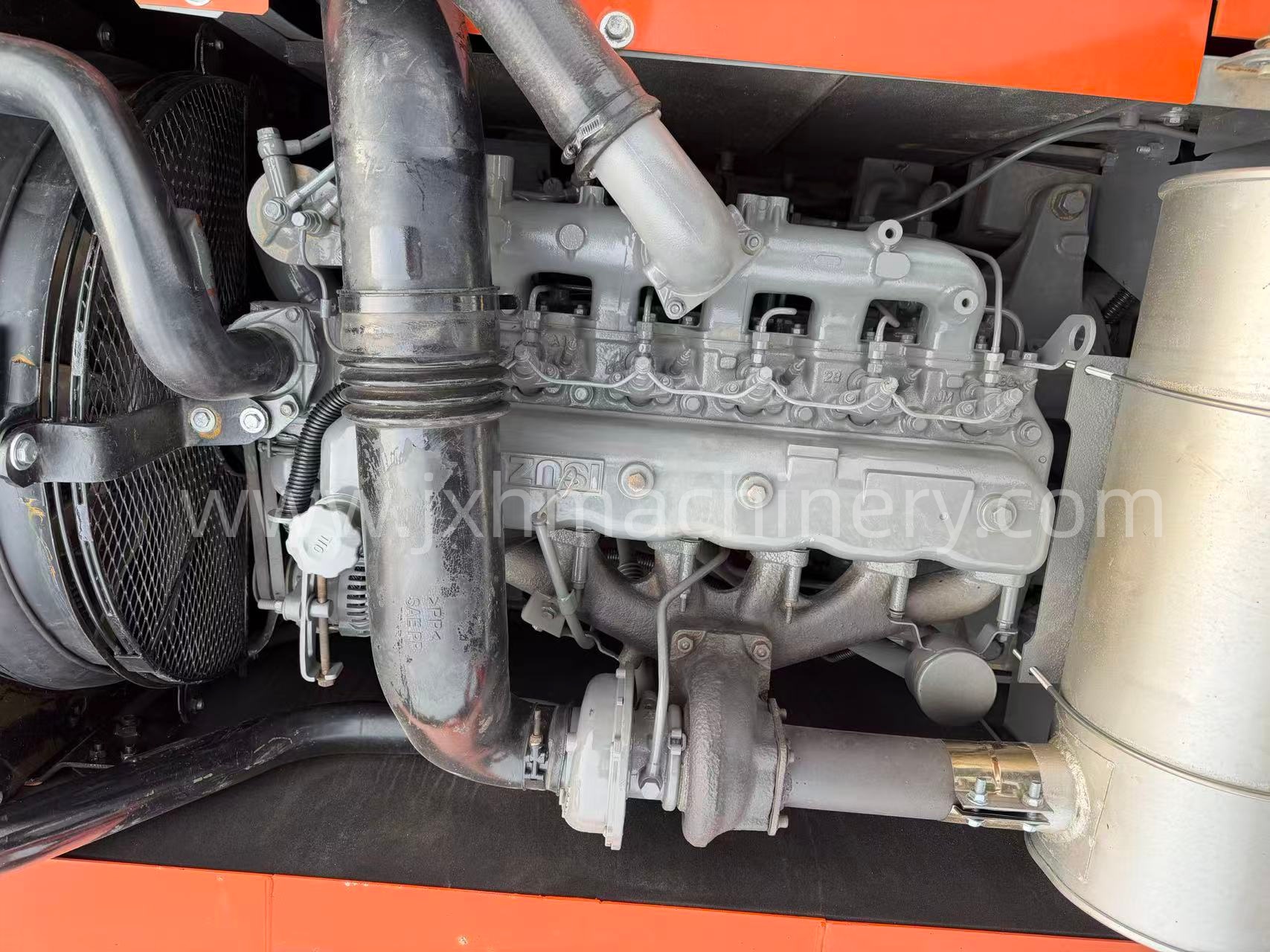

| Engine | Engine Model | Isuzu AI-4HK1X, 4-cylinder turbocharged intercooled diesel |
| Rated Power | 122 kW (166 PS) @ 2000 rpm | |
| Displacement | 5.193 L | |
| Aspiration | Turbocharged, Intercooled | |
| Cooling Type | Liquid cooling | |
| Fuel Type | Diesel | |
| Hydraulic System | Main Pump | Variable displacement axial piston pump ×2 + gear pump |
| Max System Pressure | 34.3 MPa | |
| Control System | HIOS III load sensing hydraulic system | |
| Working Modes | H/P, P, E, L | |
| Swing & Travel | Swing Speed | 13.3 rpm |
| Swing Torque | 64 kN·m | |
| Travel Speed (High / Low) | 5.5 / 3.5 km/h | |
| Gradeability | 35° (70%) | |
| Ground Pressure | 45 kPa (600mm track shoes) | |
| Working Range
(Standard Boom 5.68m + Arm 2.91m) |
Max Digging Depth | 6670 mm |
| Max Digging Reach | 9920 mm | |
| Max Digging Height | 10040 mm | |
| Max Dumping Height | 7180 mm | |
| Bucket Digging Force (ISO) | 151 kN | |
| Arm Digging Force (ISO) | 109 kN | |
| Overall Dimensions | Overall Length | 9660 mm |
| Overall Width | 2860 mm | |
| Overall Height (Cab) | 2950 mm | |
| Rear Swing Radius | 2750 mm | |
| Standard Track Shoe Width | 600 mm; optional 700/800 mm | |
| Track Gauge | 2200 mm | |
| Undercarriage | Track Type | Triple grouser steel track |
| Track Rollers per Side | 7 pcs | |
| Carrier Rollers per Side | 2 pcs | |
| Fluid Capacity | Fuel Tank | 400 L |
| Hydraulic Oil Tank | 180 L | |
| Cab & Attachment | Cab | ROPS / FOPS cabin with air conditioning |
| Standard Boom | 5.68m monoblock boom | |
| Optional Arm Length | 2.42 m / 2.91 m |
