| Model |

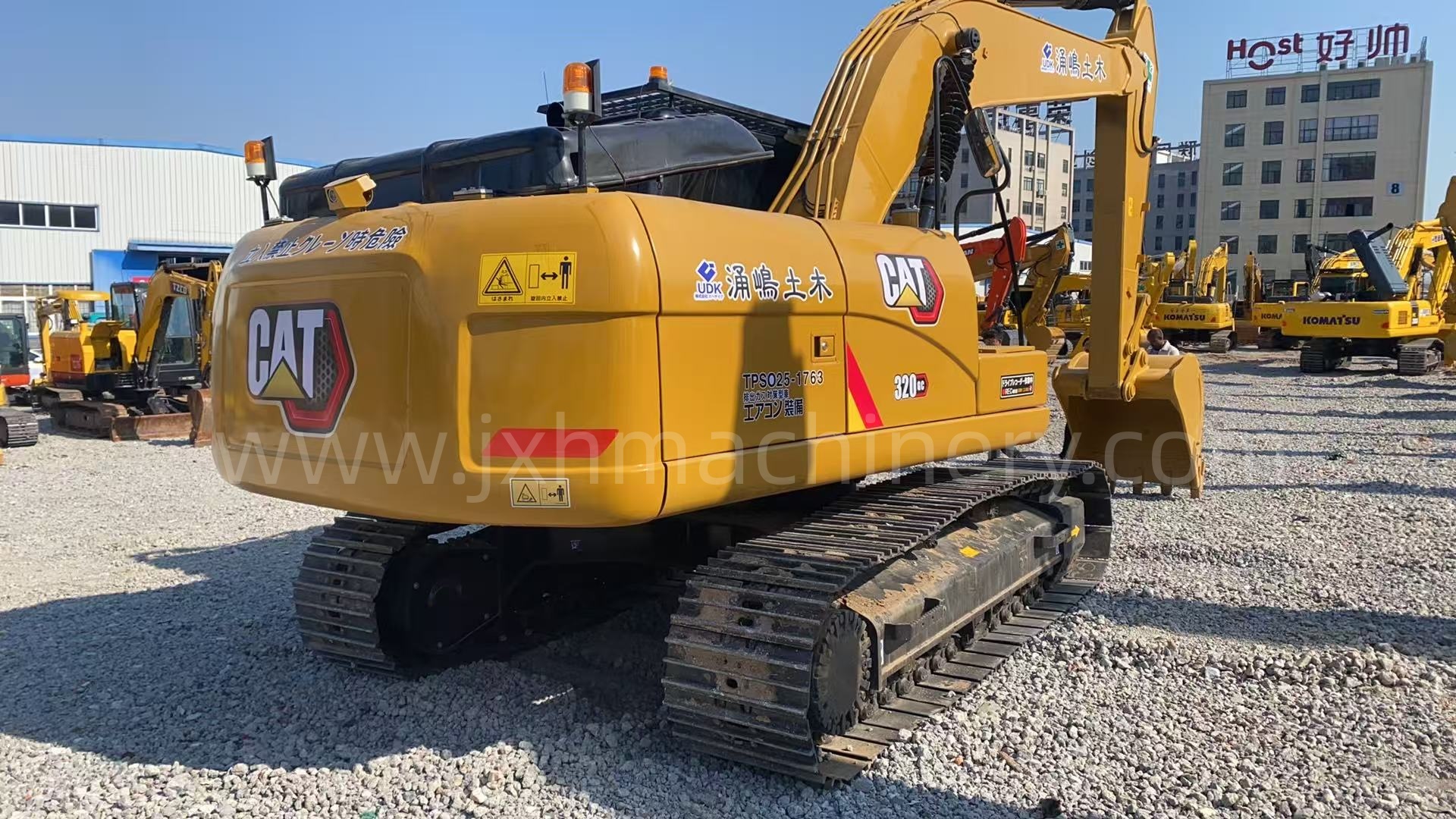

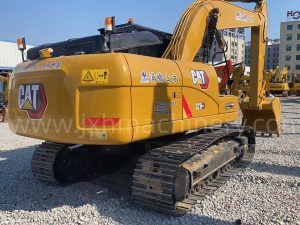

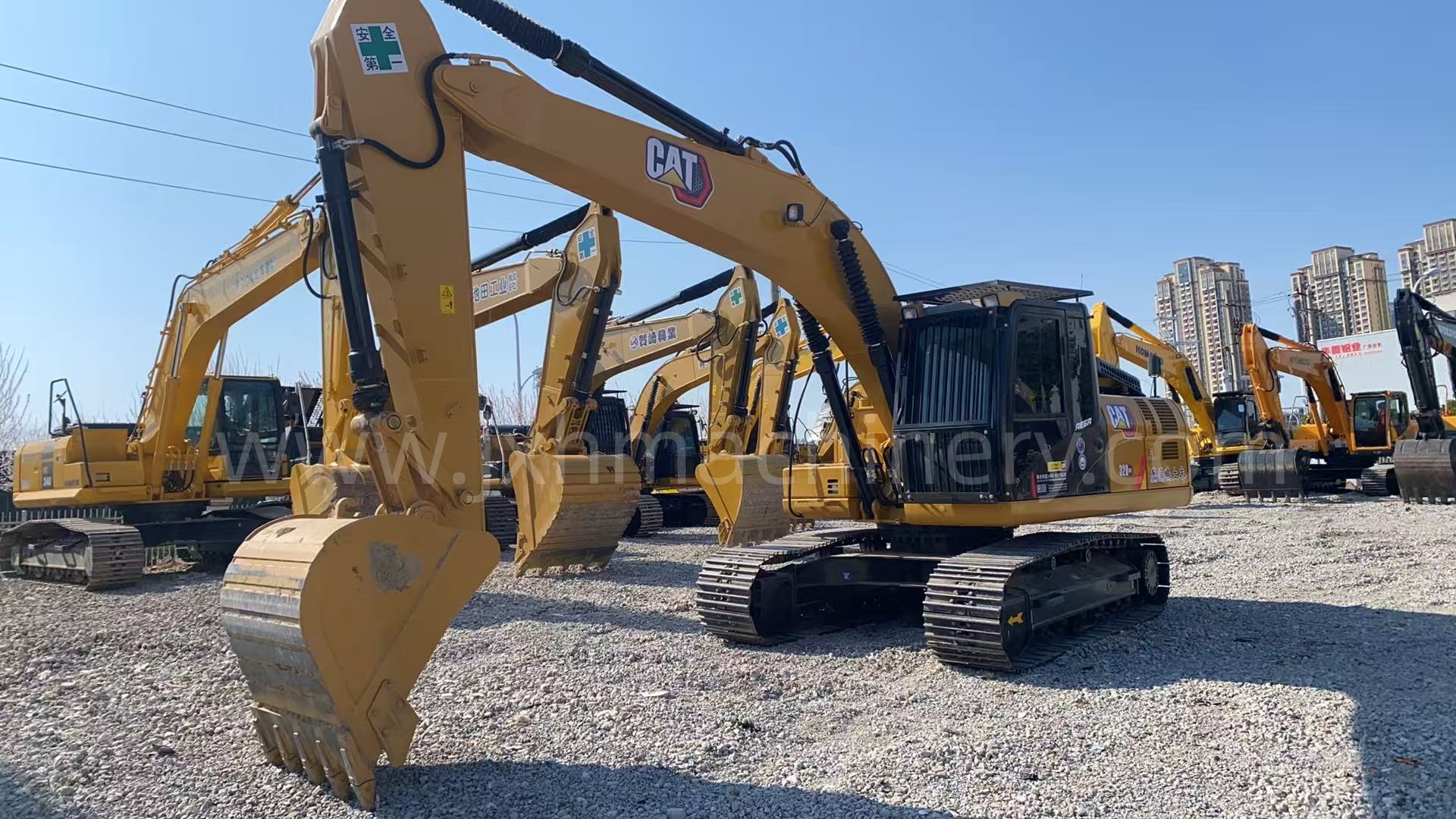

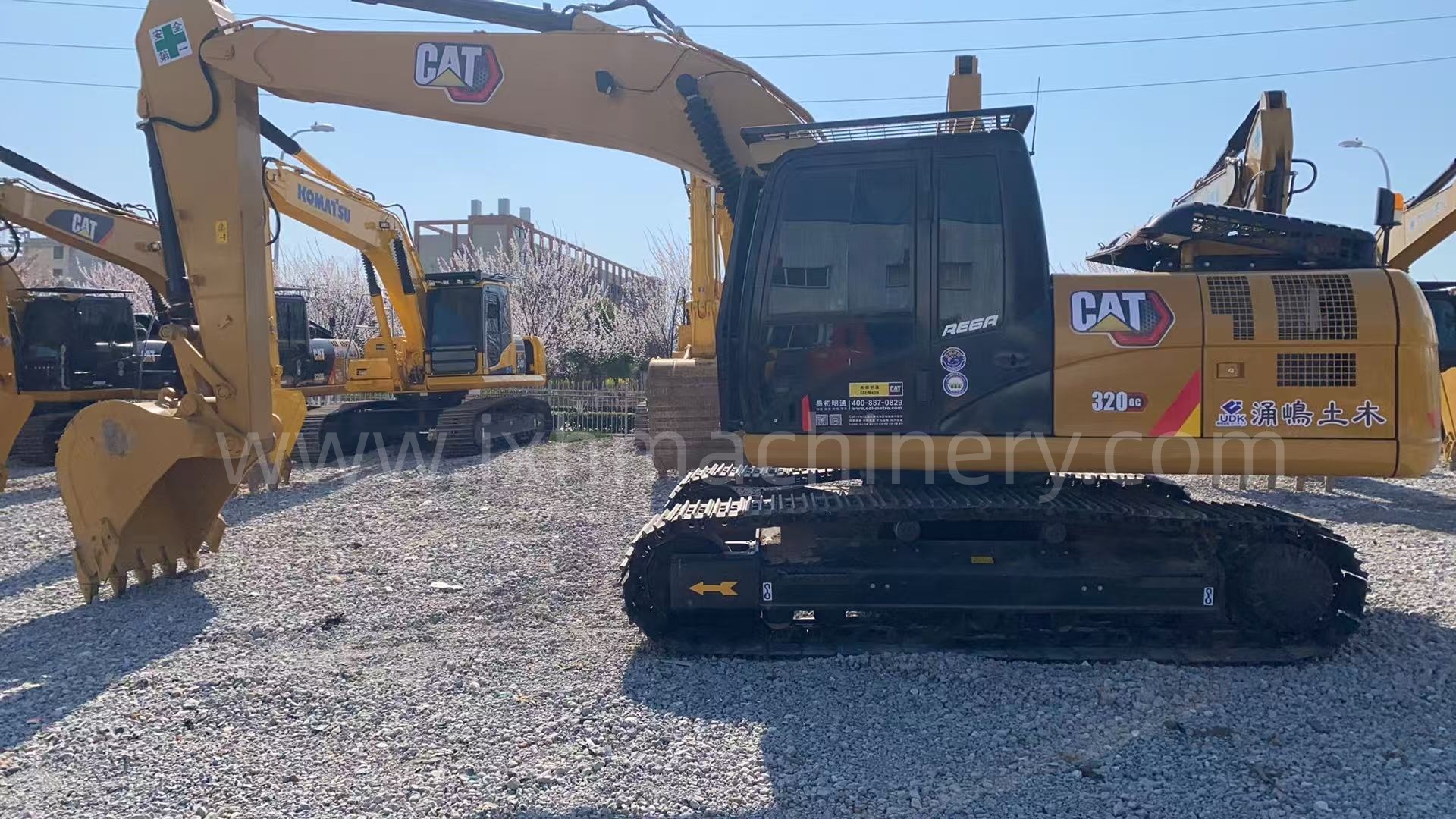

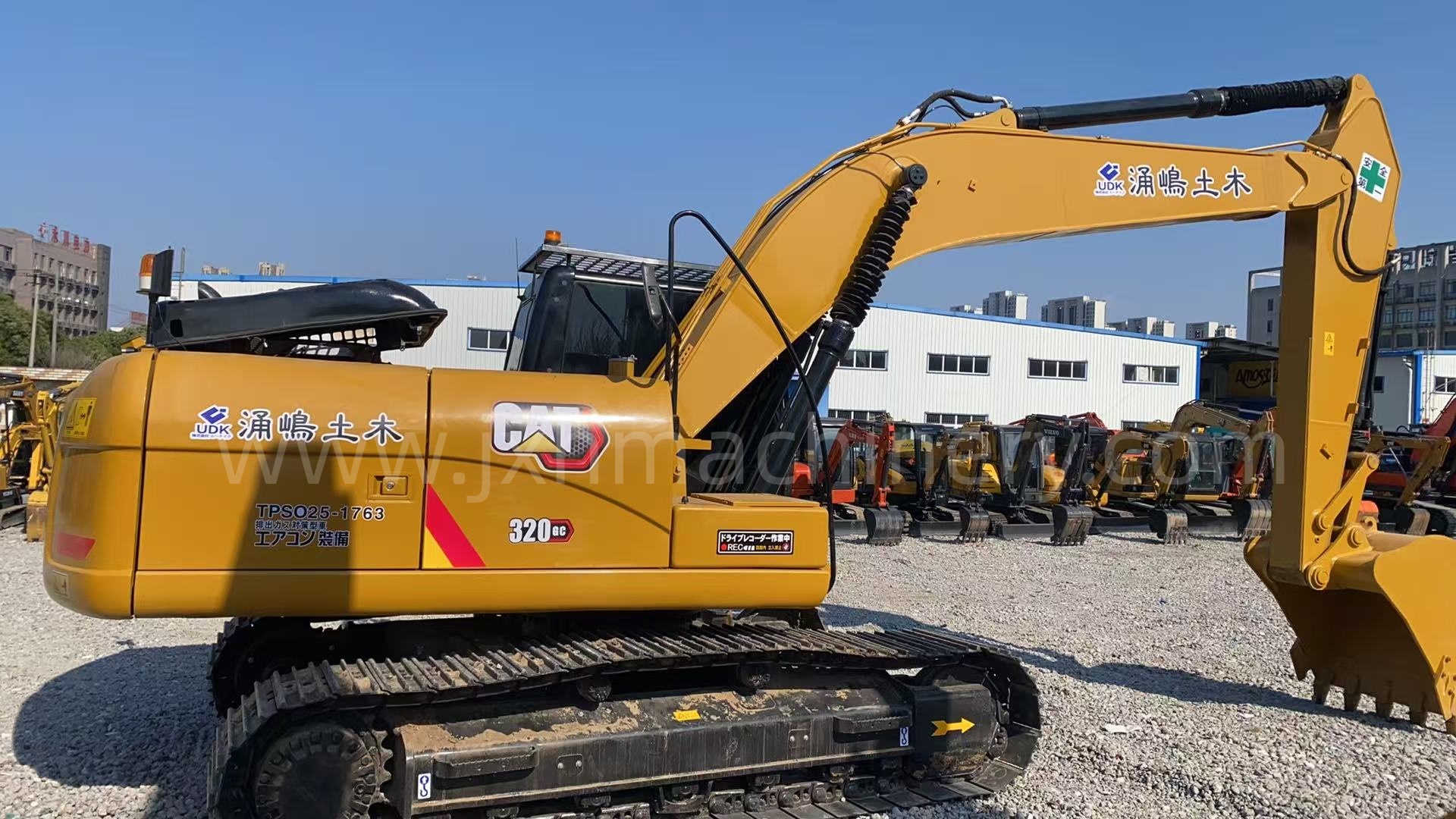

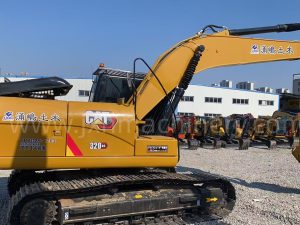

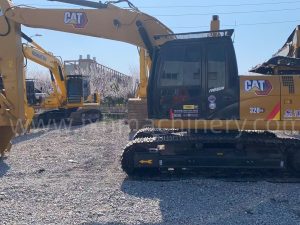

CAT 320 GC |
| Machine Type |
Medium Crawler Hydraulic Excavator |
| Operating Weight |
20500 kg (45200 lbs) |
| Engine Model |
Cat C4.4, 4-cylinder single-turbo diesel |
| Rated Net Power (ISO 9249) |
109 kW (146 hp) @2000 rpm |
| Gross Power (ISO 14396) |
110 kW (148 hp) @2000 rpm |
| Displacement |
4.4 L (269 cu in) |
| Bore × Stroke |
105 mm × 127 mm |
| Emission Standard |
EPA Tier 3 / EU Stage IIIA |
| Standard Bucket Capacity |
1.0 m³ (1.31 yd³) |
| Boom Length |
5700 mm |
| Stick Length |
2900 mm |
| Max Digging Depth |
6720 mm (22.05 ft) |
| Max Reach at Ground Level |
9860 mm (32.35 ft) |
| Max Dumping Height |
6490 mm (21.29 ft) |
| Bucket Digging Force (ISO) |
147 kN |
| Arm Digging Force (ISO) |
113 kN |
| Max Hydraulic Pump Flow (2 main pumps) |
429 L/min (113 US gal/min) |
| Main Hydraulic Pressure |
35 MPa (5076 psi) |
| Swing Speed |
11.3 rpm |
| Swing Torque |
74.4 kN·m |
| Travel Speed |
3.5 ~ 5.5 km/h (2.17 ~ 3.42 mph) |
| Fuel Tank Capacity |
345 L (91.1 US gal) |
| Hydraulic Tank Capacity |
115 L |
| Transport Length |
9530 mm (31.27 ft) |
| Transport Width (600mm track shoe) |
2800 mm (9.19 ft) |
| Transport Height |
2960 mm (9.71 ft) |
| Standard Track Shoe Width |
600 mm (23.62 in) |
| Rear Swing Radius |
2830 mm |
| Min Ground Clearance |
470 mm |
