| Operating Weight |
42200 kg (standard configuration, 600mm track shoe) |
| Standard Bucket Capacity |
2.41 m³; Heavy duty rock bucket optional 2.6 m³ |
| Boom Length |
6900 mm |
| Stick Length |
2900 mm |

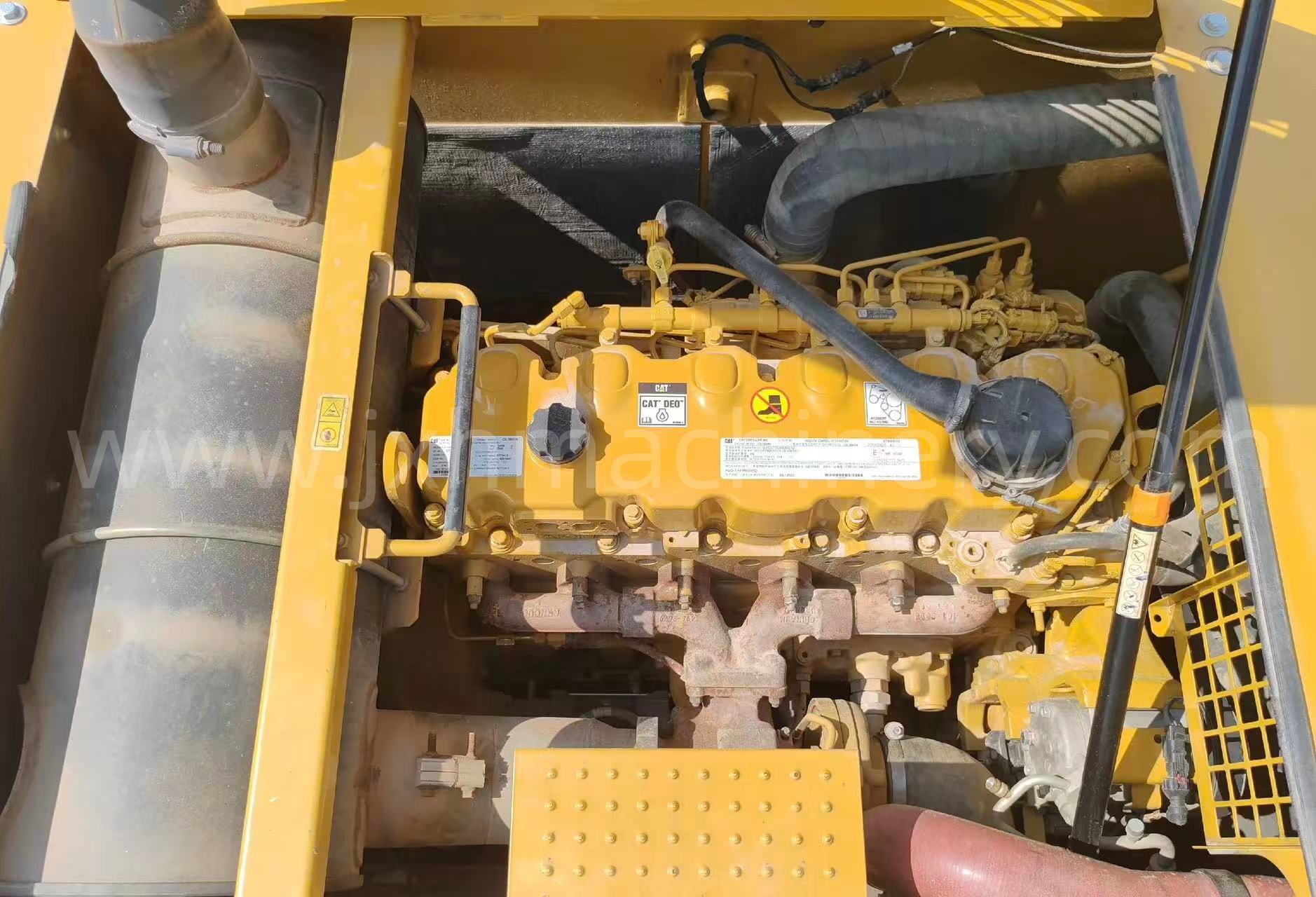

| Engine Model |
CAT C9.3B, 6-cylinder water-cooled electronic injection |
| Displacement |
9.3 L |
| Bore × Stroke |
115 mm × 149 mm |
| Rated Net Power (ISO9249) |
258 kW (346 hp) @1750 rpm |
| Emission Standard |
US Tier3 / EU Stage IIIA / China Nonroad Stage III |
| Main Pump Max Flow |
630 L/min (dual pumps 2 × 315 L/min) |
| Main System Relief Pressure |
35 MPa |
| Swing Circuit Pressure |
28 MPa |
| Swing Speed |
8.27 rpm |
| Swing Torque |
155 kN·m |
| Max Traction Force |
335 kN |
| Travel Speed |
3.0 / 4.8 km/h (low / high) |
| Gradeability |
70% (35°) |
| Bucket Digging Force |
265 kN |
| Stick Digging Force |
210 kN |
| Max Digging Reach at Ground Level |
11290 mm |
| Max Digging Depth |
7200 mm |
| Max Vertical Digging Depth |
6100 mm |
| Max Dumping Height |
7210 mm |
| Max Digging Height |
10540 mm |
| Overall Transport Length |
11600 mm |
| Overall Transport Width |
3340 mm (600mm track shoe) |
| Overall Transport Height |
3230 mm |
| Cab Height |
3230 mm |
| Tail Swing Radius |
3530 mm |
| Minimum Ground Clearance |
520 mm |
| Track Contact Length |
4040 mm |
| Total Track Length |
5030 mm |
| Track Gauge |
2740 mm |
| Counterweight Clearance |
1300 mm |
| Fuel Tank Capacity |
720 L |
| Hydraulic Tank Capacity |
195 L |
| Total Hydraulic System Volume |
440 L |
| Engine Oil Capacity |
36 L |
| Cooling System Capacity |
48 L |
| Swing Reducer Oil |
14 L |
| Final Drive Oil (each side) |
10 L |
