| Operating Weight |
33900 kg (standard configuration, 600mm track shoe) |
| Standard Bucket Capacity |
1.88 m³; Heavy duty bucket optional 2.2 m³ |
| Boom Length |
6500 mm |
| Stick Length |
3200 mm |

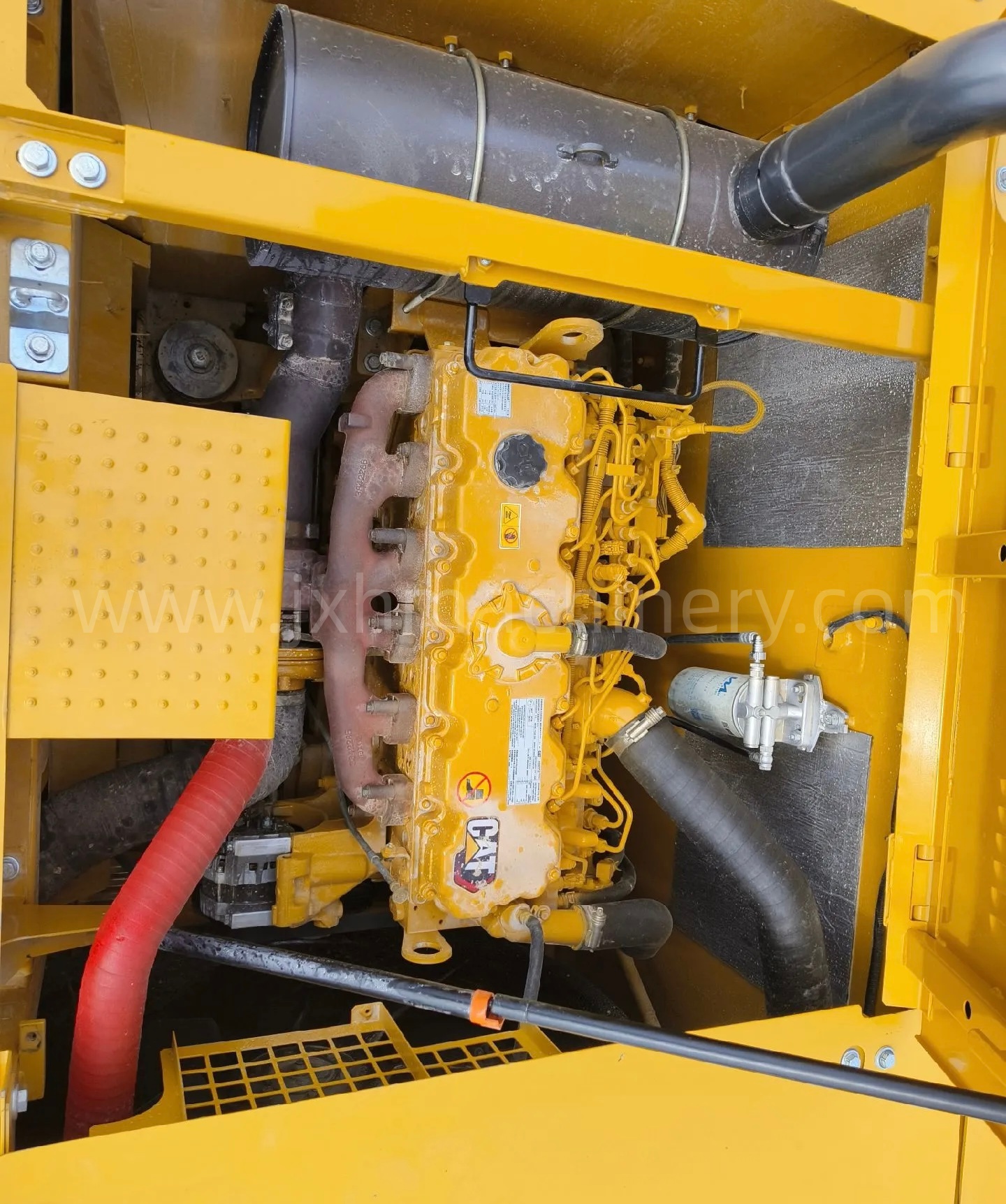

| Engine Model |
CAT C7.1 ACERT, 6-cylinder water-cooled electronic injection |
| Displacement |
7.1 L |
| Bore × Stroke |
105 mm × 135 mm |
| Rated Net Power (ISO9249) |
193.5 kW (259 hp) @2000 rpm |
| Emission Standard |
US Tier3 / EU Stage IIIA / China Nonroad Stage III |
| Main Pump Max Flow |
559 L/min (dual pumps 2 × 280 L/min) |
| Main System Relief Pressure |
35 MPa |
| Swing Circuit Pressure |
28 MPa |
| Swing Speed |
8.74 rpm |
| Swing Torque |
137 kN·m |
| Max Traction Force |
305 kN |
| Travel Speed |
3.1 / 5.1 km/h (low / high) |
| Gradeability |
70% (35°) |
| Bucket Digging Force |
228 kN |
| Stick Digging Force |
176 kN |
| Max Digging Reach at Ground Level |
11680 mm |
| Max Digging Depth |
8220 mm |
| Max Vertical Digging Depth |
6310 mm |
| Max Dumping Height |
7740 mm |
| Max Digging Height |
10750 mm |
| Overall Transport Length |
11230 mm |
| Overall Transport Width |
3190 mm (600mm track shoe) |
| Overall Transport Height |
3650 mm |
| Cab Height |
3120 mm |
| Tail Swing Radius |
3440 mm |
| Minimum Ground Clearance |
500 mm |
| Track Contact Length |
4610 mm |
| Track Gauge |
2590 mm |
| Counterweight Clearance |
1230 mm |
| Fuel Tank Capacity |
600 L |
| Hydraulic Tank Capacity |
161 L |
| Total Hydraulic System Volume |
373 L |
| Engine Oil Capacity |
25 L |
| Cooling System Capacity |
39 L |
| Swing Reducer Oil (each) |
18 L |
| Final Drive Oil (each side) |
8 L |
