| Model |

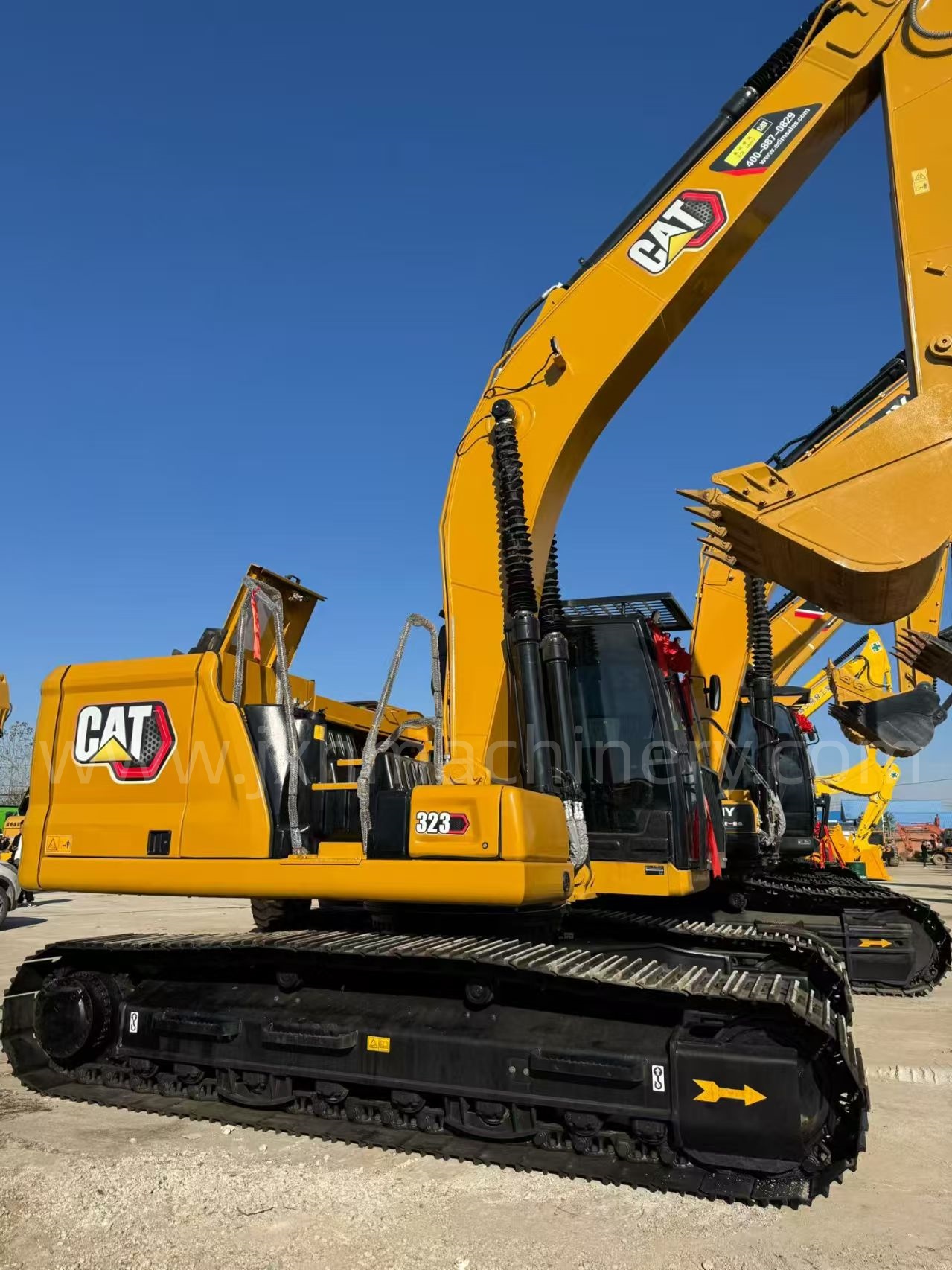

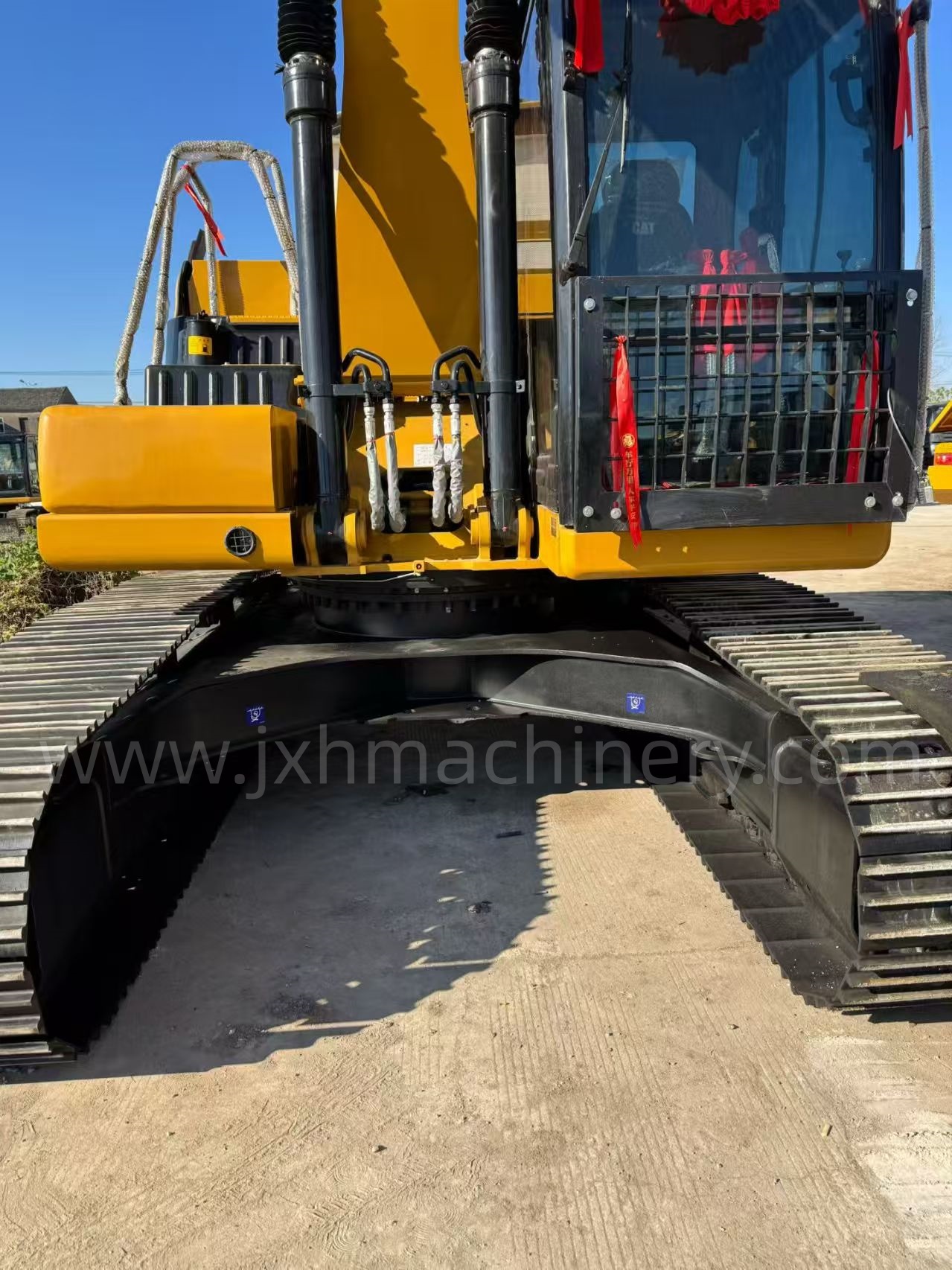

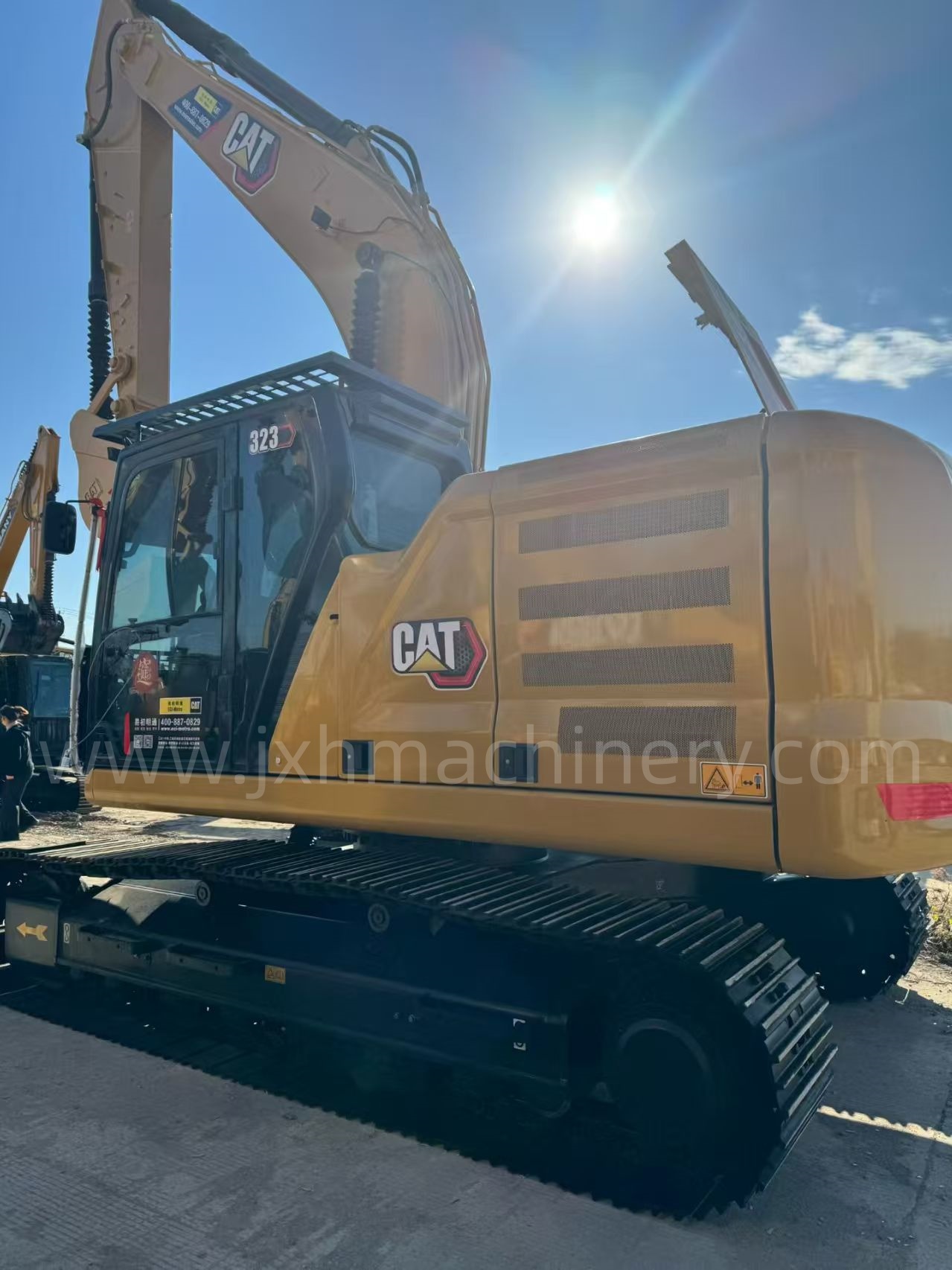

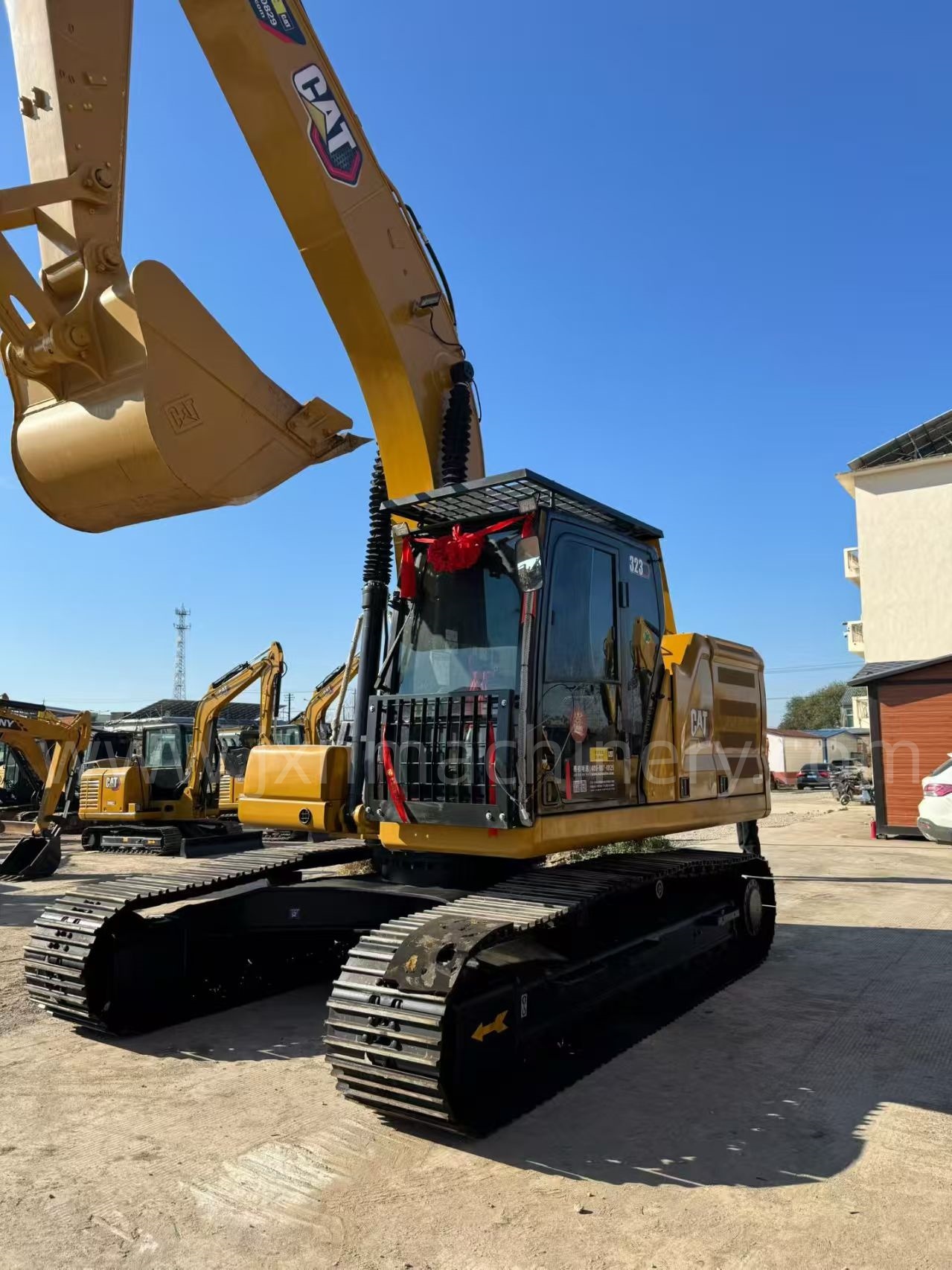

CAT 323 |
| Machine Type |
Medium Crawler Hydraulic Excavator |
| Operating Weight |
22900 kg (50500 lbs) |
| Engine Model |
Cat C7.1, inline 6-cylinder, single turbocharged diesel |
| Rated Net Power (ISO 9249) |
117 kW (157 hp) @1800 rpm |
| Gross Power (ISO 14396) |
124 kW (166 hp) @1800 rpm |
| Displacement |
7.01 L (428 cu in) |
| Bore × Stroke |
105 mm × 135 mm |
| Emission Standard |
EPA Tier3 / EU Stage IIIA |
| Standard Bucket Capacity |
1.30 m³ (1.70 yd³) |
| Boom Length |
5700 mm |
| Stick Length |
2900 mm |
| Max Digging Depth |
6730 mm (22.08 ft) |
| Max Reach at Ground Level |
9870 mm (32.38 ft) |
| Max Cutting Height |
9450 mm (31.00 ft) |
| Max Dumping Height |
6480 mm (21.26 ft) |
| Bucket Digging Force (ISO) |
170 kN |
| Arm Digging Force (ISO) |
132 kN |
| Max Hydraulic Pump Flow (2 main pumps) |
429 L/min (113.4 US gal/min) |
| Main Hydraulic Pressure |
35 MPa (5075 psi), Heavy Lift 38 MPa (5510 psi) |
| Swing Speed |
11.25 rpm |
| Swing Torque |
82 kN·m |
| Travel Speed |
3.4 ~ 5.7 km/h (2.11 ~ 3.54 mph) |
| Fuel Tank Capacity |
345 L (91.1 US gal) |
| Hydraulic Tank Capacity |
120 L |
| Transport Length |
9720 mm (31.89 ft) |
| Transport Width (600mm track shoe) |
2990 mm (9.81 ft) |
| Transport Height |
3020 mm (9.91 ft) |

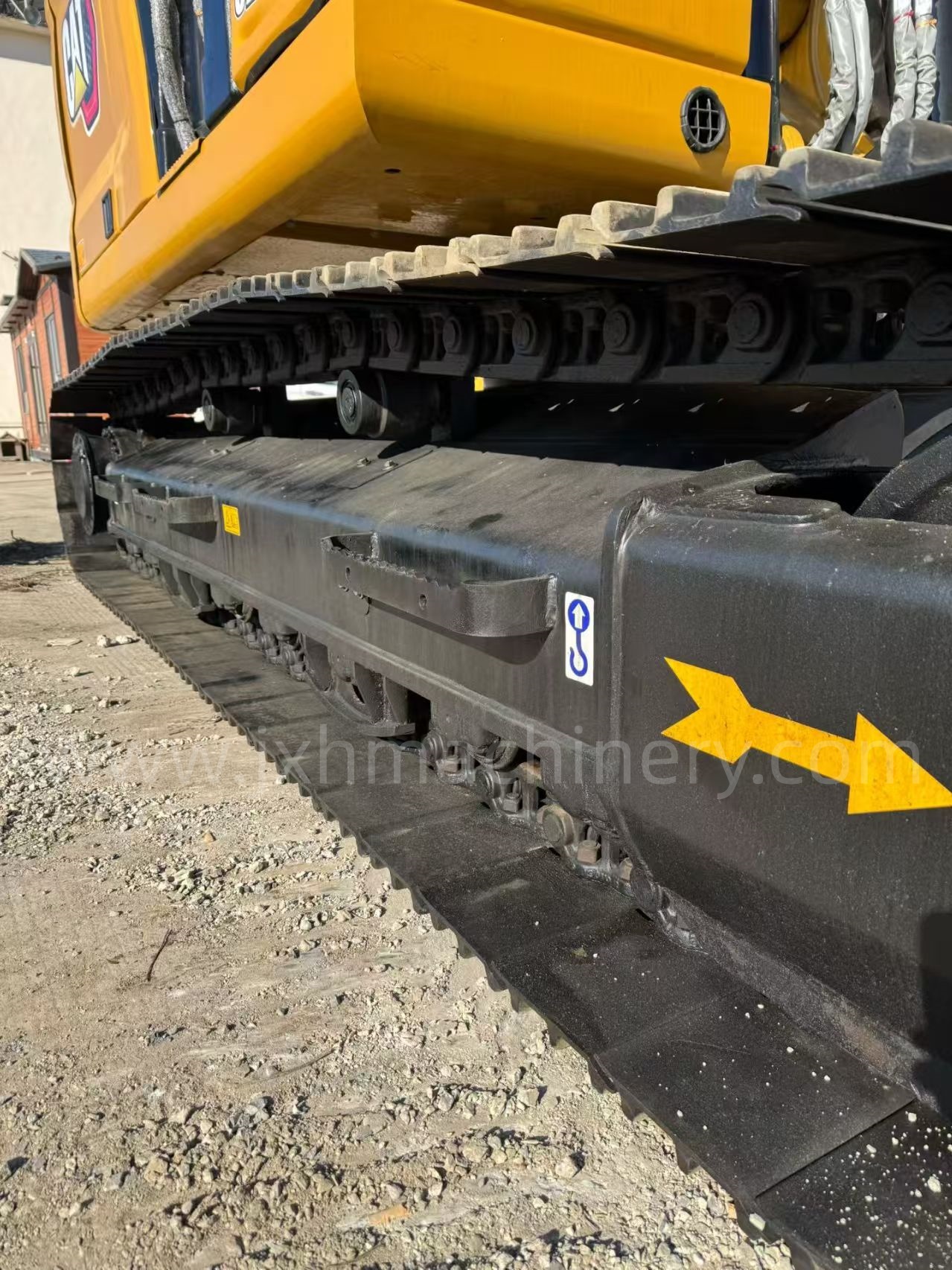

| Standard Track Shoe Width |
600 mm (23.62 in) |
| Rear Swing Radius |
2850 mm |
| Min Ground Clearance |
470 mm |
