| Model |

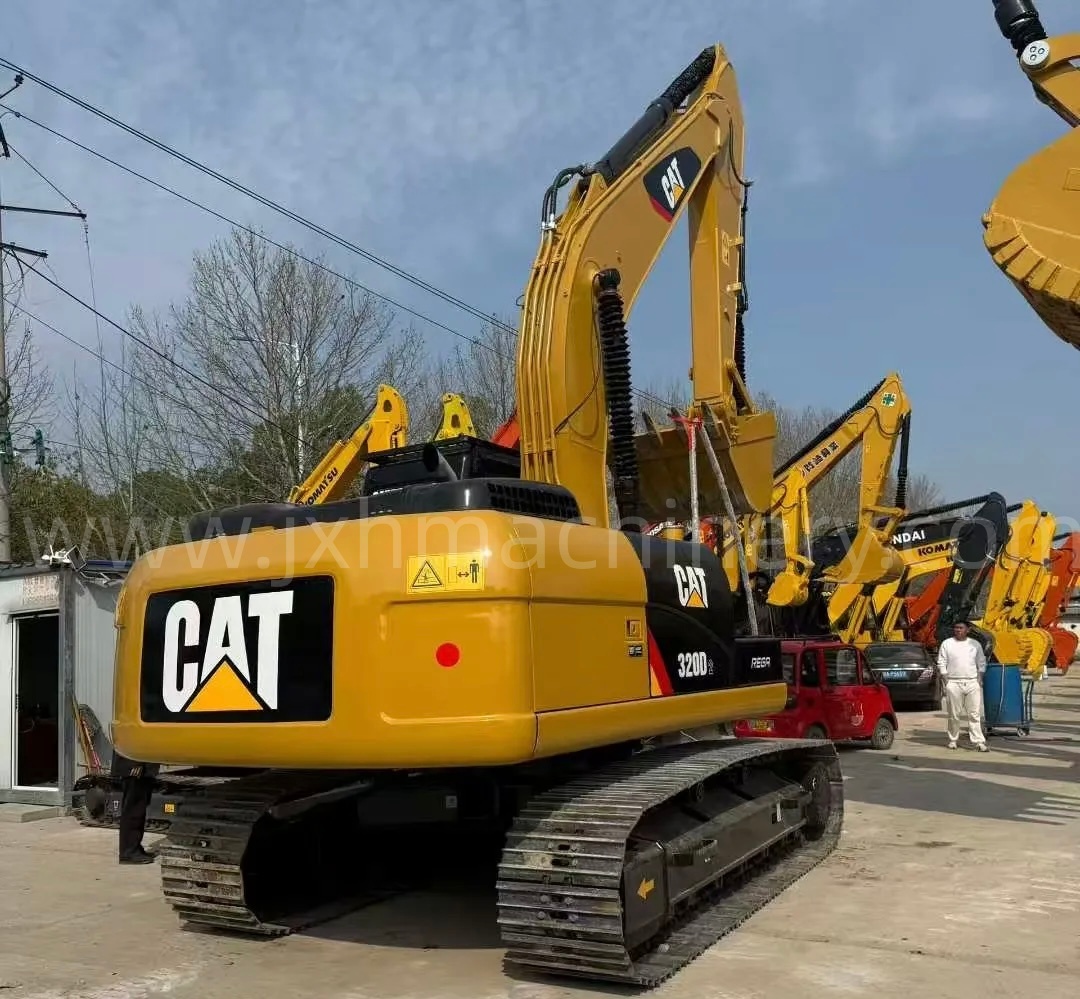

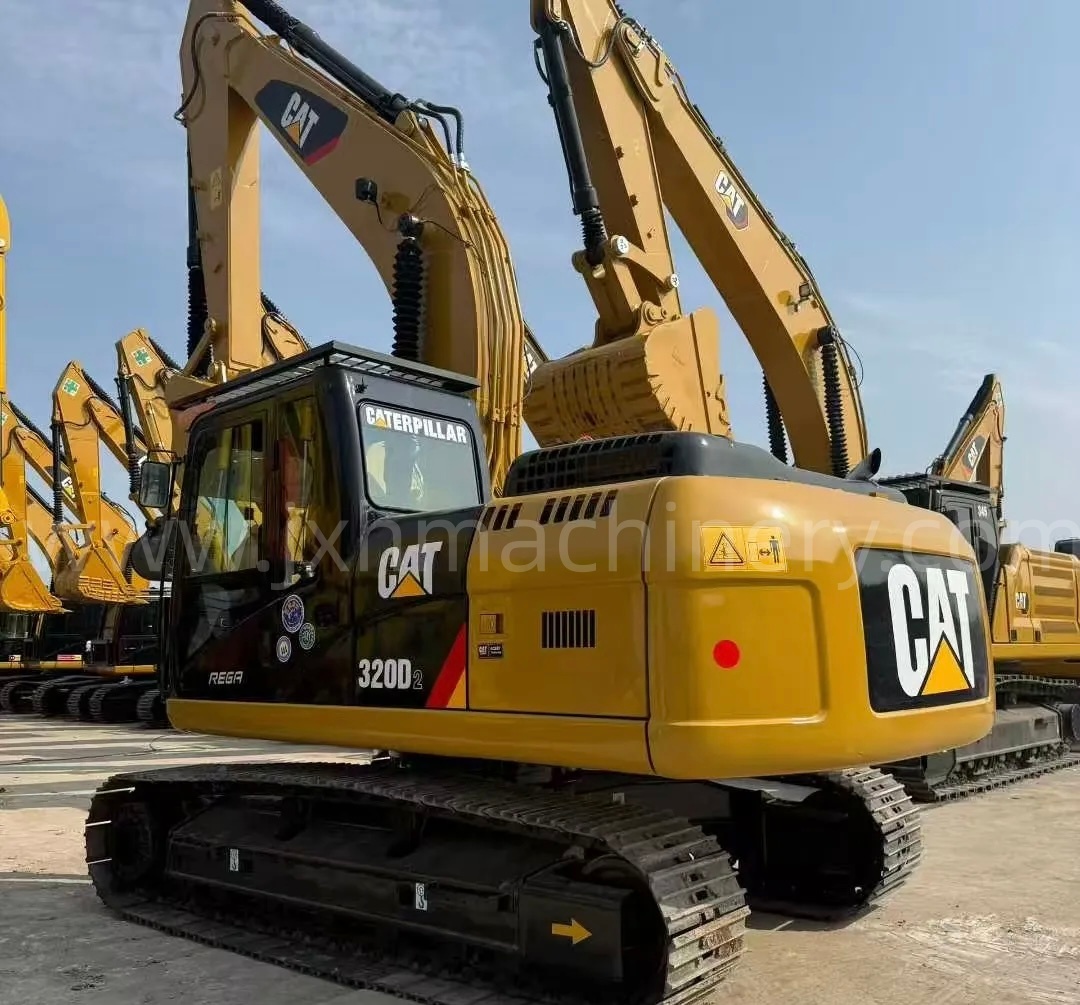

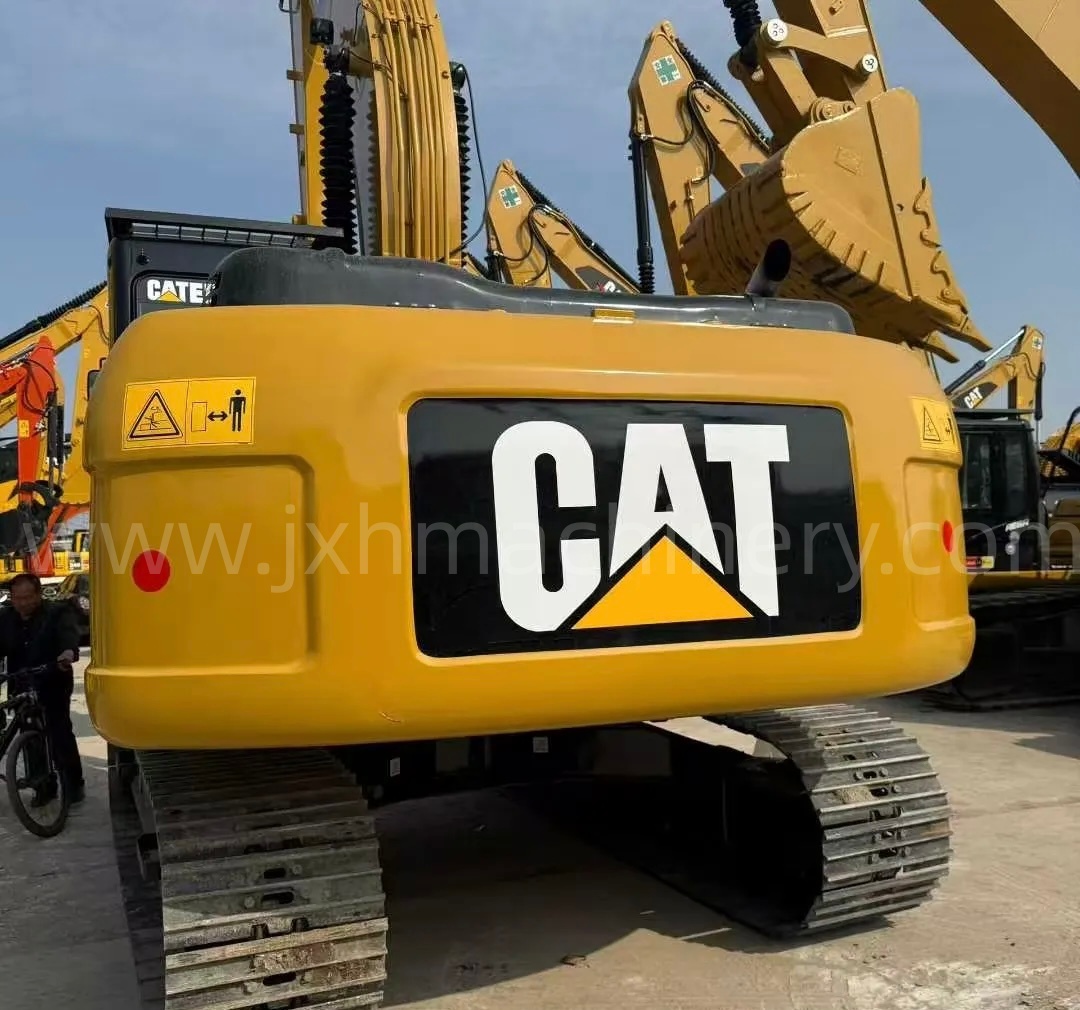

CAT 320D2 |
| Machine Type |
Medium Crawler Hydraulic Excavator |
| Operating Weight |
21100 kg (46518 lbs) |
| Engine Model |

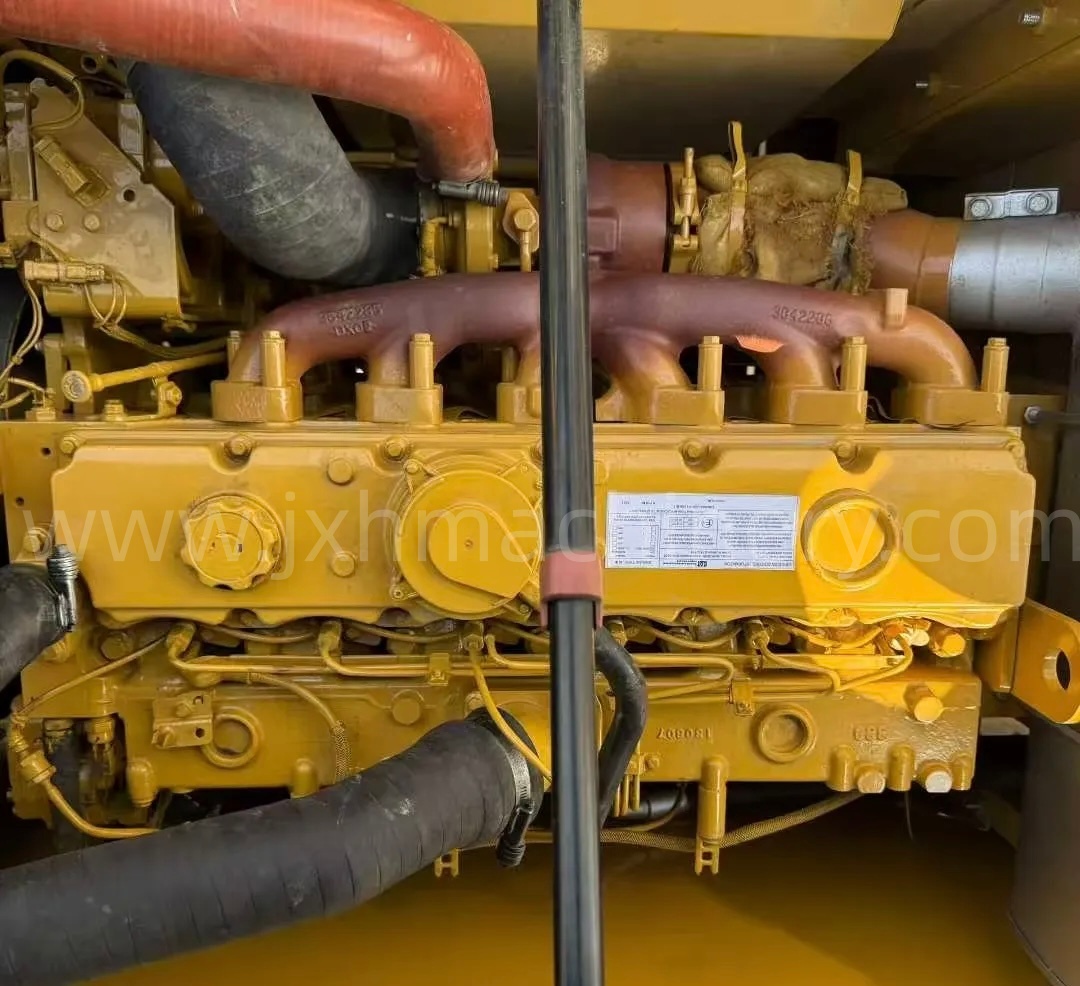

Cat C7.1, 6-cylinder turbocharged, mechanical direct injection |
| Rated Net Power (ISO 9249) |
106 kW (142 hp) @1800 rpm |
| Gross Power (ISO 14396) |
112.5 kW (151 hp) @1800 rpm |
| Displacement |
7.01 L (428 cu in) |
| Bore × Stroke |
105 mm × 135 mm |
| Emission Standard |
EU Stage II / US EPA Tier 2 |
| Standard Bucket Capacity |
1.0 m³ (1.31 yd³) |
| Boom Length |
5700 mm |
| Stick Length |
2900 mm |
| Max Digging Depth |
6720 mm (22.05 ft) |
| Max Reach at Ground Level |
9890 mm (32.45 ft) |
| Max Dumping Height |
6800 mm (22.31 ft) |
| Bucket Digging Force (ISO) |
125 kN |
| Arm Digging Force (ISO) |
104 kN |
| Total Hydraulic Pump Flow (2 main pumps) |
404 L/min (106.7 US gal/min) |
| Main Hydraulic Pressure |
35 MPa (5076 psi) |
| Swing Speed |
10.9 rpm |
| Travel Speed |
3.2 ~ 5.4 km/h (1.99 ~ 3.36 mph) |
| Fuel Tank Capacity |
380 L (100.4 US gal) |
| Hydraulic Tank Capacity |
170 L |
| Transport Length |
9540 mm (31.30 ft) |
| Transport Width |
2800 mm (9.19 ft) |
| Transport Height |
3030 mm (9.94 ft) |
| Standard Track Shoe Width |
600 mm (23.62 in) |
| Rear Swing Radius |
2750 mm |
| Min Ground Clearance |
450 mm |
