| Item | Parameter |
|---|---|

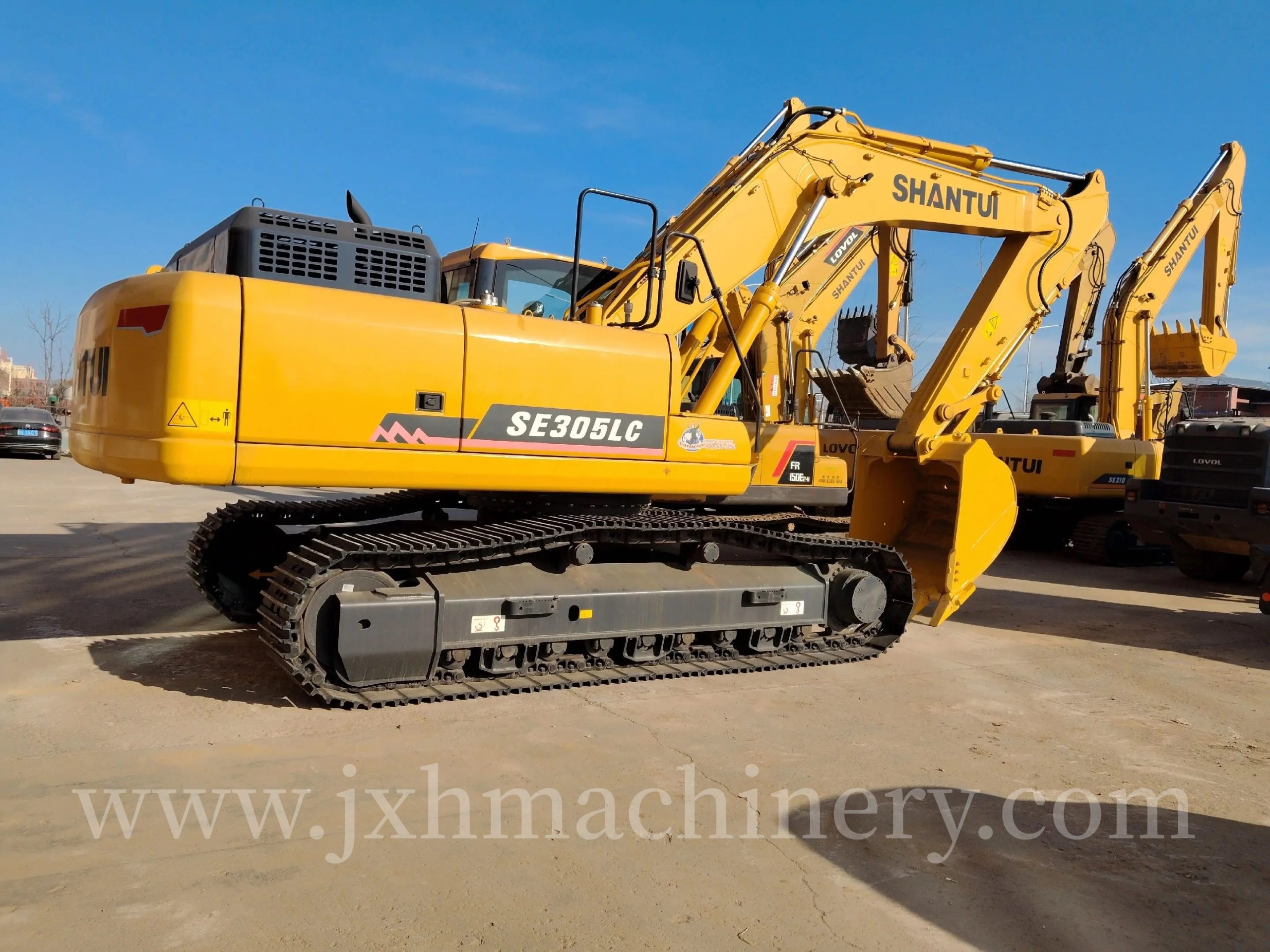

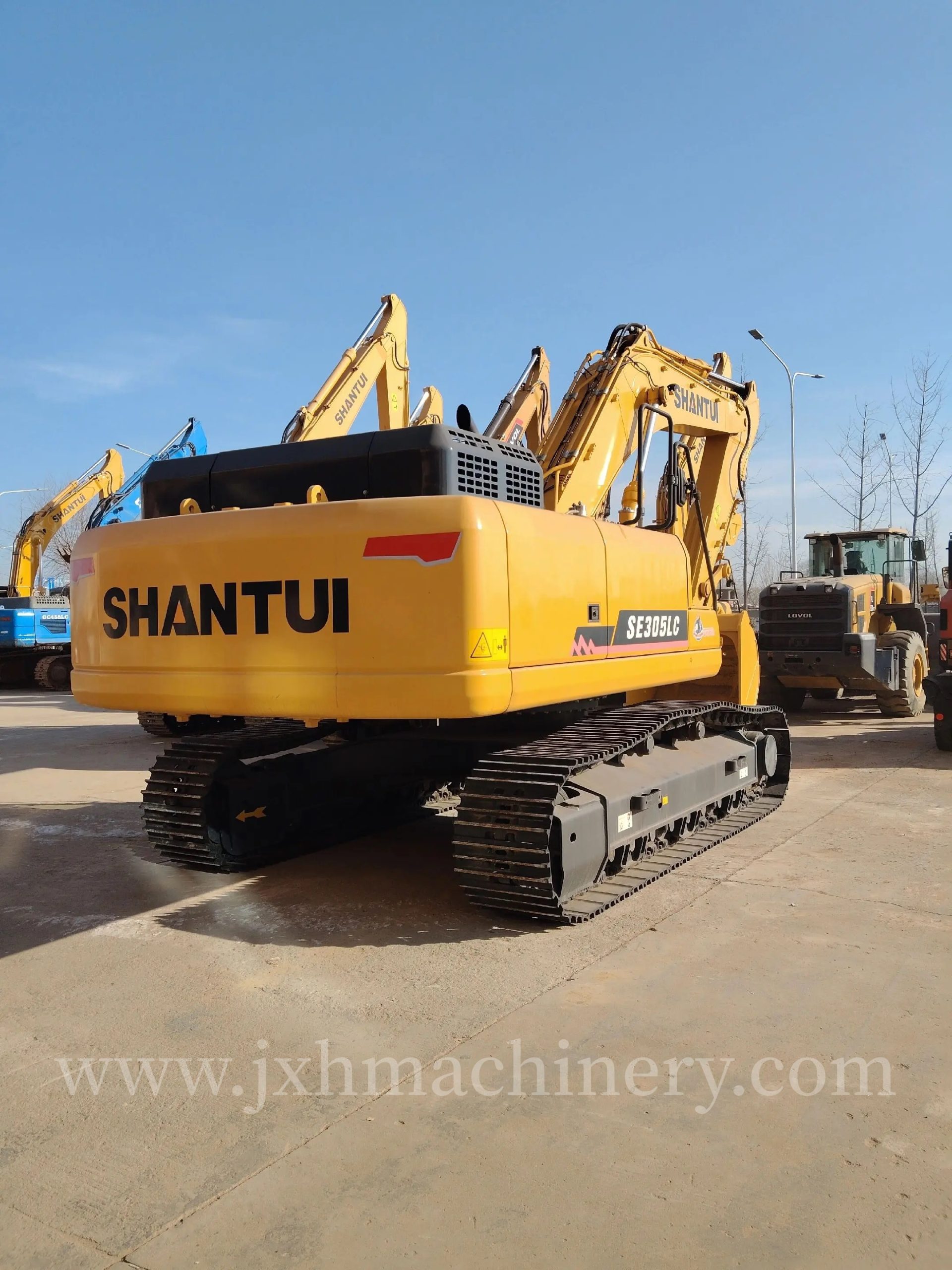

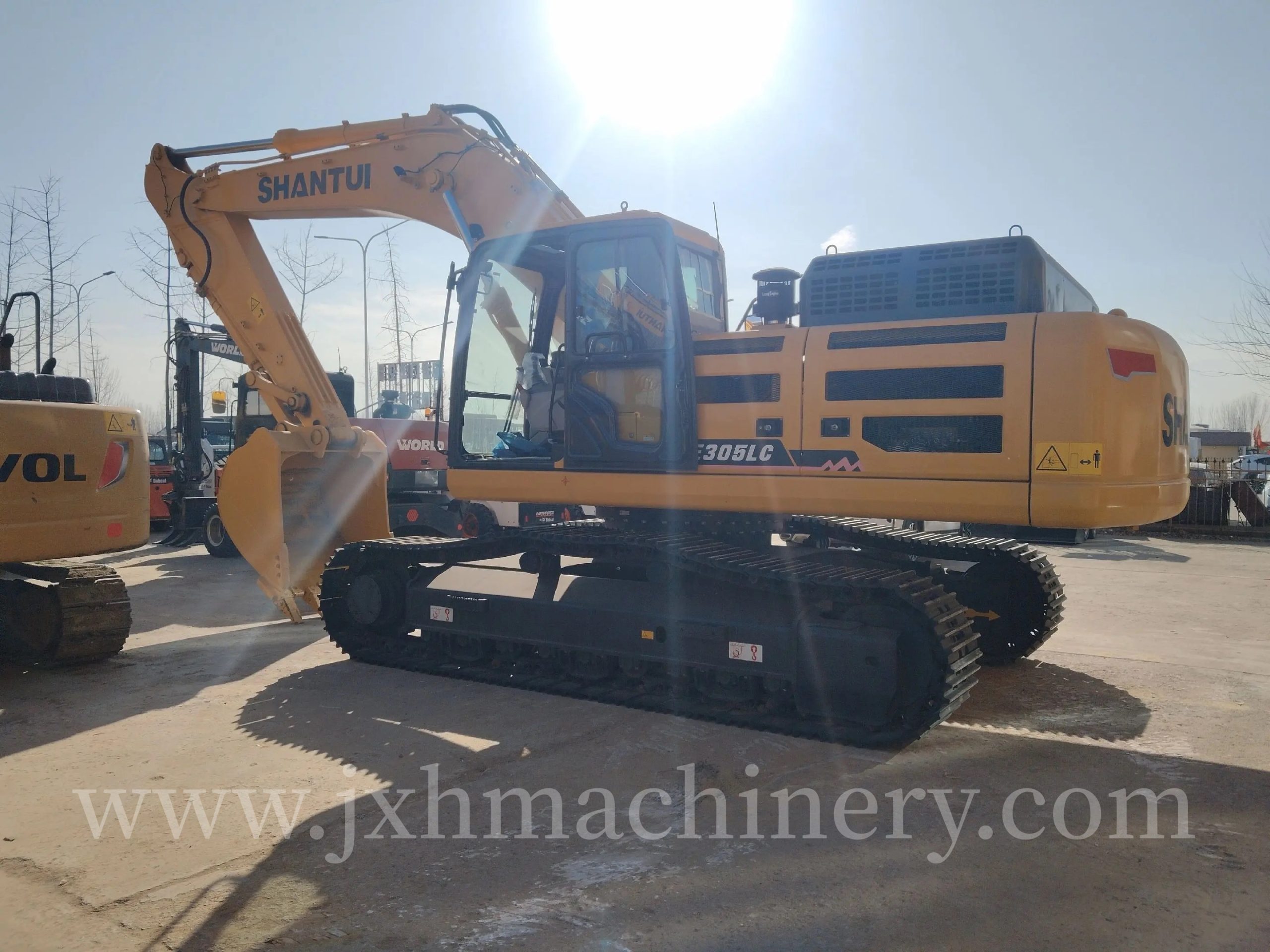

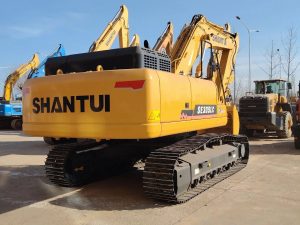

| Model | Shantui SE305 Crawler Excavator |
| Operating Weight | 31800 kg |

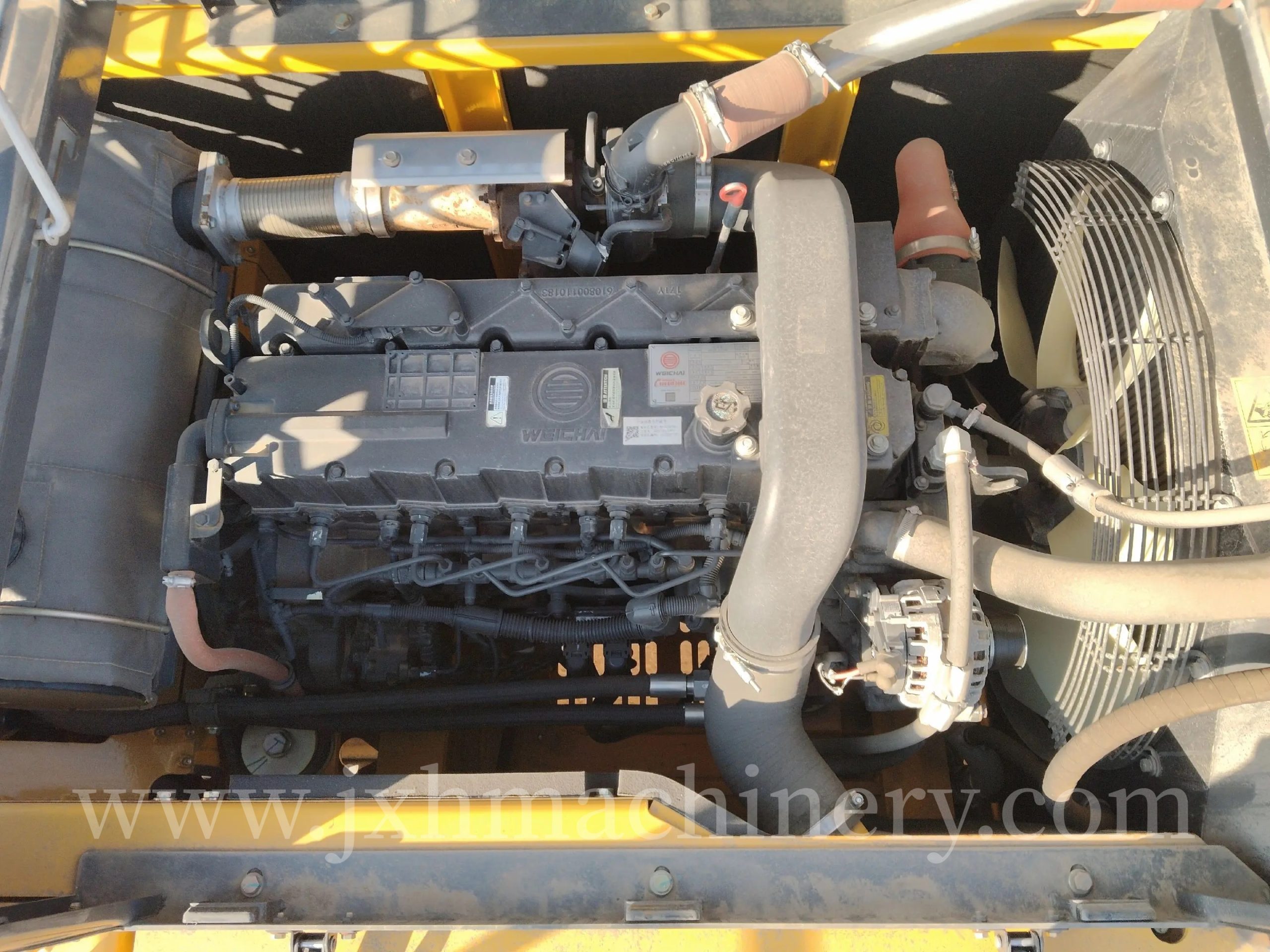

| Engine Model | Weichai |
| Rated Power / Speed | 228kW / 2000 rpm |
| Bucket Capacity | 0.45–1.8 m³ (1.5 m³ standard) |
| Bucket Breakout Force | 206 kN |
| Arm Breakout Force | 140 kN |
| Max Digging Depth | 7340 mm |
| Max Dumping Height | 7480 mm |
| Max Digging Reach | 10750 mm |
| Overall Dimension (L×W×H) | 10850 × 3200 × 3235 mm |
| Ground Pressure | 60 kPa |
| Travel Speed | 3.3 / 5.5 km/h |
| Gradeability | 35° (70%) |
| Swing Speed | 10.7 rpm |
| Traction Force | 276 kN |
