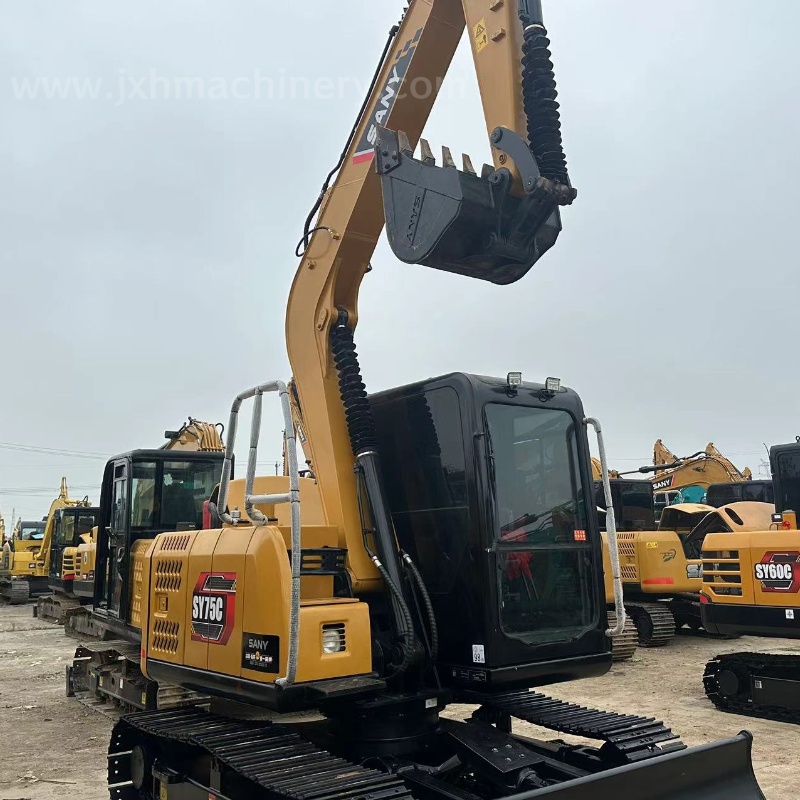

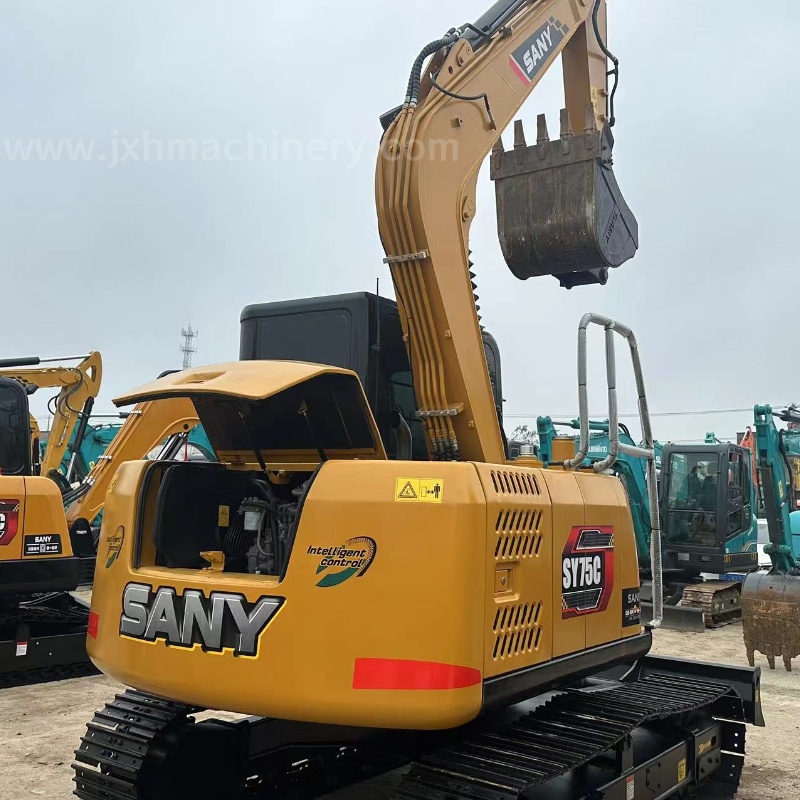

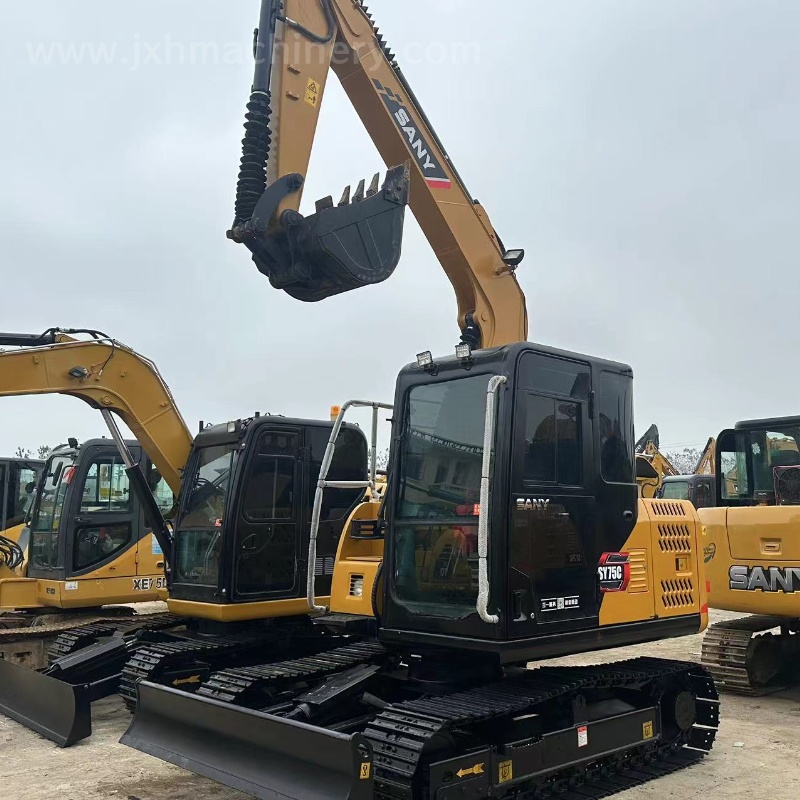

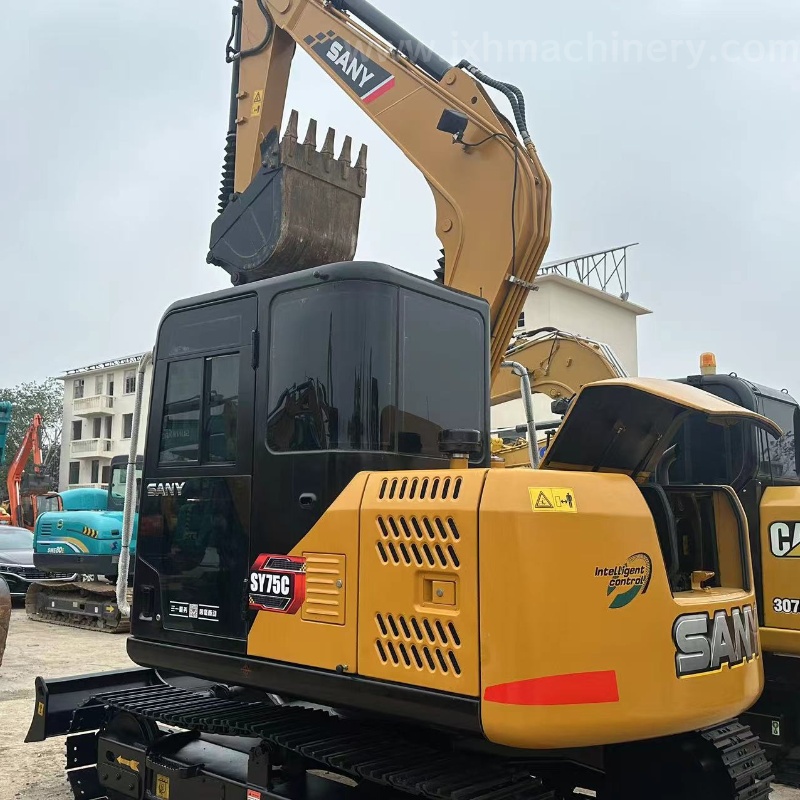

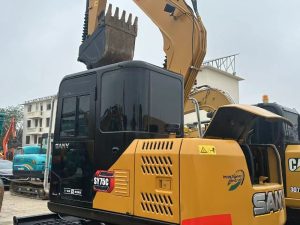

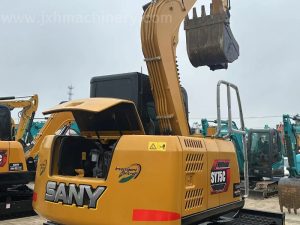

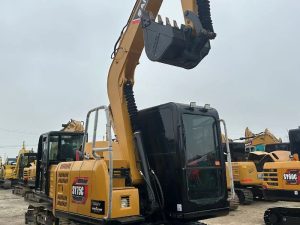

Sany SY75C Crawler Excavator
Technical Specifications
| Operating Weight |
7,280 kg16,050 lb
|
| Ground Pressure |
33.0 kPa4.8 psi
|
| Engine | Yanmar 4TNV98C |
| Displacement |
2.2 L134.3 in3
|
| Net Power |
40.5 kW54 HP
|
| Gross Power |
43.0 kW57.7 HP
|
| Hydraulics | Load Sensing with Pilot Control |
| Main Hydraulic Pump | Axial Piston – Variable Displacement |
| Operating Flow (maximum) |
149.0 L/min39.4 gal/min
|
| Operating Pressure (maximum) |
26.3 MPa3,814 psi
|
| Auxiliary Flow* |
––
|
| Auxiliary Pressure |
––
|
| Travel Motor | Axial Piston with Park Brake |
| Travel Pressure (maximum) |
26.3 MPa3,814 psi
|
| Travel Speeds (maximum) |
2.8 / 5.3 km/hr1.7 / 3.3 mph
|
| Travel Effort (maximum) |
56.8 kN12,769 lbf
|
| Grade Capability | 35º |
| Swing Motor | Axial Piston with Swing Brake |
| Swing Pressure (maximum) |
21.6 MPa3,133 psi
|
| Swing Speed (maximum) | 10.5 rpm |
| Undercarriage (standard) | Belted Rubber Track |
| Track Shoe Width (standard) |
450 mm18″
|
| Track Rollers (per side) | 5 |
| Carrier Rollers (per side) | 1 |
