| Item | Specification |
|---|---|
| Operating Weight | 324D: 24240 kg
324DL: 24790 kg (with 600mm track shoe) |
| Standard Bucket Capacity | 1.0 ~ 1.1 m³; Rock bucket optional 0.9 m³ |
| Boom Length | 5900 mm |
| Stick Length | 2950 mm |

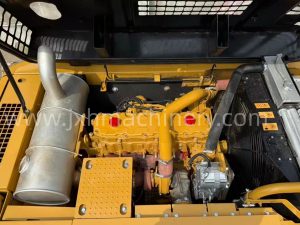

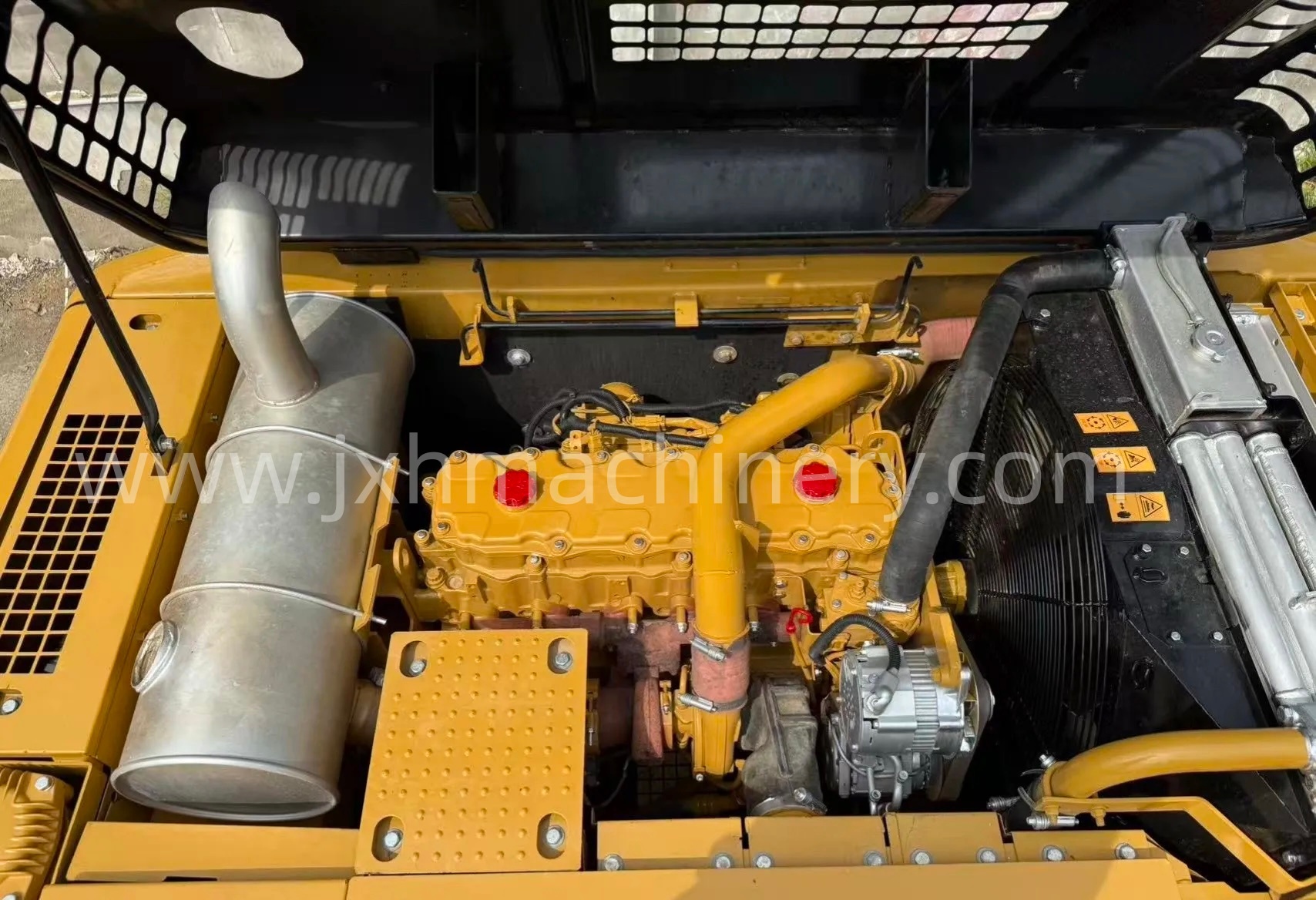

| Engine Model | CAT C7 ACERT, 6-cylinder water-cooled direct injection |
| Displacement | 7.2 L |
| Bore × Stroke | 110 mm × 127 mm |
| Rated Net Power (ISO9249) | 140 kW (188 hp) @1800 rpm
Low power version: 124 kW (169 hp) |
| Emission Standard | EU Stage IIIA / US Tier3 |
| Main Pump Max Flow | 235 L/min |
| Main System Relief Pressure | 35 MPa |
| Swing Circuit Pressure | 24 MPa |
| Swing Speed | 9.6 rpm |
| Swing Torque | 73.4 kN·m |
| Max Traction Force | 227 kN |
| Travel Speed | 3.5 / 5.5 km/h (low / high) |
| Gradeability | 70% (35°) |
| Bucket Digging Force | 174 kN |
| Stick Digging Force | 122 kN |
| Max Digging Reach at Ground Level | 10030 mm |
| Max Digging Depth | 6740 mm |
| Max Vertical Digging Depth | 5830 mm |
| Max Dumping Height | 6700 mm |
| Max Digging Height | 9660 mm |
| Overall Transport Length | 10060 mm |
| Overall Transport Width | 2990 mm (600mm track shoe) |
| Overall Transport Height | 3170 mm |

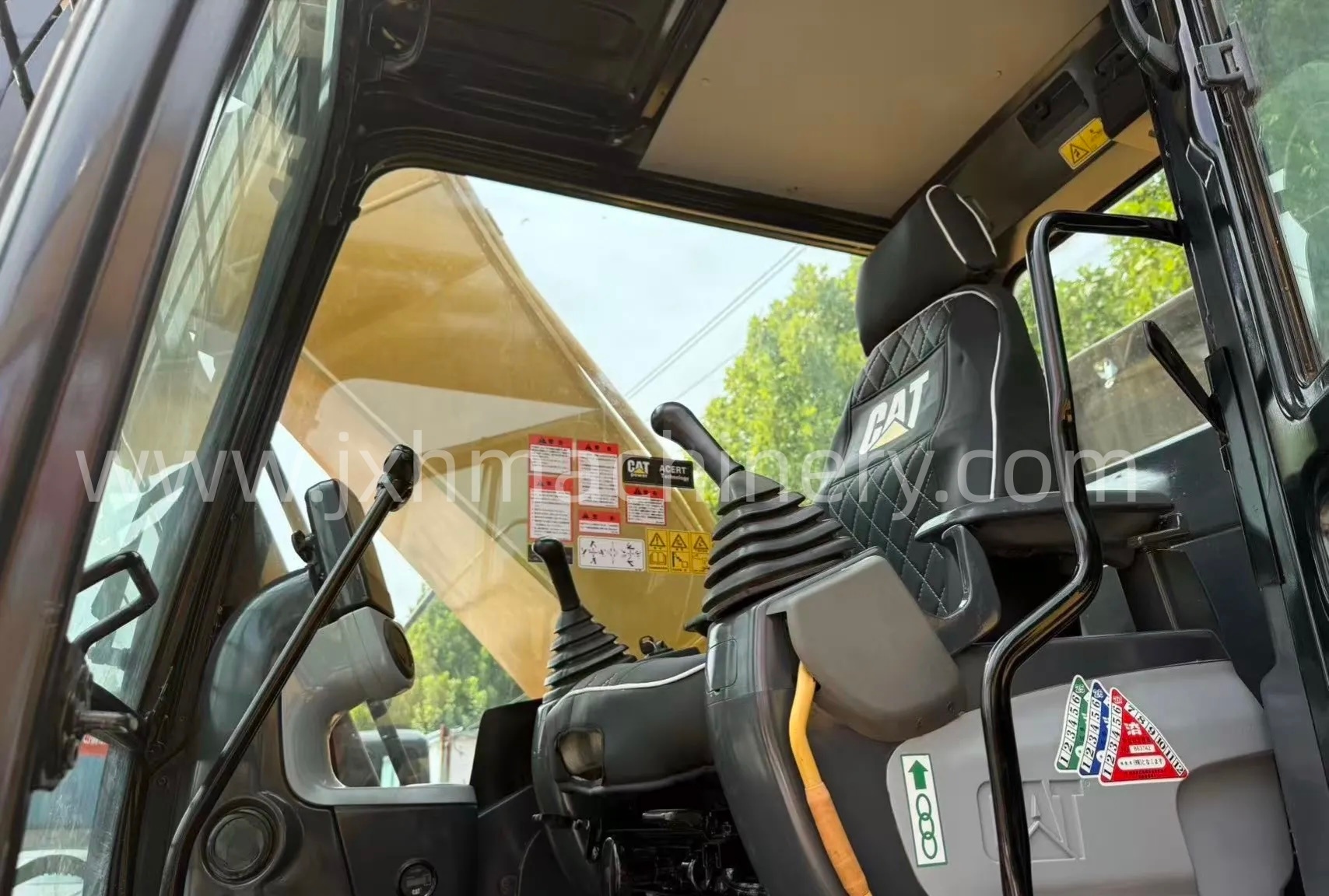

| Cab Height | 2980 mm |
| Tail Swing Radius | 2940 mm |
| Minimum Ground Clearance | 470 mm |
| Track Contact Length | 3450 mm |
| Total Track Length | 4250 mm |
| Track Gauge | 2380 mm |
| Counterweight Clearance | 1060 mm |
| Fuel Tank Capacity | 520 L |
| Hydraulic Tank Capacity | 145 L |
| Total Hydraulic System Volume | 300 L |
| Engine Oil Capacity | 30 L |
| Cooling System Capacity | 30 L |
| Swing Reducer Oil | 10 L |
| Final Drive Oil (each side) | 6 L |
