| General Information |
Model |

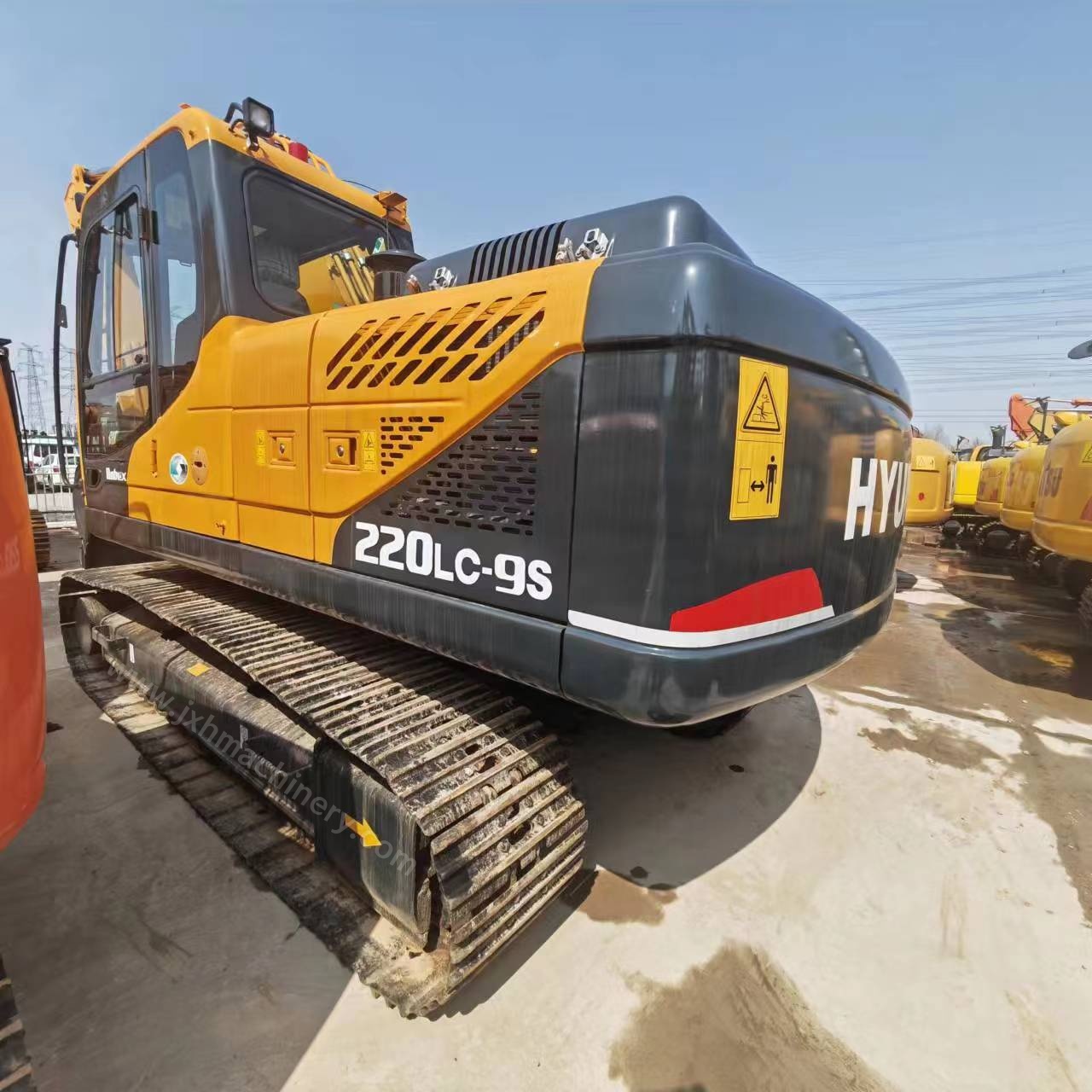

220LC-9S |
LC = Long Crawler |
|
Operating Weight |
22,500 kg |
Standard configuration |
|
Bucket Capacity |
0.8 – 1.3 m³ |
Common configuration approx. 1.05 m³ |
|
Engine Model |
Cummins B5.9 |
|
| Engine System |
Type |
In-line 6-cylinder, Water-cooled, Turbocharged |
|
|
Displacement |
5.9 L |
|
|
Rated Power/Speed |
118 kW / 2,000 rpm |
Approx. 158 HP |
|
Emission Standard |
Meets China National III |
|
| Dimensions |
Transport Length |
9,670 mm |
Includes bucket and boom |
|
Transport Width |
3,190 mm |
600mm track shoe width |
|
Transport Height |
3,150 mm |
To top of cab |
|
Track Length |
4,870 mm |
|
|
Ground Clearance |
470 mm |
|
| Hydraulic System |
Main Pump Type |
Dual Variable Displacement Axial Piston Pumps |
|
|
Main System Working Pressure |
34.3 MPa |
|
|
Arm Digging Force |
105 kN |
|
|
Bucket Digging Force |
145 kN |
|
|
Max. Swing Speed |
12.0 rpm |
