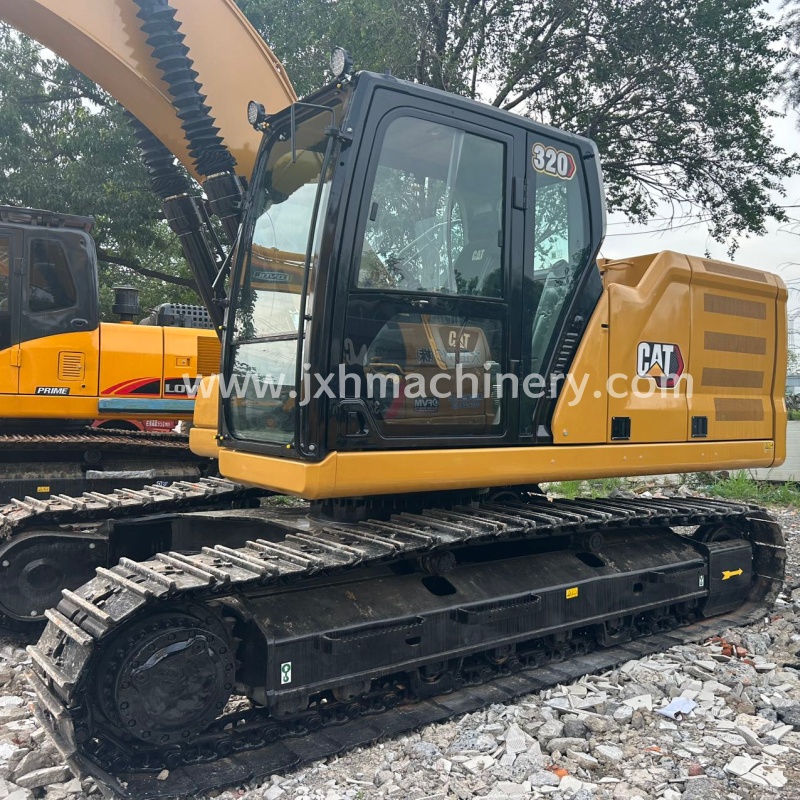

| Caterpillar 320 (High-End 6-Cylinder) Technical Specifications Table | |||
| Parameter Category | Item | Specification | Notes / Explanation |
| Basic Information | Model | 320 | Represents high-end 6-cylinder version, non-GC model |
| Operating Weight | 20,700 kg | Typical operating weight, more robust structure | |
| Bucket Capacity | 0.60 – 1.25 m³ | Common configuration ~1.0 立方米 | |
| Engine | Model | Caterpillar C6.6 | Key difference: 6.6L 6-cylinder engine |
| Type | Turbocharged, Aftercooled, Electronically Controlled Diesel Engine | ||
| Rated Power | 123 kW / 165 HP | Power significantly higher than 320 GC (93kW) | |
| Displacement | 6.6 L | ||
| Emission Standard | Meets China National IV/EU Stage IV | ||
| Hydraulic System | Hydraulic System Type | Load Sensing System | |
| Main Pump Type | Variable Displacement Axial Piston Pump | ||
| Main Pump Max. Flow | 2 × 208 L/min | Higher flow rate for faster movement | |
| Main Relief Valve Pressure | 34.8 MPa | ||
| Dimensions | Transport Length | 9,540 mm | |
| Transport Width | 2,800 mm | With 700mm track shoe | |
| Transport Height | 3,150 mm | To top of cab | |
| Distance between track centers | 4,140 mm | ||
