| Parameter Category |
Specification Item |
Detailed Parameters |
Notes/Remarks |
| General Information |

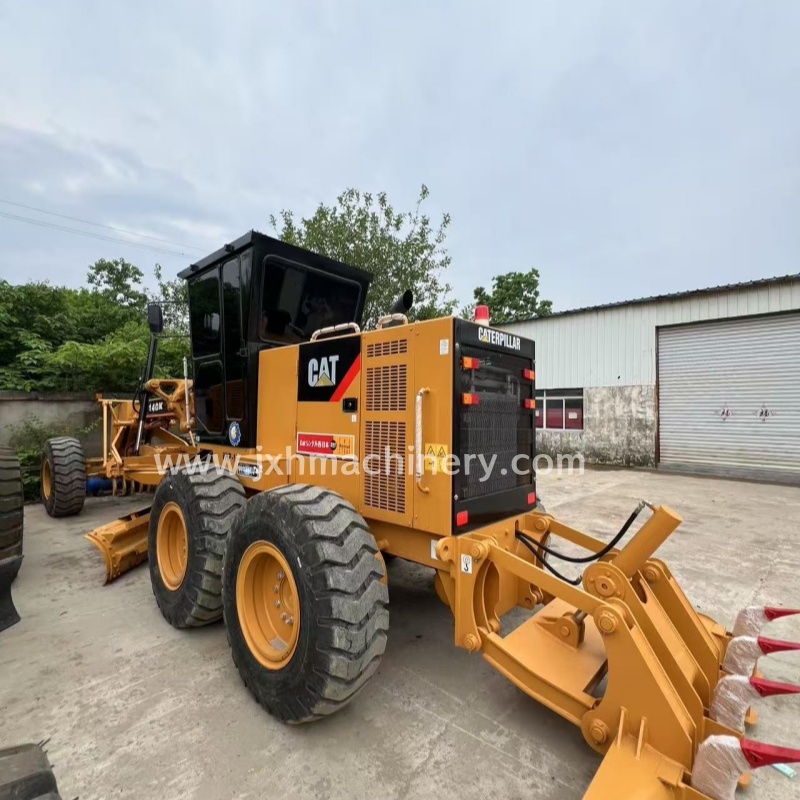

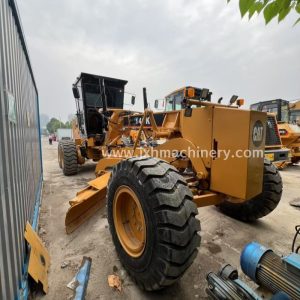

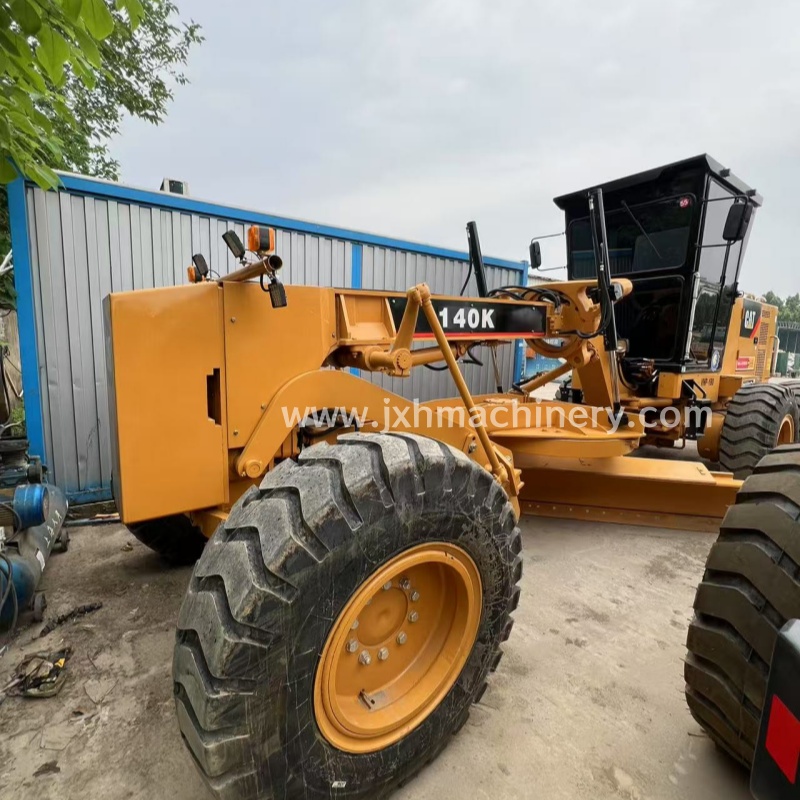

Model |
140K |
|
|
Operating Weight |
14,200 kg |
Standard configuration |
|
Engine Model |
Cat C7.1 |
|
| Engine System |
Type |
In-line 6-cylinder, Turbocharged Aftercooled |
|
|
Displacement |
7.2 L |
|
|
Rated Power/Speed |
157 kW / 2,000 rpm |
Approx. 211 HP |
|
Max. Torque |
950 N.m |
1,400 rpm |
|
Emission Standard |
Meets China National IV/EU Stage V |
SCR technology |
| Dimensions |
Overall Length |
8,430 mm |
Includes blade |
|
Overall Width |
2,430 mm |
|
|
Overall Height |
3,430 mm |
To top of cab |
|
Wheelbase |
6,350 mm |
|
|
Ground Clearance |
510 mm |
|
|
Wheel Tread |
2,130 mm |
|
| Equipment |

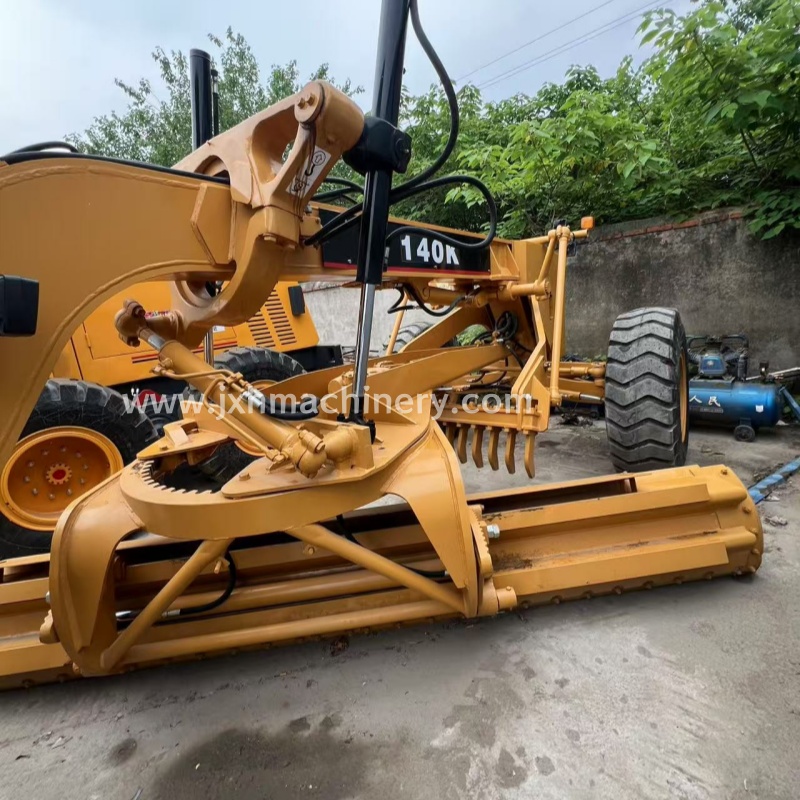

Blade |
|
|
|
Blade Length |
3,660 mm |
|
|
Blade Height |
610 mm |
|
|
Max. Blade Lift Height |
510 mm |
|
|
Max. Blade Cut Depth |
510 mm |
|
|
Blade Side Shift |
±450 mm |
Left/Right |
|
Blade Bank Angle |
90° |
|
| Hydraulic System |
Hydraulic Pump Type |
Variable Displacement Axial Piston Pump |
|
|
Main System Working Pressure |
24.1 MPa |
|
|
Steering System Pressure |
20.7 MPa |
|
|
Blade Lift Cylinder Flow |
227 L/min |
|
|
Hydraulic Oil Capacity |
128 L |
|
