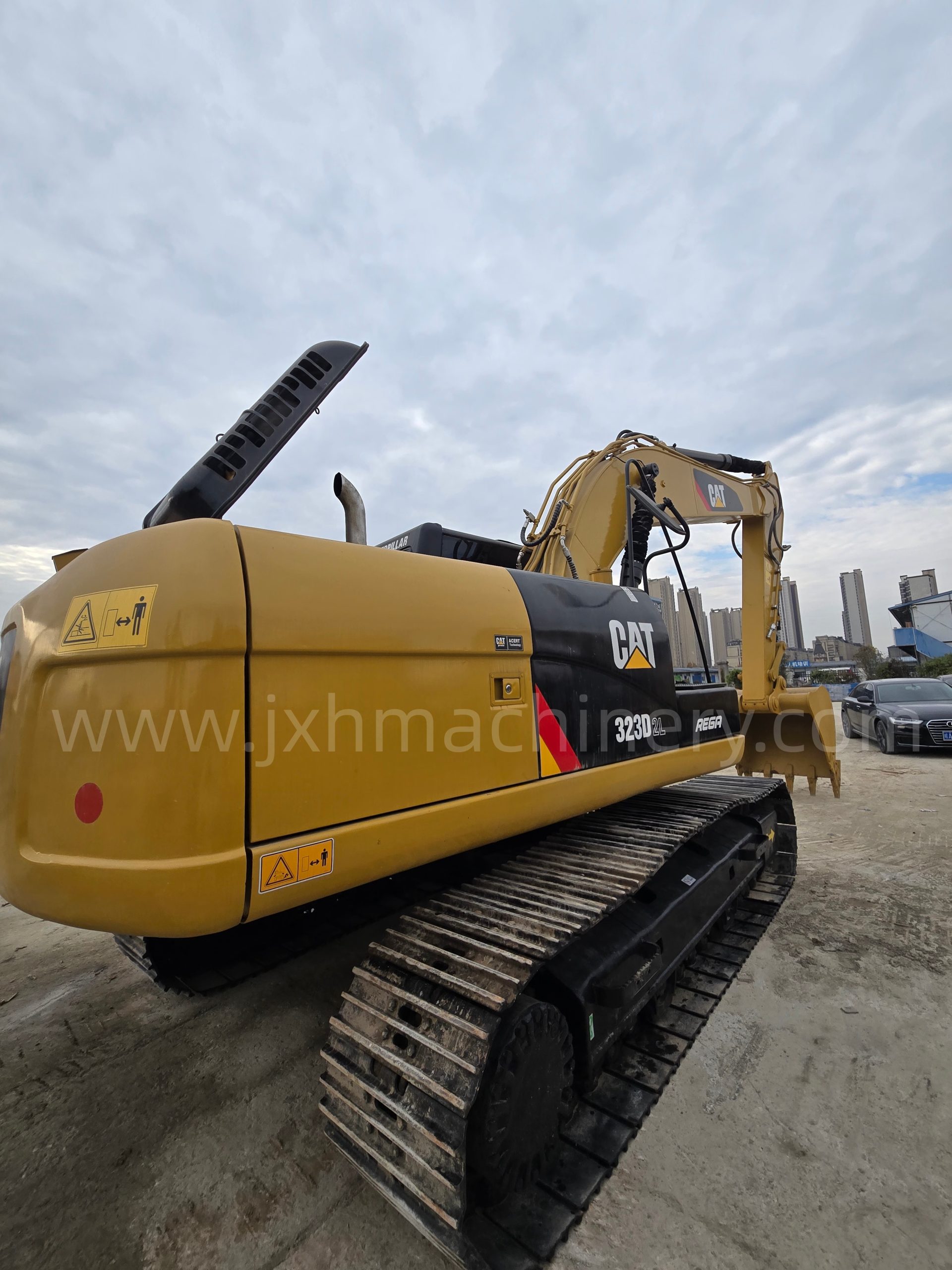

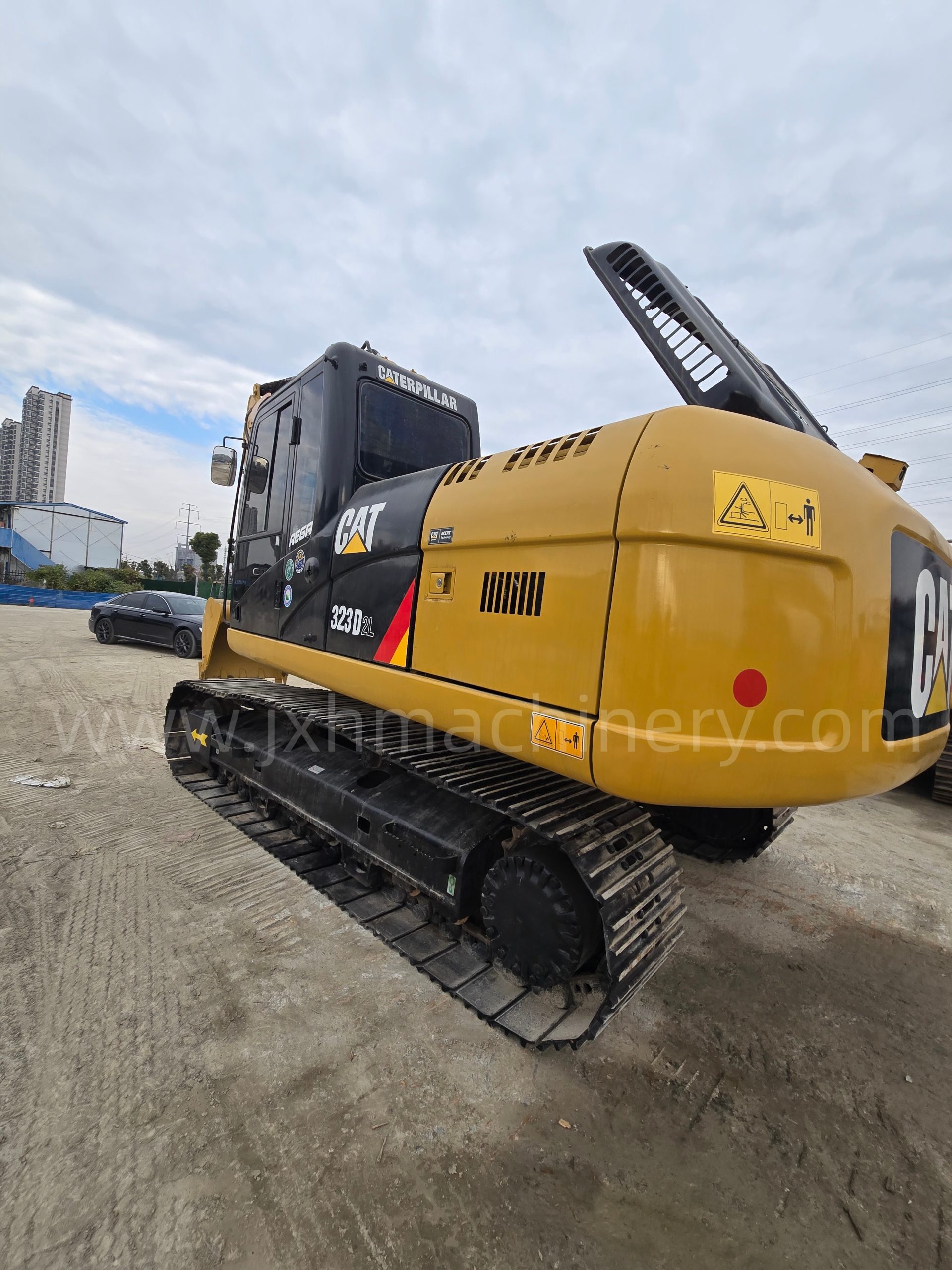

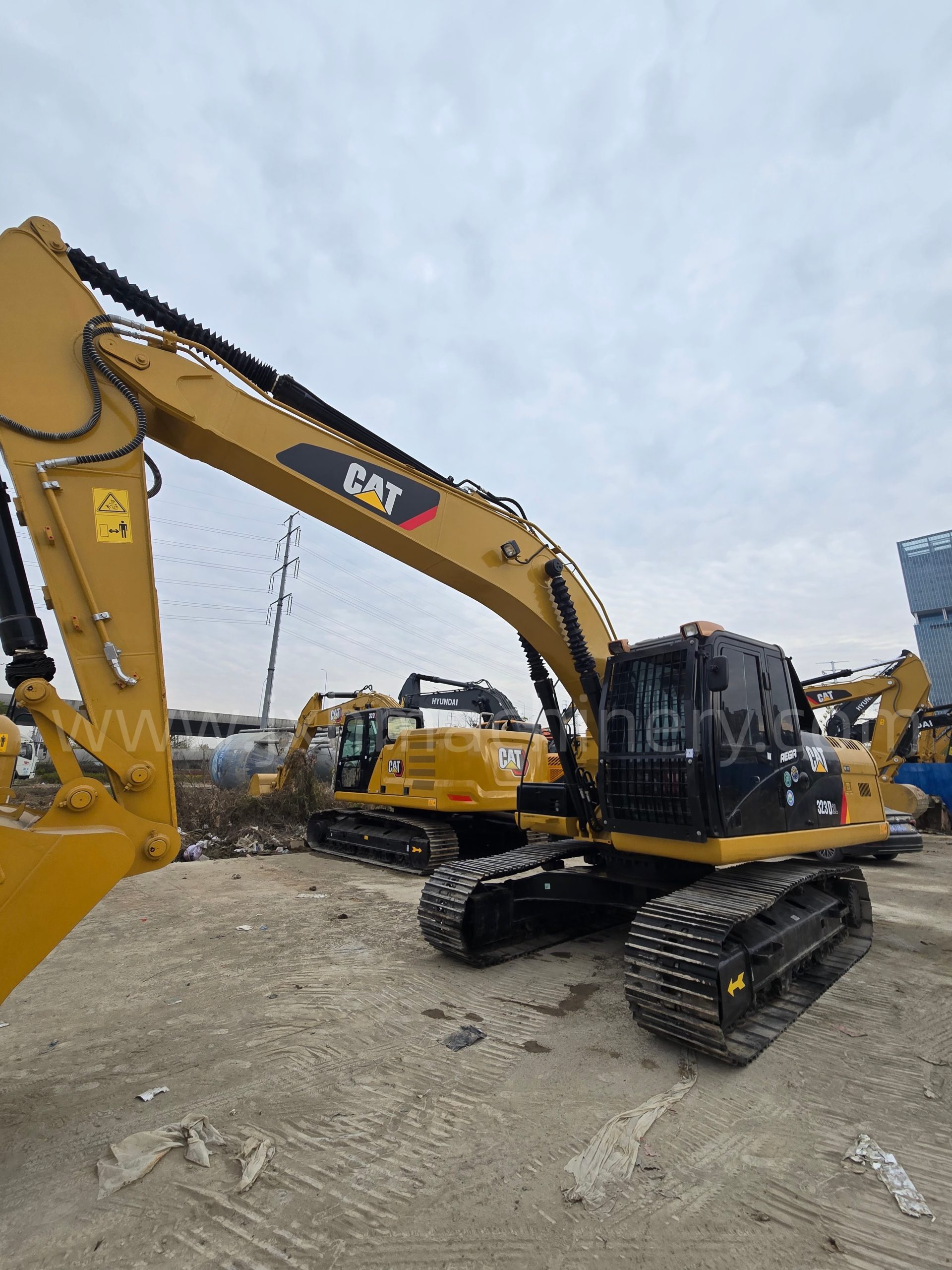

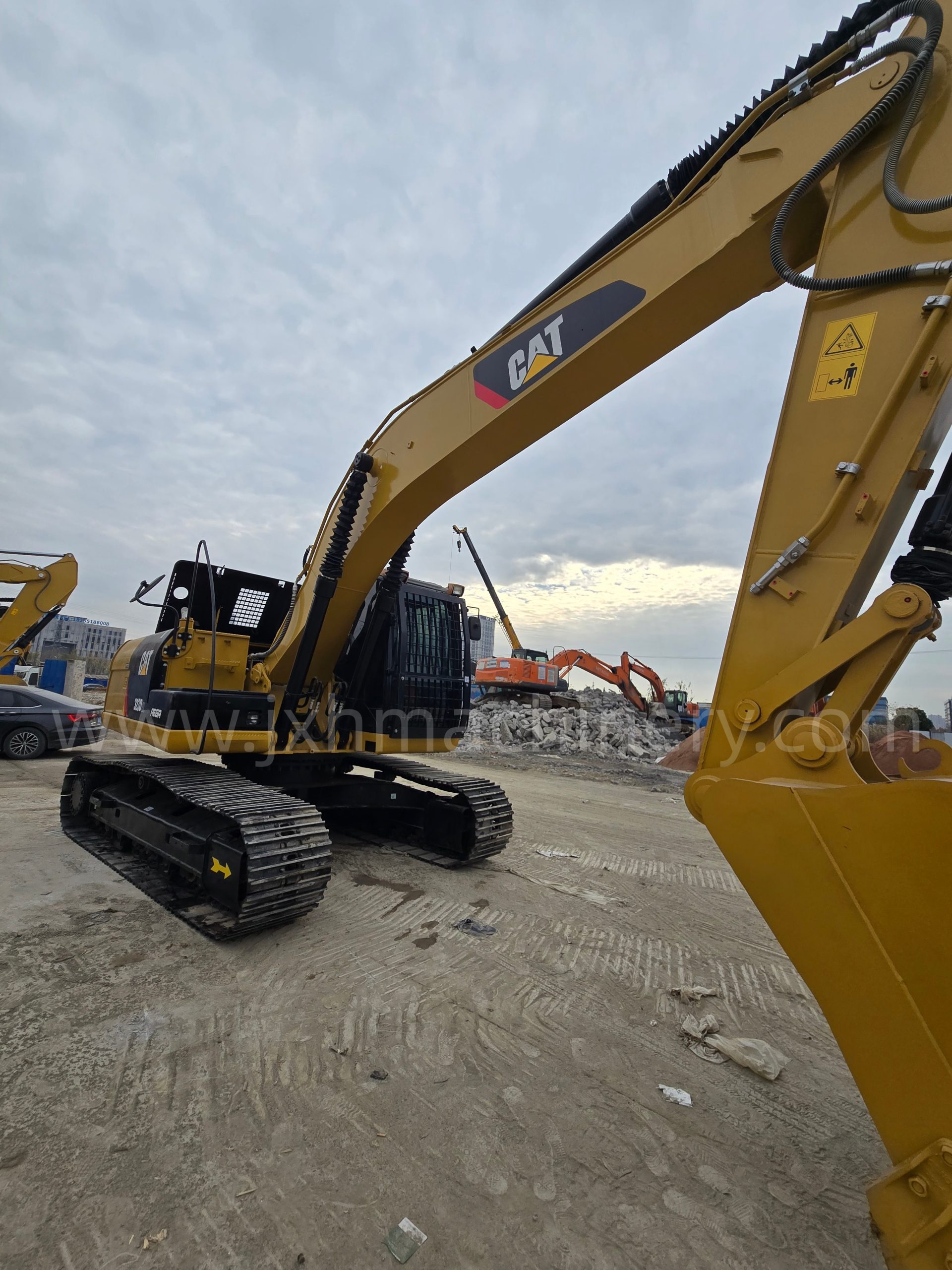

| Model |
CAT 323D / 323DL |
| Machine Type |
Medium Crawler Hydraulic Excavator |
| Operating Weight |
23400 kg (51588 lbs) |

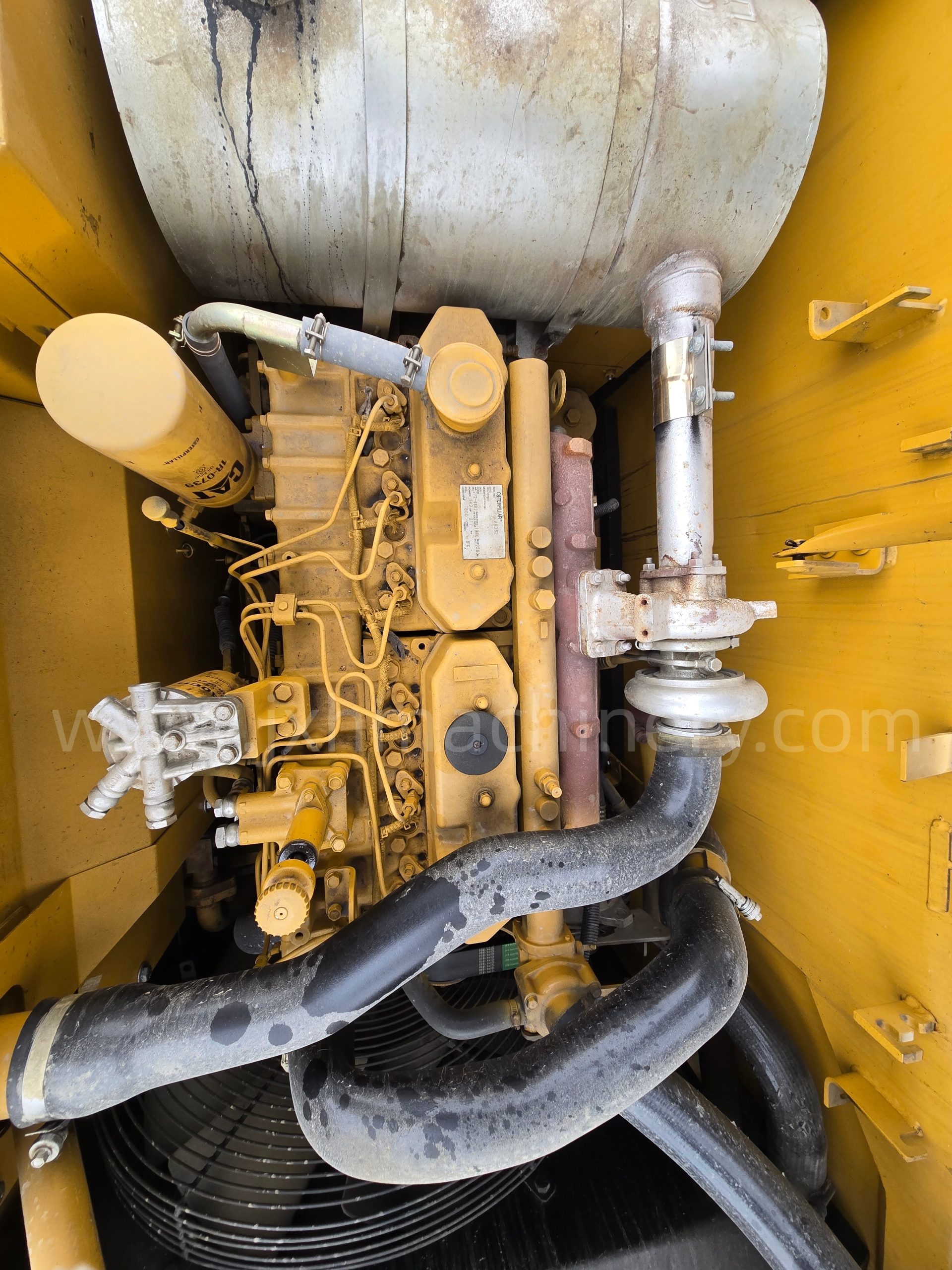

| Engine Model |
Cat 3066 ATAAC, Inline 6-cylinder, turbocharged & aftercooled, mechanical direct injection |
| Rated Net Power (ISO 9249) |
110 kW (148 hp) @1800 rpm |
| Gross Power (ISO 14396) |
117 kW (157 hp) @1800 rpm |
| Displacement |
6.4 L (390 cu in) |
| Bore × Stroke |
102 mm × 130 mm |
| Emission Standard |
EU Stage II / EPA Tier 2 |
| Standard Bucket Capacity |
1.2 m³ (1.57 yd³) |
| Boom Length |
5900 mm |
| Stick Length |
2950 mm |
| Max Digging Depth |
6980 mm (22.90 ft) |
| Max Reach at Ground Level |
10120 mm (33.20 ft) |
| Max Dumping Height |
7050 mm (23.13 ft) |
| Bucket Digging Force (ISO) |
162 kN |
| Arm Digging Force (ISO) |
128 kN |
| Max Hydraulic Pump Flow (2 main pumps) |
214 L/min (56.5 US gal/min) |
| Main Hydraulic Pressure |
34.3 MPa (4980 psi) |
| Swing Speed |
11.0 rpm |
| Travel Speed |
3.2 ~ 5.3 km/h (1.99 ~ 3.29 mph) |
| Fuel Tank Capacity |
320 L (84.5 US gal) |
| Hydraulic Tank Capacity |
145 L |
| Transport Length |
9850 mm (32.32 ft) |
| Transport Width |
2990 mm (9.81 ft) |
| Transport Height |
3020 mm (9.91 ft) |
| Standard Track Shoe Width |
600 mm (23.62 in) |
| Rear Swing Radius |
2850 mm |
| Min Ground Clearance |
460 mm |
