| Machine Class |

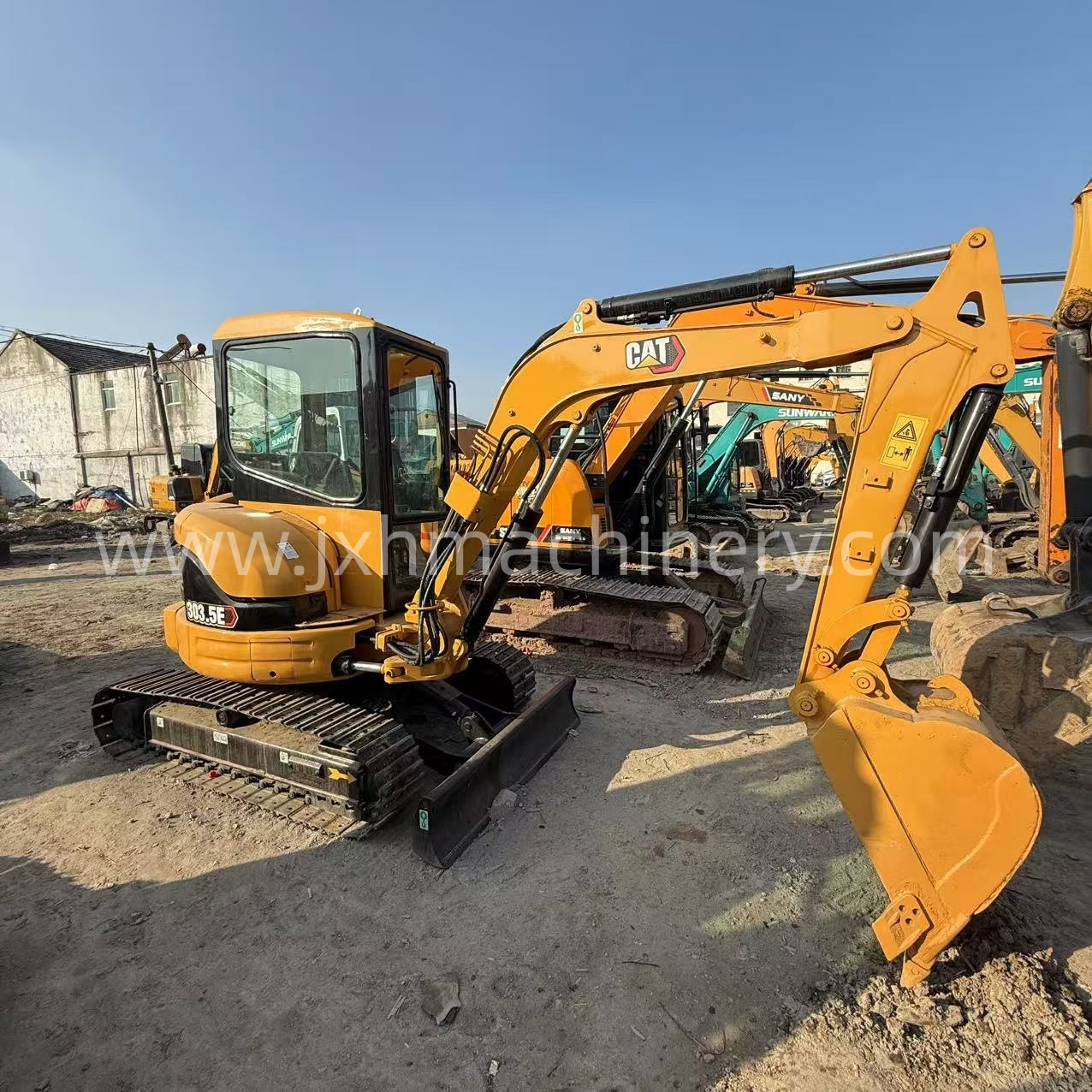

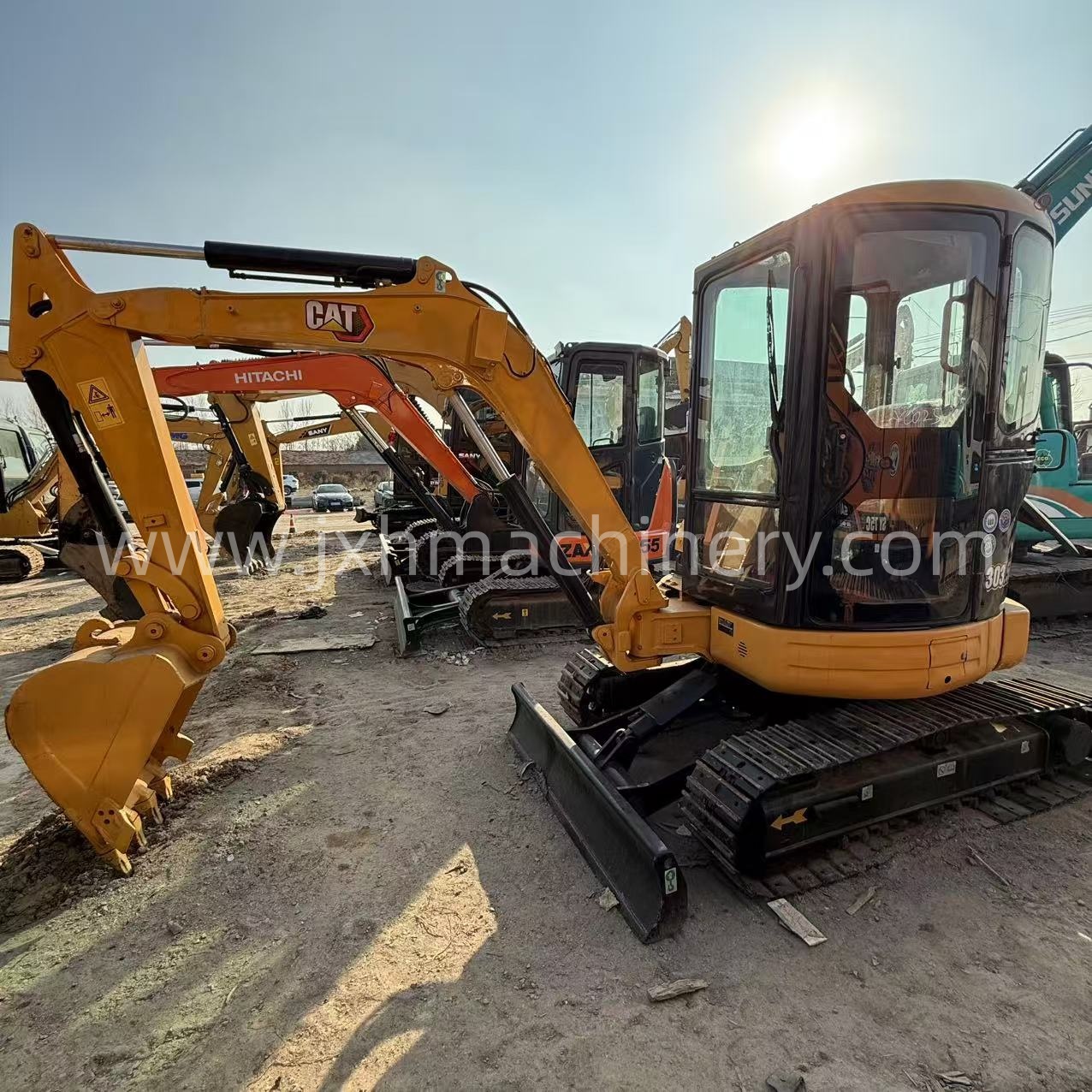

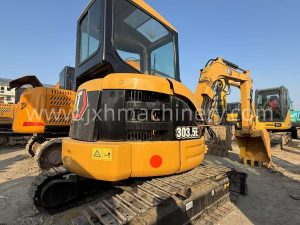

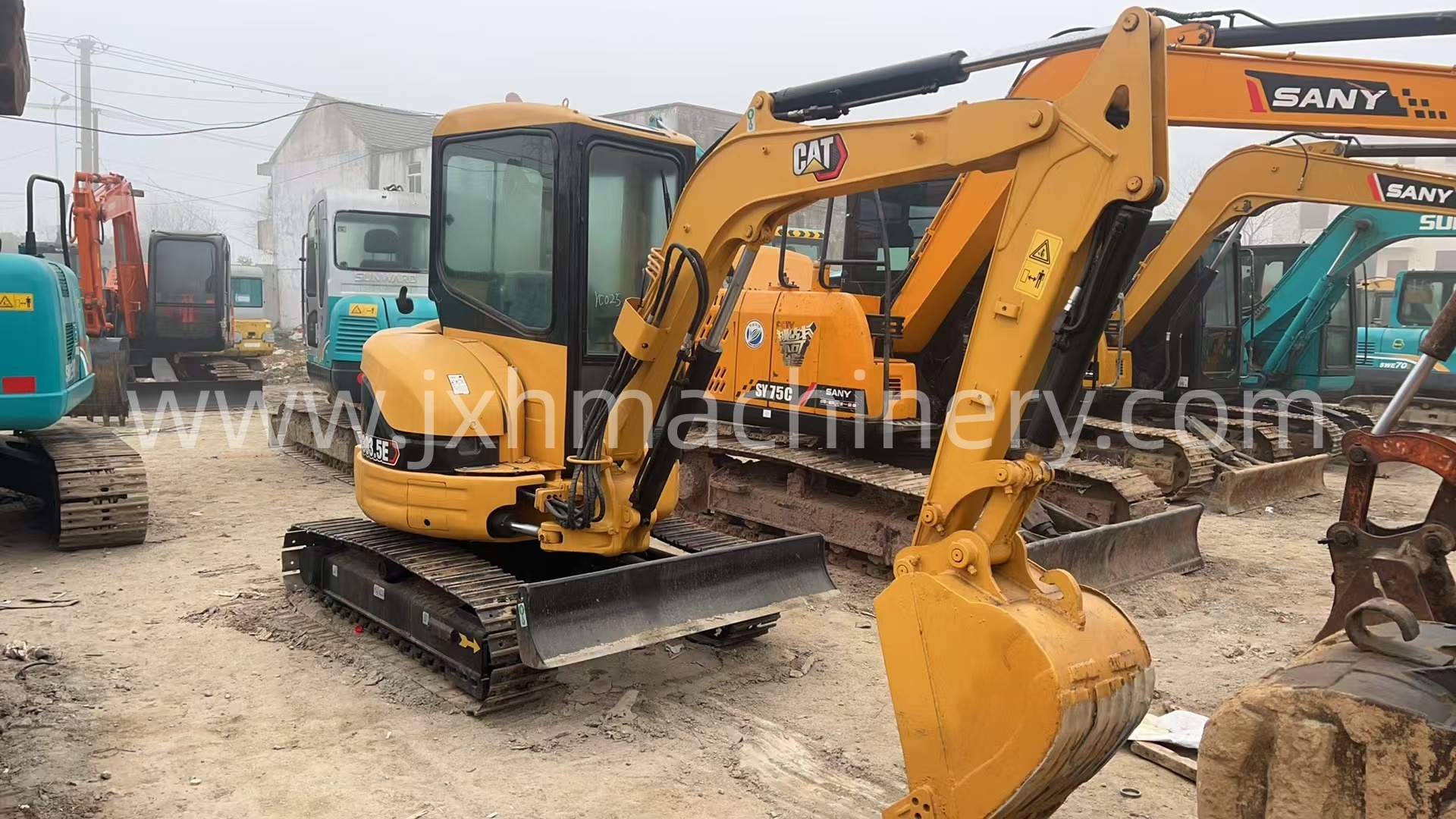

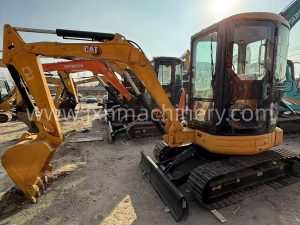

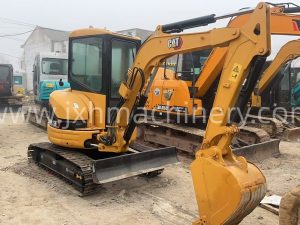

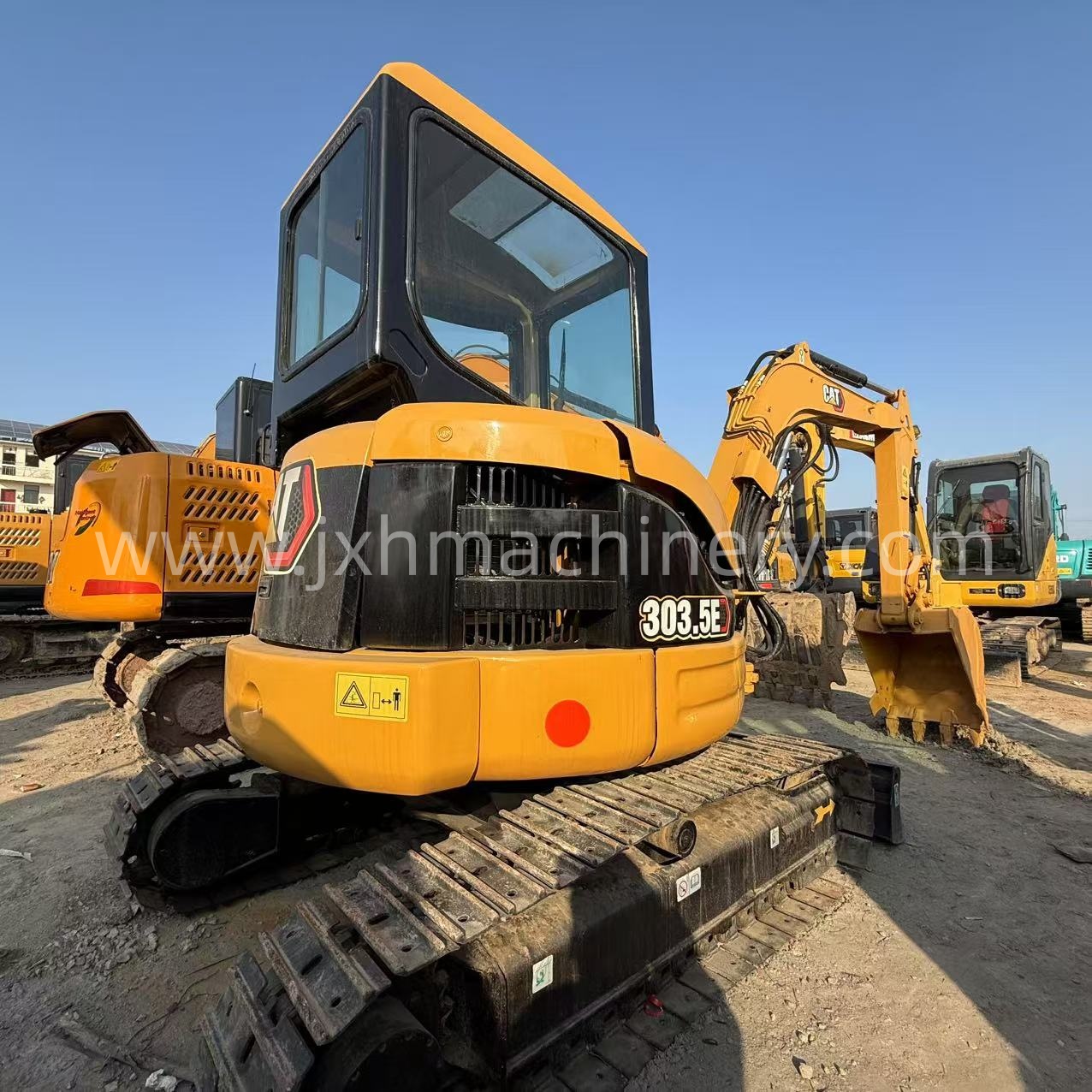

3.5 Ton Compact Radius Mini Excavator |
| Engine Model |
Cat C1.8 Direct Injection |
| Rated Net Power |
23.6 kW (31.6 hp) |
| Gross Power |
24.8 kW (33.3 hp) |
| Displacement |
1.8 L |
| Bore × Stroke |
87 × 102.4 mm |
| Emission Standard |
China Stage III / EPA Tier 2 |
| Operating Weight (with cab) |
3692 kg |
| Operating Weight (with canopy) |
3508 kg |
| Standard Bucket Capacity |
0.12 m³ |
| Main Pump Flow @2400rpm |
87.6 L/min |
| Main Working Pressure |
245 bar |
| Swing Pressure |
181 bar |
| Bucket Digging Force |
33.0 kN |
| Arm Digging Force (Standard Arm) |
18.9 kN |
| Maximum Digging Depth |
3180 mm |
| Maximum Digging Radius (at ground level) |
5060 mm |
| Maximum Digging Radius |
5200 mm |
| Maximum Digging Height |
5030 mm |
| Maximum Dumping Height |
3640 mm |
| Transport Length |
4730 mm |
| Transport Width |
1780 mm |
| Transport Height (top of cab) |
2500 mm |
| Track Shoe Width |
300 mm (rubber or steel optional) |
| Track Gauge |
1480 mm |
| Rear Swing Radius |
1260 mm |
| Dozer Blade Size |
1780 × 325 mm |
| Swing Speed |
9 rpm |
| Travel Speed (High) |
4.6 km/h |
| Travel Speed (Low) |
2.6 km/h |
| Maximum Traction Force (Low Speed) |
31.0 kN |
| Maximum Gradeability |
30° |
| Ground Pressure |
32.1 kPa |
| Fuel Tank Capacity |
46 L |
| Hydraulic Tank Capacity |
42.3 L |
| Total Hydraulic System Capacity |
65 L |
| Engine Oil Capacity |
7 L |
| Coolant Capacity |
5.5 L |
| Offset Boom |
80° left / 50° right |
| Auxiliary Hydraulic Line |
Dual Auxiliary Hydraulic Circuits |
