| Operating Weight |
326D: 26000 kg |
| Standard Bucket Capacity |
1.2 m³; Rock bucket optional 1.0 m³ |
| Boom Length |
6150 mm |
| Stick Length |
3050 mm |

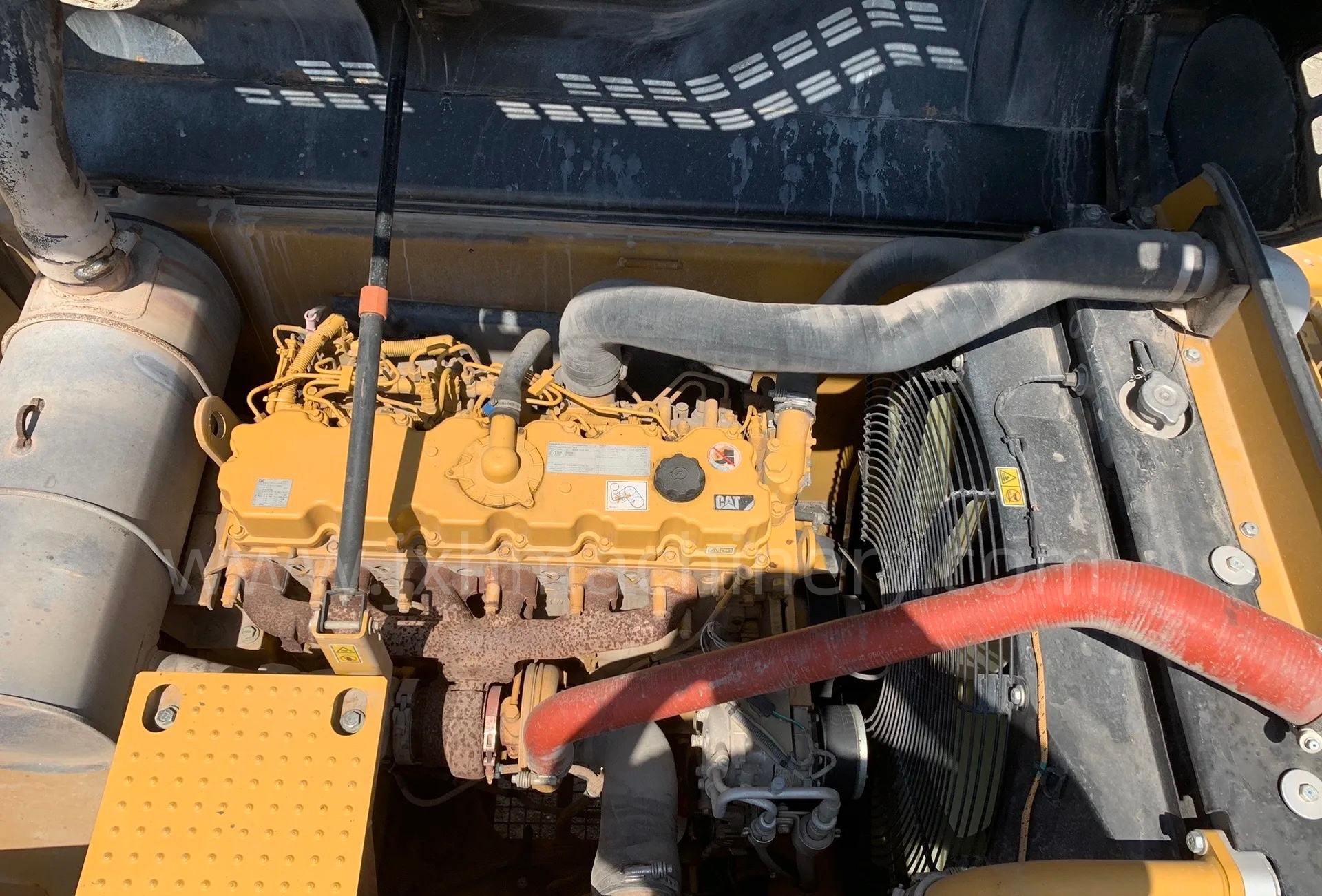

| Engine Model |
CAT C7 ACERT, 6-cylinder water-cooled direct injection |
| Displacement |
7.2 L |
| Bore × Stroke |
110 mm × 127 mm |
| Rated Net Power (ISO9249) |
147 kW (197 hp) @1800 rpm |
| Emission Standard |
EU Stage IIIA / US Tier3 |
| Main Pump Max Flow |
245 L/min |
| Main System Relief Pressure |
35 MPa |
| Swing Circuit Pressure |
24 MPa |
| Swing Speed |
9.8 rpm |
| Swing Torque |
82.0 kN·m |
| Max Traction Force |
255 kN |
| Travel Speed |
3.4 / 5.3 km/h (low / high) |
| Gradeability |
70% (35°) |
| Bucket Digging Force |
185 kN |
| Stick Digging Force |
135 kN |
| Max Digging Reach at Ground Level |
10850 mm |
| Max Digging Depth |
7130 mm |
| Max Vertical Digging Depth |
6200 mm |
| Max Dumping Height |
7080 mm |
| Max Digging Height |
10050 mm |
| Overall Transport Length |
10420 mm |
| Overall Transport Width |
2990 mm (600mm track shoe) |
| Overall Transport Height |
3260 mm |
| Cab Height |
3060 mm |
| Tail Swing Radius |
3030 mm |
| Minimum Ground Clearance |
495 mm |
| Track Contact Length |
4010 mm |
| Total Track Length |
4880 mm |
| Track Gauge |
2600 mm |
| Counterweight Clearance |
1120 mm |
| Fuel Tank Capacity |
580 L |
| Hydraulic Tank Capacity |
160 L |
| Total Hydraulic System Volume |
325 L |
| Engine Oil Capacity |
30 L |
| Cooling System Capacity |
32 L |
| Swing Reducer Oil |
11 L |
| Final Drive Oil (each side) |
7 L |
