Brand Kobelco
Model Kobelco 260-8
Year 2018
Working time 4372
Origin Japan
Engine Power 147KW/ 197HP
Inquiry Now
Category: Brand:

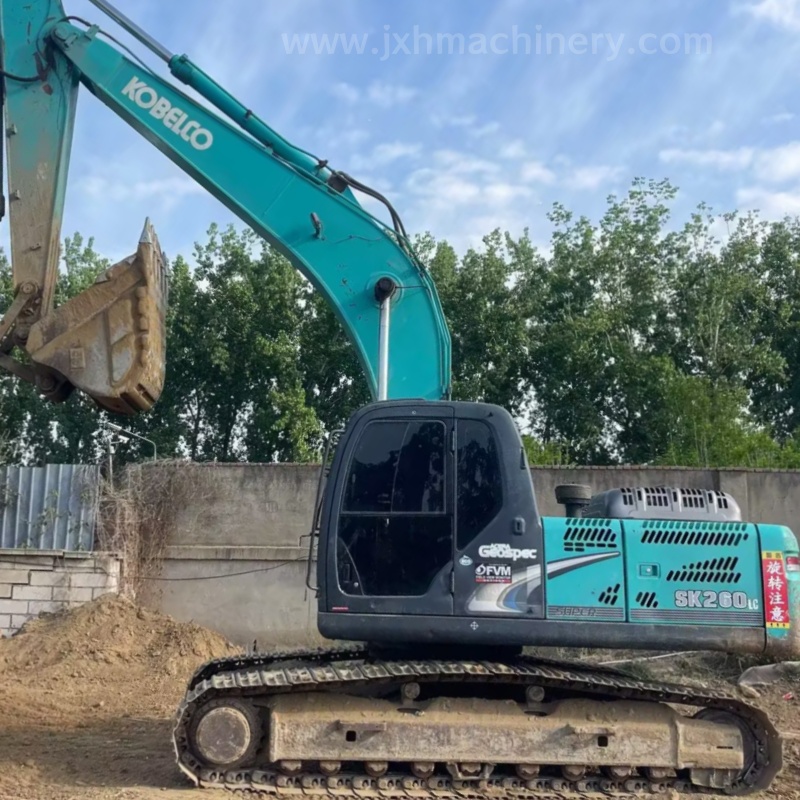

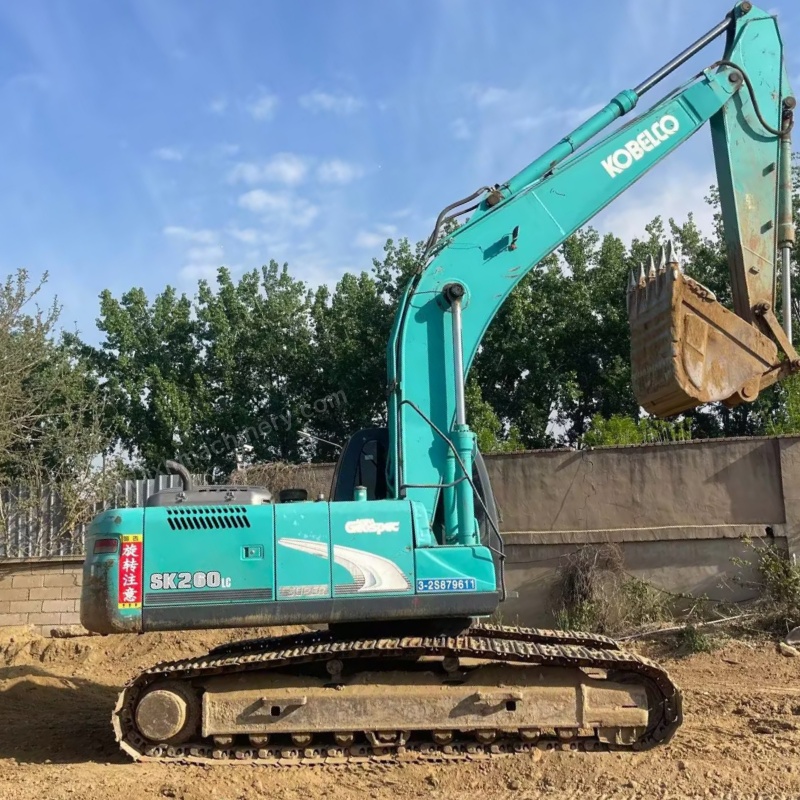

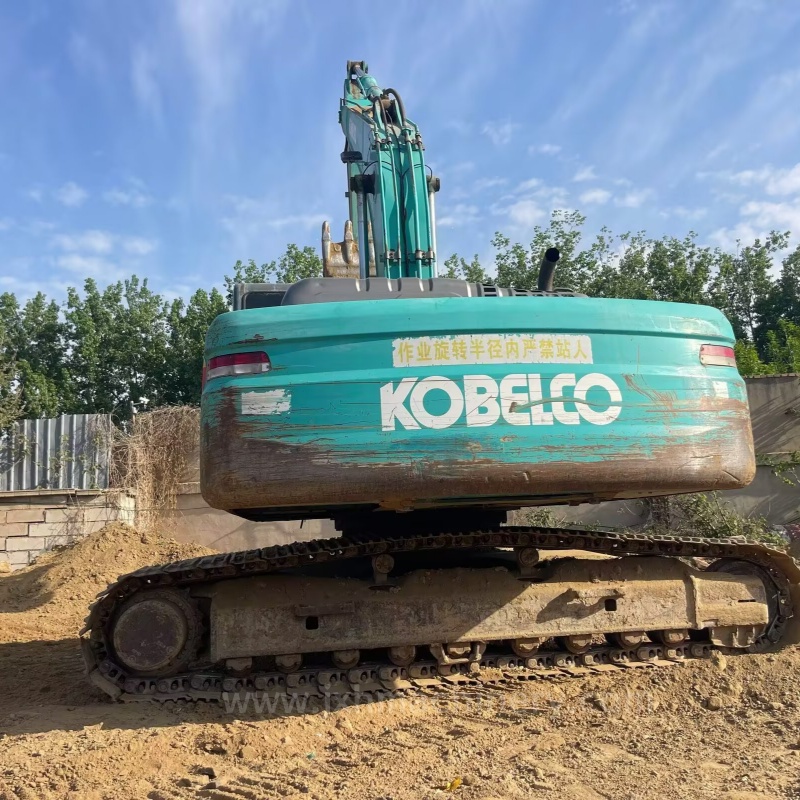

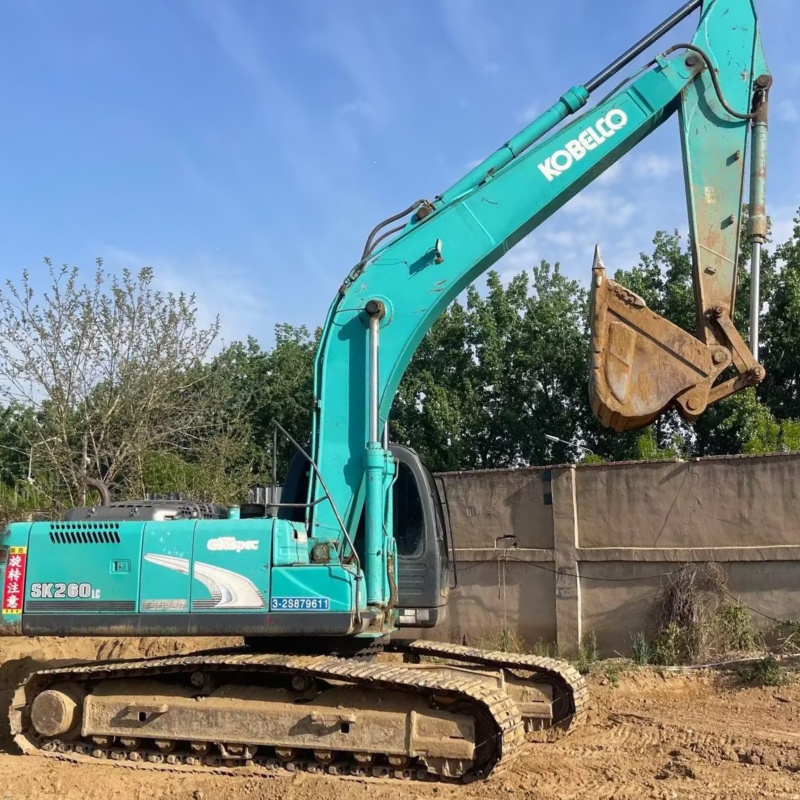

Kobelco 260-8 Crawler Excavator Technical Specifications Table

Parameter Category Specification Item Detailed Parameters Notes/Remarks
General Information Model 260-8
Operating Weight 26,500 kg Standard configuration
Bucket Capacity 1.1 – 1.5 m³ Common configuration approx. 1.3 m³
Engine Model Isuzu AH-6HK1X
Engine System Type In-line 6-cylinder, Water-cooled, Turbocharged
Displacement 7.79 L
Rated Power/Speed 147 kW / 1,950 rpm Approx. 197 HP
Emission Standard Meets China National III
Dimensions Transport Length 10,120 mm Includes bucket and boom
Transport Width 3,190 mm 600mm track shoe width
Transport Height 3,250 mm To top of cab
Track Length 5,020 mm
Ground Clearance 480 mm
Hydraulic System Main Pump Type Variable Displacement Axial Piston Pump
Main System Working Pressure 34.3 MPa
Arm Digging Force 128 kN
Bucket Digging Force 176 kN
Max. Swing Speed 10.8 rpm
