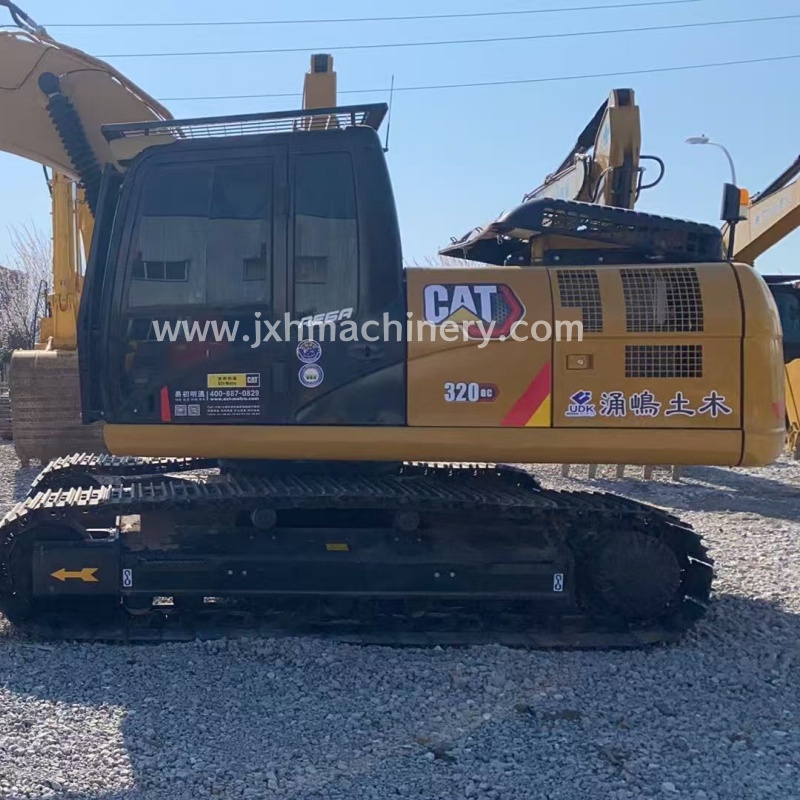

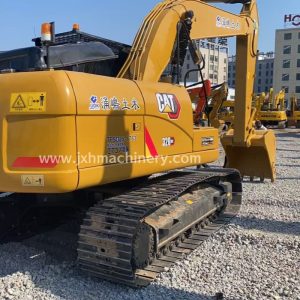

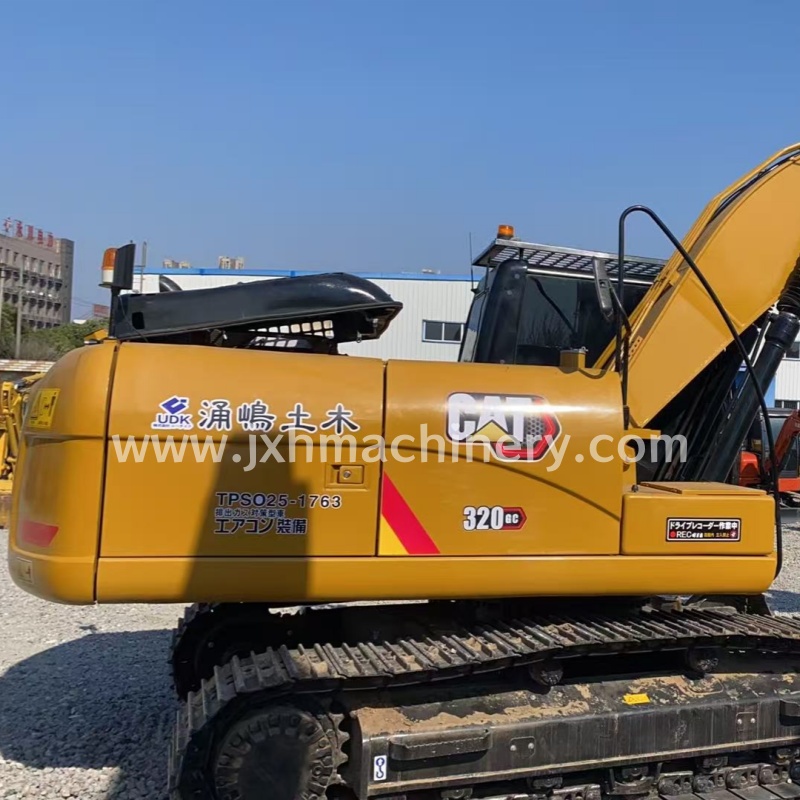

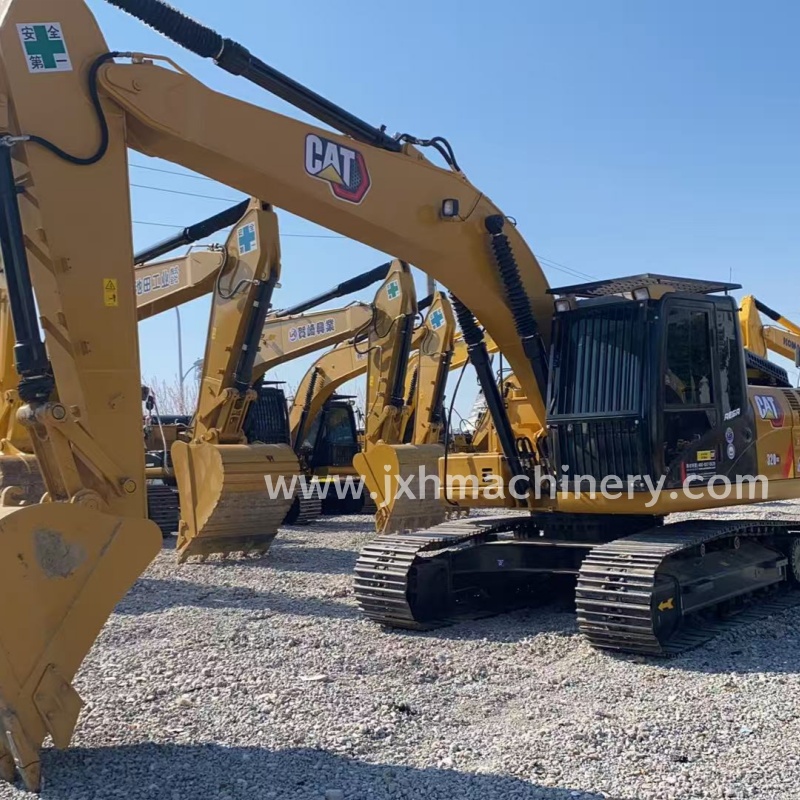

| Caterpillar 320 GC Excavator Technical Specifications Table |
| Parameter Category | Item | Specification | Notes / Explanation |
| Basic Information | Model | 320 GC | |
| Operating Weight | 20,200 kg | |
| Bucket Capacity | 0.60 – 1.10 m³ | Common configuration ~0.9 m³ |
| Engine | Model | Caterpillar C4.4 | |
| Type | Turbocharged, Electronically Controlled Diesel Engine | |
| Rated Power | 93 kW / 125 HP | |
| Displacement | 4.4 L | |
| Emission Standard | Meets China National IV / EU Stage IV | |
| Hydraulic System | Hydraulic System Type | Load Sensing System | |
| Main Pump Type | Variable Displacement Axial Piston Pump | |
| Main Pump Max. Flow | 2 x 159 L/min | Lower flow rate than 320D2 for energy saving |
| Main Relief Valve Pressure | 34.8 MPa | |
| Dimensions | Transport Length | 9,590 mm | |
| Transport Width | 2,800 mm | With 600mm track shoe |
| Transport Height | 3,010 mm | To top of cab |
| Distance between track centers | 4,140 mm | |
