$12,600.00

Brand Caterpillar （Cat）

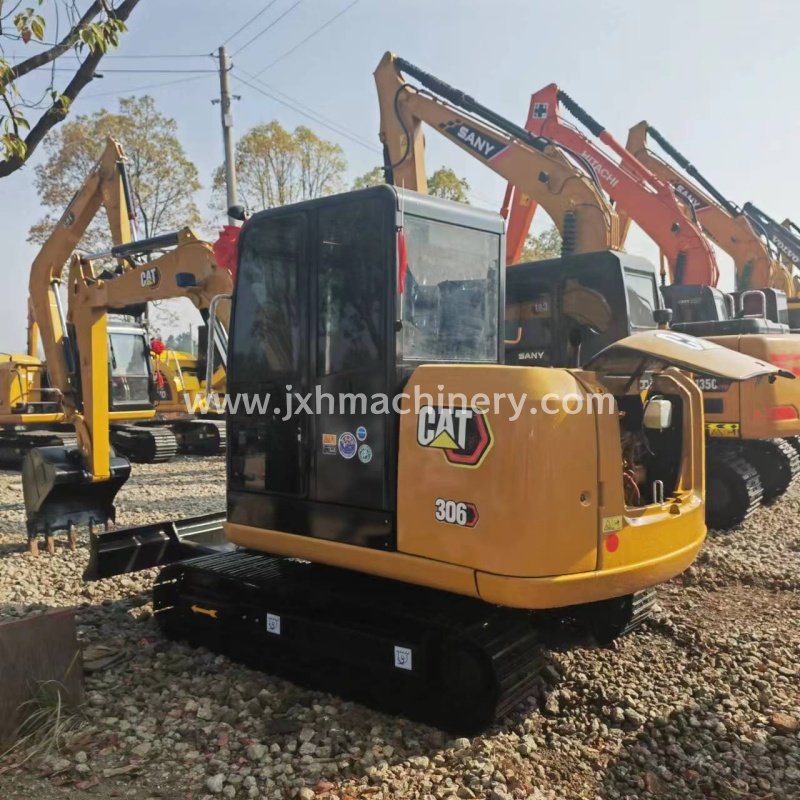

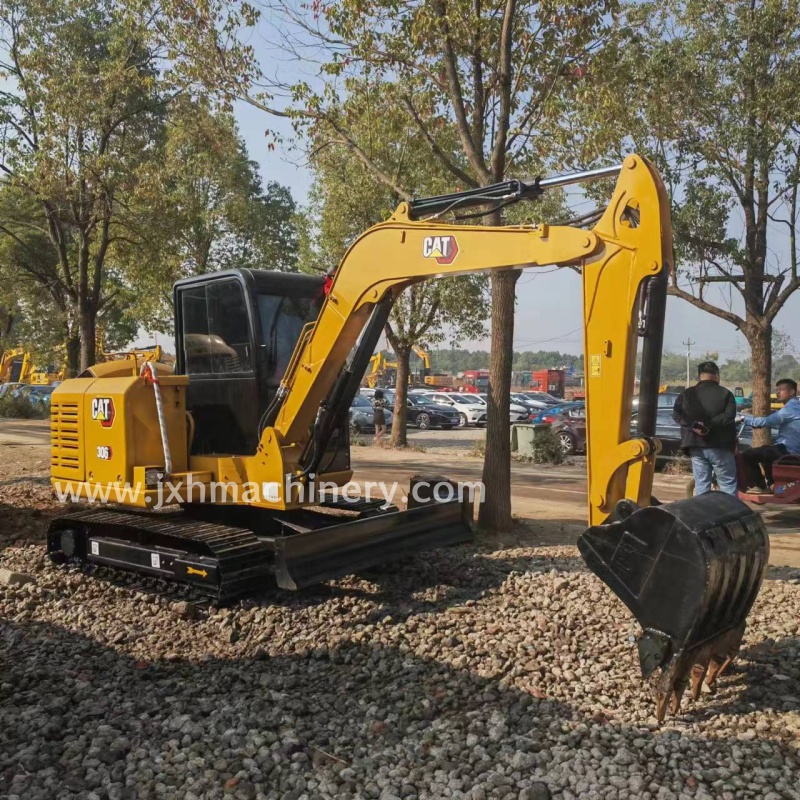

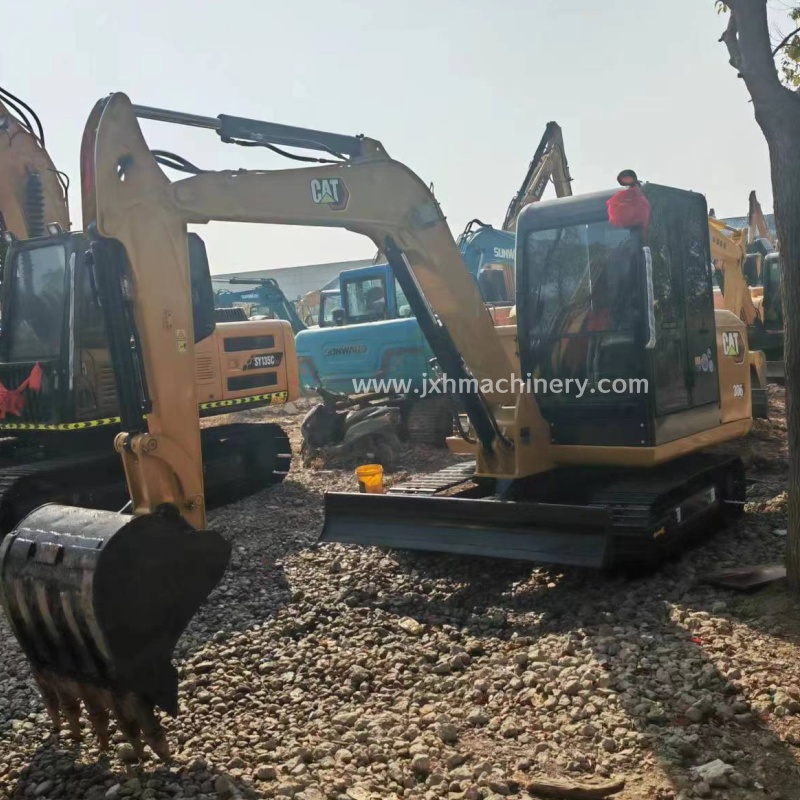

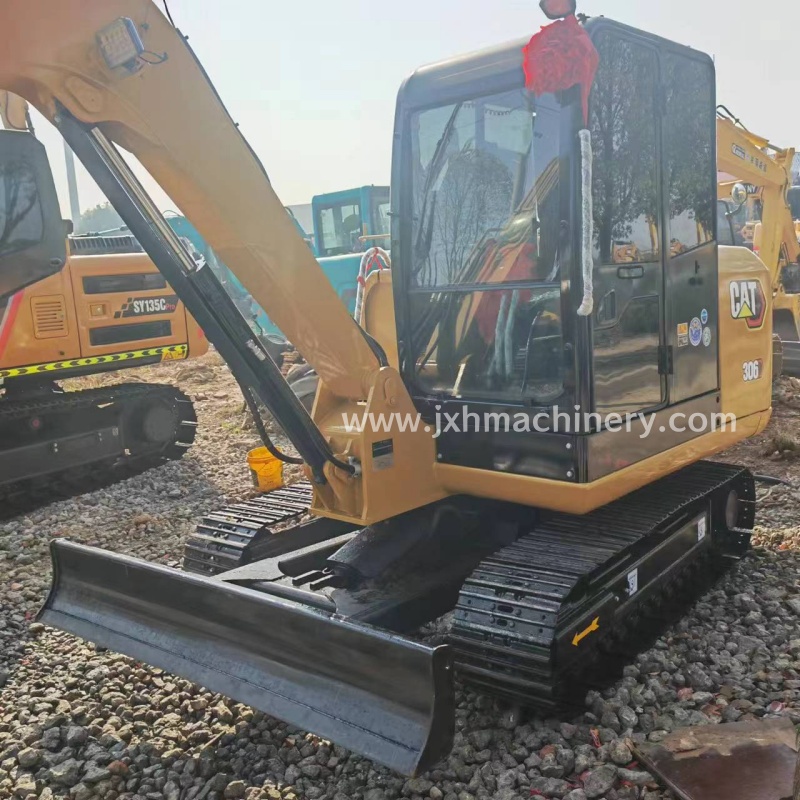

Model Caterpillar 306
Year 2024
Working time 439 hrs
Origin Japan
Size 6,340 mm×2,300 mm×2,630 mm
Engine Power 42.5 kW / 57 HP
Inquiry Now
Category: Tags: , , ,
Caterpillar 306 Mini Hydraulic Excavator Technical Specifications Table
Parameter Category Specification Item Detailed Parameters Notes/Remarks
Basic Information Model 306
Operating Weight 6,300 – 6,700 kg Varies with configuration

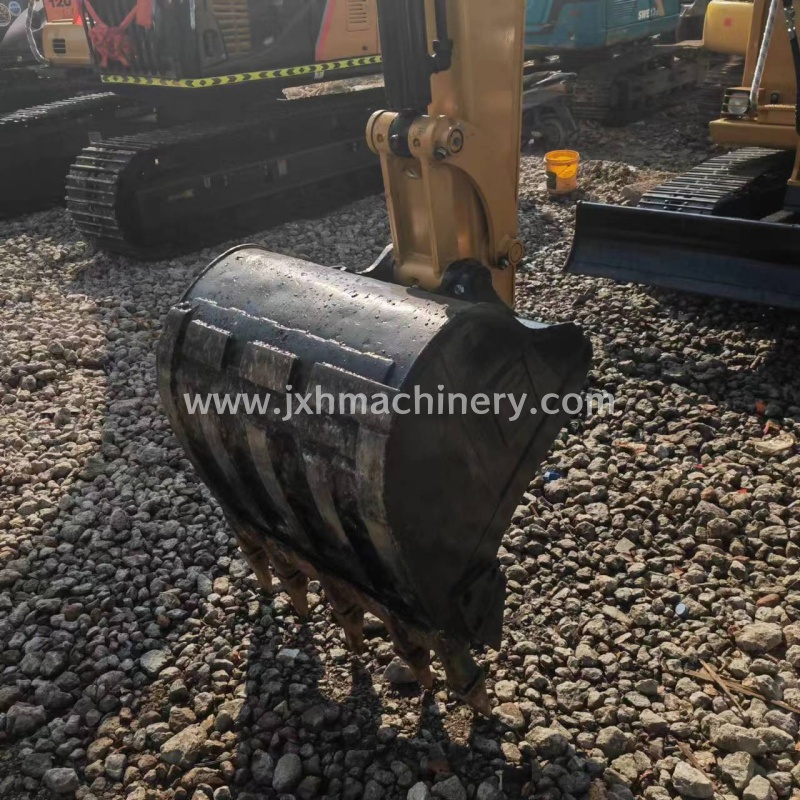

Bucket Capacity 0.10 – 0.33 m³ Common configuration approx. 0.28 m³
Engine Model Cat C2.6
Engine System Type In-line 4-cylinder, Water-cooled, Turbocharged
Displacement 2.6 L
Rated Power/Speed 42.5 kW / 2,100 rpm Approx. 57 HP
Emission Standard Meets China National IV/EU Stage V DPF technology
Hydraulic System Main Pump Type Variable Displacement Axial Piston Pump
Main System Working Pressure 34.3 MPa
Arm Digging Force 38 kN
Bucket Digging Force 49 kN
Dimensions Transport Length 6,340 mm Includes bucket and boom
Transport Width 2,300 mm 600mm track shoe width
Transport Height 2,630 mm To top of cab
