| Brand | Volvo |
| Model | Volvo EC145B |
| Year | 2023 |
| Working time | 283 |
| Origin | Sweden |
| Engine Power | 85KW/ 114HP |

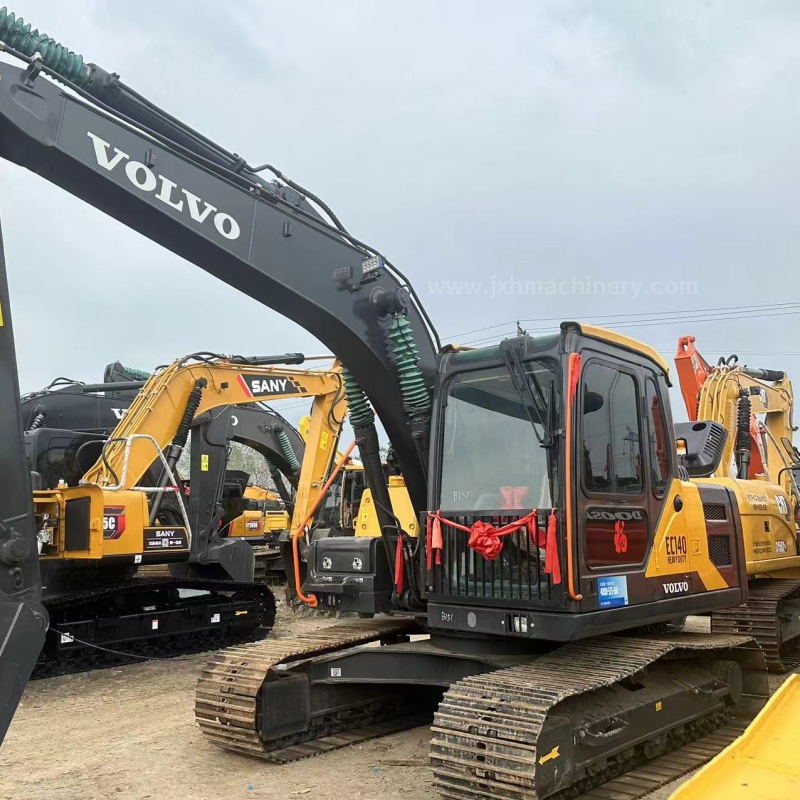

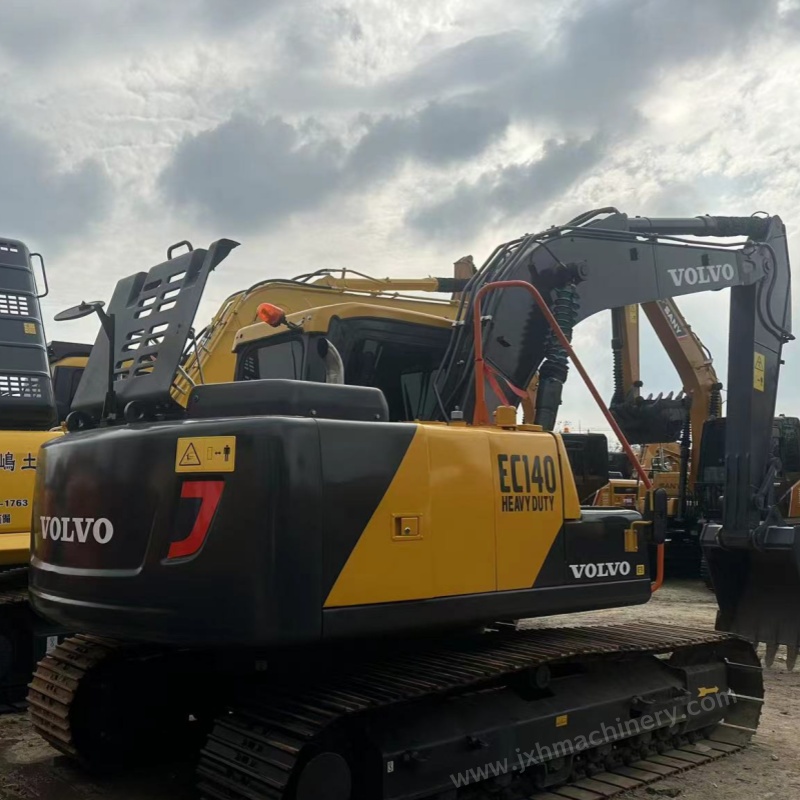

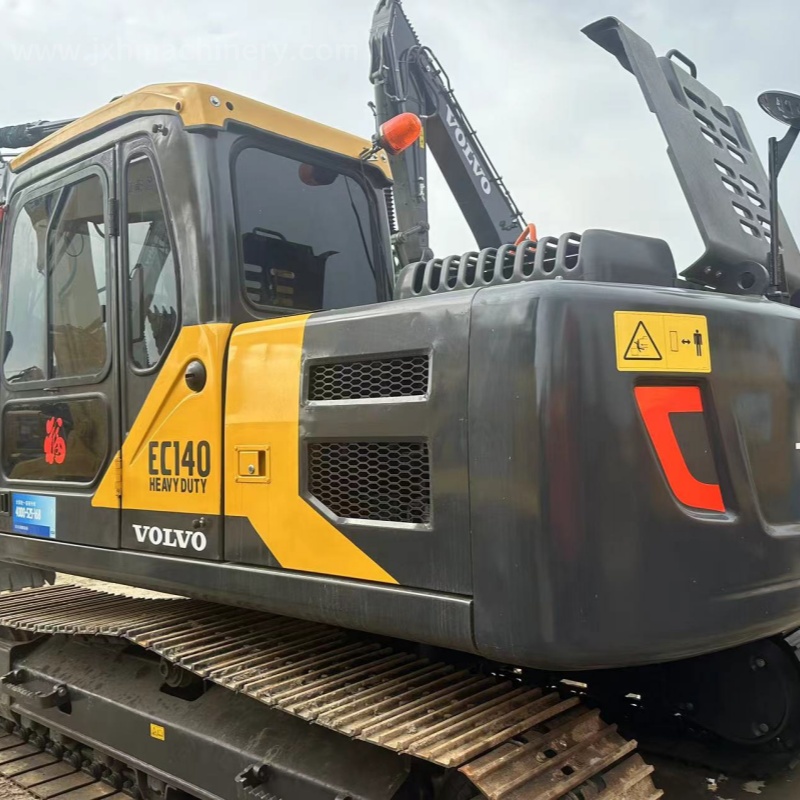

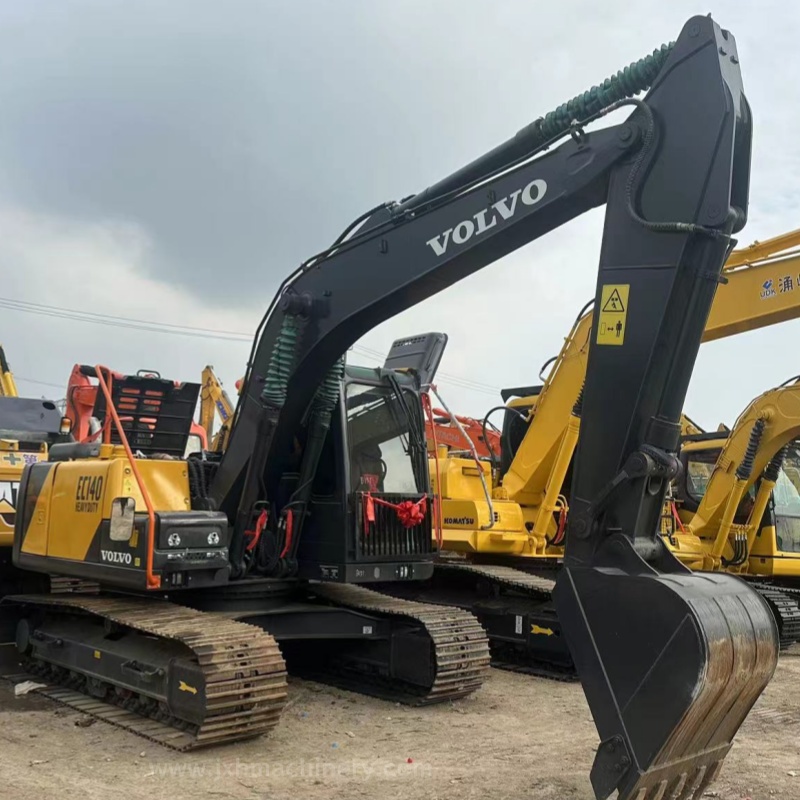

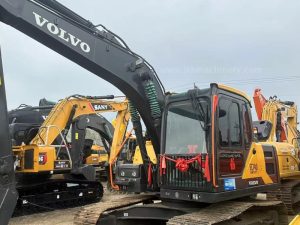

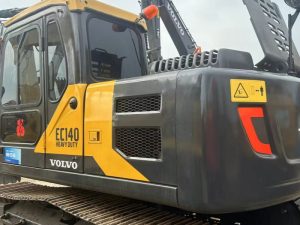

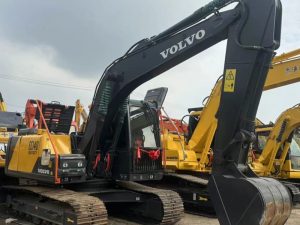

Volvo EC140B Crawler Excavator Technical Specifications Table
| Parameter Category | Specification Item | Detailed Parameters | Notes/Remarks |
|---|---|---|---|
| General Information | Model | EC140B | |
| Operating Weight | 14,500 kg | Standard configuration | |
| Bucket Capacity | 0.15 – 0.65 m³ | Common configuration approx. 0.52 m³ | |
| Engine Model | Volvo D4D | ||
| Engine System | Type | In-line 4-cylinder, Water-cooled, Turbocharged | |
| Displacement | 4.0 L | ||
| Rated Power/Speed | 85 kW / 2,000 rpm | Approx. 114 HP | |
| Emission Standard | Meets China National III | ||
| Dimensions | Transport Length | 8,950 mm | Includes bucket and boom |
| Transport Width | 2,800 mm | 600mm track shoe width | |
| Transport Height | 2,980 mm | To top of cab | |
| Track Length | 4,320 mm | ||
| Ground Clearance | 450 mm | ||
| Hydraulic System | Main Pump Type | Variable Displacement Axial Piston Pump | |
| Main System Working Pressure | 34.3 MPa | ||
| Arm Digging Force | 68 kN | ||
| Bucket Digging Force | 92 kN | ||
| Max. Swing Speed | 12.0 rpm |
