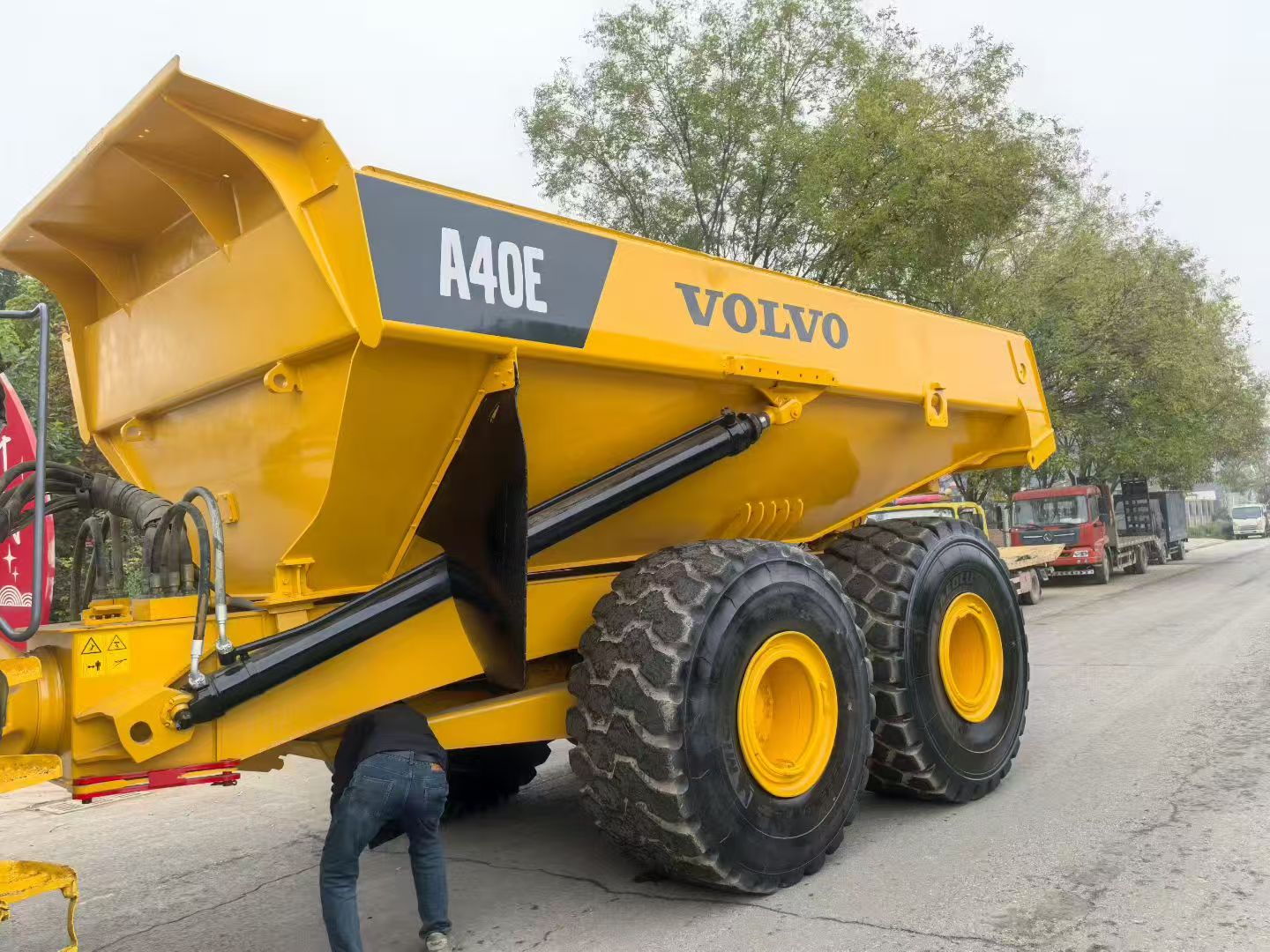

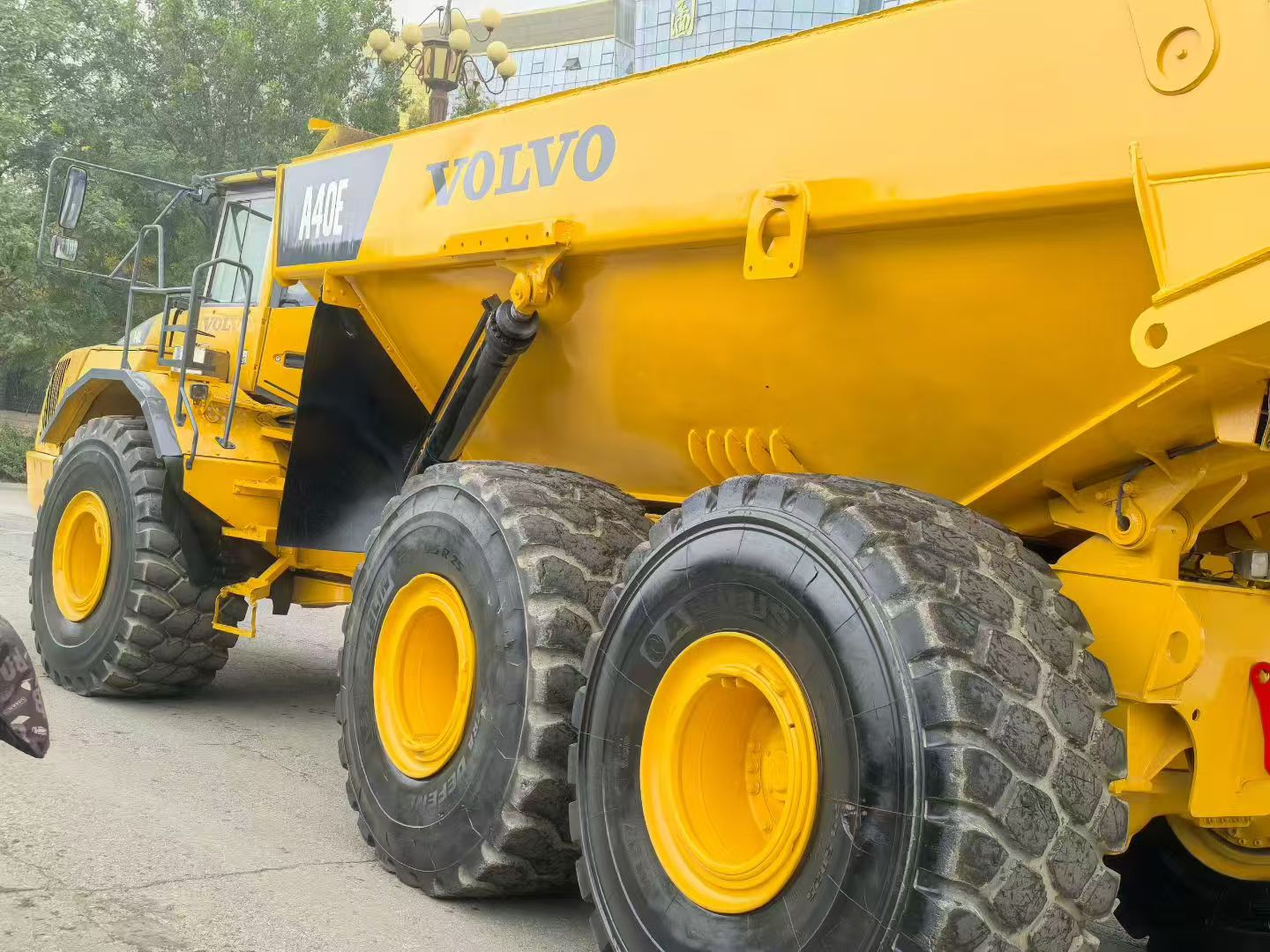

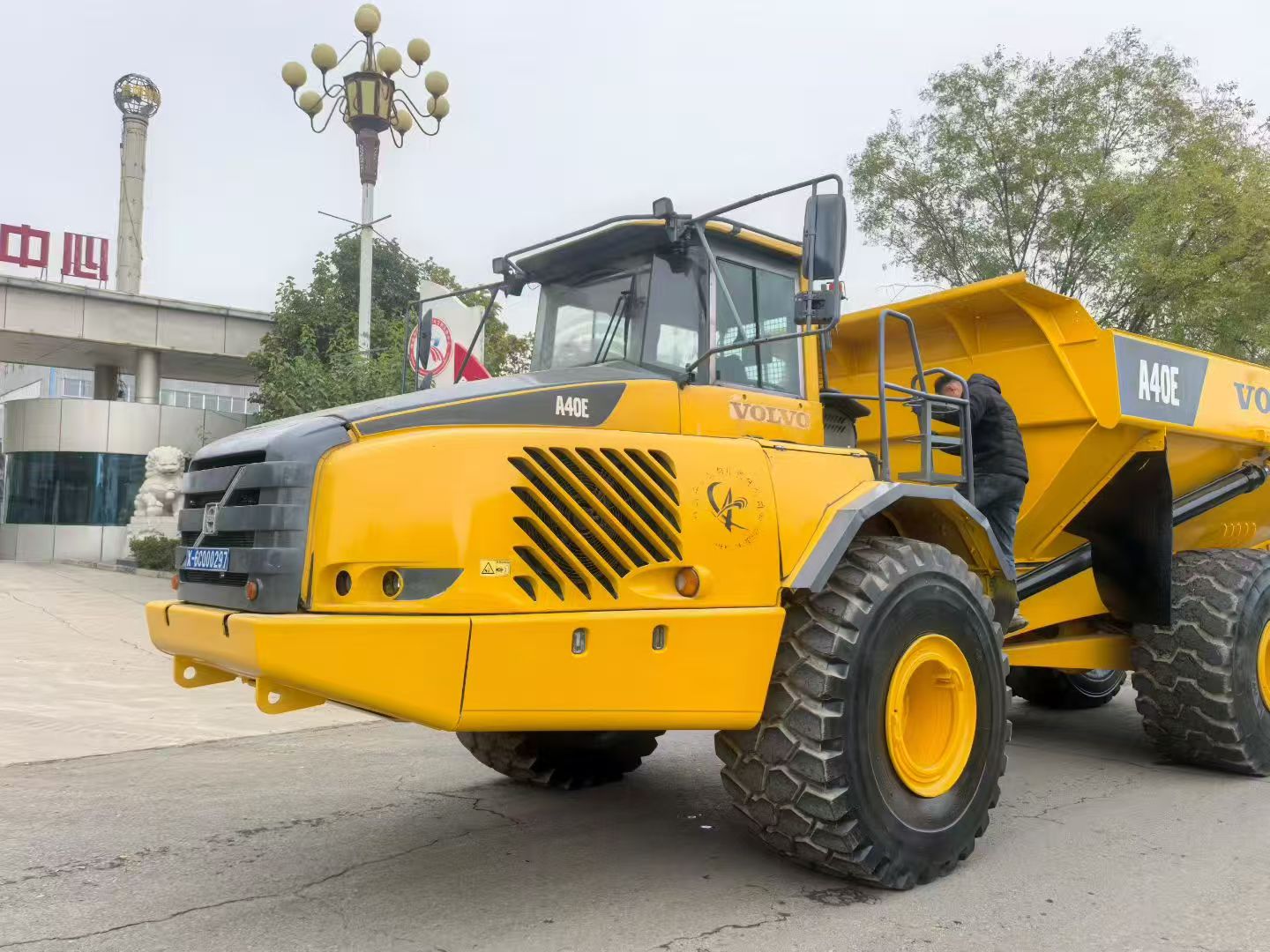

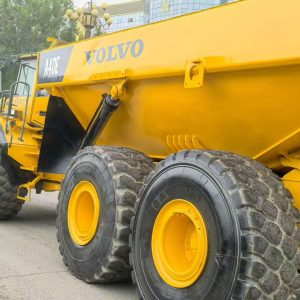

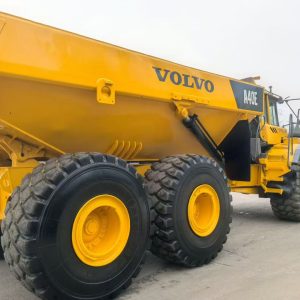

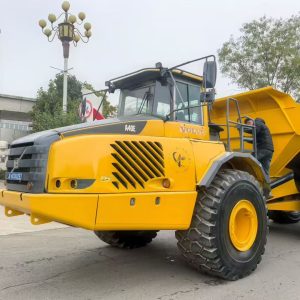

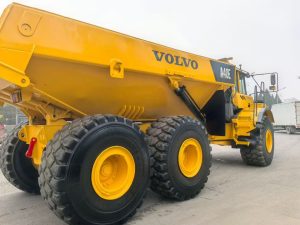

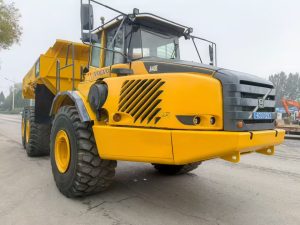

| Volvo A40E Dump Truck Technical Specifications Table |
| Parameter Category | Specification Item | Specification Details |
| Basic Information | Model | A40E |
| Manufacturer | Volvo Construction Equipment |
| Vehicle Type | Rigid Frame Dump Truck (6×4) |
| Rated Load Capacity | 40 metric tons |
| Target Applications | Quarries, mines, large-scale earthmoving projects, and other heavy-duty, severe operating conditions. |
| Powertrain | Engine Model | Volvo D13 |
| Engine Type | In-line 6-cylinder, turbocharged and intercooled, high-pressure common rail diesel engine. |
| Displacement | 12.8 liters |
| Rated Power (ISO 9249) | 324 kW / 440 hp |
| Peak Torque | Approx. 2250 Nm(Delivered at low RPM range for strong traction) |
| Emission Standard | Complies with Tier 4 Final / EU Stage IV, utilizing SCR (Selective Catalytic Reduction) technology. |
| Transmission System | Transmission | Volvo I-Shift Heavy-Duty Automated Manual Transmission (AMT), optimized for heavy off-road applications. |
| Gears | Typically 12 forward gears, 4 reverse gears. |
| Drive Axle | Volvo high-performance drive axle with hub reduction and differential lock. |
| Dimensions & Capacity | Body Capacity (SAE 2:1 heap) | Approx. 23.0 – 24.5 m³(Varies depending on body configuration) |
| Overall Length (approx.) | 8.6 meters |
| Overall Width (approx.) | 3.4 meters |
| Overall Height (approx.) | 4.1 meters |
| Wheelbase | Approx. 4.2 meters |
| Total Weight (Rated) | Approx. 72 metric tons |
