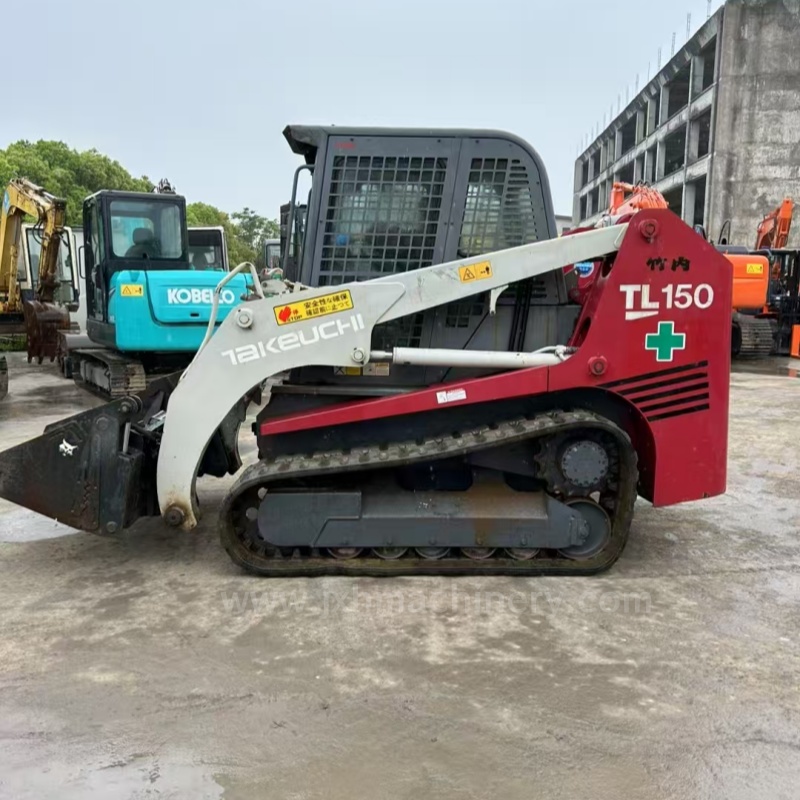

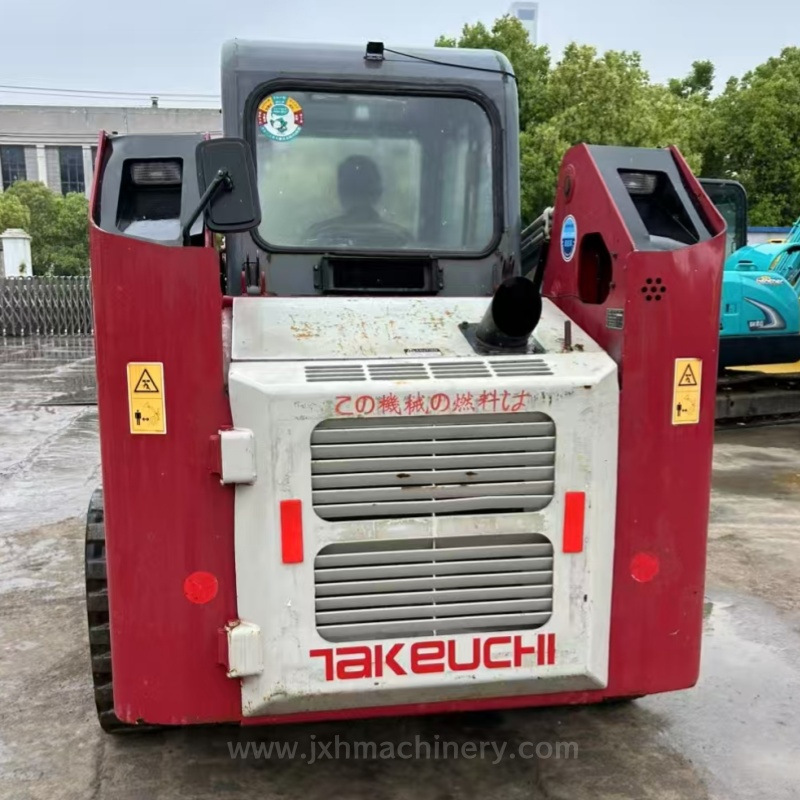

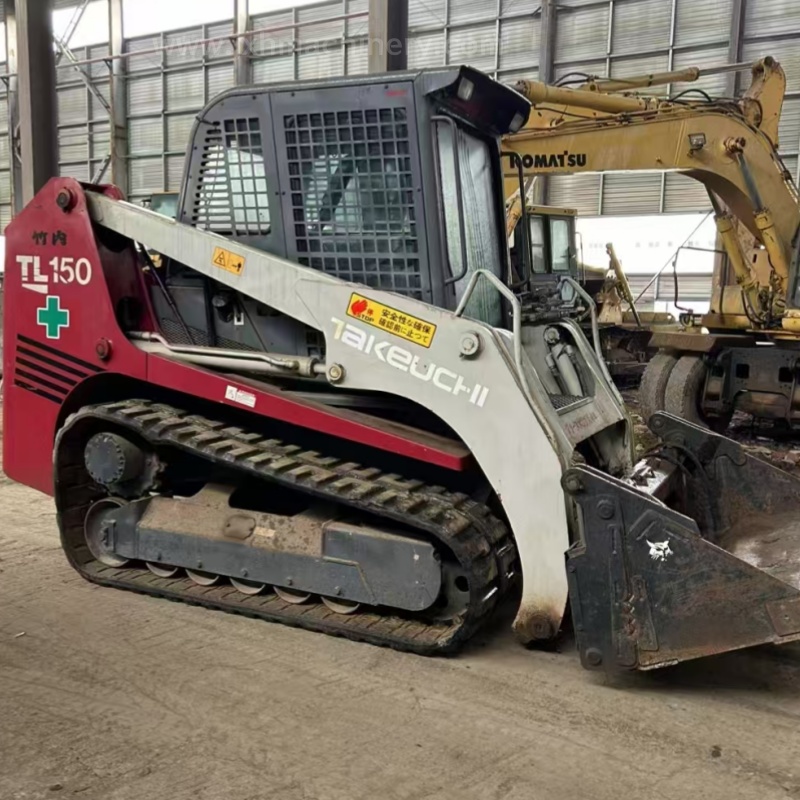

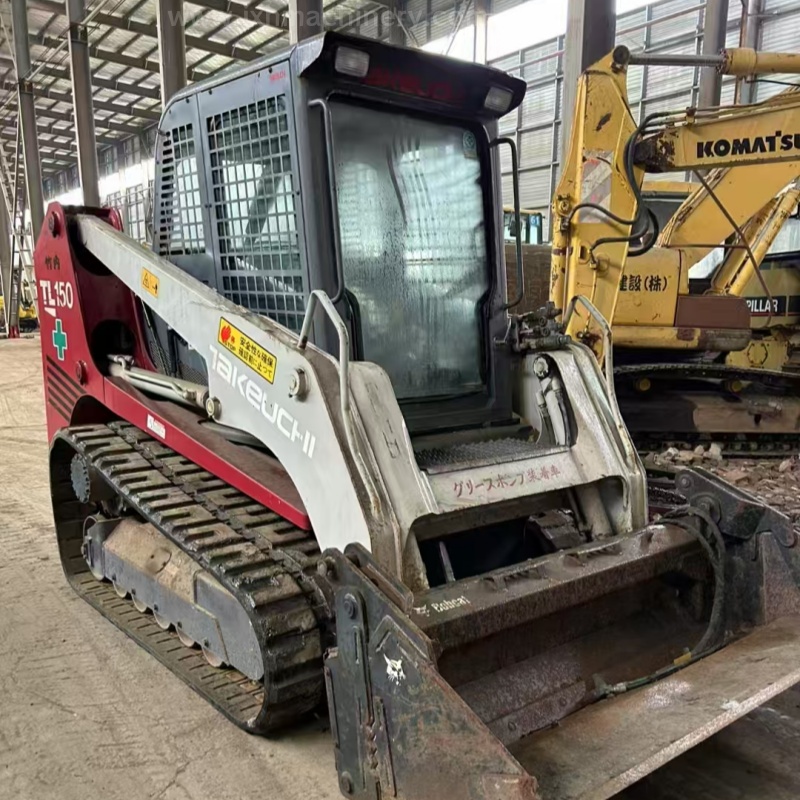

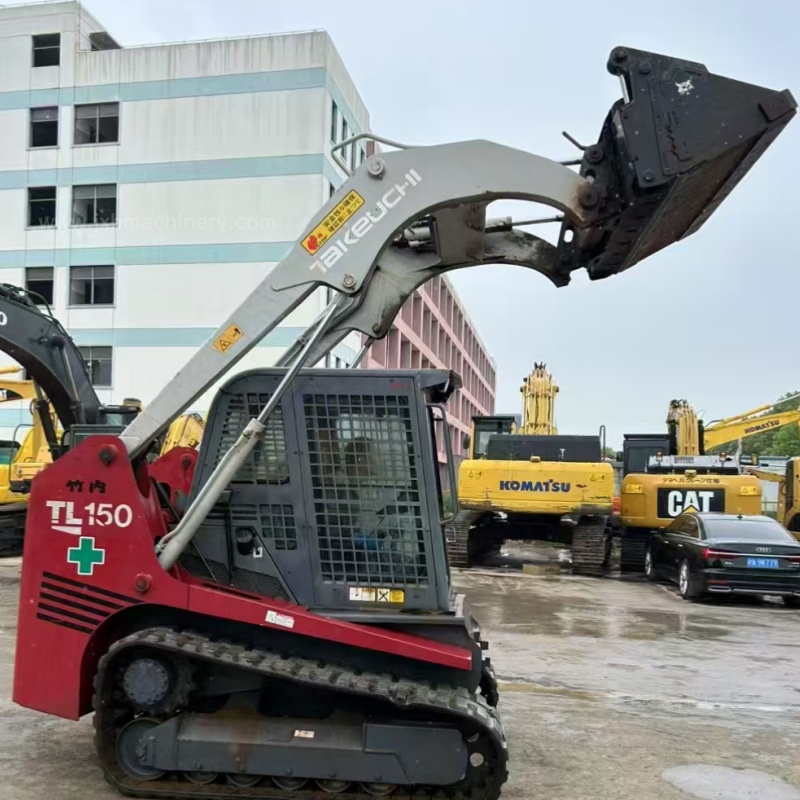

| Brand | Takeuchi |

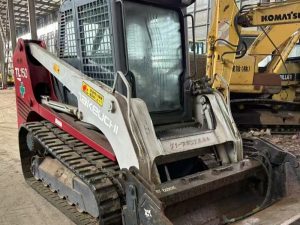

| Model | Takeuchi TL150 |
| Year | 2020 |
| Working time | 763 |
| Origin | Japan |
| Engine Power | 24.5KW/ 33HP |
Takeuchi TL150 Skid Steer Loader Technical Specifications Table
| Parameter Category | Specification Item | Detailed Parameters | Notes/Remarks |
|---|---|---|---|
| General Information | Model | TL150 | |
| Operating Weight | 1,450 kg | Standard configuration | |
| Rated Load Capacity | 500 kg | ||
| Tip Load | 1,000 kg | ||
| Engine Model | Yanmar 3TNV80 | ||
| Engine System | Type | In-line 3-cylinder, Water-cooled | |
| Displacement | 1.6 L | ||
| Rated Power | 24.5 kW | Approx. 33 HP | |
| Emission Standard | Meets China National IV | ||
| Dimensions | Overall Length | 2,980 mm | Without attachment |
| Overall Width | 1,450 mm | ||
| Overall Height | 1,980 mm | To top of ROPS | |
| Wheelbase | 1,080 mm | ||
| Ground Clearance | 170 mm | ||
| Hydraulic System | Main Pump Type | Gear Pump | |
| Working Pressure | 19.6 MPa | ||
| Flow Rate | 45 L/min | ||
| Auxiliary Hydraulic Flow | 30 L/min | Optional | |
| Lift Mechanism | |||
| Lift Height | 2,450 mm | To pivot pin | |
| Dump Height | 1,780 mm | ||
| Breakout Force | 1,200 kg | ||
| Lift Capacity | 650 kg | To full height |
