Brand Sany
Model SY95C
Year 2023
Working Hours 1500
Origin China
Size
Engine Power 49.5KW
Inquiry Now
Category: Brand:

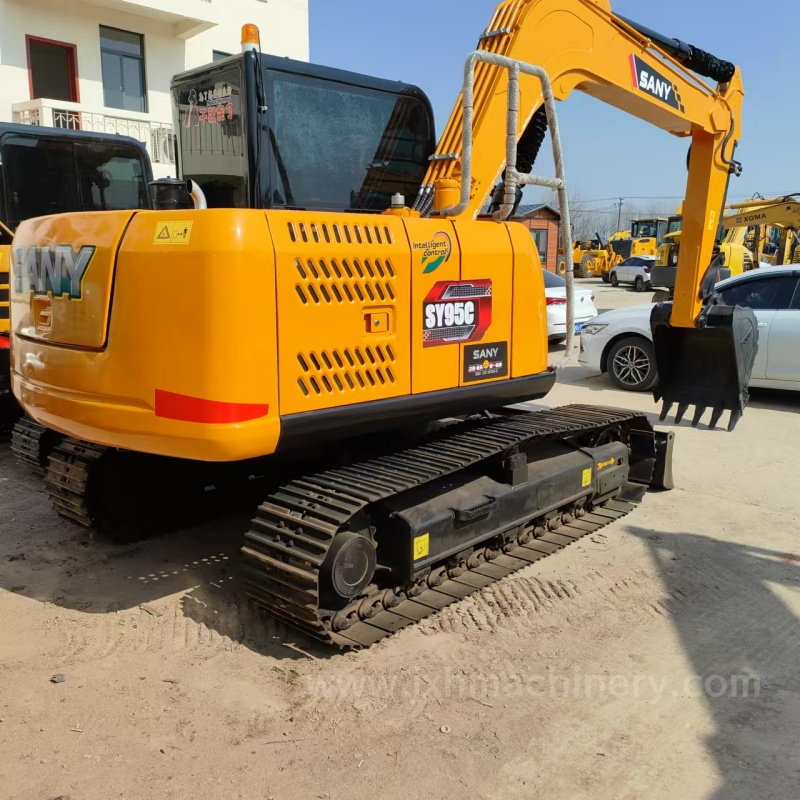

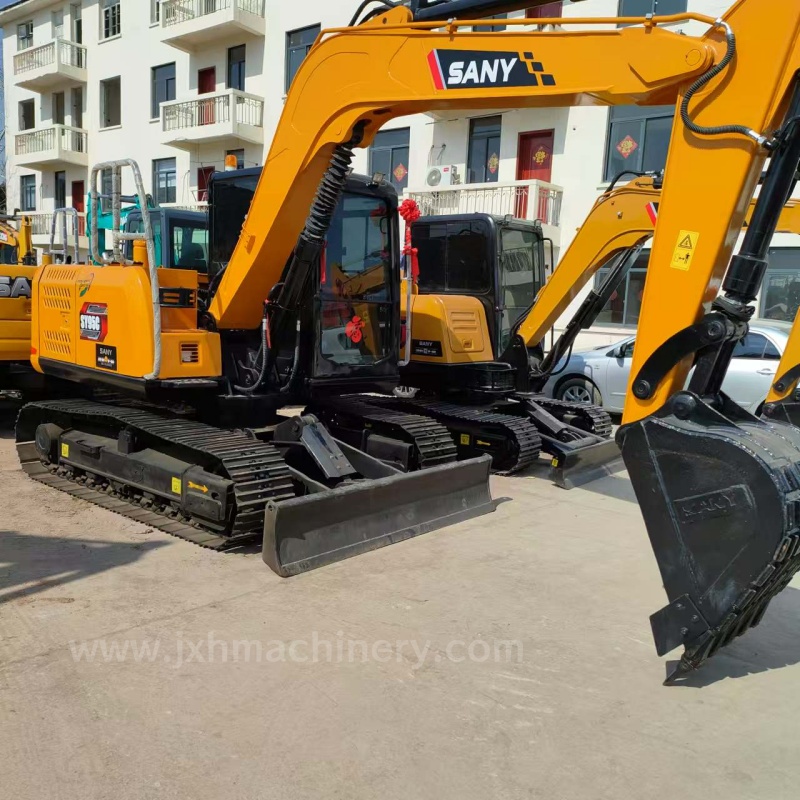

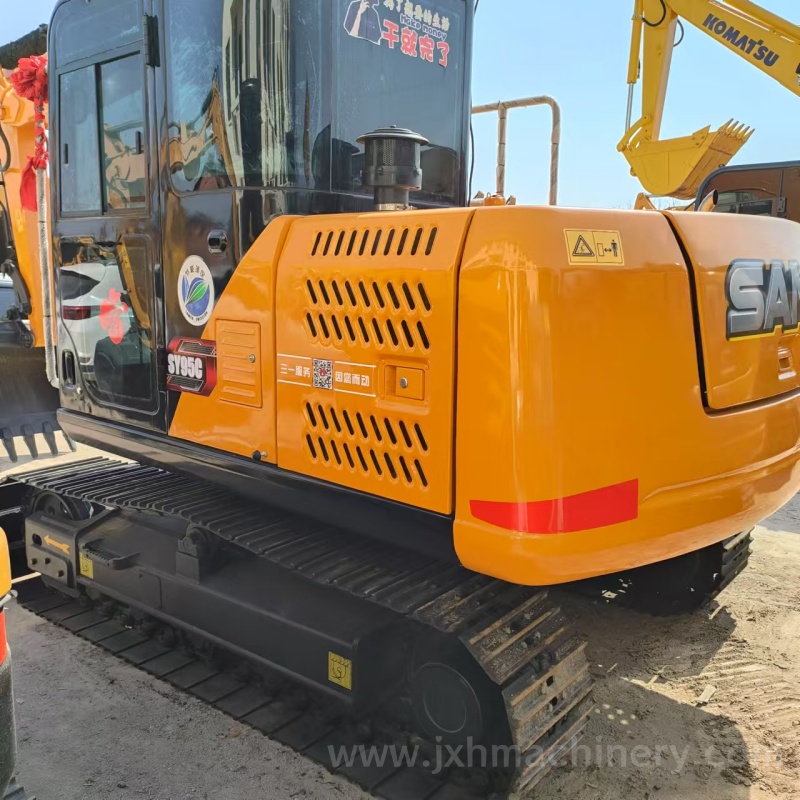

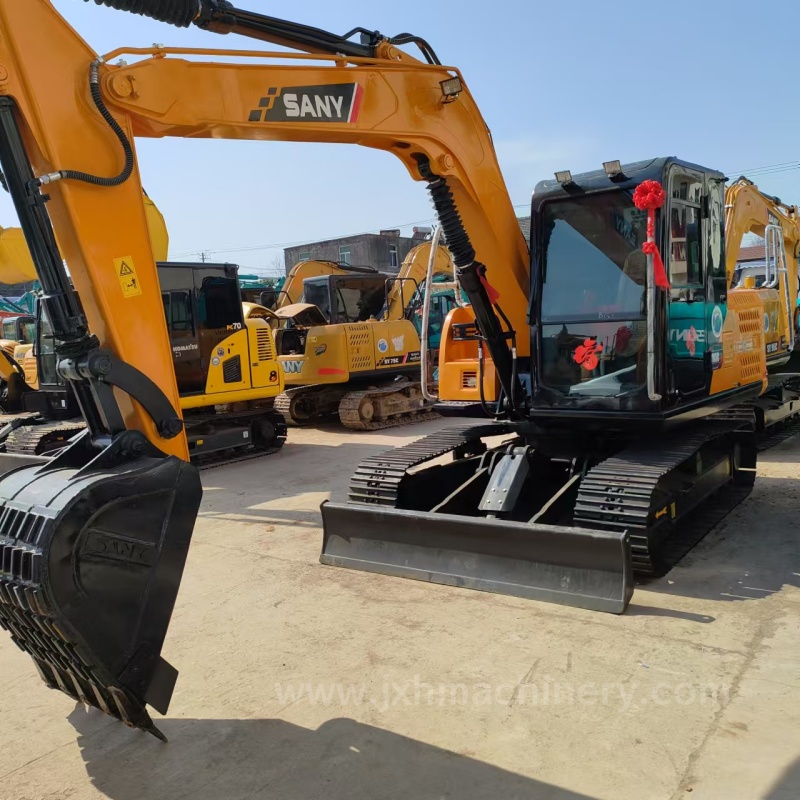

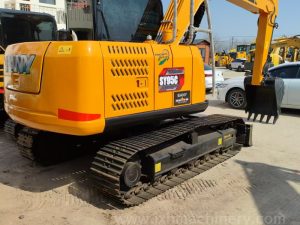

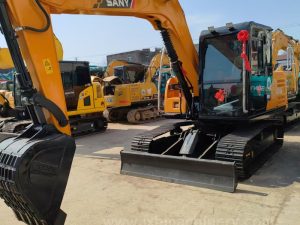

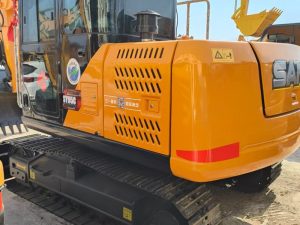

Sany SY95C Crawler Excavator

Technical Specifications
Operating Weight
9,180 kg20,238 lb
Ground Pressure
38.6 kPa5.6 psi
Engine Yanmar 4TN98CT-VSY
Displacement
3.3 L201.4 in3
Net Power
49.5 kW66.4 hp
Gross Power
53.7 kW72 HP
Hydraulics Load Sensing with Pilot Control
Main Hydraulic Pump Axial Piston – Variable Displacement
Operating Flow (maximum)
199.5 L/min52.7 gal/min
Operating Pressure (maximum)
26.3 MPa3,814 psi
Auxiliary Flow*
––
Auxiliary Pressure
––
Travel Motor Axial Piston with Park Brake
Travel Pressure (maximum)
26.3 MPa3,814 psi
Travel Speeds (maximum)
2.9 / 5.0 km/hr1.8 / 3.1 mph
Travel Effort (maximum)
83.0 kN18,659 lbf
Grade Capability 35º
Swing Motor Axial Piston with Swing Brake
Swing Pressure (maximum)
21.5 MPa3,118 psi
Swing Speed (maximum) 11 rpm
Undercarriage (standard) Steel Track
Track Shoe Width (standard)
450 mm18″
Track Rollers (per side) 5
Carrier Rollers (per side) 1
