Brand Sany
Model SY35U
Year 2024
Working Hours 500
Origin China
Size
Engine Power 17.4KW
Inquiry Now
SKU: SYC35U110701 Category: Brand:

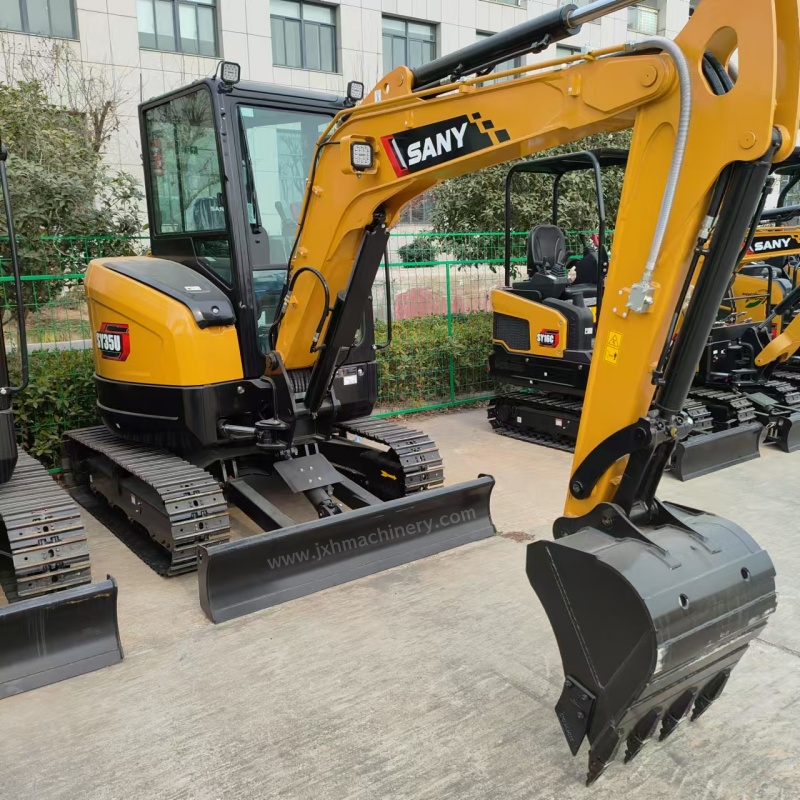

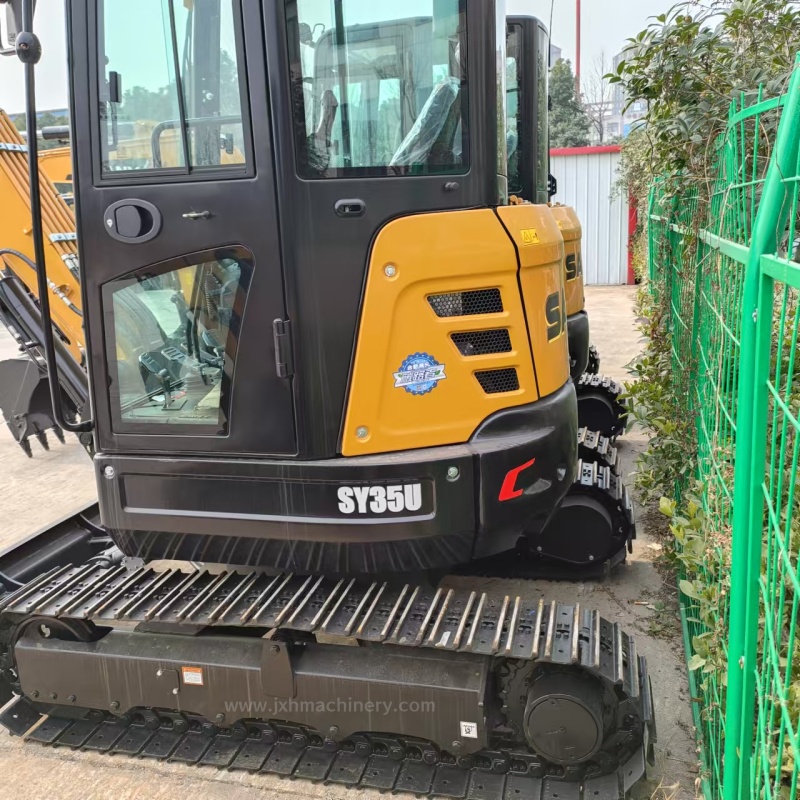

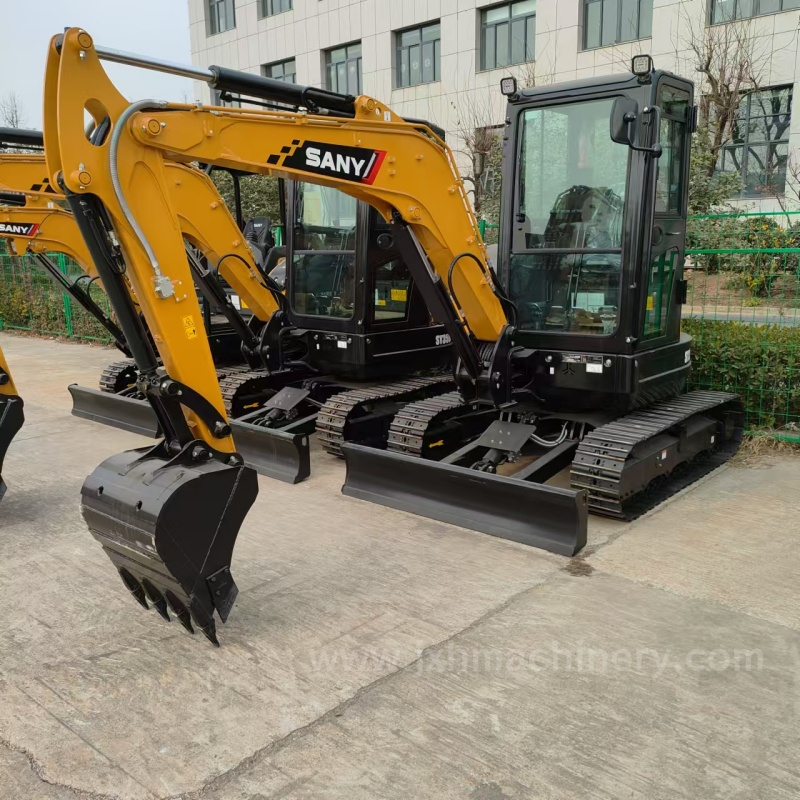

Sany SY35U Crawler Excavator

Technical Specifications
Operating Weight
3,855 kg8,499 lb
Ground Pressure
32.0 kPa4.6 psi
Engine Yanmar 3TNV88
Displacement
1.6 L97.6 in3
Net Power
17.4 kW23.3 hp
Gross Power
18.2 kW24.4 HP
Hydraulics Load Sensing with Pilot Control
Main Hydraulic Pump Axial Piston – Variable Displacement
Operating Flow (maximum)
88.0 L/min23.2 gal/min
Operating Pressure (maximum)
24.5 MPa3553 psi
Auxiliary Flow*
––
Auxiliary Pressure
––
Travel Motor Axial Piston with Park Brake
Travel Pressure (maximum)
24.5 MPa3553 psi
Travel Speeds (maximum)
2.4 / 4.4 km/hr1.5 / 2.7 mph
Travel Effort (maximum)
36.8 kN8,273 lbf
Grade Capability 35º
Swing Motor Axial Piston with Swing Brake
Swing Pressure (maximum)
20.6 MPa2988 psi
Swing Speed (maximum) 9 rpm
Undercarriage (standard) Belted Rubber Track
Track Shoe Width (standard)
300 mm12″
Track Rollers (per side) 4
Carrier Rollers (per side) 1
